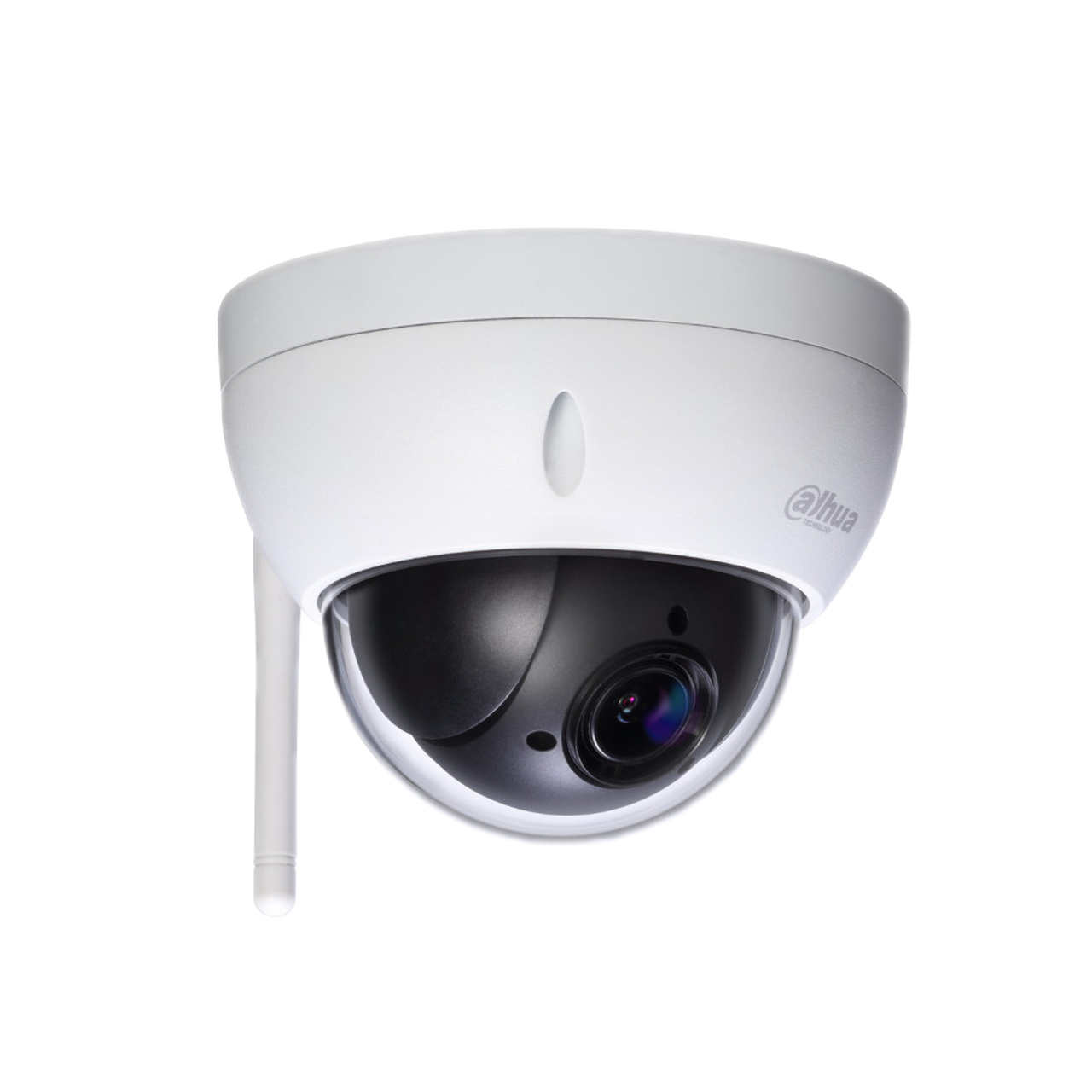

Dahua 2MP IP66, IK10 Mini PTZ IP Security Camera 2.7mm~11mm 4x Optical Zoom Lens
Dahua 2MP IP66, IK10 Mini PTZ IP Security Camera 2.7mm~11mm 4x Optical Zoom Lens
Dahua 2MP IP66,IK10 WiFi Mini PTZ Network Security Camera 2.7mm~11mm, 4x Optical Zoom Lens
The 2 MP Starlight WiFi Mini PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 4x optical zoom lens, and provides an all-in-one solution for capturing video surveillance for indoor and outdoor applications over a WiFi network. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True Wide Dynamic Range for applications.
- 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
- 1080p at 30 fps Maximum Resolution
- H.265 and H.264 Dual Codecs
- 2.7 mm to 11 mm, 4x Optical Zoom
- Triple-stream Encoding
- WiFi Support (IEEE 802.11b/g/n)
- Starlight Technology for Ultra-low Light Sensitivity
- True Wide Dynamic Range (120 dB)
- Intelligent Video System (IVS)
- IP66 Ingress Protection and IK10 Vandal Resistance
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Features:
Camera
- Image Sensor 1/2.8-in. STARVIS™ CMOS Sensor
- Effective Pixels 1920(H) x 1080(V), 2 MP
- RAM/ROM 256 MB / 128 MB
- Scanning System Progressive
- Electronic Shutter Speed 1/1 s to 1/30,000 s
- Minimum Illumination Color: 0.005 lux at F1.6 B/W: 0.0005 lux at F1.6
Lens
- Focal Length 2.7 mm to 11 mm
- Max. Aperture F1.6
- Angle of View Horizontal: 30° to 112.5°
- Optical Zoom 4x
- Focus Control Auto, Manual
- Close Focus Distance 100 mm to 1000 mm (3.94 in. to 39.37 in.)
DORI Distance¹
- Detect (8 ppf) 124.10 m (407.15 ft)
- Observe (19 ppf) 49.70 m (163.06 ft)
- Recognize (38 ppf) 24.80 m (81.36 ft)
- Identify (76 ppf) 12.40 m (40.68 ft)
PTZ
- Pan/Tilt Range Pan: 0° to 355° Tilt: 0° to 90°
- Manual Control Speed Pan: 0.1° to 100° /s Tilt: 0.1° to 60° /s
- Presets 300
- PTZ Mode 8 Tours (up to 32 presets per tour)
- Speed Compensation Proportional Pan/Tilt Speed to Zoom Ratio
- Power up Action Auto restore to previous PTZ and lens status after power failure
- Idle Motion Activate Preset, Scan, Tour, Pattern if there is no command in the specified period
- Protocol DH-SD
Video
- Compression H.265, H.264, MJPEG (sub-stream only)
- Streaming Capability Three (3) Streams
- Resolution 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)
- Frame Rate Main Stream 1080p, 720p, or D1 at 30 fps Sub Stream 1 D1 or CIF at 30 fps Sub Stream 2 720p, D1, or CIF at 30 fps
- Bit Rate Control CBR, VBR
- Bit Rate H.265/H.264: 448 K to 8192 Kbps MJPEG: 5120 Kbps to 10240 Kbps
- Day/Night Auto (ICR), Color, B/W
- Backlight Compensation BLC, HLC, True WDR (120 dB)
- White Balance Auto, ATW, Indoor, Outdoor, Manual, Sodium Lamp, Natural, and Street Lamp
- Gain Control Auto, Manual, Gain Priority, Shutter Priority, Aperture Priority
- Noise Reduction Ultra DNR (2D/3D)
- Advanced Features Motion Detection, Region of Interest, Defog
- Digital Zoom 16x
- Flip 180°
- Privacy Masking Up to 24 areas
Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
- WiFi IEEE 802.11b/g/n 2.4 GHz 150 Mbps
- Interoperability ONVIF Profile S and G, API
- Streaming Method Unicast / Multicast
- Max. User Access 20 users
- Edge Storage Network Attached Storage (NAS) Local PC for Instant Recording Micro SD Card Slot, maximum 128 GB
- Web Viewer IE
- Management Software Smart PSS, DSS, DMSS
- Smart Phone IOS, Android
Certifications
- CE EN 55032 EN 55024 EN 50130-4
- Electromagnetic Compatibility CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014
Electrical
- Power Supply 12 VDC, 1.5 A
- Power Consumption 5.5 W
Environmental
- Operating Conditions –30° C to 60° C (–22° F to +140° F) Less than 95% RH
- Ingress Protection IP66
- Vandal Resistance IK10
Construction
- Casing Metal
- Dimensions 122.80 mm x 89.0 mm ( 4.83 in. x 3.50 in.)
- Net Weight 0.52 kg (1.23 lb)
- Gross Weight 0.73 kg (1.61 lb)
Intelligence
- IVS triggers an alarm and takes a defined action for the following events:
- Standard Features
- Tampering with the camera.
- Error writing to an onboard Micro SD card.
- Error sending or receiving data over the network.
- Unauthorized access to the camera.
- Premium Features
- Motion An object moves through any part of the scene.
