Dahua C542E42B 4-Ch 2MP 4 Eyeball Cameras+ DVR Security System
Dahua C542E42B 4-Ch 2MP 4 Eyeball Cameras+ DVR Security System

Dahua 2MP IR IP67 AI HDCVI 4 Eyeball Cameras+ 6-Ch DVR Security System 2.8 mm

Regular price $403.99
Sale price $403.99 Regular price
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    C542E42B
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Dahua C542E42B 4-Ch 2MP 4 Eyeball Cameras+ DVR Security System

Dahua 2MP IR IP67 AI HDCVI 4 Eyeball Cameras+ 6-Ch DVR Security System 2.8 mm

Regular price $403.99
Sale price $403.99 Regular price
Unit price
Product description
Shipping & Return
User Manual

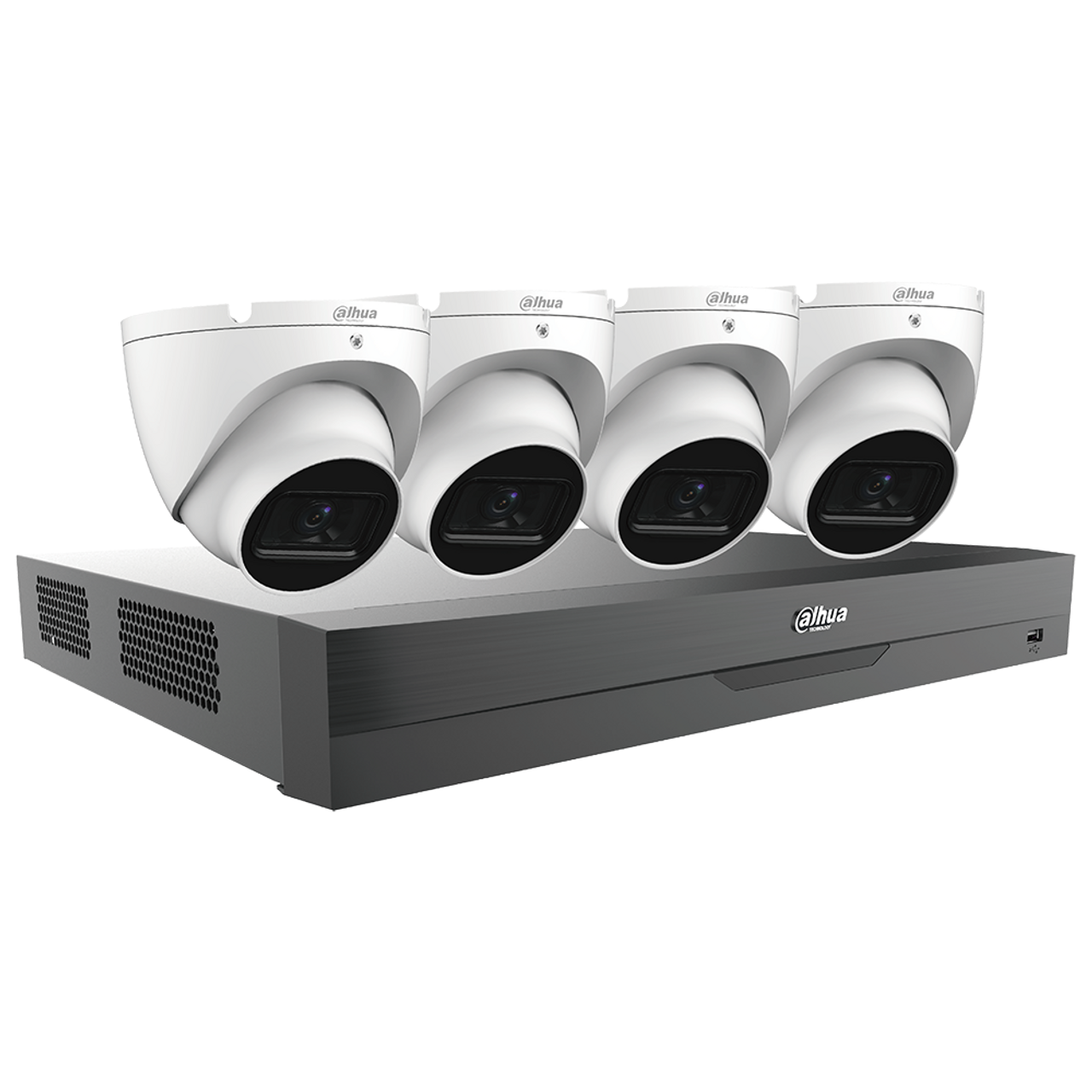

Dahua 2MP IR IP67 6-Ch Outdoor AI Coding 1080p Penta-brid  HDCVI Security System (4 Eyeball Cameras+ DVR)2.8 mm Fixed Lens

The Dahua HDCVI Security System provides all the components to quickly install, configure, and employ a complete video surveillance solution. The HDCVI cameras offer the clarity of high definition video, and the HDCVI DVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The cameras and the HDCVI DVR supports multiple video outputs making the kit compatible with many existing systems. The kit features Dehua's HDCVI technology that leverages an existing coaxial infrastructure, saving time and costs from running networking and power cables.

2MP HDCVI Cameras

  • 2MP (1920 x 1080) at 30 fps Maximum Resolution
  • 2.8 mm Fixed Lens
  • Maximum IR Length 30 m (98 ft), Smart IR
  • IP67 Environmental Protection

HDCVI DVR

  • Embedded Processor
  • Four (4) Channel Pentra-brid Recorder
  • 4 +2 IP Camera Channels, each channel up to 6 MP
  • 1080p at 15 fps Recording Resolution on All HDCVI Channels
  • AI Coding Technology for High-quality Human/Vehicle Video
  • Automatically Detects HDCVI, AHD, TVI, and CVBS Inputs
  • Perimeter Protection and Smart Motion Detection (SMD)
  • Maximum 32 Mbps Incoming Bandwidth
Model
Brand Dahua
Model C542E42B
Type Surveillance System / Security Camera Kit
Recording
Camera Type IP Camera
Camera inputs 6 Channel
Video Input 4 x BNC
Audio Input Four (4) Channels, RCA
Recording Compression AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
Display
Video Output 1 x VGA, 1 x HDMI
Audio Output One (1) Channel, RCA
ONVIF Yes
Max Resolution 1080P
Details
Built-In HDD 2TB Included
Storage Capacity One (1) SATA Port, Up to 6 TB capacity per HDD
Network
Network Protocol HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS)
Features
Power Supply Power Supply: 12 VDC, 1.5 A
Power Consumption: < 4 W, without HDD
PoE (Power-over-Ethernet) Yes
Bundle
Bundled Camera Number 4
Bundled Camera Spec A21BJ02 2MP HDCVI IR Eyeball Camera
Image Sensor: 1/2.7-in. CMOS
Effective Pixels: 1920 (H) x 1280 (V), 2MP
Scanning System Progressive Electronic Shutter Speed: NTSC: 1/30 s–1/100,000 s
Minimum Illumination Color: 0.02 Lux at F2.0 (30 IRE), 0 Lux with IR on
S/N Ratio: More than 65 dB
IR Distance: 30 m (98.4 ft)
IR On/Off Control: Auto, Manual
IR LEDs: One (1) IR Light
Lens Type: Fixed Lens / Fixed Iris
Mount Type: M12
Focal Length: 2.8 mm
Maximum Aperture: F2.0
Dimensions & Weight
Dimensions NVR: 12.80" x 10.12" x 2.17"
Camera: 3.70" x 3.70" x 3.37"
Weight NVR: 2.70 lbs.
Camera: 0.73 lb.
