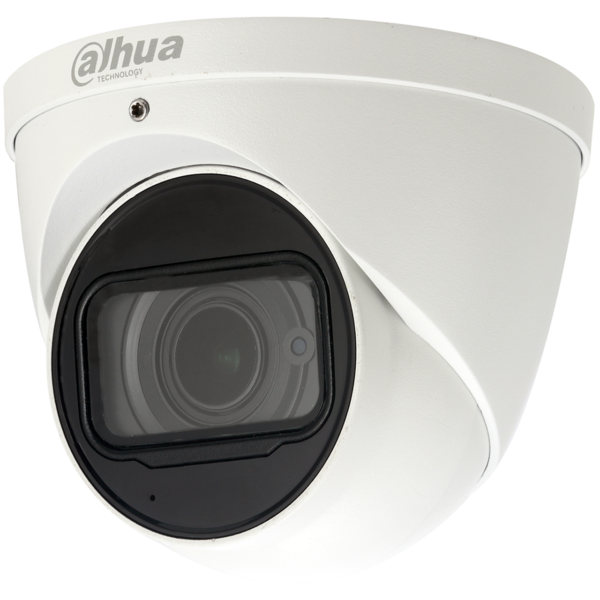

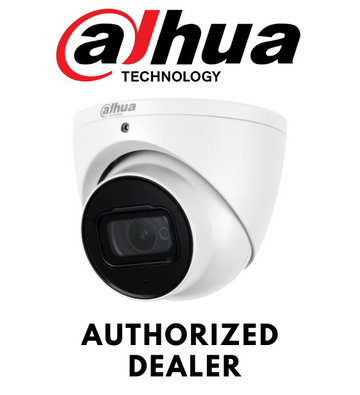

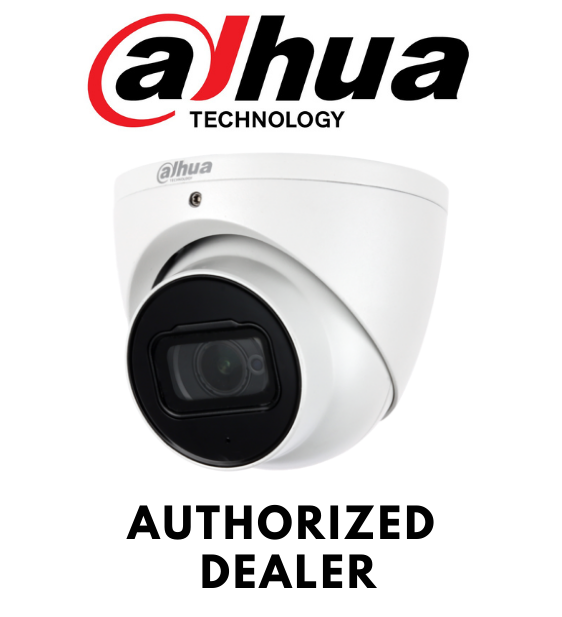

Dahua 4MP IP67 IR ePoE Audio Eyeball Network Security Camera 2.8 mm Fixed Lens
Dahua 4MP IP67 IR ePoE Audio Eyeball Network Security Camera 2.8 mm Fixed Lens
Dahua 4MP IP67 IR ePoE Eyeball Network Security Camera 2.8 mm Fixed Lens with Night Vision, Built-in Microphone
The Dahua 4 MP Starlight+ ePoE camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection surveillance, people counting, and face capture. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Starlight+, True Wide Dynamic Range, and Smart IR technologies allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
- 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 4 MP (2688 x 1520) at 30 fps, 2.8 mm Fixed Lens
- Enhanced Power and Data Transmission Distances (ePoE)
- Starlight+ Technology for Low-light Applications
- Analytics+ Functions — People Counting, Perimeter Protection, Smart Motion Detection+, and Face Detection
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- Built-in Microphone
- IP67 Ingress Protection
- Ultra Wide Dynamic Range (140 dB) and True Day/Night IR Cut Filter
- Maximum IR LED Distance 26 m (85.30 ft)
- Five-year Warranty (for products sold through an authorized Dahua Dealer
Features
Camera
- Image Sensor 1/1.8-in. 4 MP CMOS
- Effective Pixels 2688(H) x 1520(V)
- RAM/ROM 512 MB/128 MB
- Scanning System Progressive
- Electronic Shutter Speed Auto, Manual, 1/3 s to 1/100,000 s
- Minimum Illumination Color: 0.002 lux at F1.6, 0 lux at F1.6 (IR on)
- S/N Ratio Greater than 50 dB
- IR Distance Up to 50 m (164.04 ft)
- IR On/Off Control Auto, Manual
- IR LEDs Two (2)
Lens
- Lens Type Fixed-focal
- Mount Type Board-in
- Focal Length 2.8 mm
- Maximum Aperture F1.6
- Angle of View Horizontal: 113°, Vertical: 60°
- Focus Control Fixed
- Close Focus Distance 1.30 m (4.27 ft)
Video
- Compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B,
- H.264H, MJPEG (Sub Stream only)
- Streaming Capability Three (3) Streams
- Resolution 4 MP (2688 x 1520), 2560 x 1440, 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
- Frame Rate Main Stream:4 MP (2688 x 1520) at 30 fps, or 1080p (1920 x 1080) at 60 fps
- Sub Stream 1: D1 at 30 fps
- Sub Stream 2: 1080p at 30 fps
- Bit Rate Control CBR/VBR
- Bit Rate H.264: 32 Kbps to 8192 Kbps, H.265: 19 Kbps to 8192 Kbps
- Day/Night Auto (ICR), Color, B/W
- BLC Mode BLC, HLC, Ultra WDR (140 dB), SSA
- White Balance Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
- Gain Control Auto, Manual, Gain Priority, Shutter Priority
- Noise Reduction 3D DNR
- Motion Detection Off, On (4 Zones, Rectangular)
- Region of Interest Off, On (4 Zones)
- Advanced Features Smart IR, Defog
- Flip 0°, 90°, 180°, 270°
- Mirror Off, On
- Privacy Masking Off, On (4 Areas, Rectangular)
Audio
- Compression G.711a, G.711Mu, AAC, G.726, G.723
Network
- Ethernet RJ-45 (10/100 Base-T)
- Protocol HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x
- Interoperability ONVIF Profile S and G, CGI, Milestone, Genetec, P2P
- Streaming Method Unicast / Multicast
- Maximum User Access 20 Users
- Edge Storage Network Attached Storage (NAS), FTP, Micro SD Slot, maximum 256 GB
- Web Viewer IE (Version 8 and higher), Chrome, Firefox, Safari (Version 12 and higher)
- Management Software SmartPSS, DSS, DMSS
- Mobile Operating System IOS, Android
Certifications
- Safety UL60950-1, CAN/CSA C22.2 No.60950-1-07, EN60950-1
- Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 Subpart B, Electromagnetic Compatibility Directive 2014/30/EU
Interface
- Audio Input: Built-in Microphone
Electrical
- Power Supply 12 VDC (±30%) or PoE (IEEE 802.3af, Class 0)
- Power Consumption 12 VDC Standard: 2.1 W with IR ON: 6.2 W
- PoE Standard: 2.6 W with IR ON: 7.2 W
Environmental
- Operating Conditions –40° C to +60° C (–40° F to +140° F), Less than 95% RH
- Storage Conditions –40° C to +60° C (–40° F to +140° F)
- Ingress Protection IP67
Construction
- Casing Metal
- Dimensions ø106.0 mm x 99.20 mm (4.17 in. x 3.91 in.)
- Net Weight 0.55 kg (1.21 lb), Gross Weight 0.71 kg (1.57 lb)
Analytics+
- Pro Functions
- People Counting Delivers accurate flow statistics from the following methods:
Line Crossing: counts a person as they cross a threshold in a defined direction.
Region: counts the number of people in a defined area.
Counts people simultaneously from four (4) threshold lines and four (4) defined regions³.
Application Functions
- Face Capture Detects and captures a snapshot of a human face within a scene.
- Perimeter Protection Detects human and/or vehicular motion and triggers an alarm for the following methods:
- Tripwire Target crosses a defined line.
Intrusion Target enters or exits a defined perimeter.\
Fast Moving Target exceeds a set speed when exiting a defined area
Parking Detection Vehicle remains in a defined area without motion for a set period of time.
Crowd Gathering Specified number of people remain inside a defined area for a set time.
Loitering Detection Target remains in motion inside a defined area longer than a specified amount of time.
Core Analytic Functions
-
Standard Features
Triggers an alarm if one the following events are detected:
Tampering with the camera
Error writing to an onboard Micro SD card
Error sending or receiving data over the network
Unauthorized access to the camera
IP Address Conflict
Scene Change -
Premium Features
Triggers an alarm and takes a defined action for the following events if any motion is detected:
Motion An object moves through any part of the scene.
Motion An object moves through any part of the scene.
Scene Change A person or object moves the camera to change the scene or covers the camera to obscure the scene.
Abandoned/Missing Object A target leaves an object in designated area, or a target removes an object from the same designated area.
