Dahua 5MP IP67,IK10 IR IP Outdoor Dome Analytic SecurityCamera 2.7mm~13.5mm Lens
Dahua 5MP IP67,IK10 IR IP Outdoor Dome Analytic SecurityCamera 2.7mm~13.5mm Lens

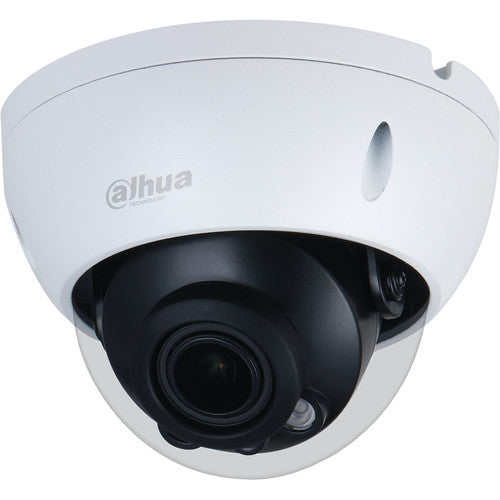

Dahua Technology 5MP IP67,IK10 IR IP Outdoor Network Dome Security Camera 2.7mm~13.5mm Motorized Vari-focal Lens with Night Vision
The Dahua 5 MP Starlight camera offers Smart Motion Detection for improved alarm accuracy from intrusion and tripwire functions. The camera is ideal for a host of diverse applications — Starlight, True Wide Dynamic Range, and IR illumination allow the camera to operate in any lighting condition. The camera is rated to the IP67 Ingress Protection and to the IK10 Vandal Resistance standards, allowing the camera to deliver high-quality and reliable video in the harshest environments.
Smart Motion Detection, a component of Dahua’s Analytics+ technology, improves alarm accuracy and decreases the number of false alarms. The advanced SMD algorithm analyzes a scene for human or vehicle motion, while filtering out other motion due to trees, leaves, animals, weather, and triggers an alarm when detected. SMD also saves time when searching recorded video by filtering false alarms and allowing quick retrieval of an alarm due to a person or vehicle.
- 1/2.7 in. 5 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 5 MP (2592 x 1944) at 20 fps
- 2.7 mm to 13.5 mm Motorized Vari-focal Lens
- Starlight Technology for Low-light Applications
- Analytics+ Function – Perimeter Protection
- Smart Motion Detection for Improved Alarm Accuracy
- True Wide Dynamic Range (120 dB) and Day/Night IR Cut Filter
- Maximum IR LED Distance 40 m (131.23 ft)
- Intelligent Video System
- IP67 Ingress Protection and IK10 Vandal Resistance
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
DORI Ranges
Detection: 210′ wide & 728′ tele
Observation: 84′ wide & 291′ tele
Recognition: 42′ wide & 146′ tele
Identification: 21′ wide & 73′ tele
Detection: 210′ wide & 728′ tele
Observation: 84′ wide & 291′ tele
Recognition: 42′ wide & 146′ tele
Identification: 21′ wide & 73′ tele
Dahua Technology N53AM5Z Specs
Camera
| Sensor | 5 MP 1/2.7″ CMOS |
| Focal Length | 2.7 to 13.5mm |
| Maximum Aperture | f/1.5 |
| Zoom | Optical: 5x |
| Lens Field of View | Horizontal: 99 to 26° Vertical: 72 to 20° Diagonal: 133 to 33° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.005 Lux B&W: 0 Lux |
| Shutter Speed | 1/100,000 to 1/3 Seconds |
| Camera Angle Adjustment | Horizontal: 0 to 355° Vertical: 0 to 75° |
Video
| Streaming Resolution | 2592 x 1944 at 20 fps (8.2 Mb/s ) 2688 x 1520 at 30 fps (8.2 Mb/s H.265) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
Audio
| Streaming | Two-Way |
| Audio Formats | AAC, G.711, G.726 |
| External Audio Input | RCA |
| External Audio Output | RCA |
Networking
| Security | HTTPS, IEEE 802.1X |
| Supported Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
System Integration
| Analytics | Smart Motion Detection, Tripwire Violation Detection, Intrusion Detection, Tamper Detection, Sudden Scene Change Detection |
| Event Trigger | Yes |
| Event Action | Recording, Alarm |
System Requirements
| Mobile Operating Systems | iOS, Android |
Environmental
| Operating Temperature | -22 to 140°F / -30 to 60°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 95% |
| IP Rating | IP67 |
| IK Rating | IK10 |
General
| Memory | 512 MB RAM / 128 MB Flash |
| Recording Media | microSD (up to 256 GB) |
| Pan/Tilt | None |
| Alarm I/O | 1 / 1 |

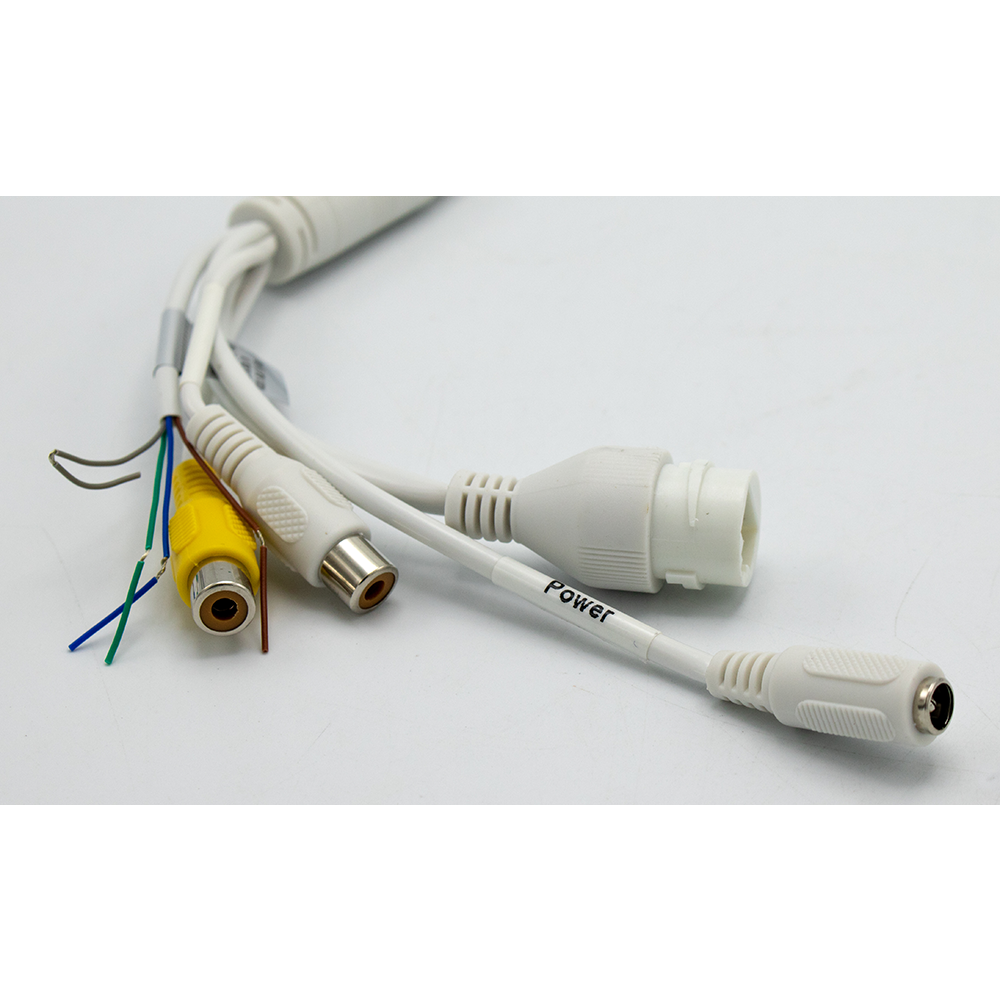

| I/O Connections |
1 x RJ45 1 x Power |
| IR Illuminators | None |
| IR Range | 131.23′ / 40 m |
| Video Management Software | IVS, DSS, DMSS |
| Certifications | EN 50130-4, EN 55024, FCC (Part 15 Class B), UL, as per Manufacturer |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | 8.5 W |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | ø: 4.8 x H: 3.5″ / ø: 122.0 x H: 88.9 mm |
| Weight | 1.08 lb / 492 g |
