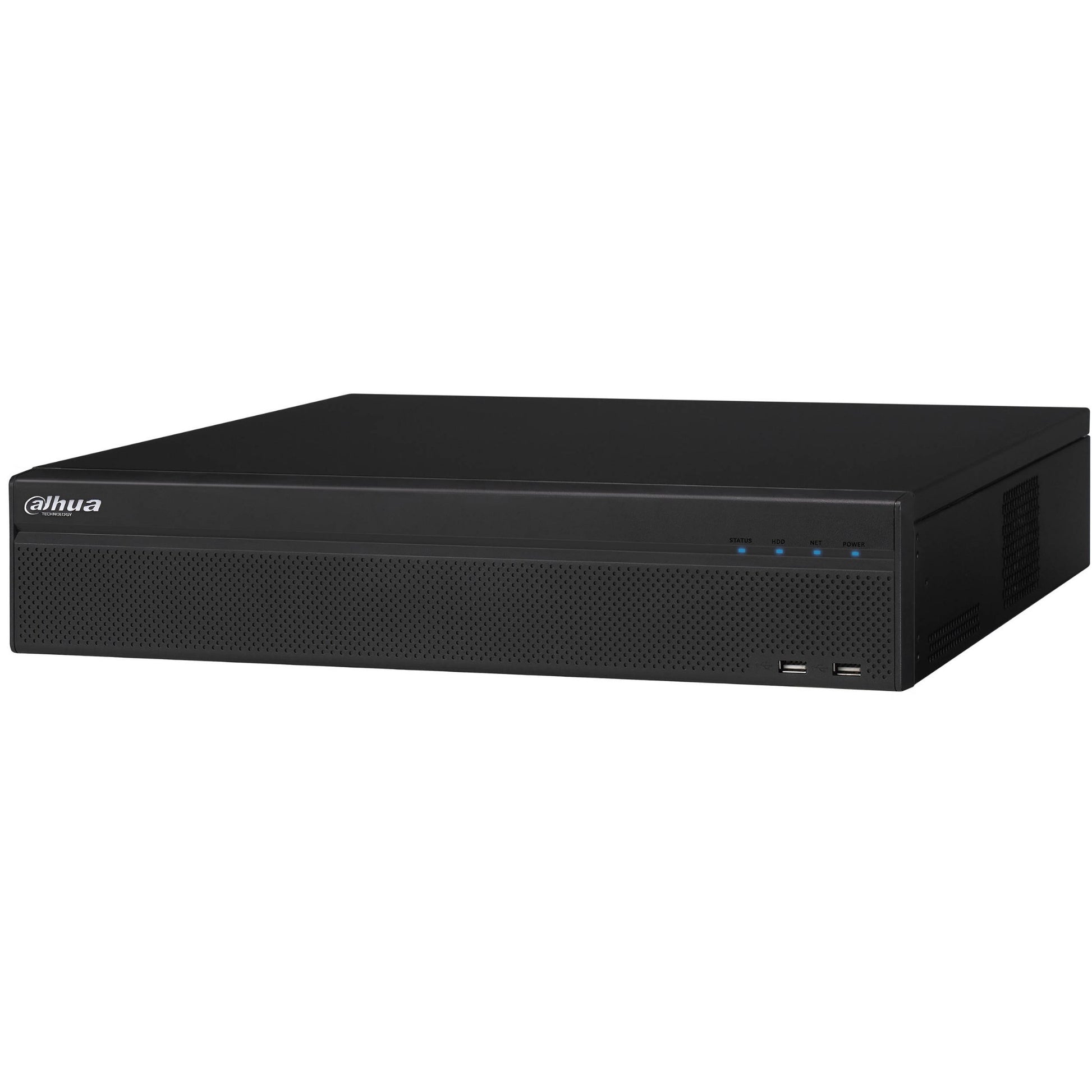

Dahua 12MP 4K 6TB 32-Ch H.265+ 384 Mbps Security Network Video Recorder NVR
Dahua 12MP 4K 6TB 32-Ch H.265+ 384 Mbps Security Network Video Recorder NVR
Dahua Technology 6TB 32-Ch 12MP 4K Security Network Video Recorder
Dahua’s network video recorder offers unparalleled recording technology for IP video surveillance applications. For applications where details are critical for identification, this enterprise‐level NVR provides a powerful Intel processor with up to 4K resolution.
Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage. The NVR is compatible with numerous third‐party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi‐user access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.
- Smart H.265+, H.265, Smart H.264+, H.264, MJPEG Video Compression
- Maximum 32 IP Camera Inputs with IVS Recording
- Maximum 384 Mbps Incoming Bandwidth
- Up to 12 MP Resolution for Preview and Playback
- Supports RAID 0 /1/5/6/10
- iSCSI for Expanded Storage Space
- Smart Tracking
- Intelligent Video System with Business Analytics (two IP channels)
Intelligent Video System (IVS) Analytics on 2 IP Channels
- Motion
- Tripwire
- Intrusion
- Scene change
- Abandoned/missing object
- Facial detection
- People counting
- Heat mapping
Dahua Technology DHI-NVR6A08-32-4KS2 Specs
System
| Main Processor | Intel Quad-Core Processor |
| Operating System | Embedded Linux |
Video and Audio
| IP Camera Inputs | 32 |
| Two-Way Talk | 1 x RCA Input 1 x RCA Output |
Display
| Interface | 2 x HDMI (Up to 3840 x 2160 Resolution, Different Source) 1 x VGA |
| Output Native Resolutions | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Maximum Decoding | 4 Channels of 12 MP at 20 fps 4 Channels of 8 MP at 30 fps 8 Channels of 8 MP at 15 fps 5 Channels of 6 MP at 30 fps 6 Channels of 5 MP at 30 fps 8 Channels of 5 MP at 25 fps 8 Channels of 4 MP at 30 fps 9 Channels of 4 MP at 20 fps 12 Channels of 3 MP at 25 fps 8 Channels of 1080p at 60 fps 16 Channels of 1080p at 30 fps 25 Channels of 720p at 30 fps |
| Multi-Screen Display | 1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16 |
| OSD | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
Recording
| Compression | H.265, H.264, MJPEG |
| Supported IP Camera Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p |
| Maximum Incoming Bandwidth | 384 Mb/s |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Camera Blank, Video Loss), Alarm, Stop |
| Recording Intervals | 1 to 120 Minutes (Default: 60 Minutes) Pre-Record: 1 to 30 Seconds Post-Record: 10 to 300 Seconds |
Video Detection & Alarm
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 x 18), Video Loss, and Camera Blank |
| Alarm Inputs | 16 Low-Level Effective, Green Terminal Interface |
| Relay Outputs | 8 NO/NC Programmable, Green Terminal Interface |
| Tracking | Tracking Trigger Event: Targeting, Zoom, Tracking, Recording, Snapshot, Alarm |
Playback & Backup
| Playback | 128 Mb/s in RAID 5 Mode 64 Mb/s in Single HDD Mode |
| Search Modes | Time/Date, Alarm, MD and Exact Search (Accurate to One Second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Modes | USB Device, Network, Internal SATA Burner, eSATA Device |
Third-Party Software Support
| Brand Compatibility | Dahua, Arecont Vision, Axis Communications, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Videotec, Vivotek, and More |
Network
| Ethernet | 2 x RJ45 (10/100/1000M) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Supports Dahua IP Cameras, DVRs, and NVSes) |
| Maximum User Access | 128 Users |
| Mobile Operating Systems | iOS, Android |
| Interoperability | ONVIF 2.4, CGI Conformant |
Storage
| HDD Support | 8 x SATA III Ports, 8 TB Capacity for Each Disk |
| Installed HDD | No HDD |
| HDD Mode | Single, RAID 0/1/5/6/10 Supports Global HDD Hot Spare, Enterprise HDD Recommended |
| eSATA Port | 1 |
Auxiliary Interface
| USB | 2 x USB 3.0 2 x USB 2.0 |
| RS-232 | 1 Port for PC Communication and Keyboard |
| RS-485 | 1 Port for PTZ Control |
Electrical
| Power Supply | 110 to 240 VAC, 50/60 Hz |
| Power Consumption |
General
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Storage Humidity | 0 to 90% RH |
| Certifications | EN: EN55022, EN55024, EN50130-4, EN60950-1 UL: UL 60950-1+CAN/CSA C22.2 No. 60950-1 FCC: Part 15 Subpart B, ANSI C63.4-2014 |
| Installation | 19" / 483 mm Rackmount |
| Dimensions | 17.4 x 17.9 x 3.5" / 444 x 454.9 x 90.4 mm |
| Weight | 19.8 lb / 9 kg without HDDs |
