Dahua Technology HAP100 Pinhole Pickup Microphone Security Accessory

Regular price $31.99
Sale price $31.99 Regular price
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    HAP100
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Dahua Technology HAP100 Pinhole Pickup Microphone Security Accessory

Dahua Technology HAP100 Pinhole Pickup Microphone Security Accessory

Regular price $31.99
Sale price $31.99 Regular price
Unit price
Product description
Shipping & Return
User Manual

Dahua Technology HAP100 Pinhole Pickup Microphone Security Accessory

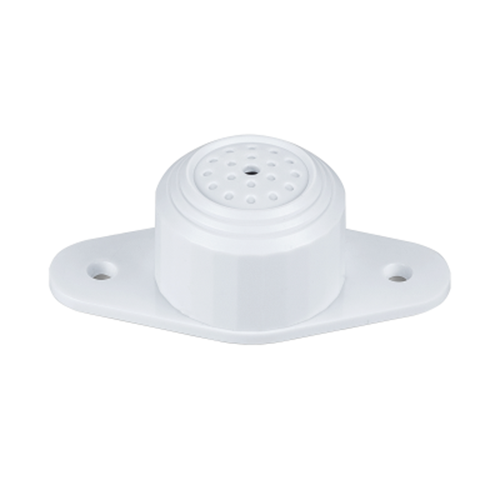

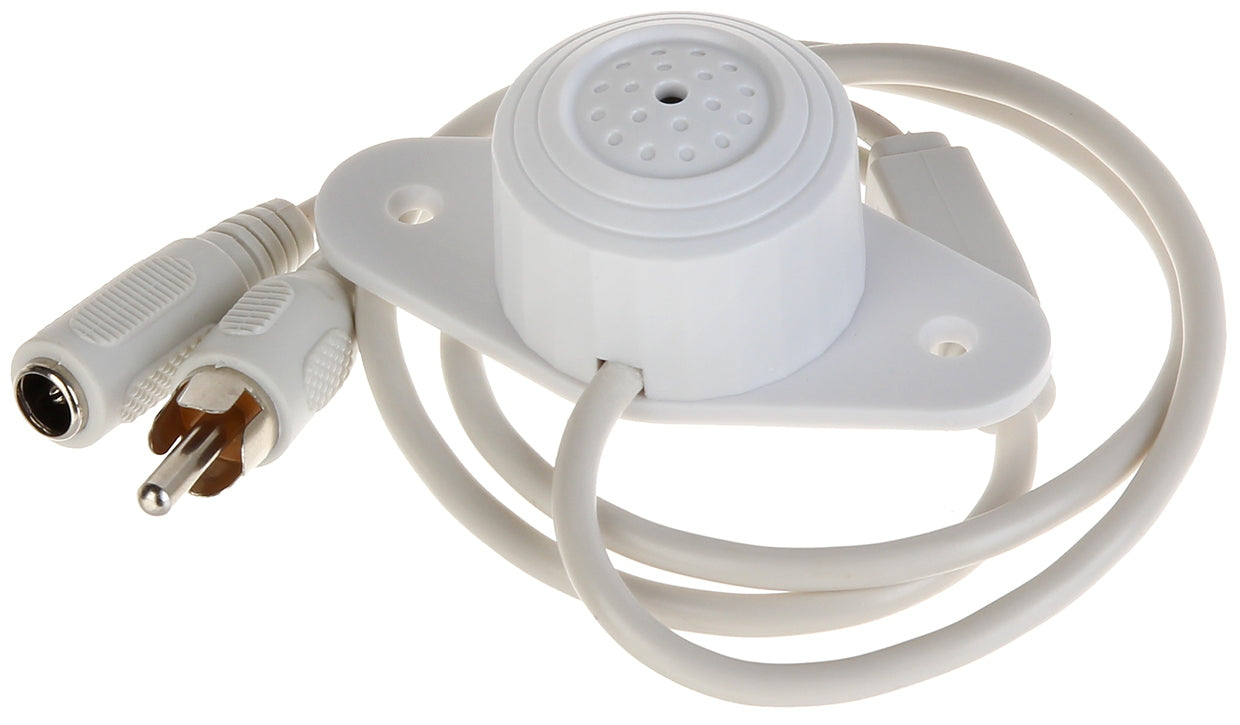

Monitor audio with the HAP100 Pinhole Pickup Microphone from Dahua Technology. This device is an omnidirectional condenser microphone that can pick up audio within a 131.23 square foot coverage area. It is housed in PC plastic. Screws, plastic anchors, and a mounting template are included.

  • Omni-directional, High-fidelity Condenser Microphone
  • Pinhole Design for discreet installation
  • 30 KV Air Contact ESD with Built-in Lightning Protection
  • Power Supply Polarity Reversal and Electrostatic Protection
  • Best Fit for Spaces Between 5 m² (16.40 ft²) to 40 m² (121.23 ft²)

Dahua Technology HAP100 Specs

Range 16.4 to 131.23'² / 5 to 40 m²
Sensitivity -40 dB (-45 to -20 dB, adjustable)
Frequency Response 20 Hz to 20 kHz
Directional Characteristic Omnidirectional
Signal to Noise Ratio (SNR) 70 dB (1 m 40 dB sound source SPL)
Dynamic Range 104 dB (1 kHz at maximum dB SPL)
Sound Pressure Maximum Sustainable: 120 dB SPL (1 kHz, THD 1%)
Output Impedance 600 Ohms (non-equilibrium)
Output Signal Amplitude 2.5 V p-p / -25 dB
Working Voltage 12 VDC (9 to 15 VDC)
Working Current 60 mA (50 to 100 mA)
Operating Temperature -22 to 158°F / -30 to 70°C
Interface Audio Out: RCA
Power In: DC Connector
Color White
Casing Material PC plastic
Certifications CE, FCC
Dimensions 2.48 x 1.18 x 0.87" / 63 x 30 x 22 mm
Weight 0.08 lb / 0.034 kg
Packaging Info
Package Weight 0.155 lb
Box Dimensions (LxWxH) 3.85 x 3.75 x 1.75"
