Hanwha Techwin HCB 7000A 4MP analog HD box camera
Hanwha analog camera NDAA compliant with high resolution
Hanwha Wisenet 4MP surveillance security camera with dual power

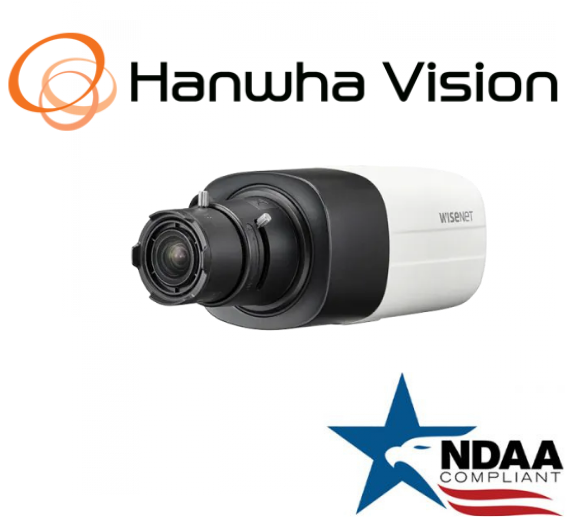

Hanwha Techwin HCB 7000A 4MP analog HD box camera

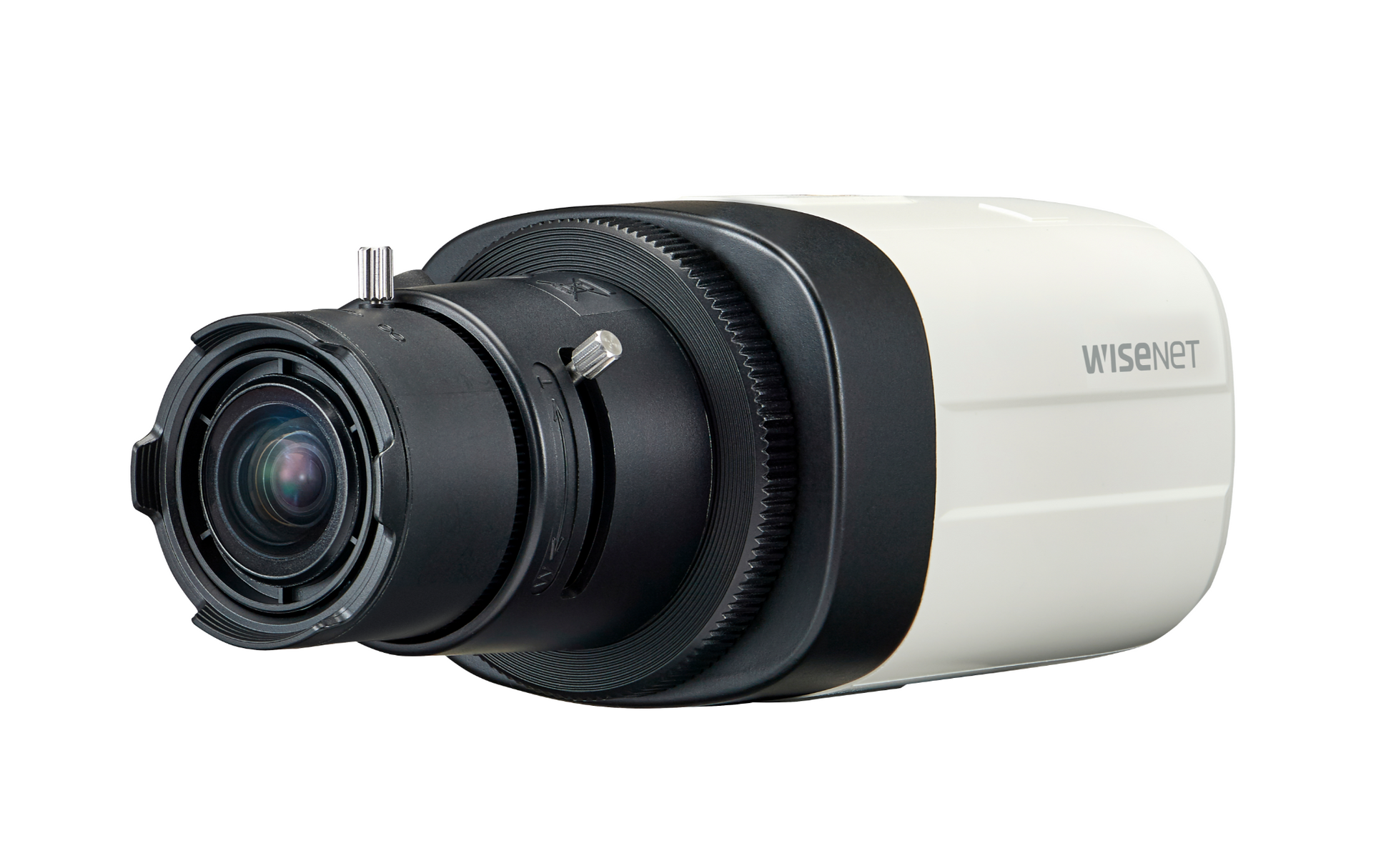

Hanwha analog camera NDAA compliant with high resolution

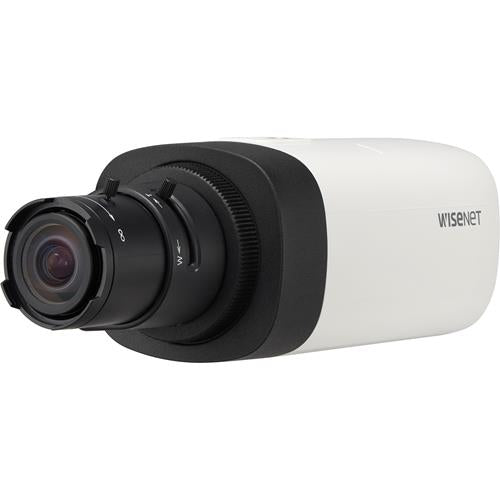

Hanwha Wisenet 4MP surveillance security camera with dual power

Hanwha Techwin HCB-7000A QHD (4MP) Analog HD+ Box Security Camera No Lens

Regular price $180.00
Sale price $180.00 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Hanwha Techwin HCB 7000A 4MP analog HD box camera

Hanwha Techwin HCB-7000A QHD (4MP) Analog HD+ Box Security Camera No Lens

Regular price $180.00
Sale price $180.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

Hanwha Techwin HCB-7000A QHD (4MP) Analog HD+ Box Security Camera No Lens


Discover the advanced surveillance capabilities of the Hanwha Techwin HCB 7000A, a 4MP analog HD+ security camera that offers premium image clarity and NDAA compliance. Whether you're upgrading an existing system or deploying new security infrastructure, this Hanwha Wisenet camera provides reliable performance at an affordable Hanwha camera price.

Key Features Of Hanwha Camera

  • QHD (2560 x 1440, 30fps) resolution
  • 0.16 Lux@F1.2 (Color), 0.009 Lux@F1.2 (B/W)
  • Day & Night (ICR), DWDR, Motion detection
  • Transmission distance Max. 500m
  • Easy installation (Plug & play), Dual power

Hanwha Techwin HCB-7000A QHD (4MP) Analog HD+ Box Security Camera



The Hanwha Techwin HCB 7000A is a high-resolution 4MP analog HD+ box camera designed for professional-grade surveillance. This powerful Hanwha analog camera delivers QHD (2560 x 1440) resolution at 30fps, ensuring sharp and detailed video footage.

With its exceptional low-light performance—0.16 Lux in color and 0.009 Lux in black & white—the camera Hanwha model HCB 7000A is perfect for 24/7 indoor or outdoor use. The built-in Day and Night functionality with ICR, combined with DWDR and motion detection, enhances its efficiency in dynamic lighting environments.

Thanks to its Plug and Play installation and dual power support, the Hanwha Wisenet camera simplifies setup while offering long-distance video transmission up to 500 meters. It's also fully NDAA compliant, making it ideal for use in government or critical infrastructure projects where compliance matters.

For those seeking robust alternatives to an IP camera Hanwha Techwin option, or considering a wired system over a Hanwha WiFi camera, this model is an excellent choice. Upgrade your security with a trusted solution from the Hanwha Vision NDAA compliant product lineup.

Product Specification Of Hanwha NDAA Compliant Camera



Video
Imaging Device 1/3" 4MP CMOS
Resolution 2560x1440
Max. Framerate 30fps@4M(N), 25fps@4M(P)
Min. Illumination Color: 0.16Lux(F1.2, 1/30sec)
BW: 0.009Lux(F1.2, 1/30sec)
Video Out BNC(AHD), additional CVBS for installation
Video Transmission Distance 500m(5C2V Coaxial Cable)
Lens
Focus Control Manual
Lens Type DC auto iris
Mount Type C mount, CS mount
Operational
Day & Night Auto(ICR)
Backlight Compensation UserBLC, HLC, DWDR
Digital Noise Reduction 2DDNR
Motion Detection 4 zones
Privacy Masking 2 zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video Rotation H-Rev/V-Rev
Analytics Motion detection
Serial Interface RS-485(Samsung-T, Pelco-D/P)
Alarm I/O MD Output 1ea
Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Input Voltage 24VAC, 12VDC
Power Consumption Max 3.6W
Mechanical
Color / Material Black / Aluminum, Ivory / Plastic
Product Dimensions / Weight 59.6(W)×68.4(H)×92.7(D)mm (2.35"×2.69"×3.65"), 186g(0.41 lb)

  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
