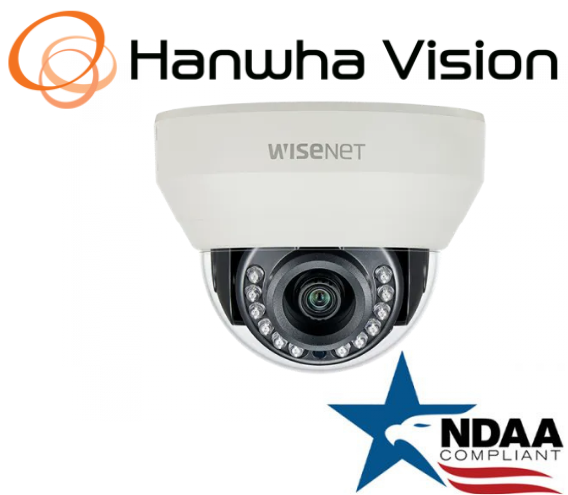

Hanwha Techwin HCD 7030RA front view 4MP analog Wisenet dome camera

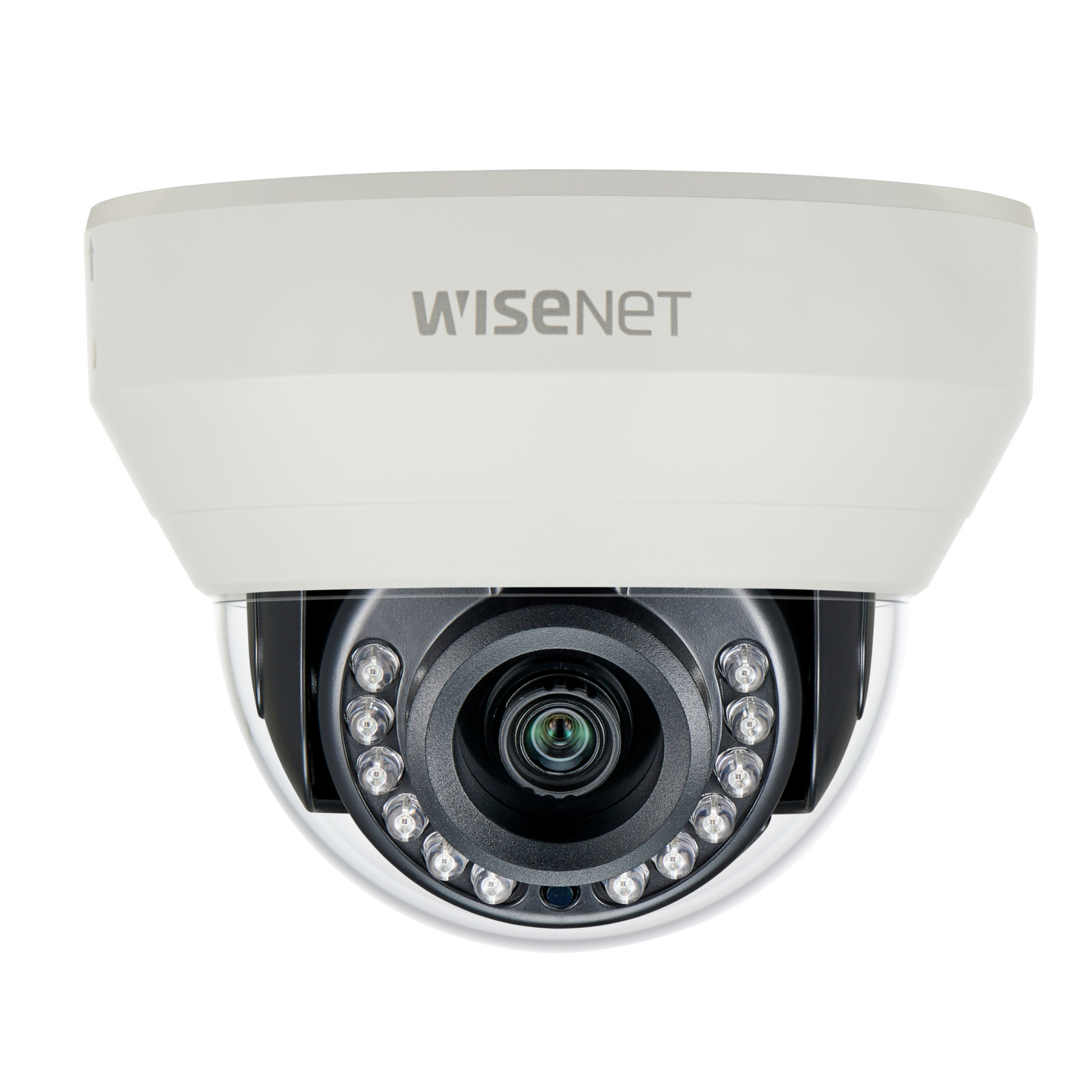

Hanwha indoor dome camera with night vision 4MP NDAA compliant

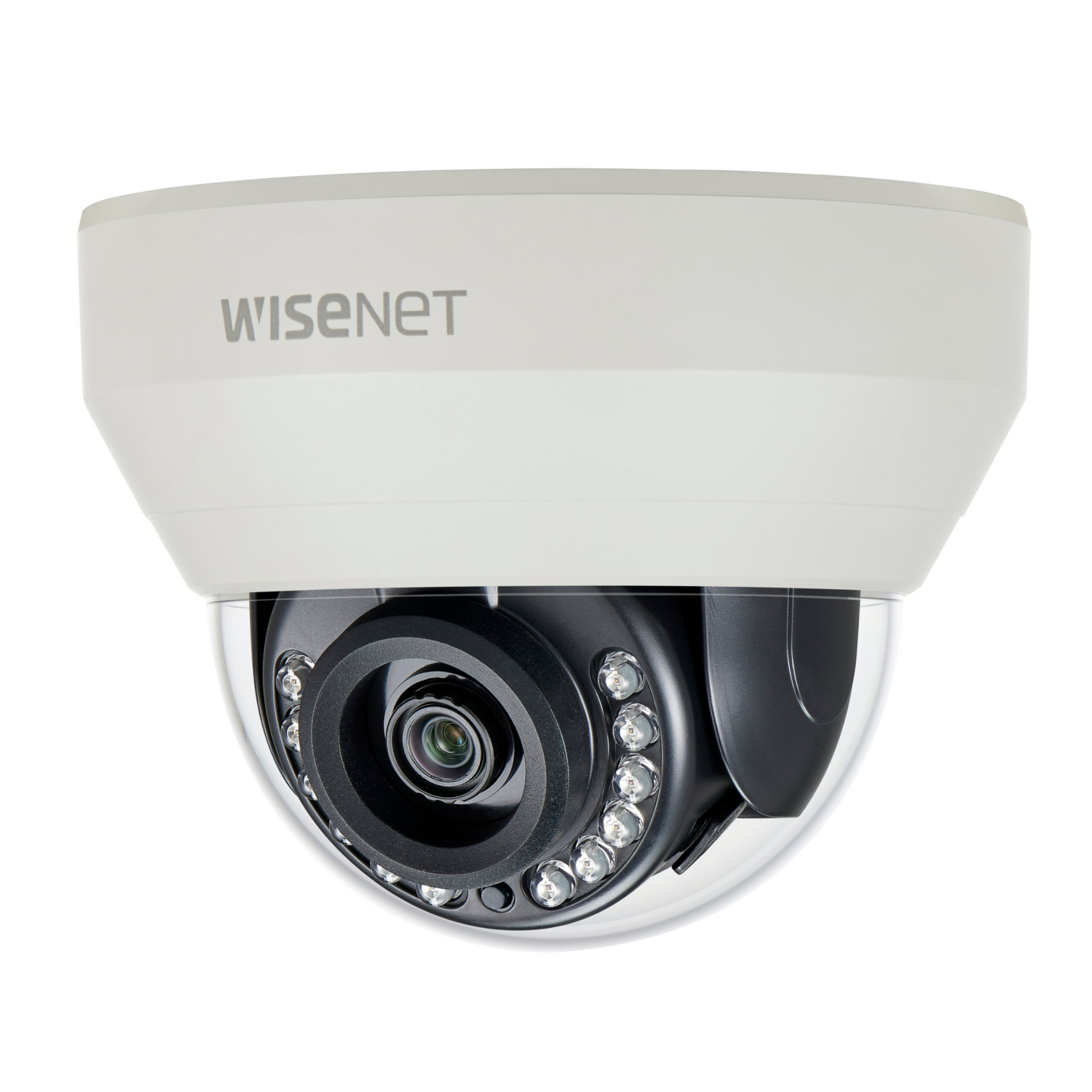

Hanwha Wisenet analog camera easy installation 4MP dome model
Hanwha Techwin HCD 7030RA front view 4MP analog Wisenet dome camera
Hanwha indoor dome camera with night vision 4MP NDAA compliant
Hanwha Wisenet analog camera easy installation 4MP dome model

Hanwha Techwin HCD-7030RA QHD IR 4MP Analog HD Security Dome Camera 6.0mm Lens

Regular price $180.00
Sale price $180.00 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Hanwha Techwin HCD 7030RA front view 4MP analog Wisenet dome camera

Hanwha Techwin HCD-7030RA QHD IR 4MP Analog HD Security Dome Camera 6.0mm Lens

Regular price $180.00
Sale price $180.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

Hanwha Techwin HCD-7030RA QHD 4MP Analog HD+ IR Security Dome Camera


Secure your property with the Hanwha Techwin HCD 7030RA, a high-performance 4MP Hanwha analog camera built for reliable indoor surveillance. With NDAA compliance, powerful night vision, and crisp HD+ video quality, this Wisenet dome camera is perfect for both commercial and residential security.

Key Features of the Hanwha Wisenet HCD 7030RA

  • 0.27 Lux@F2.0 (Color) (HCD-7020R/7030R),0 Lux (B/W : IR LED on)
  • Built-in 6.0mm fixed lens
  • Day & Night (ICR), DWDR, Motion detection
  • IR Viewable Length 30m
  • Transmission distance max.500m
  • Easy installation (Plug & play)

Hanwha Techwin HCD-7030RA 4MP NDAA Compliant IR Dome Camera

The Hanwha Techwin HCD 7030RA is a top-tier Hanwha Wisenet camera designed to deliver crystal-clear 4MP resolution using analog HD+ technology. As a trusted Hanwha analog camera, it offers long-distance transmission up to 500 meters and is compatible with pentabrid systems for flexible installation.

This Hanwha indoor dome camera is equipped with a 6.0mm fixed lens and enhanced night vision capabilities, allowing up to 30 meters of IR viewable length. Featuring Day/Night (ICR), motion detection, and DWDR, it provides dependable round-the-clock monitoring.

If you're searching for the best Hanwha camera price without compromising quality, this Hanwha vision NDAA compliant camera offers unmatched value. Whether for office, retail, school, or government use, it meets high standards in performance and compliance.


Product Specification Of Hanwha Techwin Security Camera



Video
Imaging Device 1/3" 4MP CMOS
Resolution 2560x1440
Max. Framerate 30fps@4M(N), 25fps@4M(P)
Min. Illumination Color: 0.27Lux(F2.0, 1/30sec)
BW: 0Lux(IR LED on)
Video Out BNC(AHD), additional CVBS for installation(2Pin connector type)
Video Transmission Distance 500m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio) 6.0mm fixed
Max. Aperture Ratio F2.0
Angular Field of View H: 49.02°, V: 27.61°, D: 55.60°
Min. Object Distance 0.5m(1.64ft)
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Day & Night Auto(ICR)
Backlight Compensation UserBLC, HLC, DWDR
Digital Noise Reduction 2DDNR
Motion Detection 4 zones
Privacy Masking 2 zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video Rotation H-Rev/V-Rev
Analytics Motion detection
IR Viewable Length 30m(98.43ft)
Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Input Voltage 12VDC
Power Consumption Max 5W
Mechanical
Color / Material Ivory / Plastic
Product Dimensions / Weight Ø110.1 x 86.1mm(Ø4.33”x3.39”), 240g(0.53 lb)
  • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
