Hanwha Techwin HCO-7030RA 4MP AnalogHD IR Bullet SecurityCamera 6.0mm fixed Lens
Regular price
$200.00
Sale price
$200.00
Regular price
Unit price
Hanwha Techwin HCO-7030RA 4MP AnalogHD IR Bullet SecurityCamera 6.0mm fixed Lens
Regular price
$200.00
Sale price
$200.00
Regular price
Unit price
Product description
Shipping & Return
User Manual

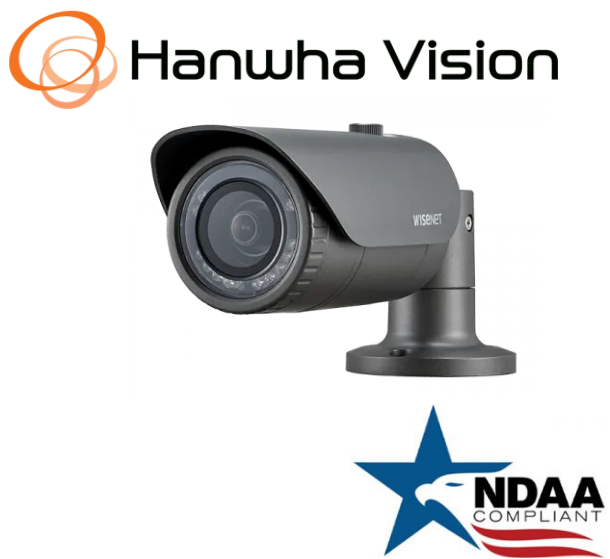

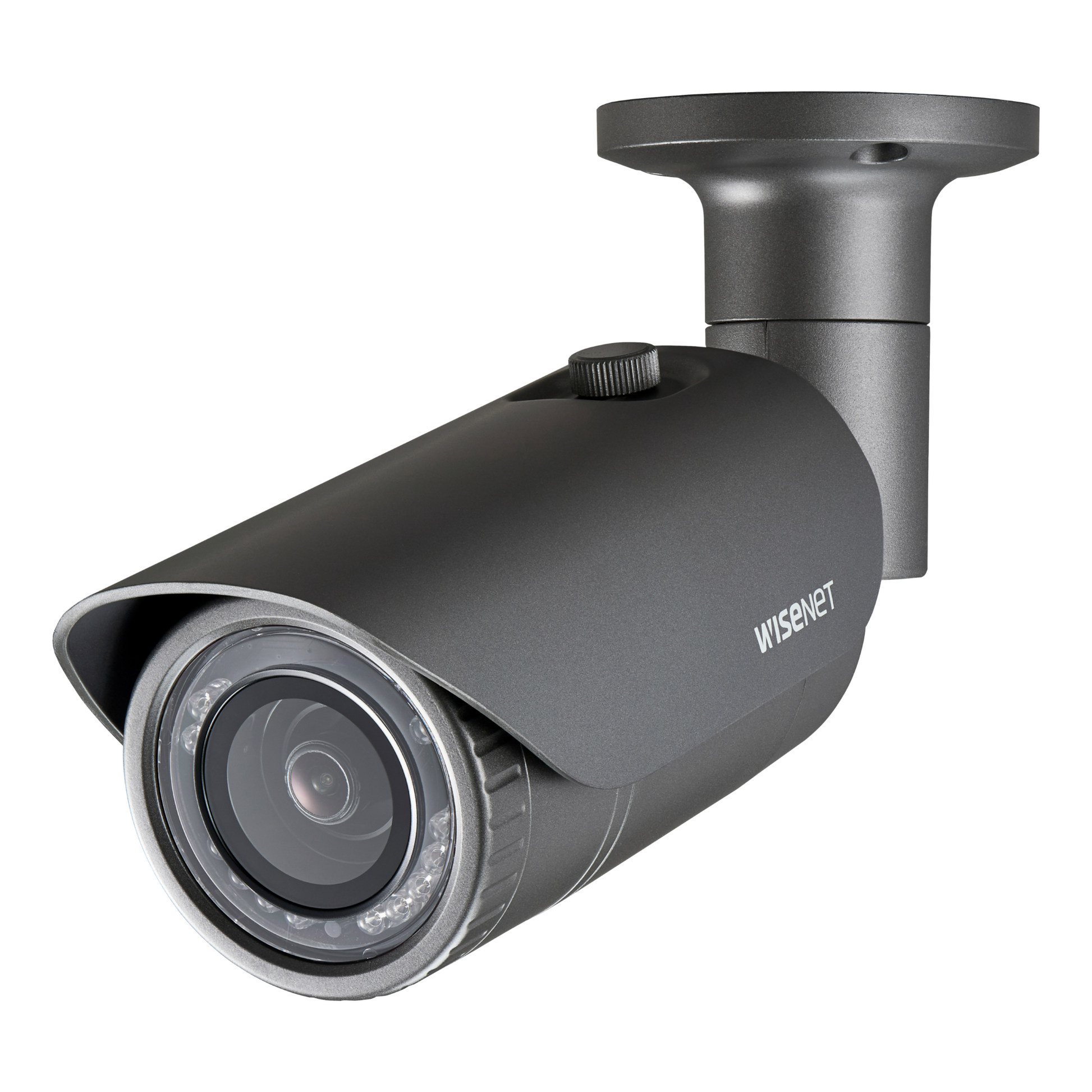

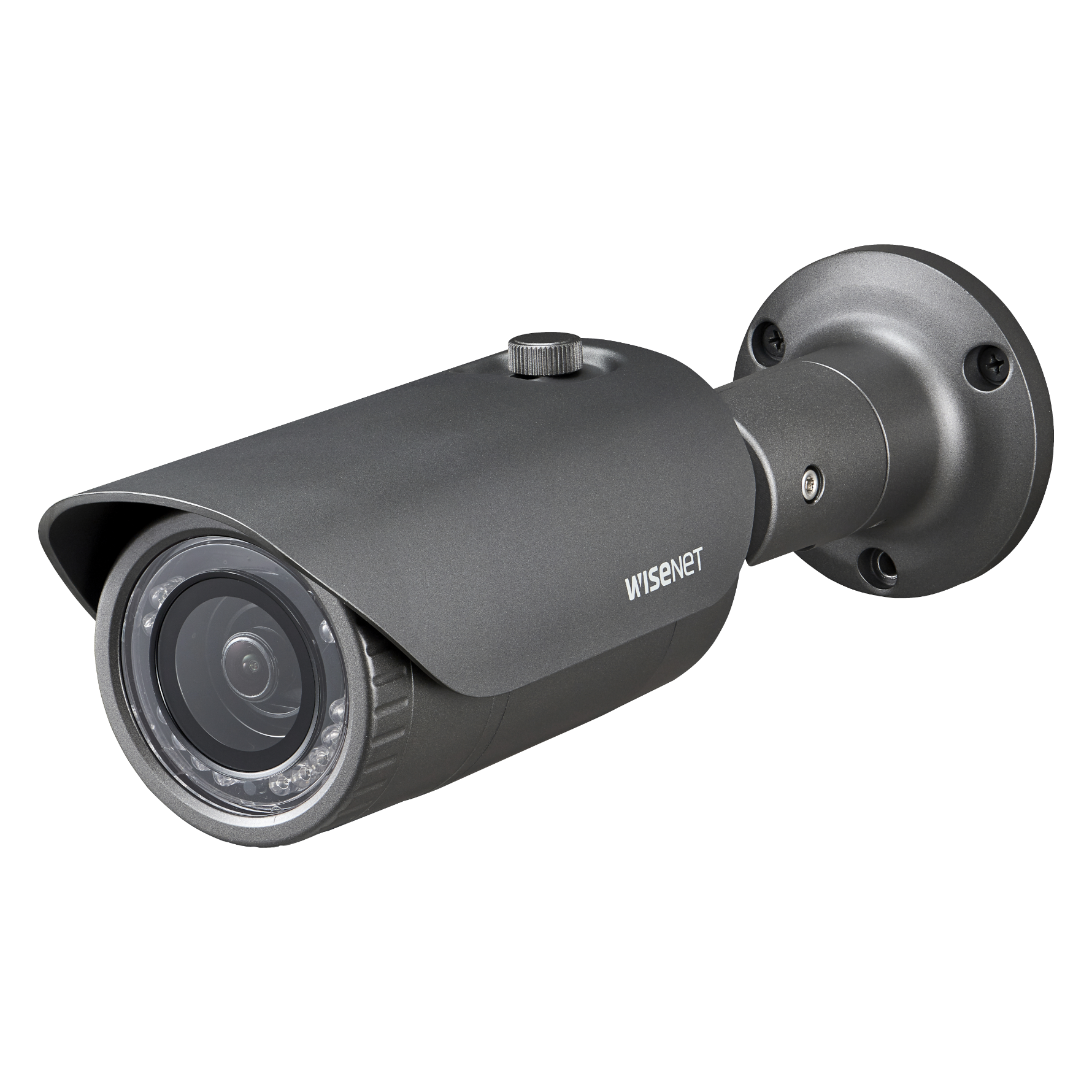

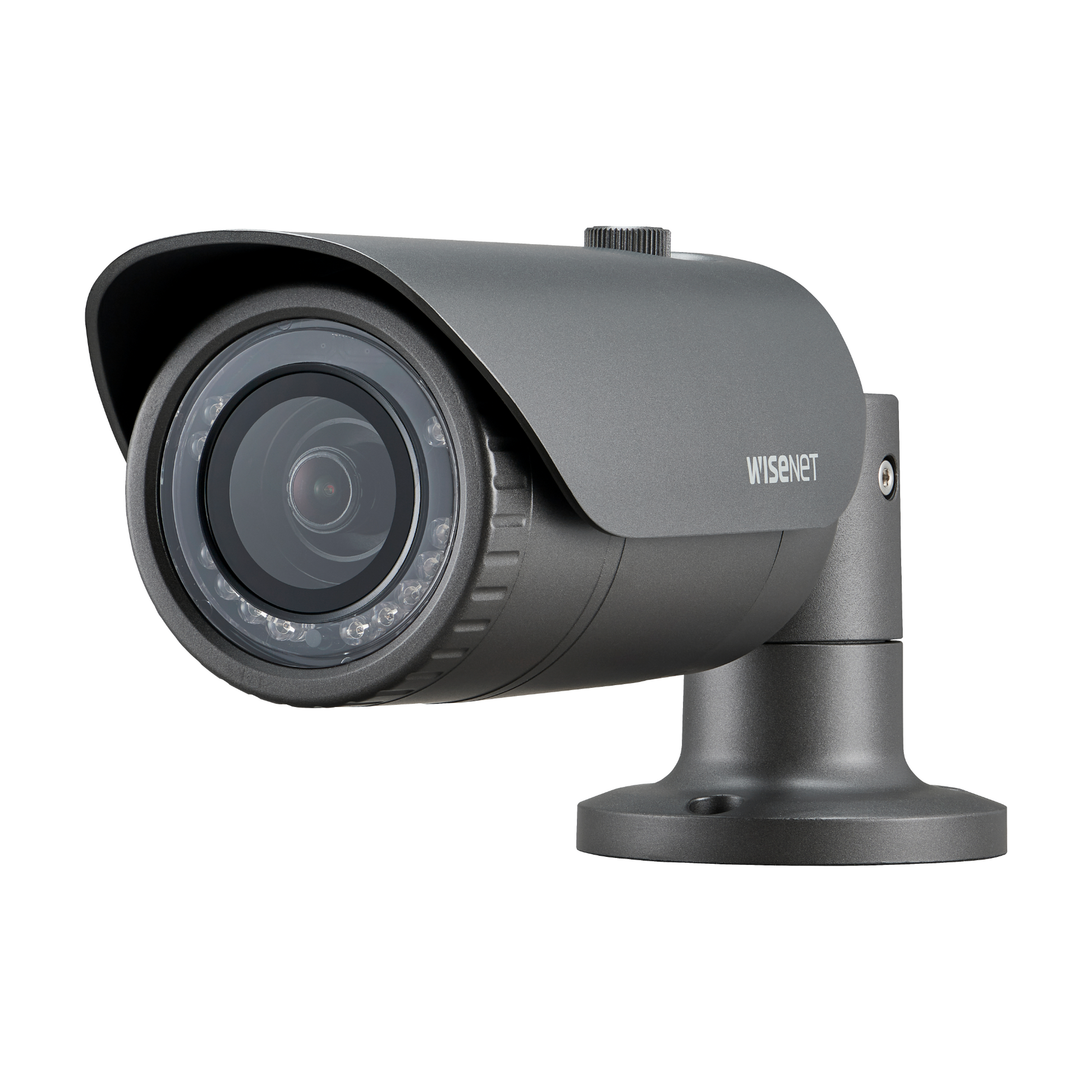

Hanwha Techwin HCO-7030RA 4MP Analog HD+ IR Bullet Security Camera
HCO-7030RA
Pentabrid compatible
QHD (4MP) Analog IR Bullet Camera
• QHD (2560 x 1440, 30fps) resolution
• 0.27 Lux@F2.0 (Color),0 Lux (B/W : IR LED on)
• Built-in 6.0mm fixed lens
• Day & Night (ICR), DWDR, Motion detection
• IR Viewable Length 30m
• Transmission distance max.500m
• Easy installation (Plug & play), IP66, IK10
• 0.27 Lux@F2.0 (Color),0 Lux (B/W : IR LED on)
• Built-in 6.0mm fixed lens
• Day & Night (ICR), DWDR, Motion detection
• IR Viewable Length 30m
• Transmission distance max.500m
• Easy installation (Plug & play), IP66, IK10
Product Specification
-
Video
Imaging Device
1/3" 4MP CMOS
Resolution
2560x1440
Max. Framerate
30fps@4M(N), 25fps@4M(P)
Min. Illumination
Color: 0.27Lux(F2.0, 1/30sec)
BW: 0Lux(IR LED on)
Video Out
BNC(AHD), additional CVBS for installation(2Pin connector type)
Video Transmission Distance
500m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio)
4.0mm fixed
Max. Aperture Ratio
F2.0
Angular Field of View
H: 78.22°, V: 41.21°, D: 87.91°
Min. Object Distance
0.5m(1.64ft)
Operational
Day & Night
Auto(ICR)
Backlight Compensation
UserBLC, HLC, DWDR
Digital Noise Reduction
2DDNR
Motion Detection
4 zones
Privacy Masking
2 zones
Gain Control
Low / Middle / High / Very High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed
1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video Rotation
H-Rev/V-Rev
Analytics
Motion detection
IR Viewable Length
25m(82.02ft)
Coaxial Protocol
ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity
-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -10°C
Certification
IP66, IK10
Input Voltage
12VDC
Power Consumption
Max 5W
Mechanical
Color / Material
Dark Gray / Aluminum
Product Dimensions / Weight
Ø70.0 x 246.0mm(Ø2.76”x9.69”), 670g(1.48 lb)
-
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
Video Imaging Device 1/3" 4MP CMOS Resolution 2560x1440 Max. Framerate 30fps@4M(N), 25fps@4M(P) Min. Illumination Color: 0.27Lux(F2.0, 1/30sec)
BW: 0Lux(IR LED on)Video Out BNC(AHD), additional CVBS for installation(2Pin connector type) Video Transmission Distance 500m(5C2V Coaxial Cable) Lens Focal Length (Zoom Ratio) 4.0mm fixed Max. Aperture Ratio F2.0 Angular Field of View H: 78.22°, V: 41.21°, D: 87.91° Min. Object Distance 0.5m(1.64ft) Operational Day & Night Auto(ICR) Backlight Compensation UserBLC, HLC, DWDR Digital Noise Reduction 2DDNR Motion Detection 4 zones Privacy Masking 2 zones Gain Control Low / Middle / High / Very High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) Video Rotation H-Rev/V-Rev Analytics Motion detection IR Viewable Length 25m(82.02ft) Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) Environmental & Electrical Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -10°CCertification IP66, IK10 Input Voltage 12VDC Power Consumption Max 5W Mechanical Color / Material Dark Gray / Aluminum Product Dimensions / Weight Ø70.0 x 246.0mm(Ø2.76”x9.69”), 670g(1.48 lb) -
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
-
