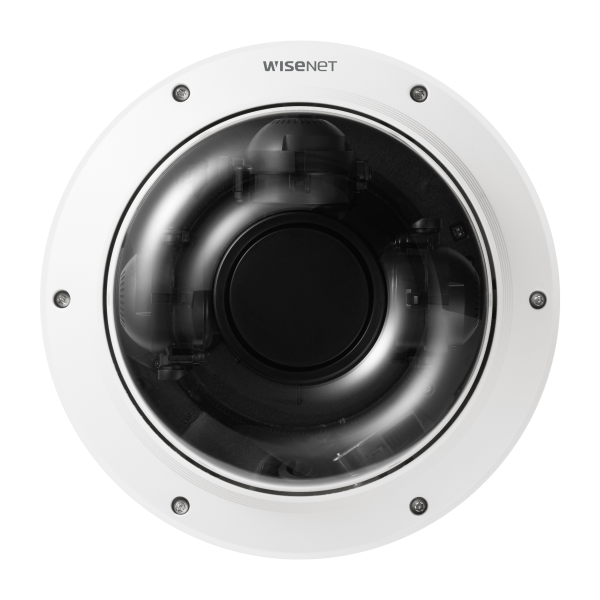

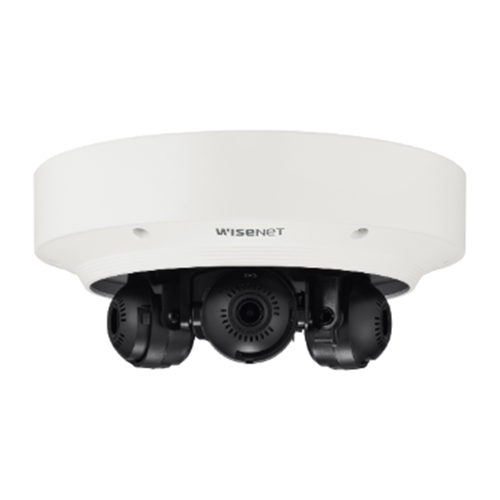

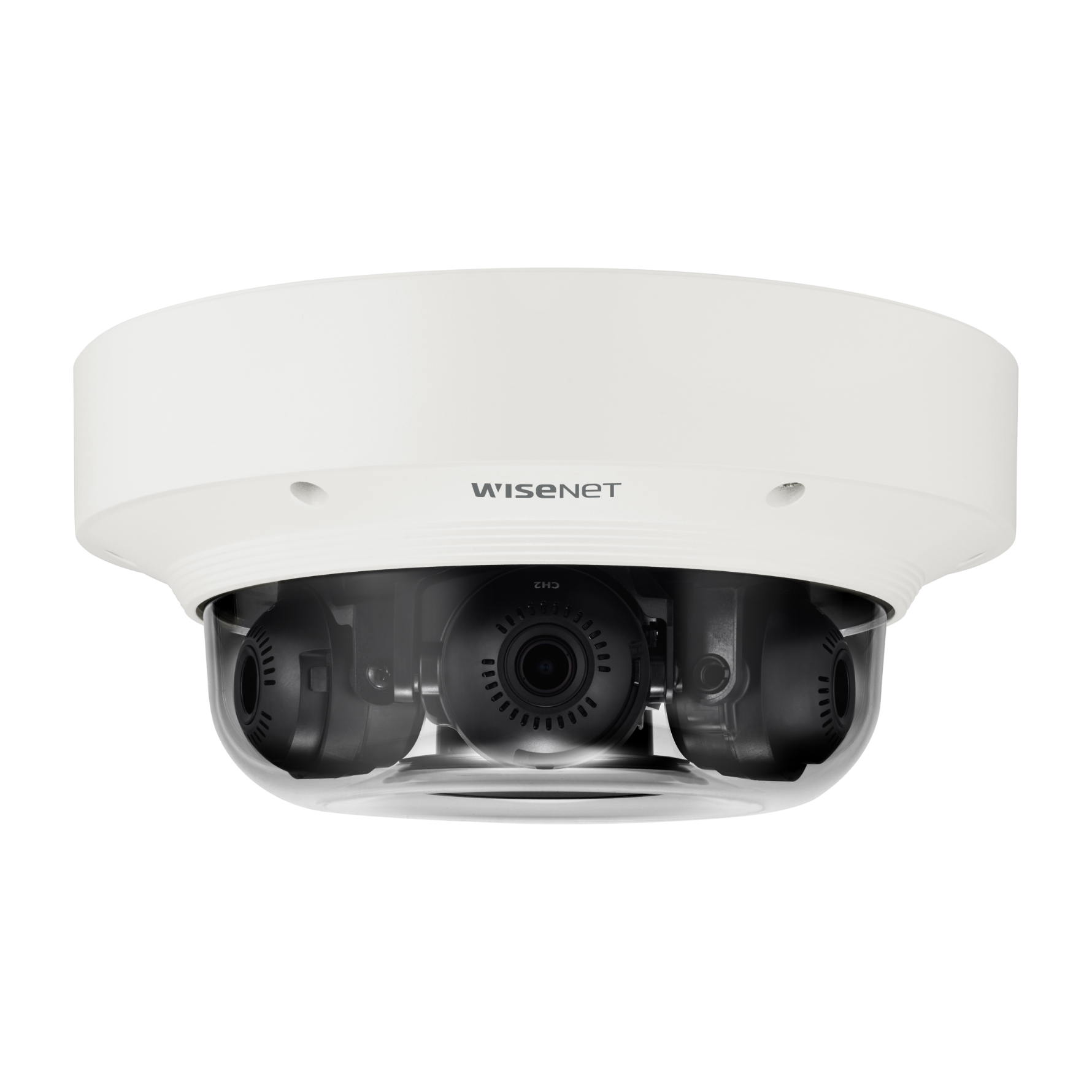

Hanwha Techwin PNM-8082VT 2MP x 3ch Multi-directional Security IP Camera

PNM-8082VT

2MP x 3ch H.265 Multi-directional Camera

• 2MP x 3ch Multi-directional camera
• Max. 30fps (H.265, H.264, MJPEG)
• 3.0~6.0mm(2x) motorized varifocal lens
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X

Product Specification

  • Video
    Imaging Device 1/2.8" CMOS x 3CH
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.04lux(F2.2, 1/30sec)
    BW: 0.004lux(F2.2, 1/30sec)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    Lens
    Focal Length (Zoom Ratio) 3~6mm(2x) motorized varifocal
    Max. Aperture Ratio F2.2(Wide)-F3.1(Tele)
    Angular Field of View H: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele)
    Min. Object Distance 0.5m(1.64ft)
    Focus Control Simple focus
    Lens Type Fixed iris
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0~360˚ / 0~73˚ / 0~90˚
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range extreme WDR(150dB)
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, polygonal zones
    - Color: Grey, Green, Red, Blue, Black, White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror
    Analytics Defocus detection, Directional detection,Motion detection, Enter/Exit,Tampering, Virtual line
    Alarm Triggers Analytics, Network disconnect
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC at event triggers
    Handover
    Network
    Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Device Certificate(Hanwha Techwin Root CA)
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 2slot 512GB(256GBx2)
    Memory 4GB RAM, 512MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity Normal : -40°C~+55°(-40°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F)
    Less than 95% RH(Non condensing)
    Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
    Certification IP66, IK10, NEMA4X
    Input Voltage PoE+
    Power Consumption Max : 16.5W, Typical : 8.2W
    Mechanical
    Color / Material White / Aluminum
    RAL Code RAL9003
    Product Dimensions / Weight Ø251x116.5mm / 3Kg
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft)
    Observe (63PPM/ 19PPF) Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft)
    Recognize (125PPM/ 38PPF) Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft)
    Identify (250PPM/ 76PPF) Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft)
