Hanwha Techwin PNM-9085RQZ1 5MP x 4CH IR PTRZ H.265 IP66 IP Security Dome Camera

Regular price $3,800.00
Sale price $3,800.00 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Hanwha Techwin PNM-9085RQZ1 5MP x 4CH IR PTRZ H.265 IP66 IP Security Dome Camera

Hanwha Techwin PNM-9085RQZ1 5MP x 4CH IR PTRZ H.265 IP66 IP Security Dome Camera

Regular price $3,800.00
Sale price $3,800.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

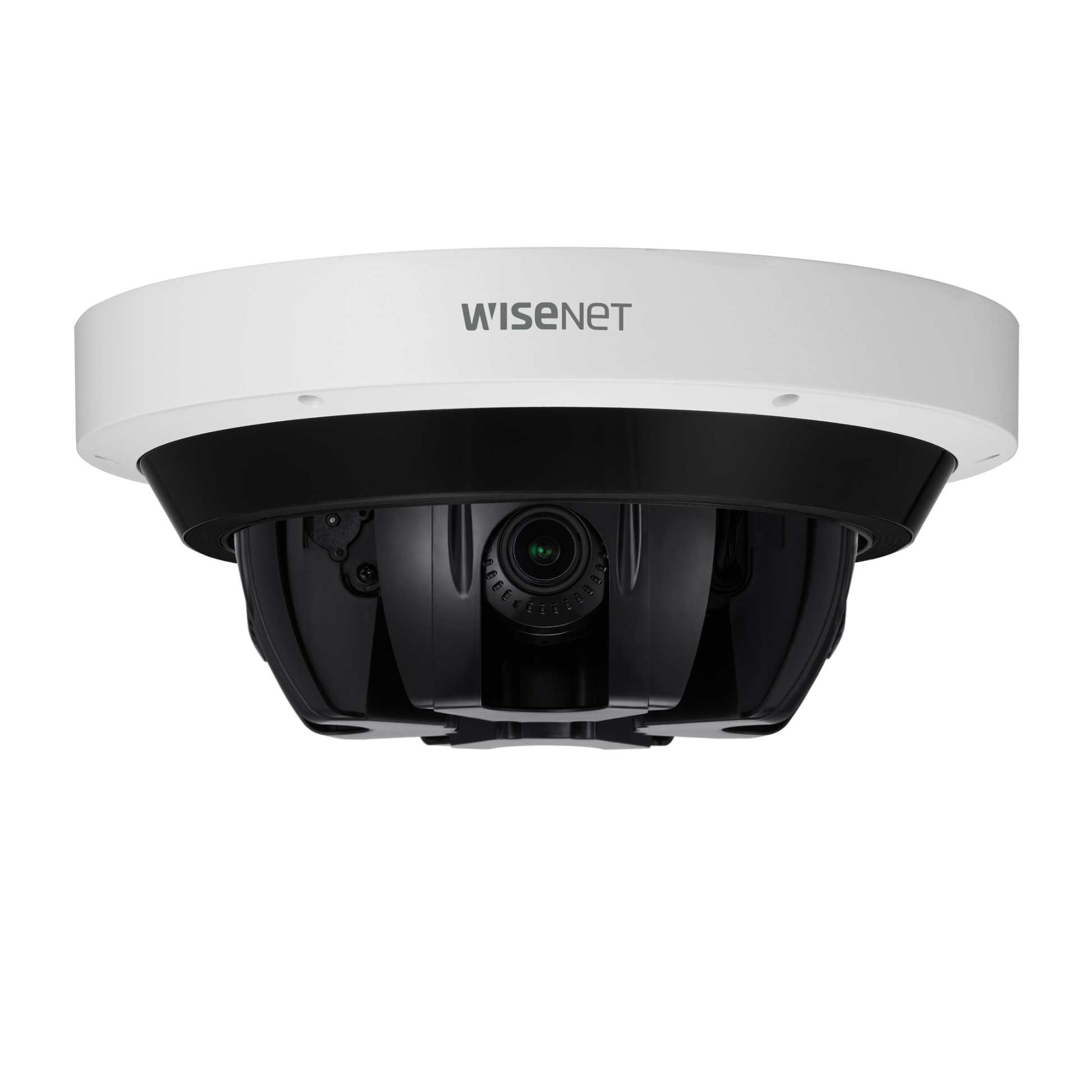

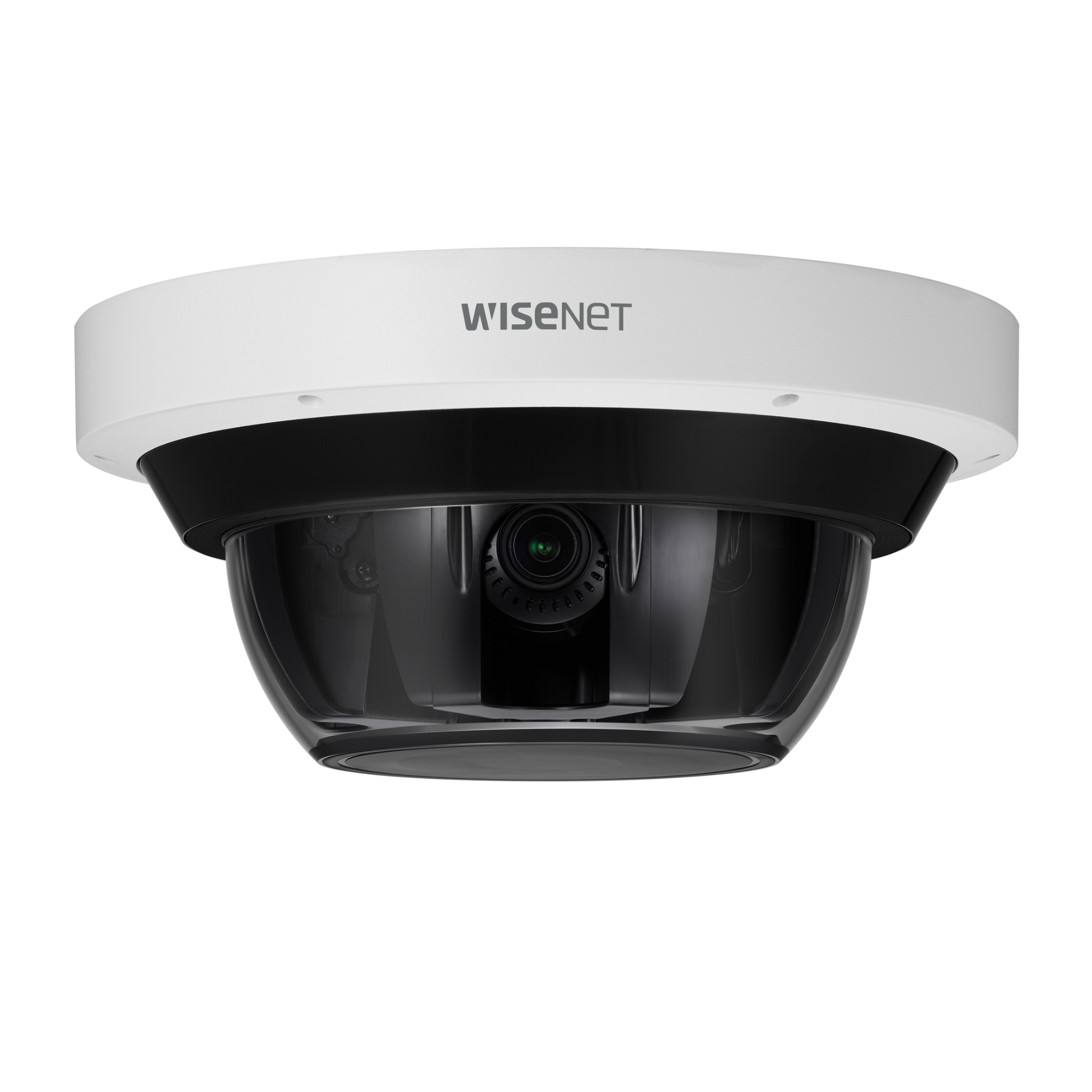

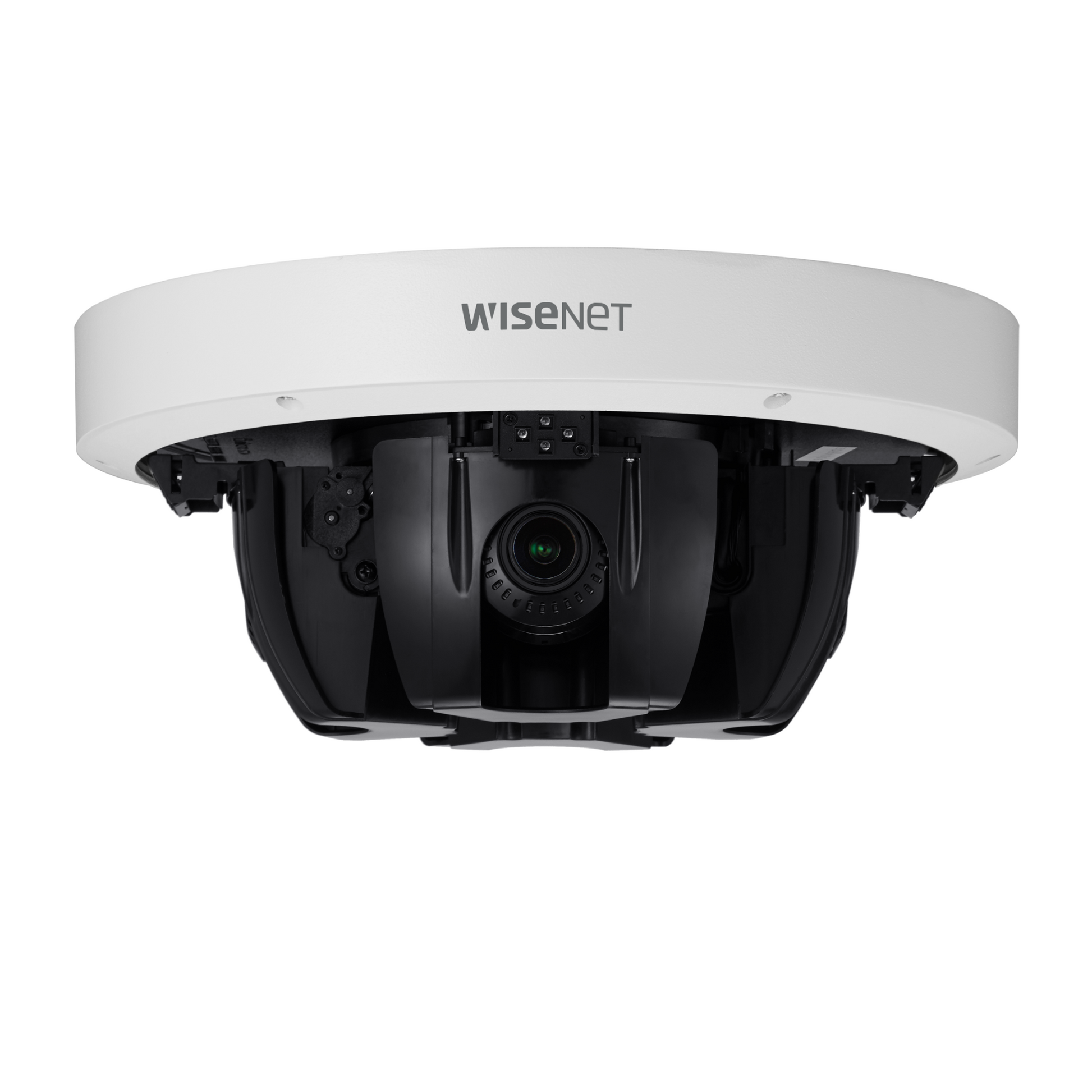

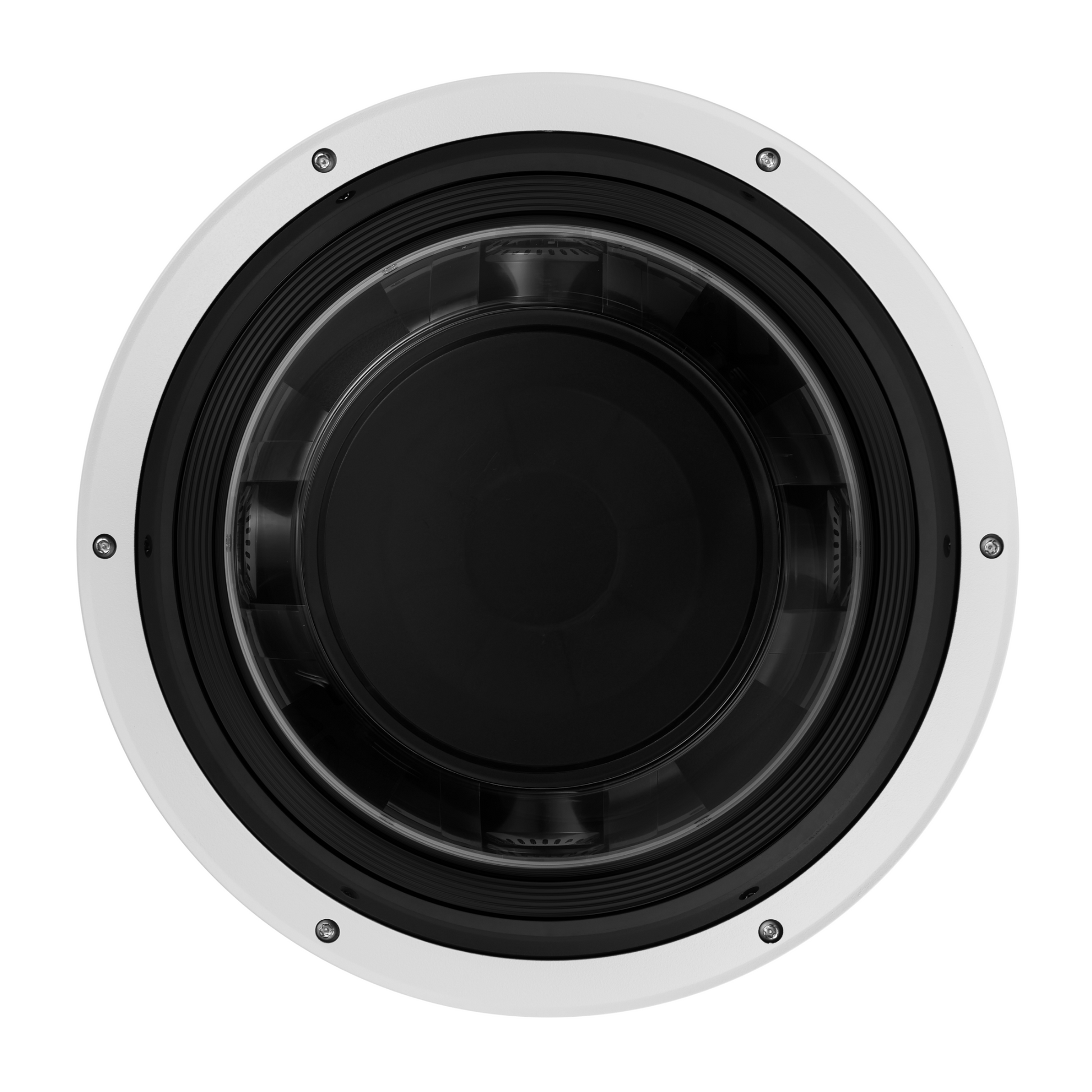

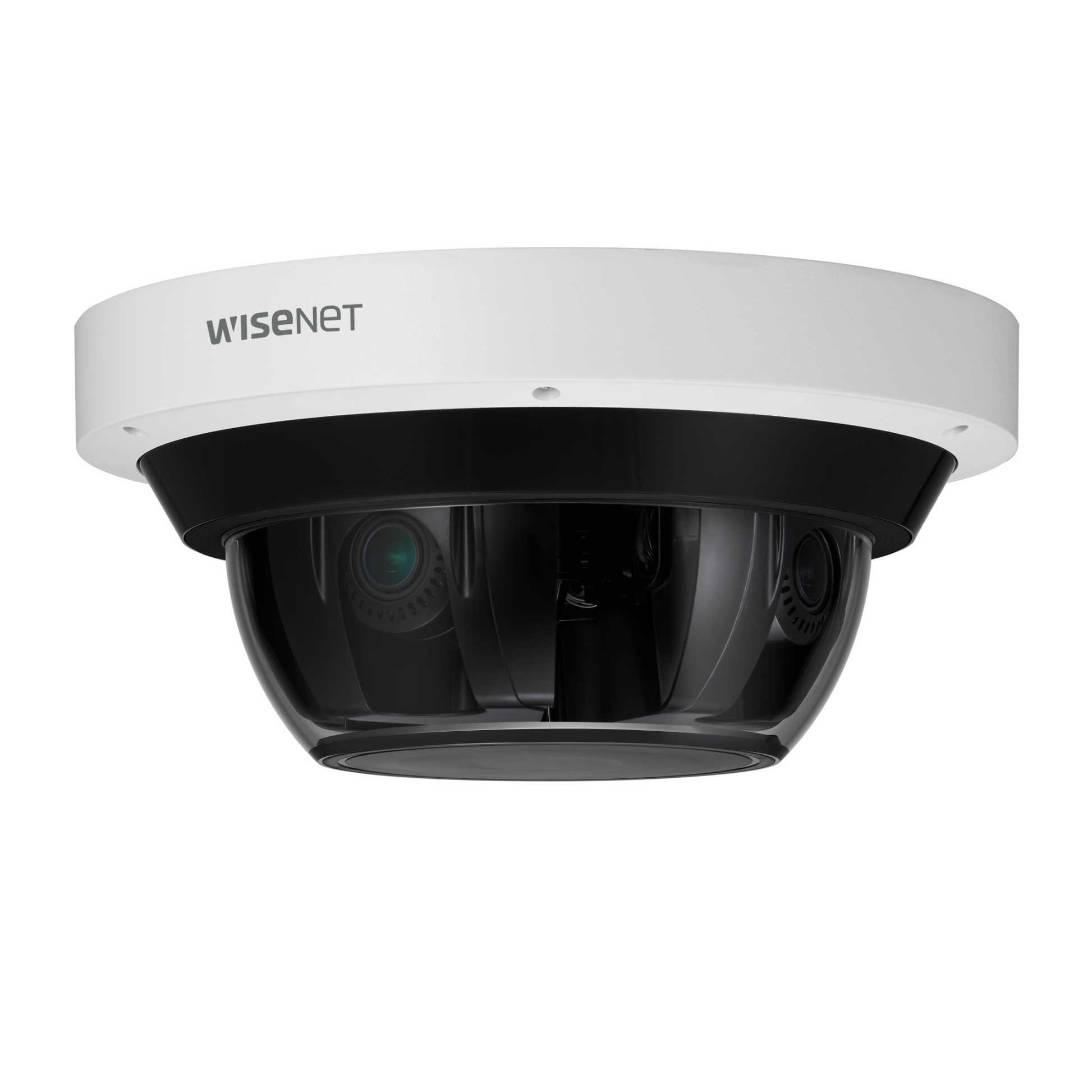

Hanwha Techwin PNM-9085RQZ1 5MP x 4CH IR PTRZ Multi-sensor Multi-directional network vandal outdoor dome Security Camera

PNM-9085RQZ1

5MP x 4CH IR PTRZ Multi-directional Camera

Key Features
• Motorized PTRZ support
• Maximum 30fps@5MP(H.265, H.264)
• 4.13~9.4mm(2.3x) motorized varifocal lens
• IR viewable length : 30m(98.43ft)
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStreamⅡ
• IP66, IK10, NEMA4X

Product Specification


Sensor
4 x 5 MP 1/1.8" CMOS
Focal Length
4.1 to 9.4mm
Lens Field of View
Horizontal: 87.58 to 37.34°
Vertical: 64.58 to 28.04°
Diagonal: 112.46 to 46.85°
Pan/Tilt
Programmed
Pan: 360°
Programmed
Tilt: 45°
Power Source
DC, PoE 802.3bt (60 W)
Illumination
IR LEDs up to 98.4' / 30 m
Camera
Sensor
4 x 5 MP 1/1.8" CMOS
Focal Length
4.1 to 9.4mm
Maximum Aperture
f/1.92 to 2.67
Zoom
Optical: 2.3x
Lens Field of View
Horizontal: 87.58 to 37.34°
Vertical: 64.58 to 28.04°
Diagonal: 112.46 to 46.85°
IR Cut Filter
Mechanical
Day/Night
Yes
Minimum Illumination
Color: 0.11 Lux
B&W: 0 Lux
Shutter Speed
1/12000 to 2 Seconds
Video
Streaming Resolution
2560 x 1920 at 30 fps
Supported Video Compression
H.264, H.265, MJPEG
Multi-View Streaming
Yes, 10 Streams
Audio
1- or 2-Way Audio
Two-Way
Audio Formats
AAC-LC, G.711, G.726
Pan & Tilt
Pan/Tilt
Programmed
Pan: 360°
Programmed
Tilt: 45°
Networking
Security
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log
System Integration
Application Programming Interface (API)
ONVIF Profiles S & T, SUNAPI (HTTP API), Wisenet Open Platform
Analytics
Defocus Detection, Directional Detection, Face Detection, Fog Detection, Motion Detection (8 Polygonal Zones), Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual Line, Audio Detection
Sensors & Alarms
Event Trigger
Yes
Event Action
Recording, Notification, Alarm
Data Streaming
Yes
Hardware
Memory
5 GB RAM / 1280 MB Flash
Media/Memory Card Slot
Per Sensor: microSD/microSDHC/microSDXC [256 GB Maximum]
Power
Power Source
DC, PoE 802.3bt (60 W)
Power Consumption
DC: 42 W
PoE+: 45 W
Environmental
Operating Temperature
-40 to 131°F / -40 to 55°C
Storage Temperature
-58 to 140°F / -50 to 60°C
Operating Humidity
0 to 90%
IP Rating
IP66
IK Rating
IK10
General
Inputs/Outputs
1 x RJ45
1 x Power
Illumination
IR LEDs up to 98.4' / 30 m
Supported Languages
Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Turkish
Material of Construction
Aluminum
Dimensions
ø: 12.4 x H: 5.7" / ø: 315.0 x H: 145.9 mm
Weight
11.5 lb / 5.2 kg
Packaging Info
Package Weight
16.62 lb
Box Dimensions (LxWxH)
17.6 x 16.5 x 9.4"
