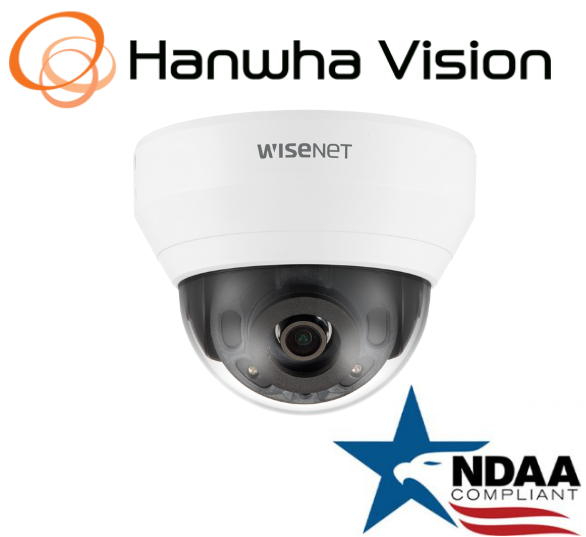

Hanwha Techwin QND-6012R1 PoE IR Indoor Dome IP Security Camera 2.8mm fixedLens

Regular price $289.00
Sale price $289.00 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Hanwha Techwin QND-6012R1 PoE IR Indoor Dome  IP Security Camera 2.8mm fixedLens

Hanwha Techwin QND-6012R1 PoE IR Indoor Dome IP Security Camera 2.8mm fixedLens

Regular price $289.00
Sale price $289.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

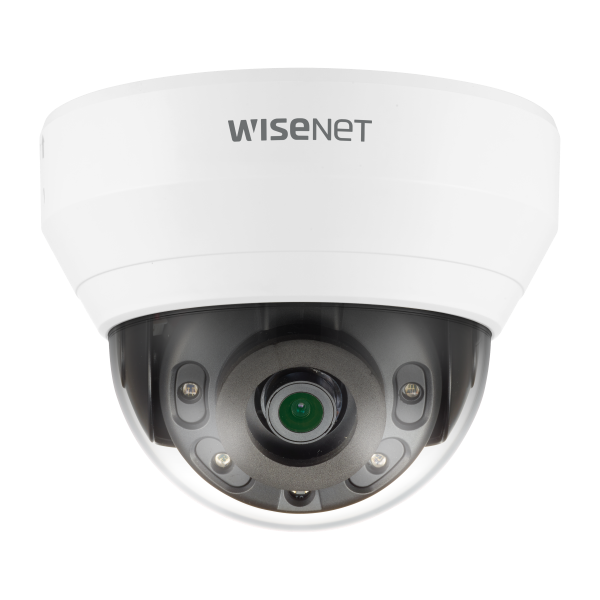

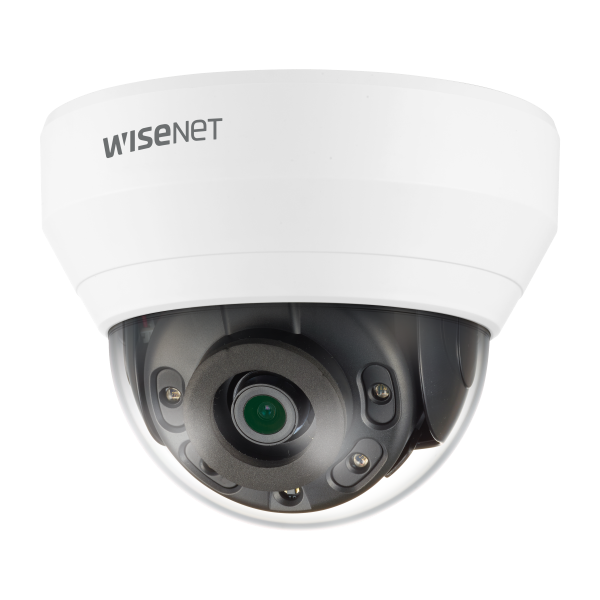

Hanwha Techwin QND-6012R1 PoE Network IR Indoor Dome Security Camera

QND-6012R1

2MP IR Indoor Dome

  • Maximum 2megapixel (1920 x 1080) resolution
  • 0.03Lux (Color), 0Lux (B/W, IR LED on)
  • 2.8mm fixed lens
  • Maximum 30fps@2MP all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Motion detection, Tampering, Defocus detection
  • Hallway view (90º/270º), LDC support
  • Micro SD/SDHC/SDXC memory slot (Max. 128GB)
  • IR viewable length 20m, PoE

Specifications

Video

Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
NETD None
Pixel Size None
Min. Illumination Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Video Transmission Distance None
Lens
Focal Length (Zoom Ratio) 2.8mm fixed focal
Max. Aperture Ratio F2.0
Angular Field of View H: 113.7° / V: 61.5° / D: 134.5°
Min. Object Distance 0.5m (1.64ft)
Focus Control Fixed
Lens Type None
Mount Type None
Optional Lens None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Pan Range None
Pan Speed None
Tilt Range None
Tilt Speed None
Rotate Range None
Sequence None
Preset Accuracy None
Operational
Camera Title Displayed up to 85 characters
Direction Indicator None
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Digital Image Stabilization None
Defog None
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Digital PTZ None
Video Rotation Flip, Mirror, Hallway view(90˚/270˚)
Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Business Intelligence None
Serial Interface None
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
Audio In None
Audio Out None
IR Viewable Length 20m(65.62ft)
IR Illuminator (Optional) None
Water Removal None
Auto Tracking None
Coaxial Protocol None
Color Palettes None
Radiometry
Temperature Detect Range None
Temperature Accuracy None
Temperature Detection None
Additional None
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression None
Smart Codec WiseStreamⅡ
Video Quality Adjustment H.264/H.265: Target bitrate level control MJPEG: Quality Level control
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Web Viewer None
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
Certification None
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 7.40W, typical 6.00W 12VDC: Max 6.40W, typical 5.10W
Mechanical
Color / Material White / Plastic
RAL Code RAL9003
Product Dimensions / Weight Ø110.0x86.0mm(Ø4.33x3.39"), 255g(0.56 Ib)
Compatible Conduit hole / Gangbox None
Hanging Mount (Dome) None
Skin Cover (Dome) None
Weather Cap (Dome) None
Power Module None
Backbox None
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 25.1m(82.21ft)
Observe (63PPM/ 19PPF) 10.0m(32.89ft)
Recognize (125PPM/ 38PPF) 5.0m(16.44ft)
Identify (250PPM/ 76PPF) 2.5m(8.22ft)
