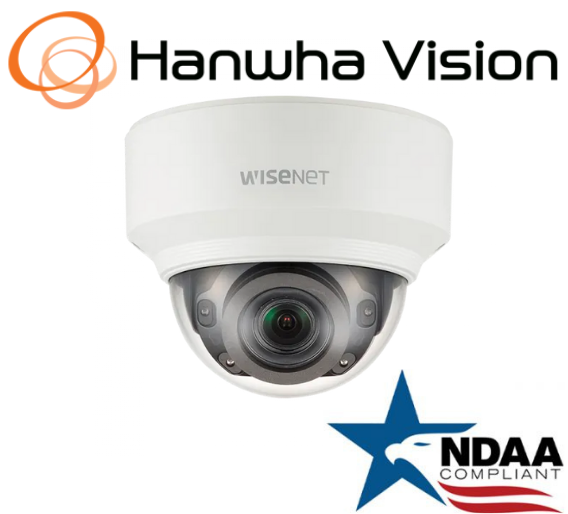

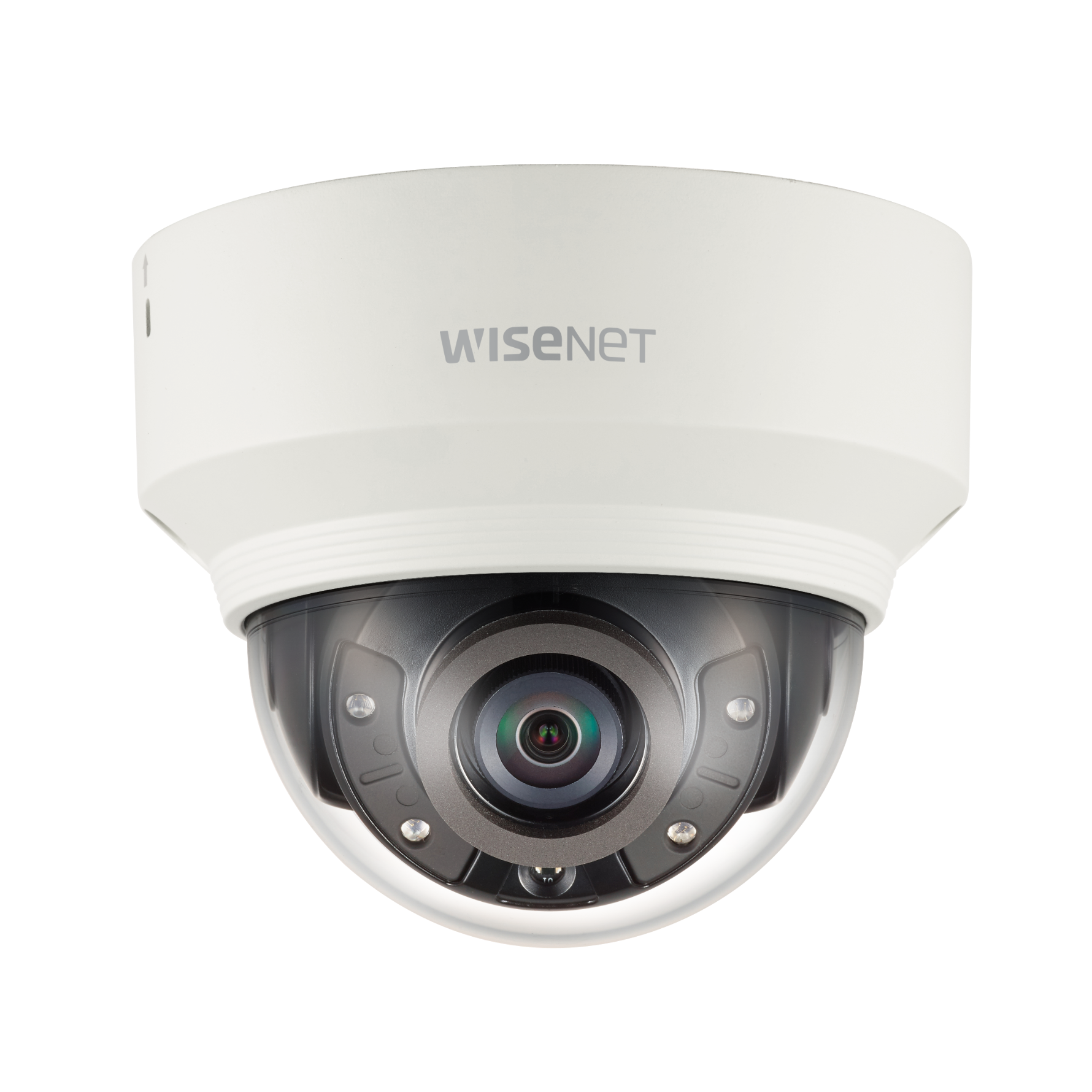

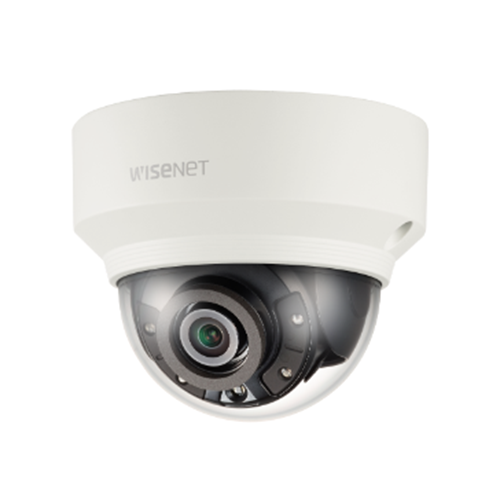

Hanwha Techwin XND-8040R 5MP PoE Vandal Dome IP Security Camera 7mm Fixed Lens

Regular price $775.00
Sale price $775.00 Regular price
Unit price

REQUEST A QUOTE >

Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
Hanwha Techwin XND-8040R 5MP PoE Vandal Dome IP Security Camera 7mm Fixed Lens

Hanwha Techwin XND-8040R 5MP PoE Vandal Dome IP Security Camera 7mm Fixed Lens

Regular price $775.00
Sale price $775.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

Hanwha Techwin XND-8040R 5MP Network Security Vandal Dome Camera 7mm Fixed Lens

XND-8040R

5MP Indoor IR Dome

  • Built-in 7.0mm fixed lens
  • Max. 30fps@all resolutions (H.265/H.264)
  • Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
  • Motion detection, Handover
  • Dual SD slots (Max. 512GB), WiseStream II support
  • IR viewable length 30m, IK08

Product Specification

  • Video
    Imaging Device 1/1.8" 6MP CMOS
    Resolution 2560x1920, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.16Lux(F1.6, 1/30sec)
    BW: 0Lux(IR LED on)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB Type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 7.0mm fixed focal
    Max. Aperture Ratio F1.6
    Angular Field of View H: 50.7°, V: 37.8°, D: 63.8°
    Min. Object Distance 0.4m(1.31ft)
    Lens Type Fixed
    Pan / Tilt / Rotate
    Pan / Tilt / Rotate Range 0°~354° / 0°~67° / 0°~355°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 120dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, polygonal zones
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    LDC Support
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror, Hallway view(90°/270°)
    Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
    Business Intelligence People counting, Queue management, Heatmap
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    DPTZ preset
    Audio In Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    IR Viewable Length 30m(98.42ft)
    Network
    Ethernet RJ-45(10/100BASE-T)
    Video Compression H.265/H.264: Main/Baseline/High, MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
    Recommended Browser: Google Chrome
    Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
    Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
    Memory 1024MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -10°C~+55°C(14°F ~ +131°F) / Less than 90% RH
    Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
    Certification IK08
    Input Voltage PoE(IEEE802.3af, Class3), 12VDC
    Power Consumption PoE : Max 9W
    12VDC : Max. 8W
    Mechanical
    Color / Material Ivory / Aluminum
    Product Dimensions / Weight Ø110x90mm(4.33"x3.54"), 380g(0.84 lb)
  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
