Hanwha Techwin XNF-8010RV 6MP Outdoor Fisheye IP Security Camera1.6mm fixed Lens
Hanwha Techwin XNF-8010RV 6MP Outdoor Fisheye IP Security Camera1.6mm fixed Lens

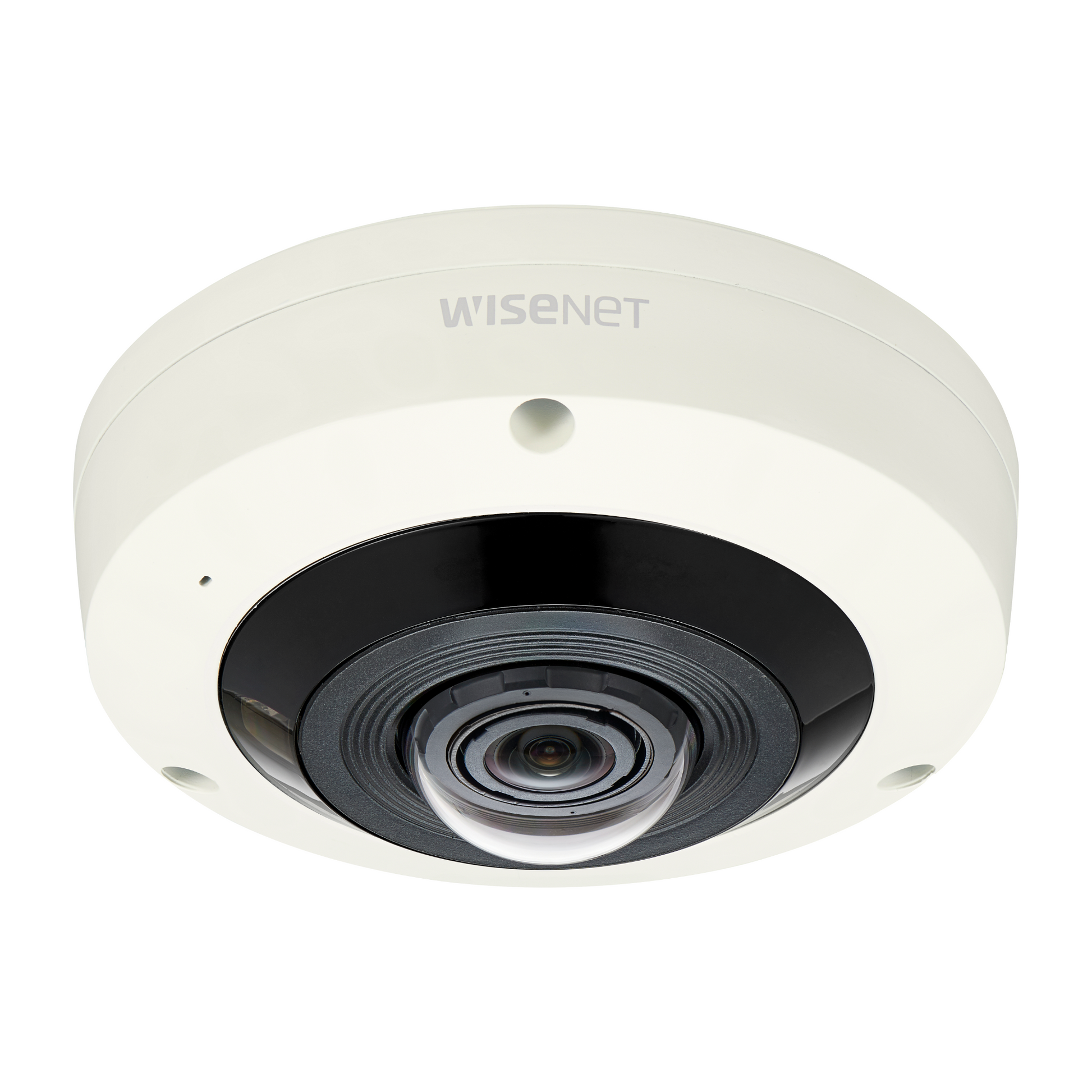

Hanwha Techwin XNF-8010RV 6MP Outdoor Network Fisheye IP Security Camera
Upgrade your surveillance system with the Hanwha Techwin XNF 8010RV 6MP Outdoor Fisheye IP Security Camera, designed for powerful 360-degree monitoring. This NDAA compliant camera combines advanced fisheye technology, onboard dewarping, and AI video analytics for comprehensive indoor and outdoor security.
Key Features of the Hanwha 6MP Outdoor Camera
• H.265, H.264, MJPEG codec supported
• Fisheye, Single panorama, Double panorama, Quad view
• On board dewarping, Digital PTZ (8x), Bi-directional audio
• True WDR (120dB), WiseStreamⅡ support
• Video Analytics, Heatmap, People counting
• Queue management
• Motion detection, Handover, M12 (8010RVM), IP66/IK10

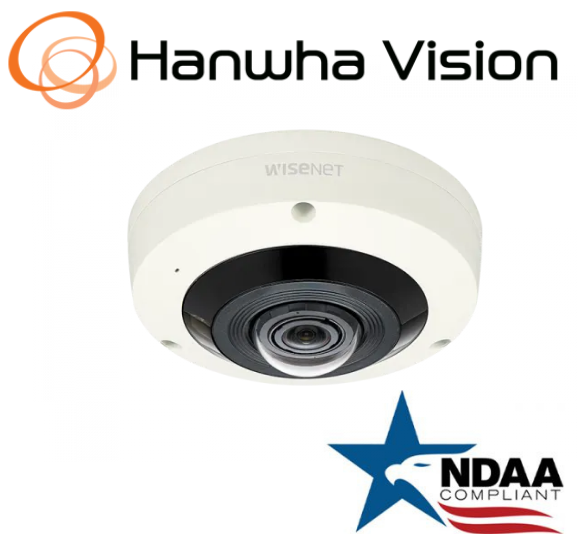

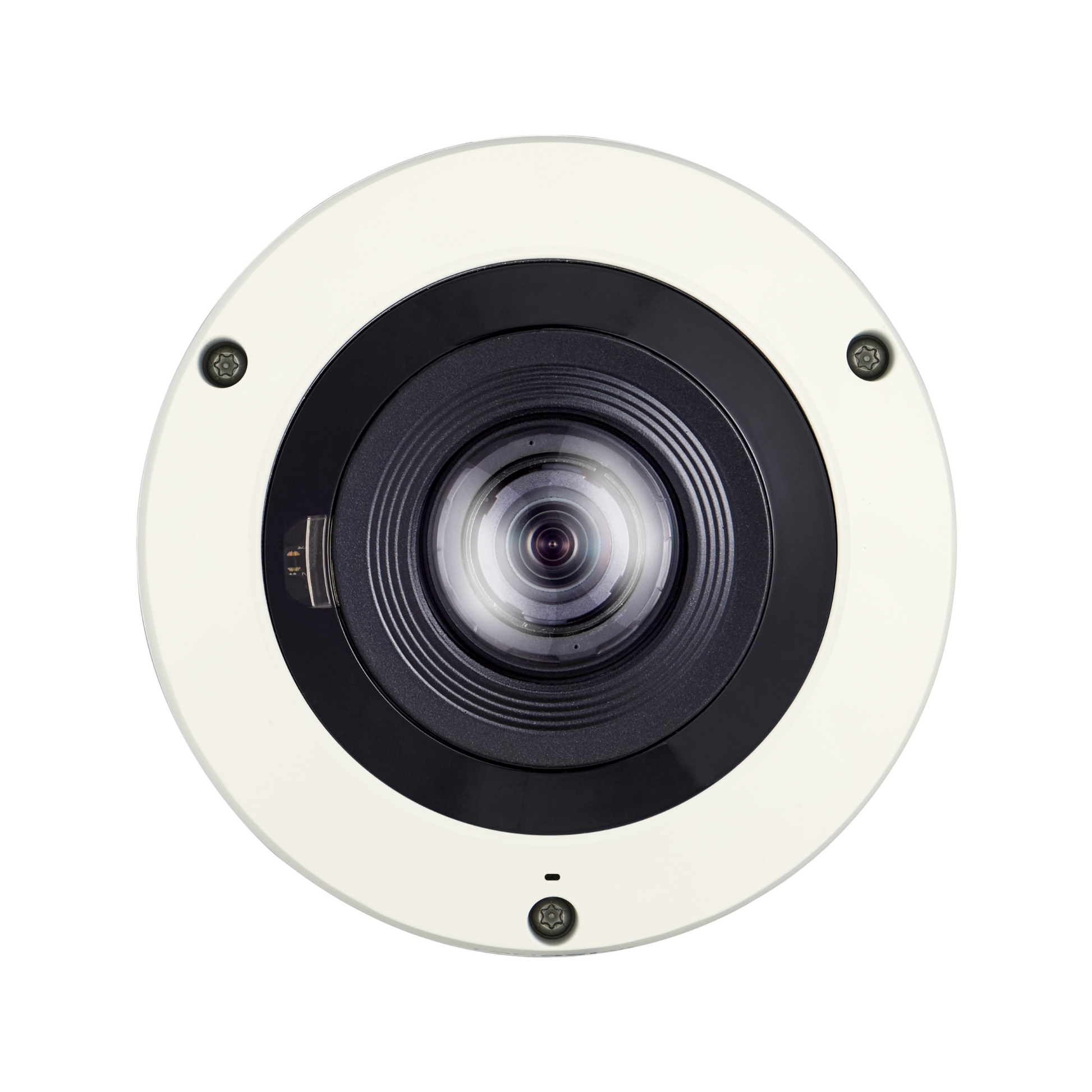

Hanwha Techwin XNF-8010RV 6MP Outdoor NDAA Compliant Fisheye IP Camera
The Hanwha XNF 8010RV fisheye camera delivers unmatched coverage with its 6MP resolution and 360-degree panoramic view, making it perfect for wide-area surveillance. Whether you need to monitor a retail store, parking lot, or corporate space, this Hanwha outdoor camera provides exceptional clarity and performance.
With support for H.265 compression, WiseStream II technology, and True WDR (120dB), this IP camera from Hanwha Techwin ensures high-quality video even in challenging lighting. The Hanwha 360 camera supports multiple viewing modes including single panorama, double panorama, quad view, and fisheye view with onboard dewarping and digital PTZ.
Equipped with advanced video analytics like heatmap, people counting, and queue management, the Hanwha fisheye IP camera offers intelligent monitoring to improve business operations and security. Built to last, this Hanwha vision NDAA compliant camera is IK10 vandal-resistant and IP66 weatherproof—ideal for demanding outdoor environments.
Compatible with most VMS platforms and featuring bi-directional audio, motion detection, and POE support, this Hanwha dual lens camera alternative delivers smart, secure, and seamless surveillance.
Product Specification Of Hanwha XNF-8010RV Fisheye IP Camera
-
-
Video Imaging Device 1/1.8" 6M CMOS Resolution Original view: 2048x2048, 1280x1280, 1080x1080, 960x960, 768x768, 720x720, 640x640, 480x480
Single panorama: 2048x512, 1920x480, 1280x320, 640x160, 704x176
Double panorama: 2048x1024, 1920x960, 1280x640, 640x320, 704x352
Quad view: 2048x1536, 1600x1200, 1280x960, 1024x768, 800x600, 640x480, 704x576
Q1/2/3/4: 1024x768, 800x600, 640x480Max. Framerate H.264/H.265 : 30fps/25fps@2048x2048(60Hz/50Hz)
MJPEG : Max 15fpsMin. Illumination Color: 0.1 Lux (F1.6, 1/30sec), BW: 0 Lux (IR LED On) Video Out CVBS: 1.0 Vp-p / 75Ω composite, 714x480(N), 702x576(P) for Installation
USB: Micro USB Type B, for installationLens Focal Length (Zoom Ratio) 1.6mm fixed focal Max. Aperture Ratio F1.6 Angular Field of View H: 192˚ / V: 192˚ / D: 192˚ Min. Object Distance 0.3m Focus Control Simple remote control focus via network Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNRⅤ Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, Quadrangle zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror Analytics Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Business Intelligence People counting, Queue management, Heatmap Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm outputAudio In Selectable(mic in/line in/built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms IR Viewable Length 15m(49.21ft) Radiometry Temperature Accuracy G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzNetwork Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Multiple streaming(Up to 10 profiles) Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SRTP(Unicast) Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Edge Storage Micro SD/SDHC/SDXC 2slot 512GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP66, IK10
EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009,
EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014
EN61000-4-6:2009, EN50155:2007Input Voltage PoE(IEEE802.3af, Class3), 12VDC Power Consumption PoE: Max 12.95W
12VDC: Max 12WMechanical Color / Material Ivory / Aluminum Product Dimensions / Weight Ø146x65.8mm(Ø5.75x2.59"), 785g(1.73 lb) - • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
- • Design and specifications are subject to change without notice.
-
