Hanwha Techwin XNV-8020R 5MP IR IP Vandal Dome Security Camera 3.7mm Fixed Lens
Hanwha Techwin XNV-8020R 5MP IR IP Vandal Dome Security Camera 3.7mm Fixed Lens

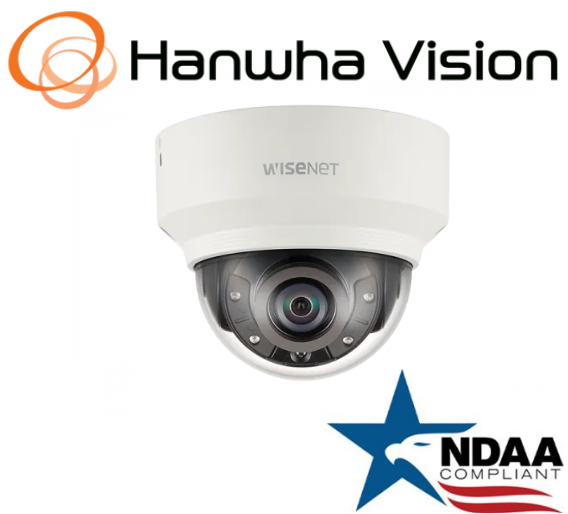

Hanwha Techwin XNV-8020R 5MP IP Network Vandal Dome Security Camera
Discover the Hanwha Techwin XNV-8020R, a powerful 5MP NDAA-compliant IP dome camera ideal for indoor and outdoor surveillance. Built with a 3.7mm fixed lens, PoE support, and IK10/IP67-rated vandal/weather resistance, this Hanwha Wisenet camera delivers crystal-clear footage at 30fps. Equipped with AI analytics such as loitering detection, people counting, fog detection, and motion tracking, it's perfect for commercial or government use. This Wisenet dome camera also features 30m IR night vision, making it a reliable solution for all lighting conditions.
Key Features of the Hanwha XNV-8020R 5MP IP Dome Camera
- Built-in 3.7mm fixed lens
- 30fps@all resolutions (H.265/H.264)
- Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
- Motion detection, Handover
- Hallway view, WiseStream II support
- IR viewable length 30m, IP67/IP66, IK10
Hanwha Techwin XNV-8020R 5MP NDAA Compliant IP Dome Camera
The Hanwha Techwin XNV 8020R 5MP IP vandal dome security camera is a high-performance solution designed for critical surveillance environments. Featuring a 3.7mm fixed lens, this Hanwha Wisenet dome camera delivers sharp 5MP video at up to 30fps in all resolutions, supporting both H.265 and H.264 compression for efficient bandwidth use.

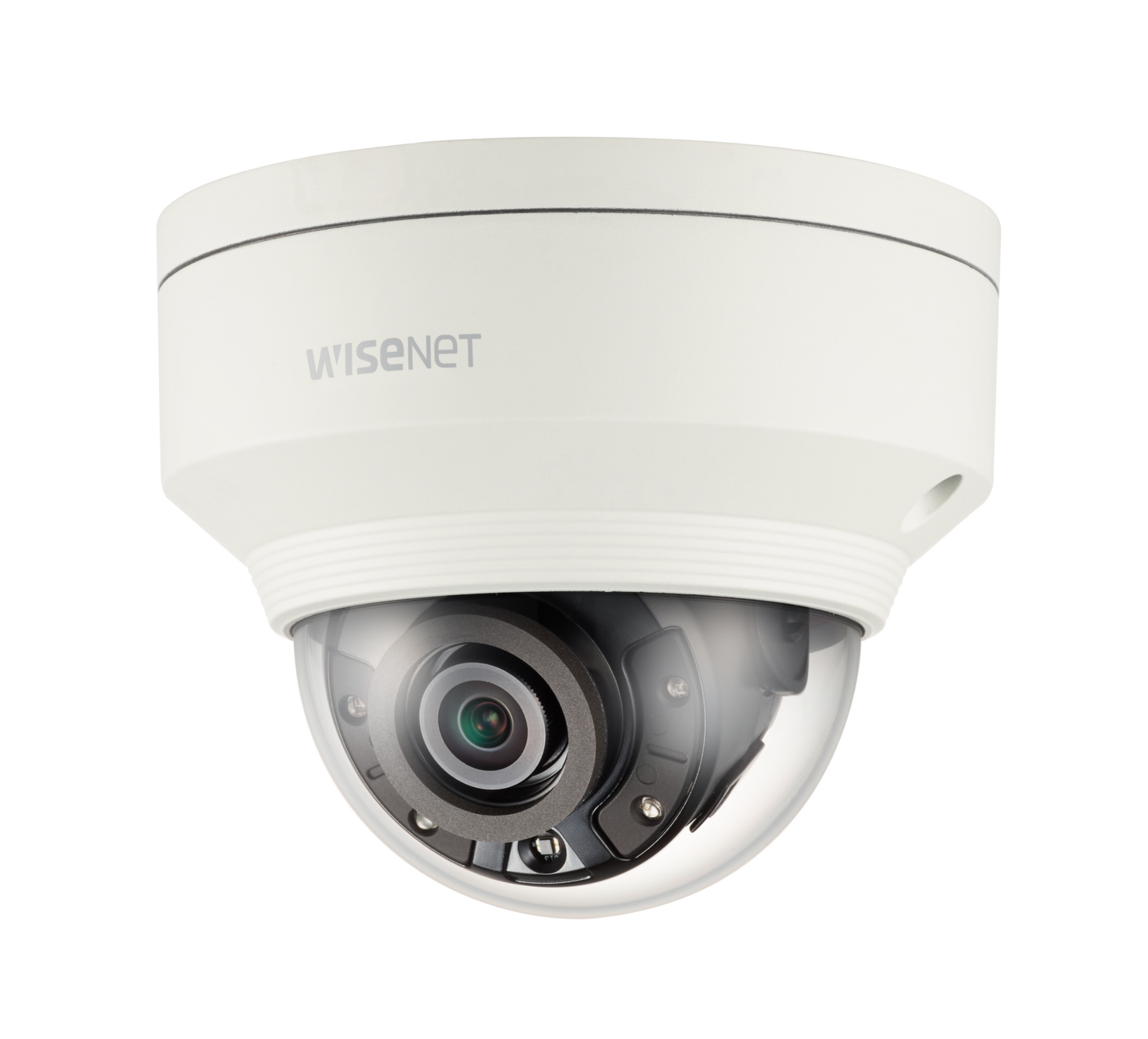

This IP camera from Hanwha Techwin is built to withstand harsh conditions with IK10 vandal resistance and IP67/IP66 weatherproof ratings, making it ideal for both indoor and outdoor dome camera installations. With 30 meters of IR night vision, it captures clear footage even in complete darkness.
Enhanced with AI-powered features like motion detection, loitering detection, fog detection, digital auto tracking, heatmap, and queue management, this Hanwha Wisenet camera ensures intelligent monitoring in commercial, public, and government spaces. It also supports PoE installation and Hallway View, making it easy to deploy in corridors or narrow areas.
Compliant with NDAA regulations, the Hanwha XNV 8020R is a secure choice for government and enterprise applications. Whether you're comparing Hanwha camera prices or upgrading your existing system, this Hanwha POE camera is built to deliver performance, durability, and peace of mind.
Product Specification Of Hanwha NDAA Camera
-
Video Imaging Device 1/1.8" 6MP CMOS Resolution 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720,
1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240Max. Framerate H.265/H.264: Max.30fps/25fps(60Hz/50Hz)
MJPEG: Max.30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.16Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installationLens Focal Length (Zoom Ratio) 3.7mm fixed focal Max. Aperture Ratio F1.6 Angular Field of View H: 97.5° / V: 71.9° / D: 126.2° Min. Object Distance 0.4m(1.31ft) Focus Control Fixed Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0°~354° / 0°~67°/ 0°~355° Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR Wide Dynamic Range 120dB Digital Noise Reduction SSNRV Digital Image Stabilization Support(built-in gyro sensor) Defog Support(built-in optical filter) Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification Business Intelligence People counting, Queue management, Heatmap Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm outputAudio In Selectable(mic in/line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms IR Viewable Length 30m(98.43ft) Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC : 48Kbps at 8/16/32/48KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platformGeneral Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser : MS Explore11, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 2slot 512GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP66/IP67, IK10 Input Voltage PoE(IEEE802.3af, Class3), 12VDC Power Consumption PoE: Max 9.00W
12VDC: Max 8.00WMechanical Color / Material Ivory / Aluminum Product Dimensions / Weight Ø120.0x97.5mm(Ø4.72x3.84"), 615g(1.36 lb) - • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
- • Design and specifications are subject to change without notice.
