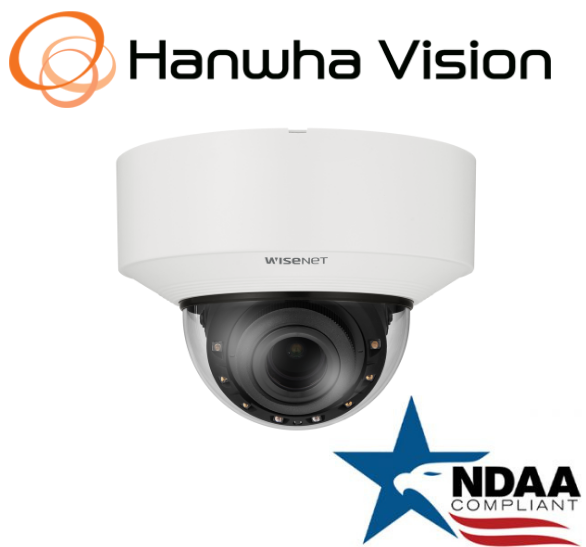

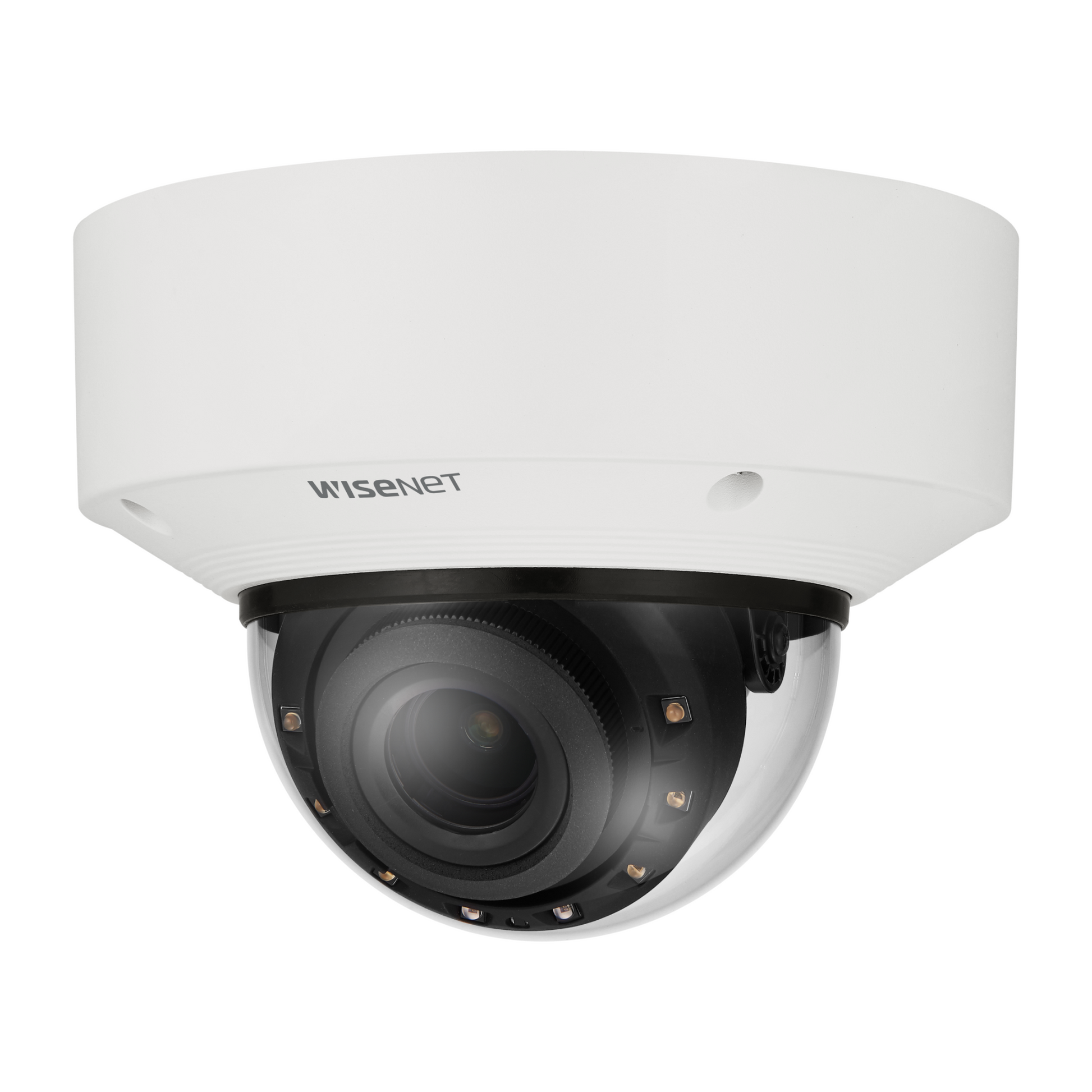

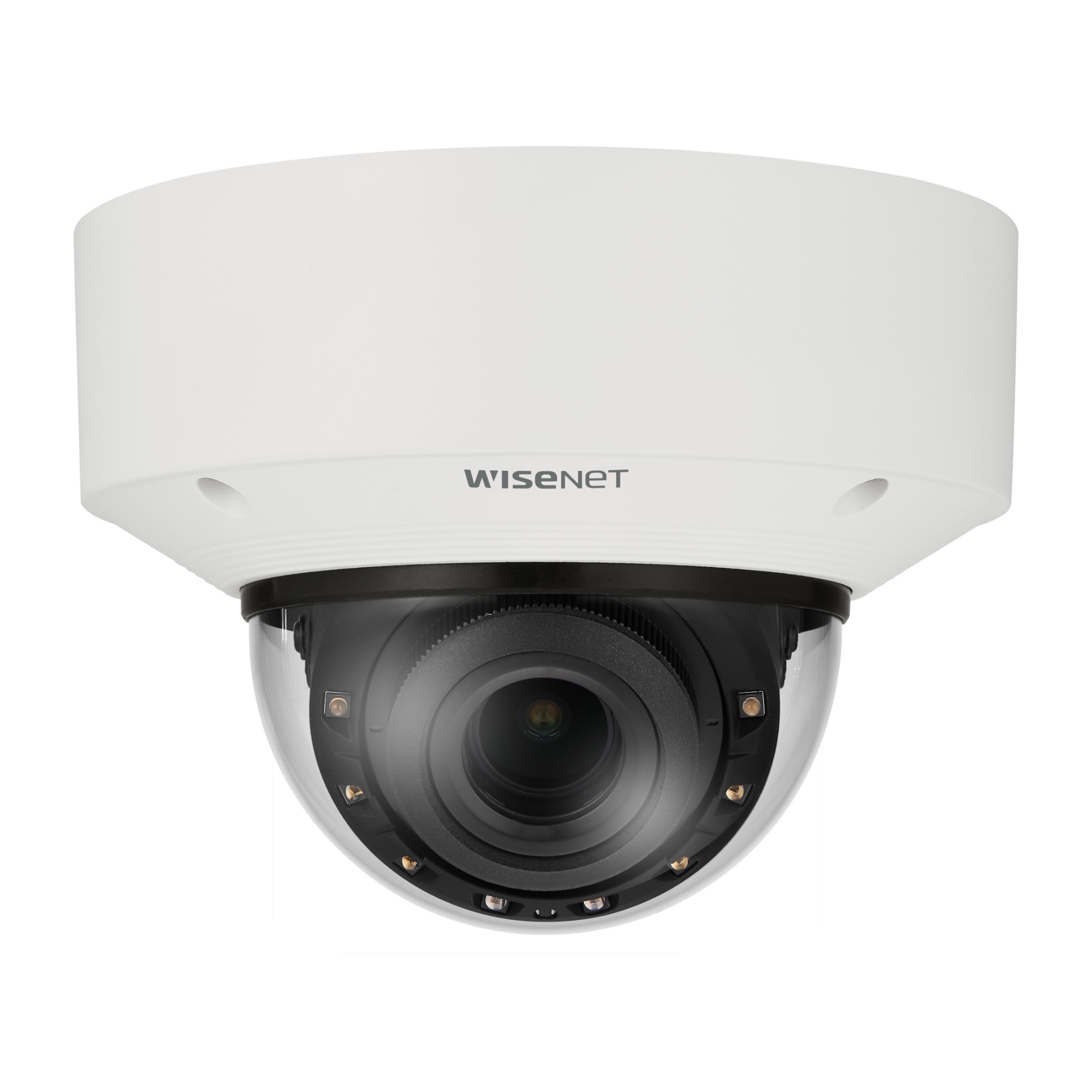

Hanwha Techwin XNV-C9083R 4K IR  Vandal Dome AI IP Security Camera

XNV-C9083R

4K IR Outdoor Vandal Dome AI Camera

  • 4K resolution
  • 4.4~9.3mm (2.1x) motorized varifocal
  • Color: 0.04 Lux (F1.3, 1/30sec, 30IRE), 0 Lux (IR LED on)
  • Maximum 30 fps (H.265/H.264)
  • WiseIR: IR viewable length 40 m (131.23 ft)
  • Day & Night (ICR), extremeWDR (120 dB)
  • Hard-coated dome bubble
  • WiseNRII (Based on AI engine), WiseStream III (Based on AI engine)
  • Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
  • IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
  • Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
  • Audio detection, Sound classification, Shock detection, Appear/Disappear
  • IP66, IP67, NEMA4X, IK10

Specifications

Video
Imaging Device 1/1.8" progressive CMOS
Resolution 3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
NETD None
Pixel Size None
Min. Illumination Color: 0.04Lux(F1.3, 1/30sec, 30IRE) BW: 0.004Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on)
Video Out USB: Micro USB Type B, 1280x720 for installation
Video Transmission Distance None
Lens
Focal Length (Zoom Ratio) 4.4~9.3mm(2.1x) motorized varifocal
Max. Aperture Ratio F1.3(Wide) ~ F2.15(Tele)
Angular Field of View H : 112.1°(Wide)~47.5°(Tele) V : 58.0°(Wide)~26.6°(Tele) D : 137.5°(Wide)~54.6°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus, Manual
Lens Type P-iris(IR corrected)
Mount Type None
Optional Lens None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~360° / -45°~75° / 0°~355°
Pan Range None
Pan Speed None
Tilt Range None
Tilt Speed None
Rotate Range None
Sequence None
Preset Accuracy None
Operational
Camera Title Displayed up to 85 characters
Direction Indicator None
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR (120dB)
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
Gain Control Support
White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
LDC Support (Fill/stretch mode)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) prefer shutter control(Based on AI engine)
Digital PTZ Support
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics - Analytics events based on AI engine : Object detection (Person/Face/Vehicle(car/bus/truck/motorcycle/bicycle)/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, Appear/Disappear, intrusion) - Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection
Business Intelligence Based on AI engine : People counting, Queue management, Heatmap
Serial Interface None
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule
Alarm Events When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback
Audio In Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length WiseIR 40m(131.23ft)
IR Illuminator (Optional) None
Water Removal None
Auto Tracking None
Coaxial Protocol None
Color Palettes None
Radiometry
Temperature Detect Range None
Temperature Accuracy None
Temperature Detection None
Additional None
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
Video Quality Adjustment H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate HTPM (Hanwha Trusted platform module) Secure OS/Boot/Storage, Verify firmware forgery CyberSecurity assuarance program UL CAP (UL 2900-1)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Web Viewer None
Edge Storage Micro SD/SDHC/SDXC 1slot 512GB
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) * Maximum temperature : +60°C (intermittent) * Start up should be done at above -20°C NEMA TS-2 : 74°C 0~95%RH(non-condensing) Humidity control /w GORE vent
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification IP66/IP67/NEMA4X, IK10
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 12.95W, typical 11.2W 12VDC: Max 13.2W, typical 10.8W
Mechanical
Color / Material White / Aluminum Hard-coated dome bubble
RAL Code RAL9003
Product Dimensions / Weight Ø160x118mm(Ø6.30x4.65"), 1450g(3.20 lb)
Compatible Conduit hole / Gangbox 1/2" (M20) single, double, 4" octagon, 4" square

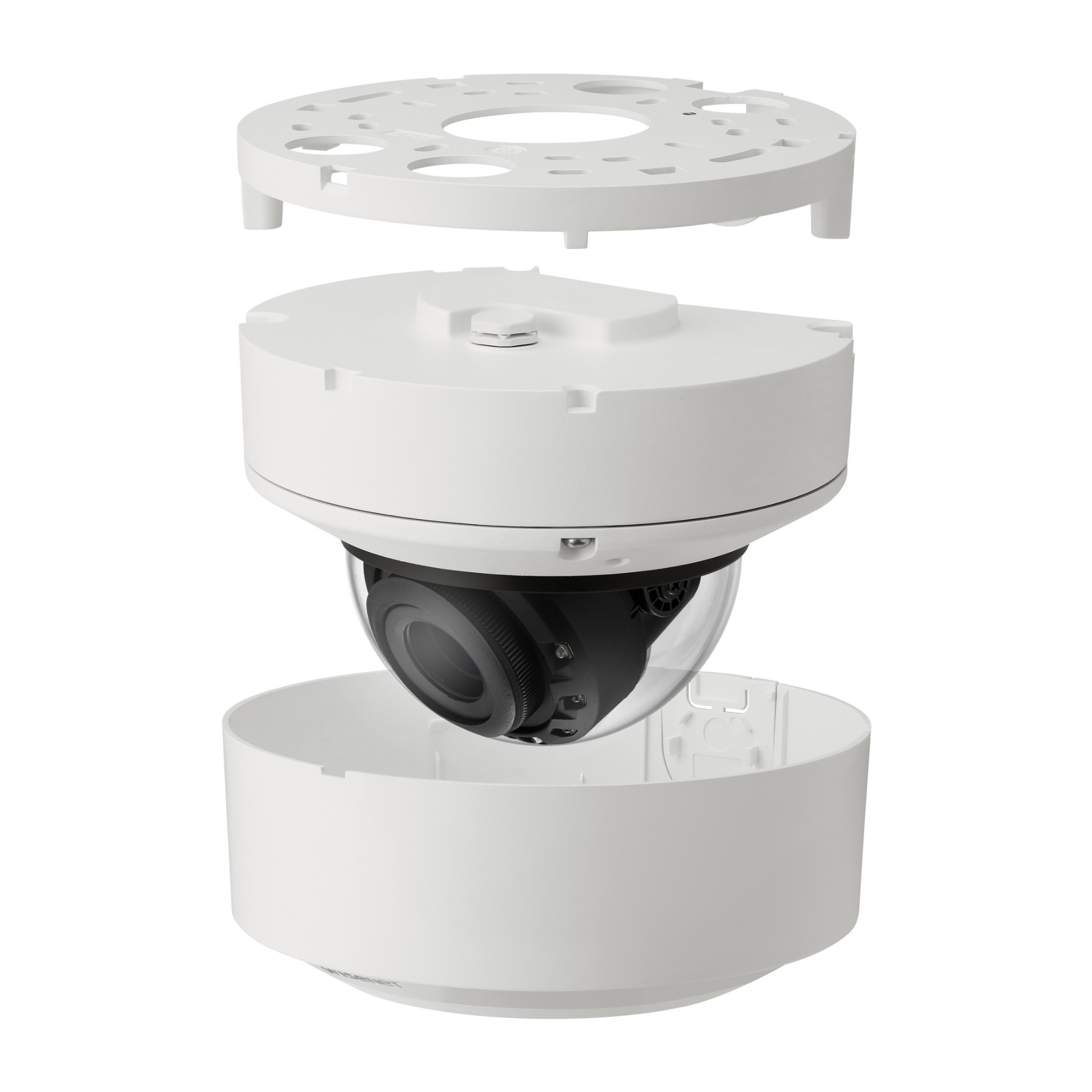

Hanging Mount (Dome) SBP-167HMW
Skin Cover (Dome) None
Weather Cap (Dome) SBV-161WCW
Power Module None
Backbox None
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 51.7m(169.64ft) / Tele: 174.5m(572.64ft)
Observe (63PPM/ 19PPF) Wide: 20.7m(67.85ft) / Tele: 69.8m(229.06ft)
Recognize (125PPM/ 38PPF) Wide: 10.3m(33.93ft) / Tele: 34.9m(114.53ft)
Identify (250PPM/ 76PPF) Wide: 5.2m(16.96ft) / Tele: 17.5m(57.26ft)
