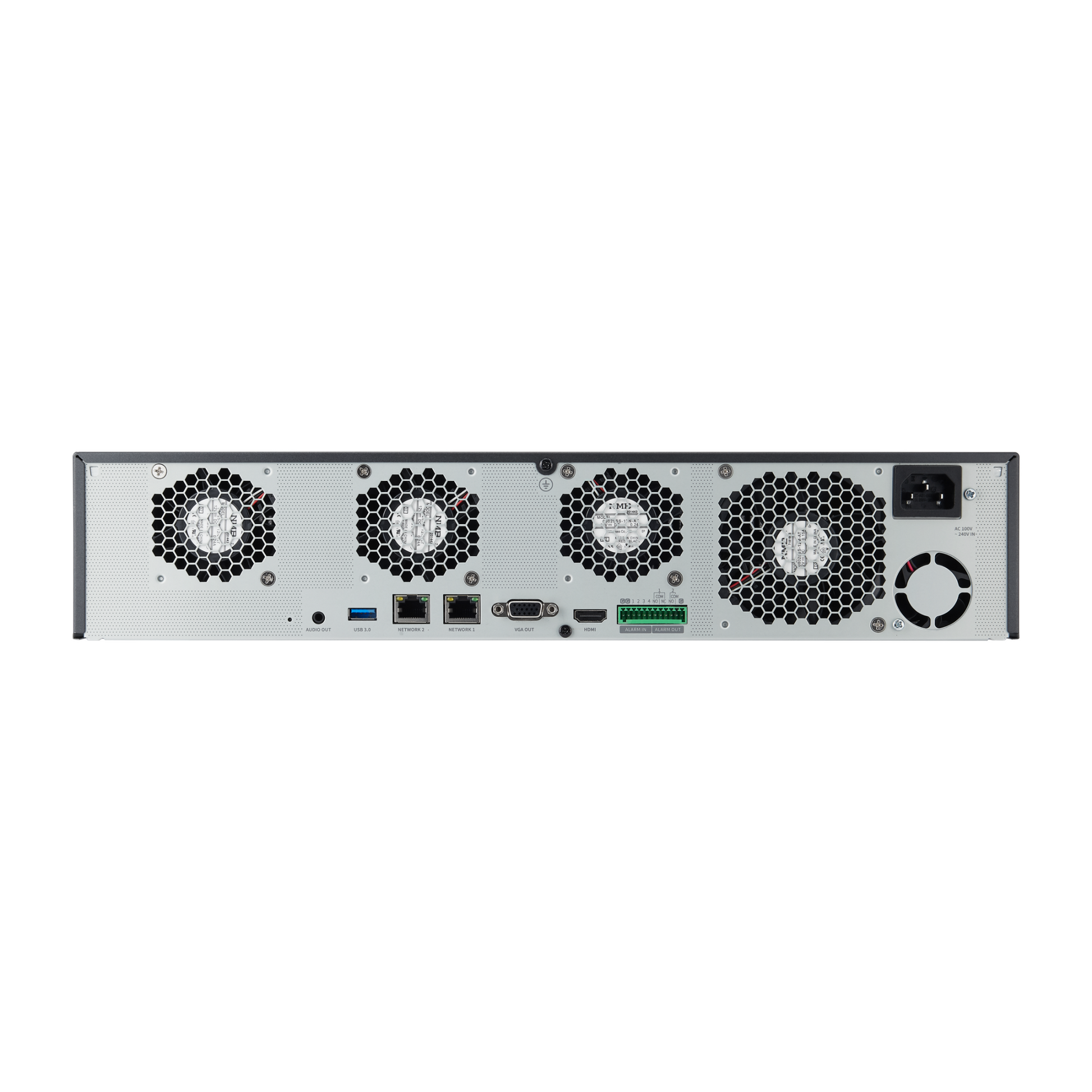

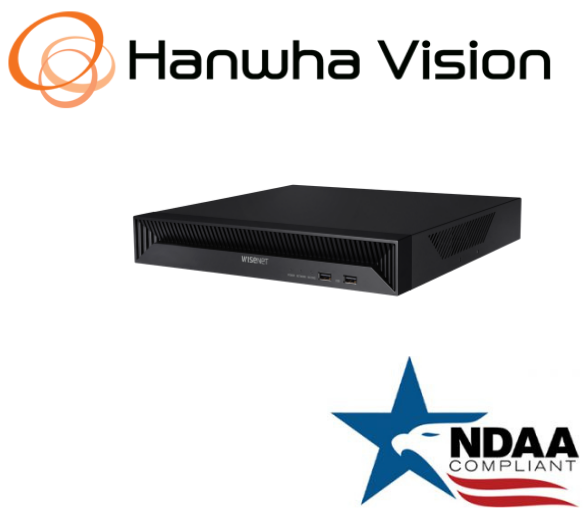

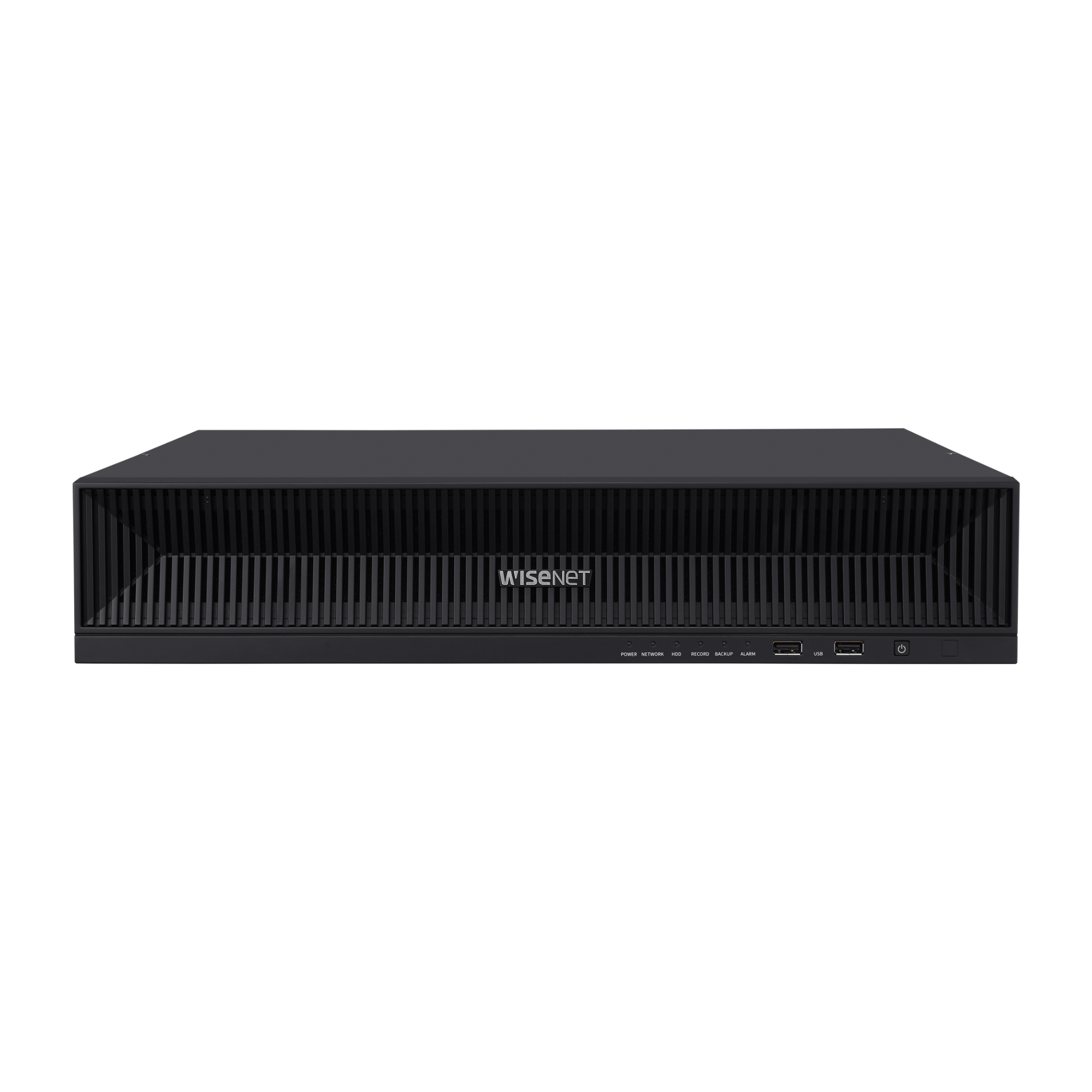

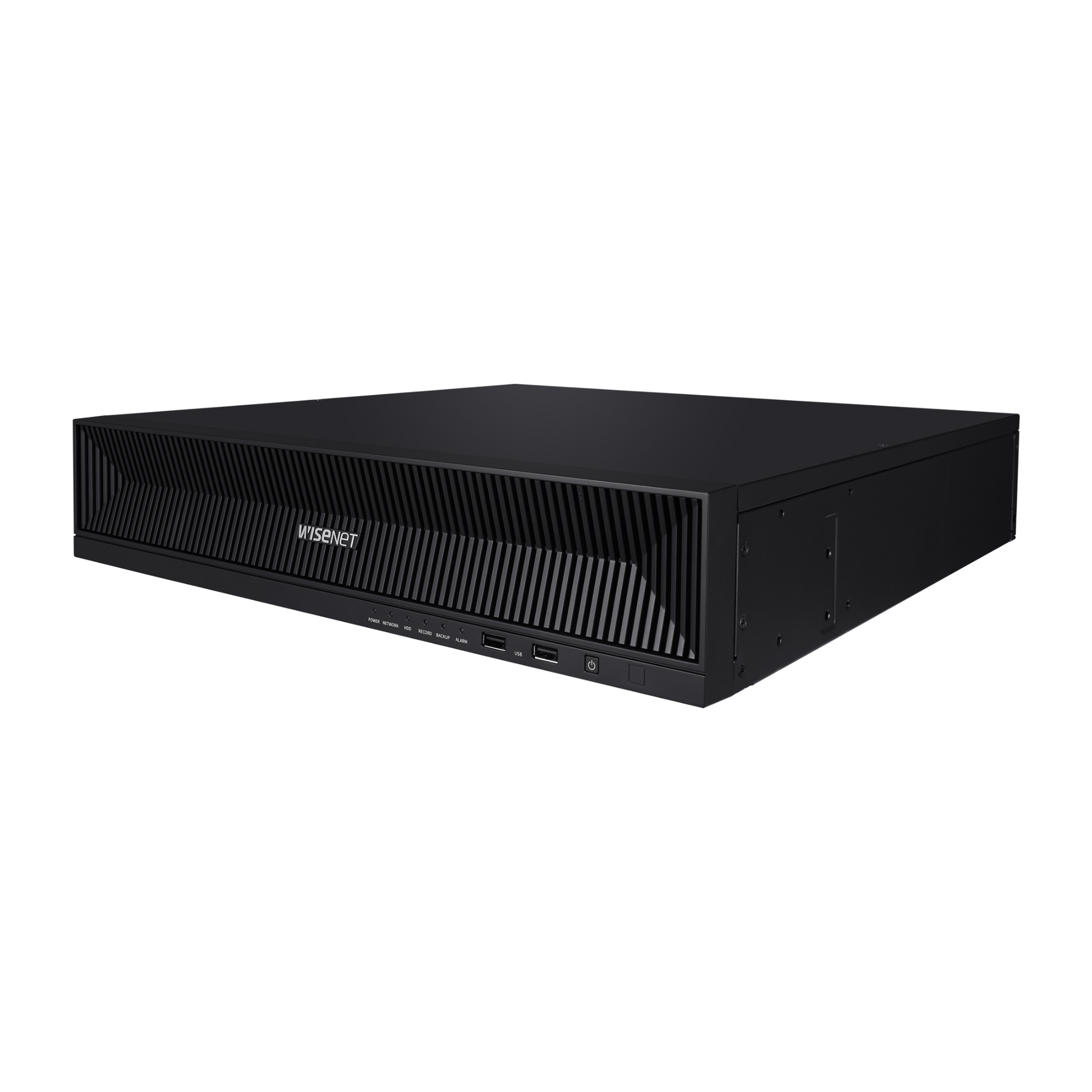

Hanwha Techwin XRN-1620B2 WiseNet 16CH NVR IP Security Recorder No HDD

Regular price $1,750.00
Sale price $1,750.00 Regular price
Unit price
  • Vendor:
  • Availability:
    Out of stock
  • SKU:
    XRN-1620B2
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Hanwha Techwin XRN-1620B2 WiseNet  16CH NVR IP Security Recorder No HDD

Hanwha Techwin XRN-1620B2 WiseNet 16CH NVR IP Security Recorder No HDD

Regular price $1,750.00
Sale price $1,750.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

Hanwha Techwin XRN-1620B2 WiseNet 16CH 12MP NVR IP Security Recorder No HDD

XRN-1620B2

16CH 4K 140Mbps H.265 NVR

  • Up to 16 channels, Supports up to 32 megapixel camera resolution
  • 140Mbps network camera recording
  • Support 4K video out on HDMI monitor
  • Support dual monitor HDMI/VGA video out
  • H.265, H.264, MJPEG compression
  • WiseStream support
  • Maximum 8 internal HDDs (80TB)
  • ARB & failover (N+1), dynamic event, Wisenet AI metadata search support

Specifications

Video
Imaging Device 1/2.3" 12MP CMOS
Resolution Original view(1:1): 3008x3008~480x480, Double panorama(2:1): 3584x1792~640x320, Single panorama(4:1): 3584x896~640x160, Quad view: 3584x2688~640x480, Q1/Q2/Q3/Q4(4:3): 1792x1344~640x480
Max. Framerate H.265/H.264: Original view-Max.30fps/25fps@3008x3008(60Hz/50Hz), Double panorama-Max.30fps/25fps@3584x1792(60Hz/50Hz) Single panorama-Max.30fps/25fps@3584x896(60Hz/50Hz) MJPEG: Max.30fps/25fps@1080x1080(60Hz/50Hz)
Min. Illumination Color: 0.39 Lux (F2.2, 1/30sec), BW : 0Lux(IR LED on)
Video Out CVBS : 1.0 Vp-p / 75? composite, 720x480(N), 720x576(P), for Installation USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 1.08mm fixed focal
Max. Aperture Ratio F2.2
Angular Field of View H: 187? / V: 187? / D: 187?
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR (120dB)
Digital Noise Reduction SSNR?
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain Control Low / Middle / High
White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Digital PTZ Support(Preset, Group)
Video Rotation Flip, Mirror
Analytics Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
Business Intelligence People counting, Queue management, Heatmap
Alarm I/O 2 configured I/O
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset Handover Audio playback
Audio In Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max. output level: 1Vrms
IR Viewable Length 10m(32.8ft), Wise IR
Network
Ethernet Metal shielded M12 (through RJ45 to M12 cable)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStream?
Video Quality Adjustment H.264/H.265: Target bitrate level control MJPEG: Quality level control
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 1TB(512GBx2)
Memory 4096MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40?C ~ +60?C (-40?F ~ +140?F) / Less than 95% RH
Storage Temperature / Humidity -50?C ~ +60?C(-58?F ~ +140?F) / Less than 95% RH
Certification IP66, IK10, NEMA4X, EN50155 class T3 EN45545-2, NFPA130, BSS7239
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 12.95W, typical 11W 12VDC: Max 11W, typical 9.1W
Mechanical
Color / Material White / Aluminum, Hard-coated dome
RAL Code RAL9003
Product Dimensions / Weight ?160x72mm(62.99x28.35"), 1100g(2.43lb)
Hanging Mount (Dome) SBP-167HMW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 34.9m(114.49ft)
Observe (63PPM/ 19PPF) 13.9m(45.60ft)
Recognize (125PPM/ 38PPF) 7.0m(22.96ft)
Identify (250PPM/ 76PPF) 3.5m(11.48ft)
