Montavue Dahua 64Ch 4K AI NVR Security Recorder (8x20TB) HDD Max NOT INCLUDED

$1,749.95

$1,749.95 ~~$0.00~~

Vendor:
Montavue
Availability:
Out of stock
SKU:
MNR5864-AI

REQUEST A QUOTE >

Compare Size guide

Share

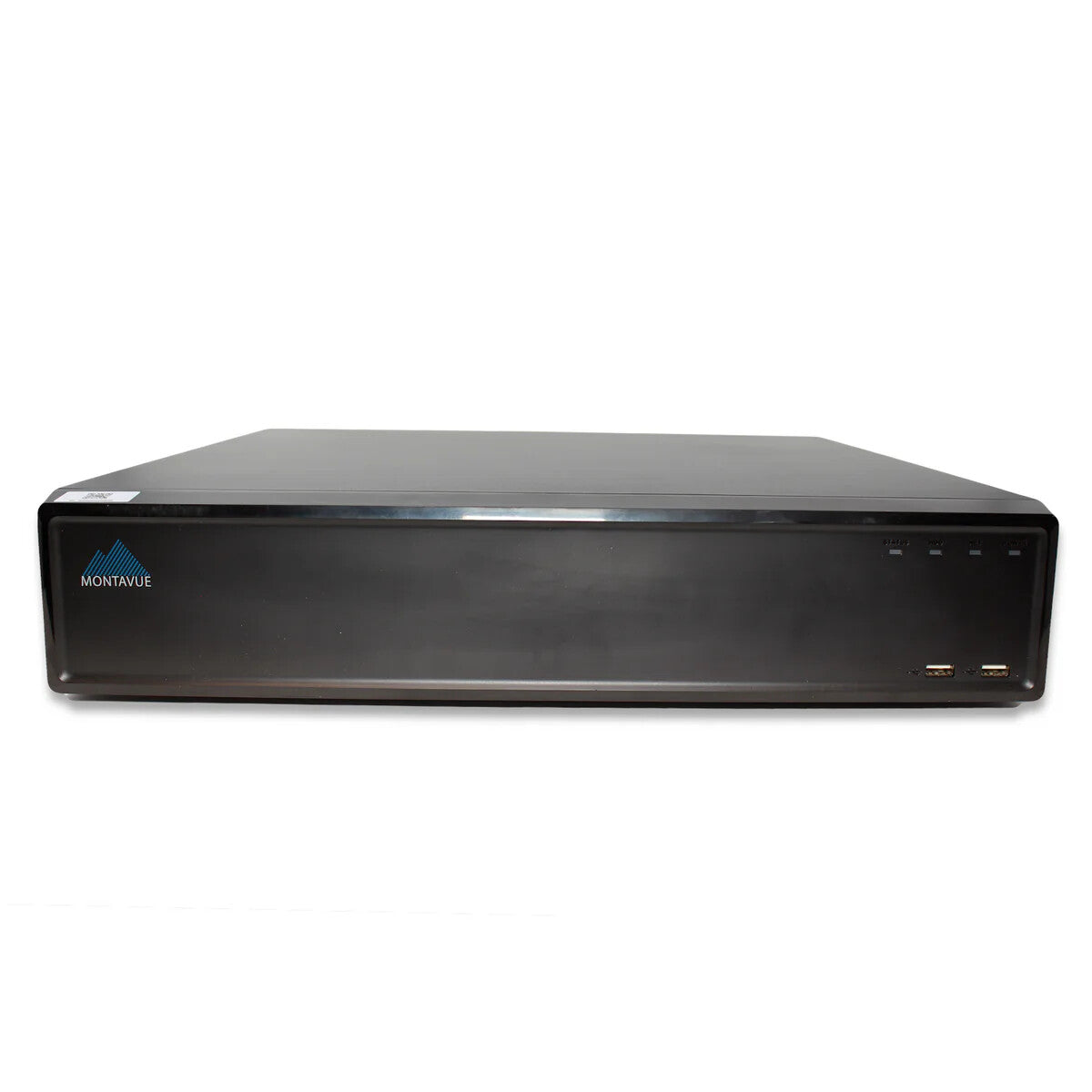

Montavue Dahua 64Ch 4K AI NVR Security Recorder (8x20TB) HDD Max NOT INCLUDED

$1,749.95

$1,749.95 ~~$0.00~~

64 Channel

The is our 5 Series 64 Channel NVR. Equipped with 2 built-in network ports designed for up to 64 IP cameras to connect via PoE Switches. These ports connect directly to a network of PoE switches to provide speedy information transfer to and from the NVR. This NVR can support 64 4K resolution cameras recording at maximum bit rate and 30 frames per second ensuring the clearest recordings possible.

5 Series

Give the power of AI to your cameras with our 5 series AI NVR, with the ability to provide face detection, AI perimeter, SMD+, smart search, and so much more!

The 5 Series NVRs are designed to provide 4K live display/recording, higher power output for larger cameras, and increased AI capability for the system and attached cameras. Featuring 384 Mbps bandwidth, Smart H.265+ recording, and AI by recorder: 2-channel face detection, 4-channel perimeter protection , and 8-channel SMD+ capability.

Storage

The NVR is also capable of supporting x8 20TB hard drives giving you a total of 160TB of hard drive space. The camera also has a SATA port which is used to connect to external storage to further increase your total storage capacity.

The 64 channel NVR supports H.265+ recording. Typically, H.265 is the standard for security camera recording because it's efficient and fast. Montavue has advanced this idea with Smart H.265+ recording which enables the NVR to conserve more hard drive storage by decreasing the bit rate for objects on screen that are not human or vehicle, this means that all relevant human/vehicle targets will be more clear on screen and the rest will be recorded at a lower bit rate. This ability allows the NVR to use up to 35% less space on your hard drive while still maintaining clear visuals on your recordings.

Remote Connectivity

Montavue NVRs can connect to your local network and internet which enables the ability to view your system remotely using our free Montavue GO app. Montavue GO is available on smartphone, PC, or tablet and can be accessed 24/7 for free as long as you have an internet signal to your NVR and viewing device. Smart notifications can be sent to your mobile device when humans or vehicles are identified by your Montavue camera system, enabling you to respond to events while you're away.

AI by NVR

The 5 Series AI NVR's from Montavue can employ AI abilities to cameras that otherwise would not have them. This means you can use SMD+ Human/Vehicle recognition, Face Detection, Smart Search, and Perimeter Protection. All of these abilites are harnessed through the NVR and can produce more efficient playback, increased identification accuracy, and reduce false notifications to your mobile device. The 5 Series 64 channel NVR can simultaneously perform 2 channel face detection, 4 channel perimeter protection , and 8 channel SMD+ capability, all without any built-in camera AI ability being required.

This Network Video Recorder (NVR) is a high-performance, AI-enhanced surveillance solution designed for large-scale security systems. Equipped with an industrial-grade processor and deep learning algorithms, this NVR intelligently distinguishes between humans and vehicles, significantly reducing false alarms and enabling precise monitoring in high-security environments. With support for up to 64 IP channels and 4K video output, the NVR delivers exceptional video clarity, making it ideal for critical areas requiring detailed surveillance.

Key features include versatile video and audio input/output capabilities, HDMI and VGA outputs with resolutions up to 4K, and an impressive 320 Mbps of incoming bandwidth for smooth, uninterrupted video recording. Its extensive storage capacity supports up to 80TB across eight SATA ports, providing long-term storage and RAID 0/1/5/6/10 configurations for data redundancy and security. Dual Gigabit Ethernet ports ensure reliable connectivity, while multiple USB and alarm inputs/outputs enhance integration with other systems.

Built for durability and efficiency, this NVR operates in a wide temperature range and consumes minimal power, making it suitable for various environments. With a compact design, intelligent video analytics, and a robust feature set, the NVR offers top-tier performance and reliability for advanced security needs.

System Specifications

Operating System: Embedded Linux
Processor: Industrial-grade processor
AI Features:
- Deep learning-based algorithms for human and vehicle recognition
- Supports intelligent video analytics

Video & Audio Capabilities

Channels:
- Up to 64 IP video channels
- 320 Mbps incoming bandwidth
Decoding Capacity:
- 4-channel 4K at 30 fps
Supported Compression:
- H.265+, H.265, H.264+, H.264
Recording Resolutions: Up to 12MP per channel
Video Outputs:
- HDMI: 1 port, supporting up to 4K resolution (3840 x 2160)
- VGA: 1 port, supporting up to 1080p resolution
Audio:
- Audio Input: 1-channel, RCA
- Audio Output: 1-channel, RCA

Recording & Storage

Internal Storage:
- 8 SATA ports, each supporting up to 10TB HDD (80TB total capacity)
eSATA: 1 port
RAID Support: RAID 0, 1, 5, 6, and 10

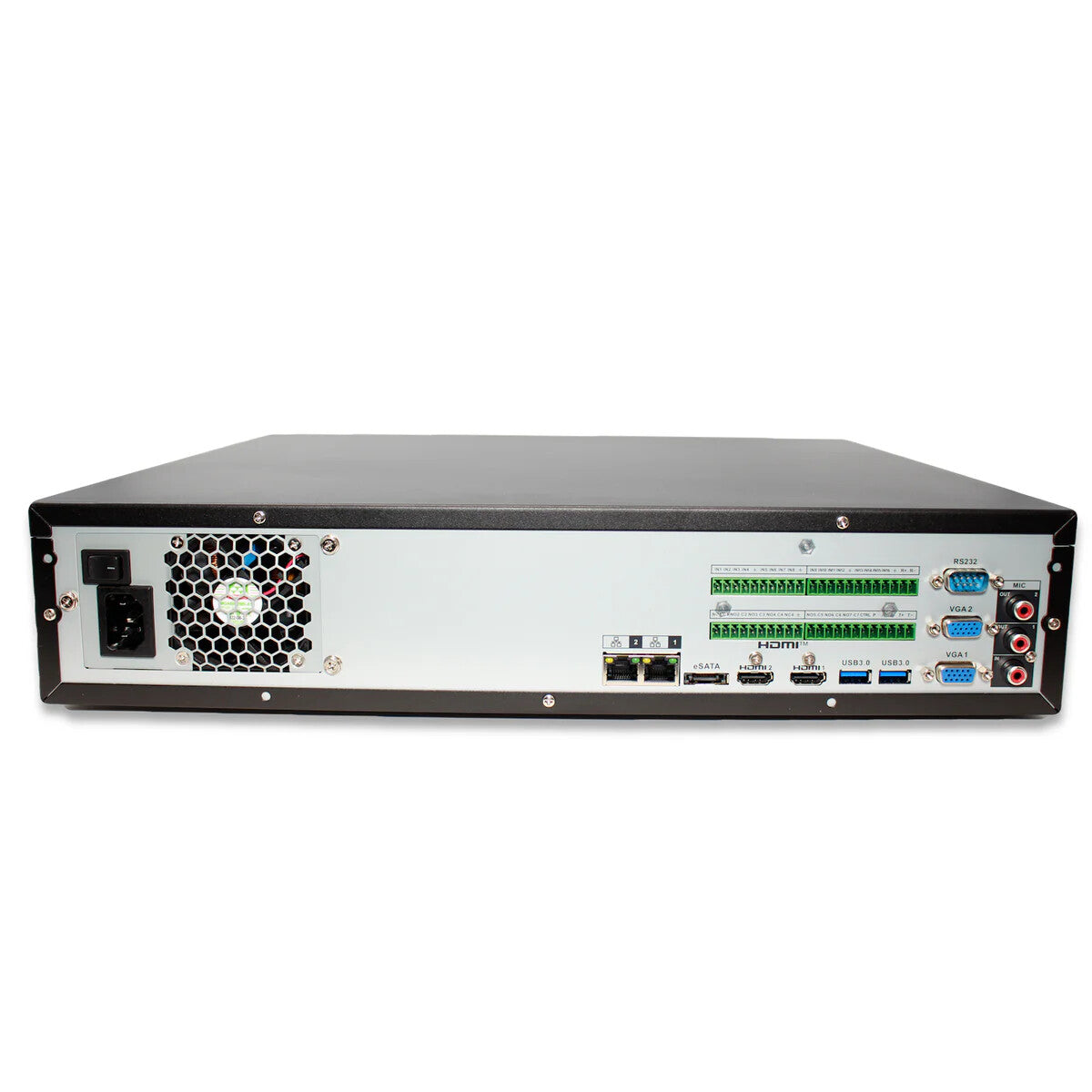

Network & Connectivity

Network Ports:
- 2 x Gigabit Ethernet (RJ-45)
USB Ports:
- 1 x USB 3.0 (front)
- 2 x USB 2.0 (rear)
Alarm Input/Output:
- 16 alarm inputs
- 4 alarm outputs

Power & Environmental

Power Supply:
- 100-240V AC, 50/60 Hz
Power Consumption:
- ≤ 30W (without hard drives installed)
Operating Temperature:
- -10°C to +55°C (14°F to 131°F)
Operating Humidity:
- 10% to 90% (non-condensing)

Physical Specifications

Dimensions:
- 440 mm (Width) x 452.5 mm (Depth) x 95 mm (Height)
Weight:
- 7.5 kg (without hard drives installed)
