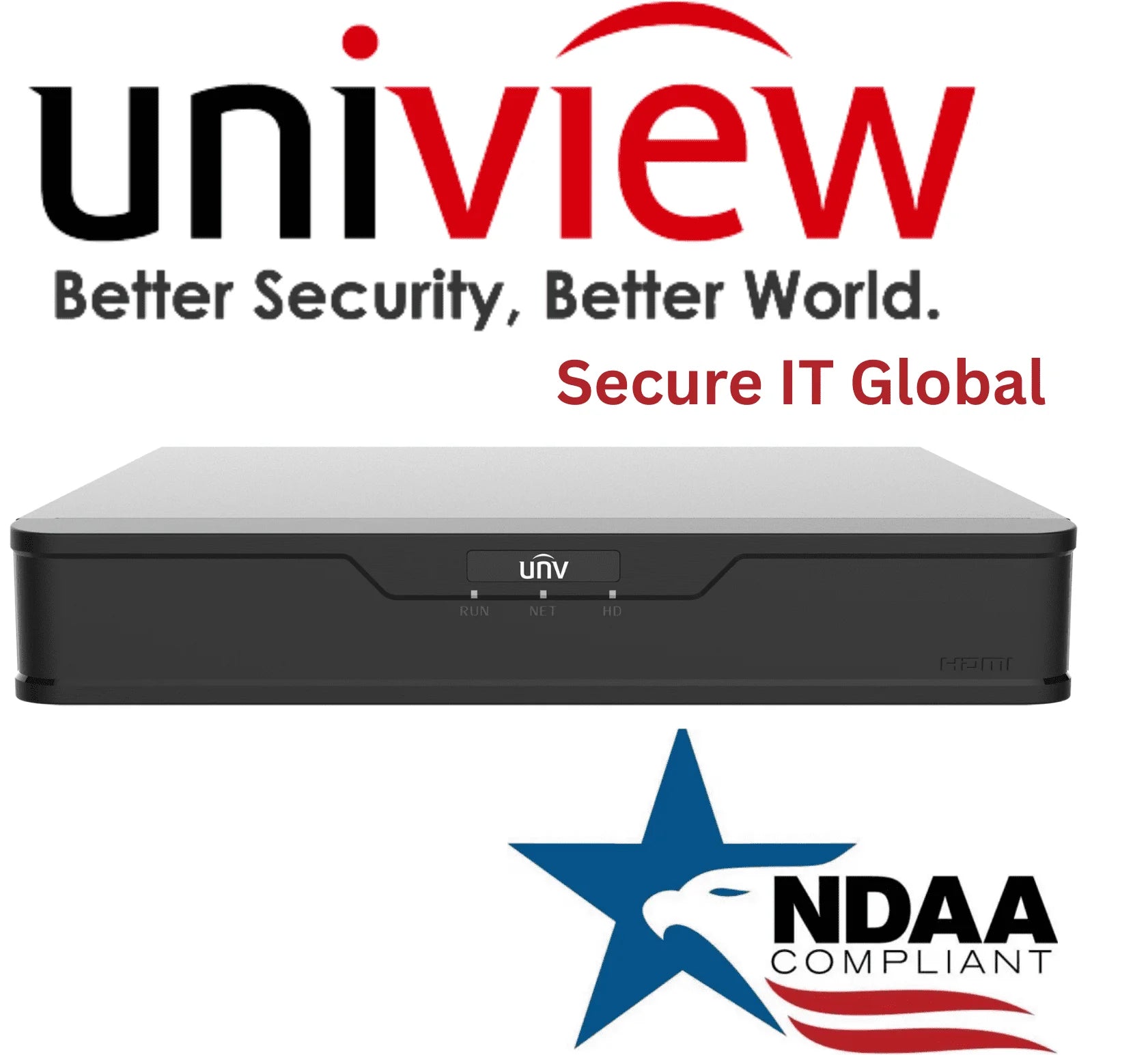

Uniview NDAA 4‑Channel 12MP PoE Network Video Recorder HDMI Output – From Secure IT Global
Uniview NDAA 4‑Channel 12MP PoE Network Video Recorder HDMI Output – From Secure IT Global
UNV 12MP 4-Ch Ultra PoE 1U with 1 SATA HDD Bay, NDAA Compliant Uniview IP Security NVR Recorder
Key Features:
Type: NVR
Channel: 4
Compression: Ultra 265/H.265
Max. Recording Resolution : 12MP
Color: Black
Working Environment: -10°C~+ 55°C (+14°F~+131°F)
Specification:
Decoding | ||||||||
Decoding Format |
Ultra 265,H.265,H.264 |
|||||||
Decoding Capability |
Smart Off:2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30Smart On:2 x 4K@30, 4 x 4MP@30 |
Smart Off:2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30Smart On:2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30 |
||||||
Decoding Capability Description |
The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
|||||||
Audio Compression |
G.711A, G.711U |
|||||||
Network | ||||||||
Incoming Bandwidth |
80 Mbps |
|||||||
Outgoing Bandwidth |
80 Mbps |
|||||||
Remote Users |
128 |
|||||||
Protocols |
TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4 |
|||||||
Browser(Plugin) |
IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
|||||||
Video/Audio Input | ||||||||
IP Video Input |
4-ch |
8-ch |
||||||
RCA Audio Input |
1-ch |
|||||||
Video/Audio Output | ||||||||
HDMI Output |
4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|||||||
VGA Output |
1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|||||||
RCA Audio Output |
1-ch |
|||||||
Liveview Display |
1/4 |
1/4/6/8/9 |
||||||
Corridor Mode Screen |
3/4 |
3/4/5/7/9 |
||||||
Two-way Audio | ||||||||
Two-way Audio |
1-ch,RCA(Using the audio input and output) |
|||||||
Snapshot | ||||||||
FTP/Schedule/Event Snapshot |
4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
|||||||
Recording | ||||||||
Recording Resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
|||||||
Num of Concurrent Playback |
16-ch |
|||||||
Smart | ||||||||
VCA Detection by IPC |
Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), People Counting (People Flow Counting, Crowd Density Monitoring), Traffic Monitoring |
|||||||
Smart by NVR |
Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
|||||||
VCA Search |
Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, AcuSearch |
|||||||
Smart by IPC |
All channels (up to 8 images/s in total)Face Detection,Vehicle Detection,SIP,UMD,Traffic Monitoring |
|||||||
Search by Image |
Support |
|||||||
SIP by NVR |
2-ch |
|||||||
UMD by NVR |
4-ch |
|||||||
Alarm | ||||||||
General Alarm |
Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
|||||||
Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|||||||
GUI Language | ||||||||
GUI Language |
38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
|||||||
Hard Disk | ||||||||
SATA |
1 SATA Interfaces |
|||||||
Capacity |
Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
|||||||
External Interface | ||||||||
Network Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
|||||||
USB |
Rear panel: 1 × USB2.0, 1 × USB3.0 |
|||||||
RS485 |
N/A |
|||||||
RS232 |
N/A |
|||||||
Alarm In |
N/A |
|||||||
Alarm Out |
N/A |
|||||||
Power Supply |
DC 48 V/1.35 A |
DC 52 V/1.8 A |
||||||
Power Switch |
N/A |
|||||||
PoE | ||||||||
PoE Interface |
4 RJ45 10 M/100 M self-adaptive Ethernet Interface |
8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
||||||
Max Power |
Max 30W for single port,Max 50W in total |
Max 30W for single port,Max 75W in total |
||||||
Supported Standard |
IEEE 802.3at,IEEE 802.3af |
|||||||
Working Environment | ||||||||
Working Temperature |
-10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉) |
|||||||
Working Humidity |
≤ 90% RH (non-condensing) |
|||||||
Power Consumption (without HDD) |
≤ 12W |
|||||||
Dimensions | ||||||||
Weight (without HDD) |
≤ 2.7Kg (6.0lb) |
|||||||
Height |
1U |
|||||||
Dimensions |
260mm × 222mm × 47mm (10.2"×8.7"×1.8") |
|||||||
Certification | ||||||||
Certification |
CE; FCC; UL; RoHS; WEEE |
|||||||
CE |
EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
|||||||
FCC |
Part15 Subpart B |
|||||||
