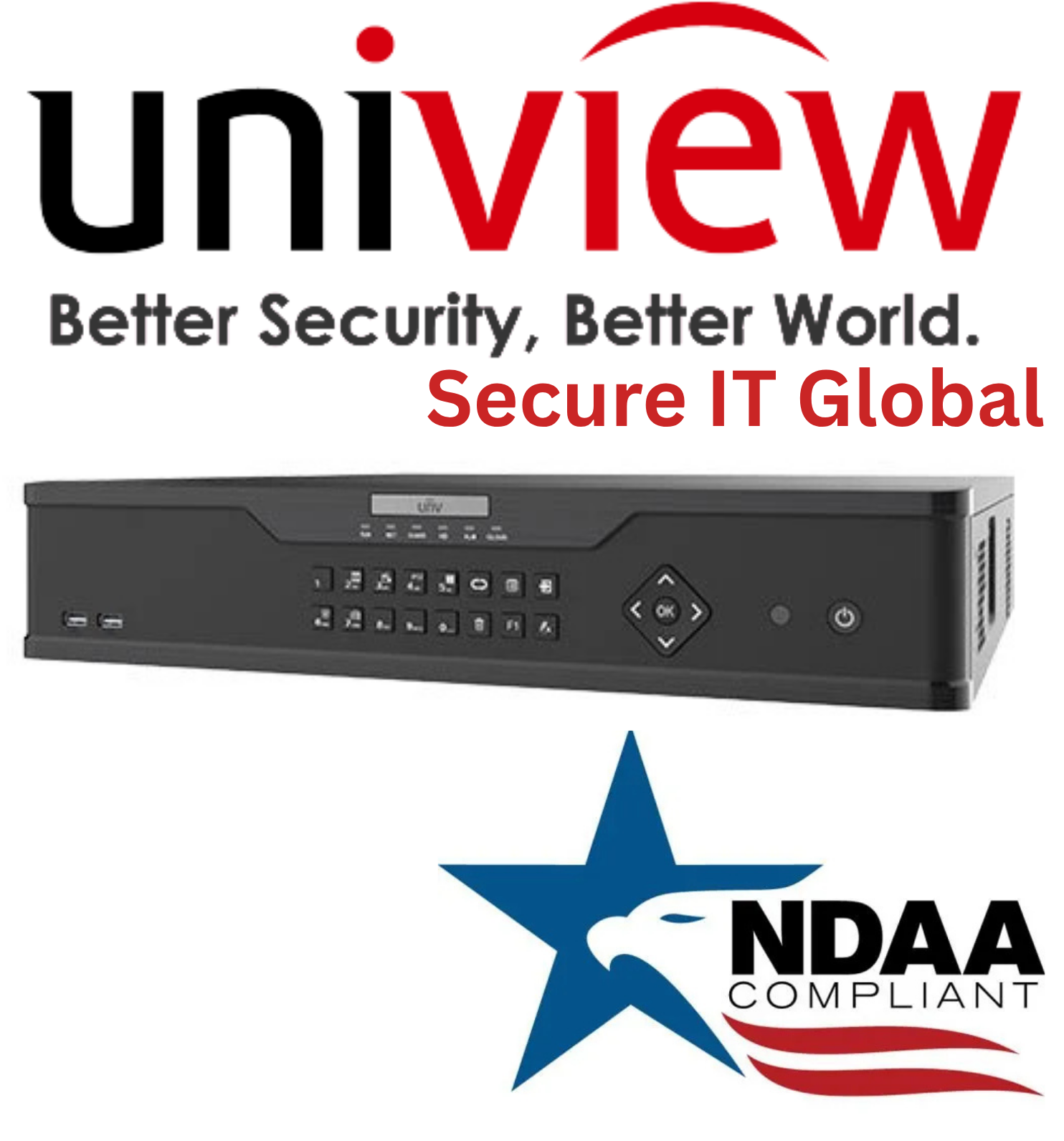

UNV 12MP 16-Ch 4 SATA NDAA ONVIF 2-way Audio Uniview IP Network Security NVR

Regular price $1,879.00
Sale price $1,879.00 Regular price $0.00
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    NVR304-16X
UNV 12MP 16-Ch 4 SATA NDAA ONVIF 2-way Audio Uniview IP Network Security NVR

UNV 12MP 16-Ch 4 SATA NDAA ONVIF 2-way Audio Uniview IP Network Security NVR

Regular price $1,879.00
Sale price $1,879.00 Regular price $0.00
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

UNV 16-Ch 4 SATA NDAA ONVIF 2-way Audio Uniview IP Network Security NVR

The Uniview  16-Ch 10TB security NVR is every person choice.

Key Features:

Compression: Ultra 265/H.265/H.264
Channel:16
Pre-Installed Storage: No HDD
Video output:1-ch HDMI, 1-ch VGA
Max.Recording Resolution:12MP
Hard drive Ports:4 SATA interfaces
Max.Storage Capacity:10TB
Color:Black

Description:

The Uniview  Network Video Recorder, a formidable player in the world of surveillance technology. Security is a concern that knows no boundaries. Uniview, a leading player in the surveillance industry has introduce the  network video recorder that promises to redefine the way we monitor our surroundings. With support for up to 16 channels this NVR allows you to connect multiple cameras covering every angle of your property without compromising on quality. The Uniview  seamlessly integrates with a wide range of IP cameras offering flexibility and choice to users.

Specification:

Model
Video/Audio Input
IP Video Input 16-ch 32-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 384Mbps
Outgoing Bandwidth 384Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
Browser IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch
Live view display 1/4/6/8/9/16 1/4/6/8/9/16/25/36
Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event Snapshot 16-ch snapshot, up to 4K resolution 32-ch snapshot, up to 4K resolution
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080p@30, 32 x 960p@25
Hard Disk
SATA 4 SATA interfaces
Capacity up to 10TB for each HDD
eSATA 1 eSATA interface
Disk Group Support
Disk Array
Array Type RAID 1, 5
Smart
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control
VCA Search Behavior Search, Vehicle Search
People Counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP) by Camera 16-ch
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0
RS232 1
RS485 1
Alarm In 16-ch
Alarm Out 4-ch
General
Power Supply 100~240 VAC Power Consumption: ≤ 25 W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 442mm ×426mm× 89mm (17.4" × 16.8"× 3.5")
Weight (without HDD) ≤ 5.7Kg (12.57lb)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC Part15 Subpart B, ANSI C63.4
