UNV 12MP 32-Ch 8 SATA 2-Way Audio NDAA ONVIF IP Network Uniview Security NVR
UNV 12MP 32-Ch 8 SATA 2-Way Audio NDAA ONVIF IP Network Uniview Security NVR
UNV 32-Ch 12MP 2-Way Audio NDAA Uniview Security NVR with 8 SATA Hard Drive Bays, RAID Data Protection
Key Features:
Type: NVR
Channel: 32
Compression : Ultra 265, H.265, H.264
Max. Recording Resolution : 12MP
Color : Black
Description:
In the fast-evolving world of security and surveillance the Uniview stands as a pinnacle of technological innovation. This network video recorder (NVR) offers a ton of features which will elevate your safety system to the next level. With support for up to 32 IP cameras this NVR is a powerful hub for video management and storage. The user-friendly interface and step-by-step setup wizard ensure that even those new to security systems can easily configure and deploy this NVR. This NVR is effortlessly integrated with a wide range of suitable hardware and software provided by Uniview.
Specification:
Video/Audio Input | |||||||||
| IP Video Input | 32-ch | ||||||||
| Two-way Audio Input | 1-ch, RCA | ||||||||
Network | |||||||||
| Incoming Bandwidth | 384Mbps | ||||||||
| Outgoing Bandwidth | 384Mbps | ||||||||
| Remote Users | 128 | ||||||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS | ||||||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | ||||||||
Video/Audio Output | |||||||||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||||||||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||
| Audio Output | 1-ch, RCA | ||||||||
| Audio Compression | G.711A, G.711U | ||||||||
| Synchronous Playback | 16-ch | ||||||||
| Live view display | VGA/HDMI1/HDMI2: 1/4/6/8/9/16 | VGA/HDMI1/HDMI2: 1/4/6/8/9/16/25/36 | VGA: 1/4/6/8/9/16/25/36 HDMI1/HDMI2: 1/4/6/8/9/16/25/36/64 | ||||||
| Corridor Mode Screen | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | |||||||
Snapshot | |||||||||
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 4K resolution | 32-ch snapshot, up to 4K resolution | 64-ch snapshot, up to 4K resolution | ||||||
Decoding | |||||||||
| Decoding format | Ultra 265, H.265, H.264 | ||||||||
| Live view/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||||||
| Capability | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30 | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25 | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 | ||||||
Hard Disk | |||||||||
| SATA | 8 SATA interfaces | ||||||||
| Capacity | up to 10TB for each HDD | ||||||||
| eSATA | 1 eSATA interface | ||||||||
| Disk Group | Support | ||||||||
Disk Array | |||||||||
| Array Type | RAID 0, 1, 5, 6, 10 | ||||||||
Smart | |||||||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control | ||||||||
| VCA Search | Behavior Search, Vehicle Search | ||||||||
| People Counting | People Flow Counting, Crowd Density Monitoring | ||||||||
| Smart Intrusion Prevention (SIP), by Camera | 16-ch | ||||||||
General Alarm | |||||||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection | ||||||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||||||

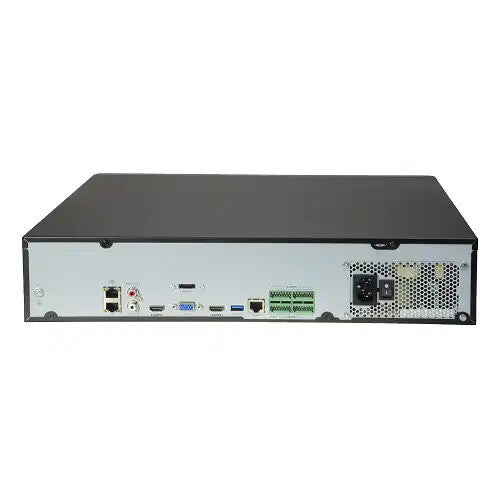

External Interface | |||||||||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | ||||||||
| USB Interface | Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0 | ||||||||
| RS232 | 1 | ||||||||
| RS485 | 1 | ||||||||
| Alarm In | 16-ch | ||||||||
| Alarm Out | 4-ch | ||||||||
General | |||||||||
| Power Supply | 100~240 VAC Power Consumption: ≤ 25 W (without HDD) | ||||||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||||||||
| Dimensions (W×D×H) | 442mm ×426mm× 89mm (17.4" × 16.8"× 3.5") | ||||||||
| Weight (without HDD) | ≤ 5.7Kg (12.57lb) | ||||||||
Certification | |||||||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||||||||
| FCC | Part15 Subpart B, ANSI C63.4 | ||||||||
