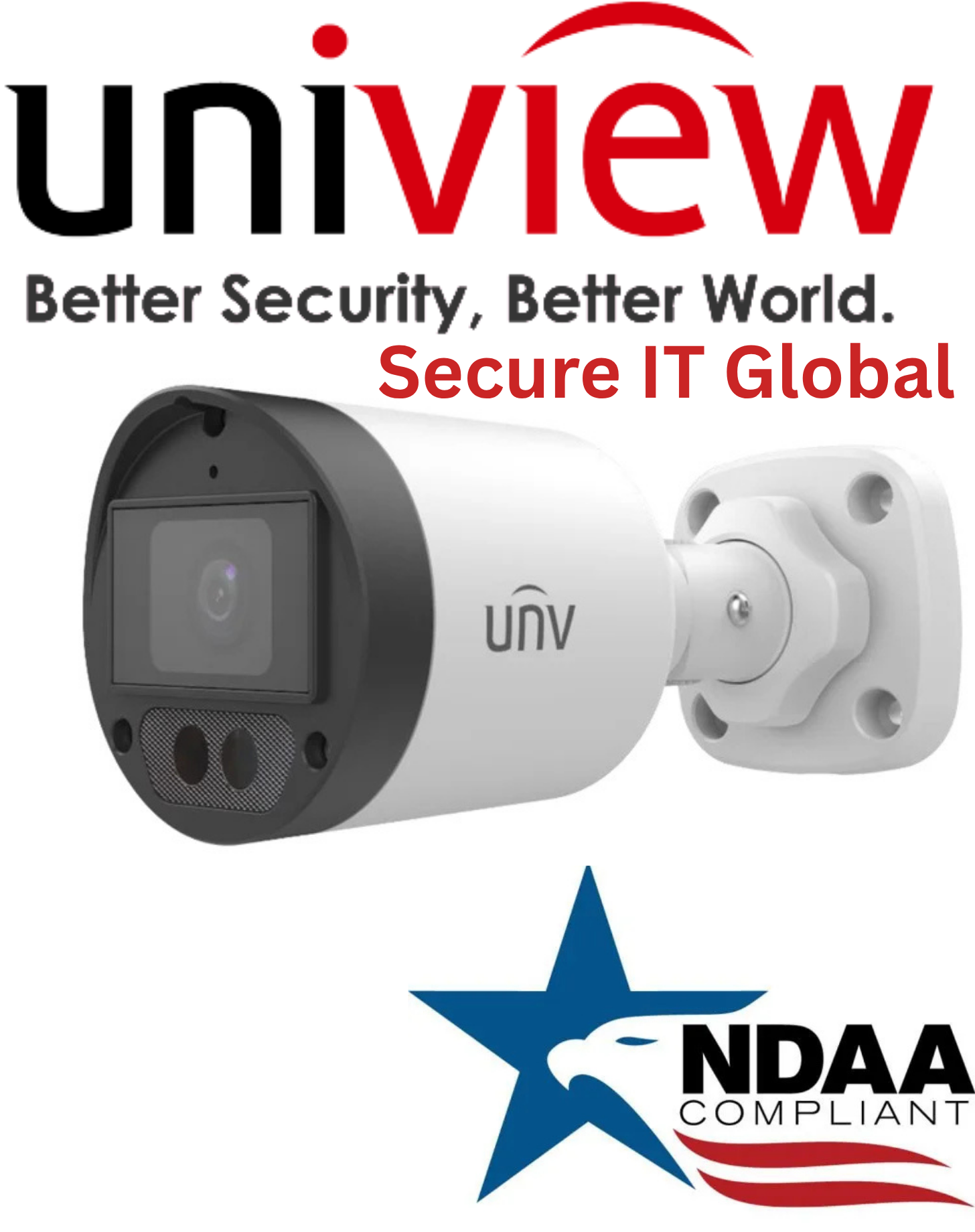

UNV 2MP IP67 Audio Uniview Analog Bullet Security Surveillance Camera 2.8mm Lens
UNV 2MP IP67 Audio Uniview Analog Bullet Security Surveillance Camera 2.8mm Lens
Uniview 2MP IP67 Audio M12 LightHunter Mini Bullet Analog Security Camera 2.8mm Fixed Lens
Features:
High quality imaging with 2MP resolution
TVI/AHD/CVI/CVBS
Supports IR-cut filter with auto-switch (ICR)
LightHunter monitoring with high-sensitivity sensor
3D noise reduction technology delivers clean and sharp images
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
IP67 waterproof and dustproof design, high reliability
OSD configuration menu in 11 languages
Built-in microphone for high quality audio transmission via coaxial cables
Supports digital defog
Description:
2MP LightHunter HD IR fixed mini bullet analog camera with a high-performance 1/2.9-inch CMOS sensor and 3D noise reduction technology. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay. It supports IR-cut filter with auto-switch (ICR) and provides color images at daytime and black/white images at night. The camera also supports audio input and synchronous transmission of audio and video.
| Sensor | ||
| Pixel | 2MP | |
| Size | 1/2.9" | |
| Minimum illumination | 0.005 lux (F1.6, AGC ON) 0 lux (IR ON) | |
| Lens | ||
| Lens | 2.8mm | |
| Lens mount | M12 | |
| Angle of view | H: 101.5° V: 56.9° D: 117.4° | |
| Illuminator | ||
| Illuminator | Two IR illuminators | |
| Illumination distance | 40m | |
| Lifetime | ≥60,000 hours | |
| Video | ||
| Resolution |
1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) |
|
|
Frame rate |
TVI: NTSC: 1080P@30fps(default), 720P@30fps PAL: 1080P@25fps, 720P@25fps AHD: NTSC: 1080P@30fps, 720P@30fps PAL: 1080P@25fps, 720P@25fps CVI: NTSC: 1080P@30fps, 720P@30fps PAL: 1080P@25fps, 720P@25fps CVBS: NTSC:960*480 PAL:960*576 |
|
| Shutter time | NTSC: 1/30s–1/50000s PAL: 1/25s-1/50000s | |
| Image | ||
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | Three modes: Auto (default), Day, Night | |
| Digital noise reduction | 2D/3D | |
| White balance | Two modes: Auto (default), Manual | |
| WDR | DWDR | |
| Smart IR | Support | |
| Flip | Supports 180° horizontal flip, 180° vertical flip | |
| Defog | Digital Defog | |
| Audio | ||
| Microphone | Built-in Mic | |
| Camera audio | TVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps | |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating environment | |
| Temperature | -30°C to 60°C (-22°F to 140°F) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4kV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V (±25%), with reverse polarity protection, Max 3.2W |
| Mount | 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket |
| Dimensions | 154mm*66mm*66mm (L*W*H) |
| Material | Metal |
| Weight | 240g (0.53lb) |
| Certification | CE, FCC, UL |
