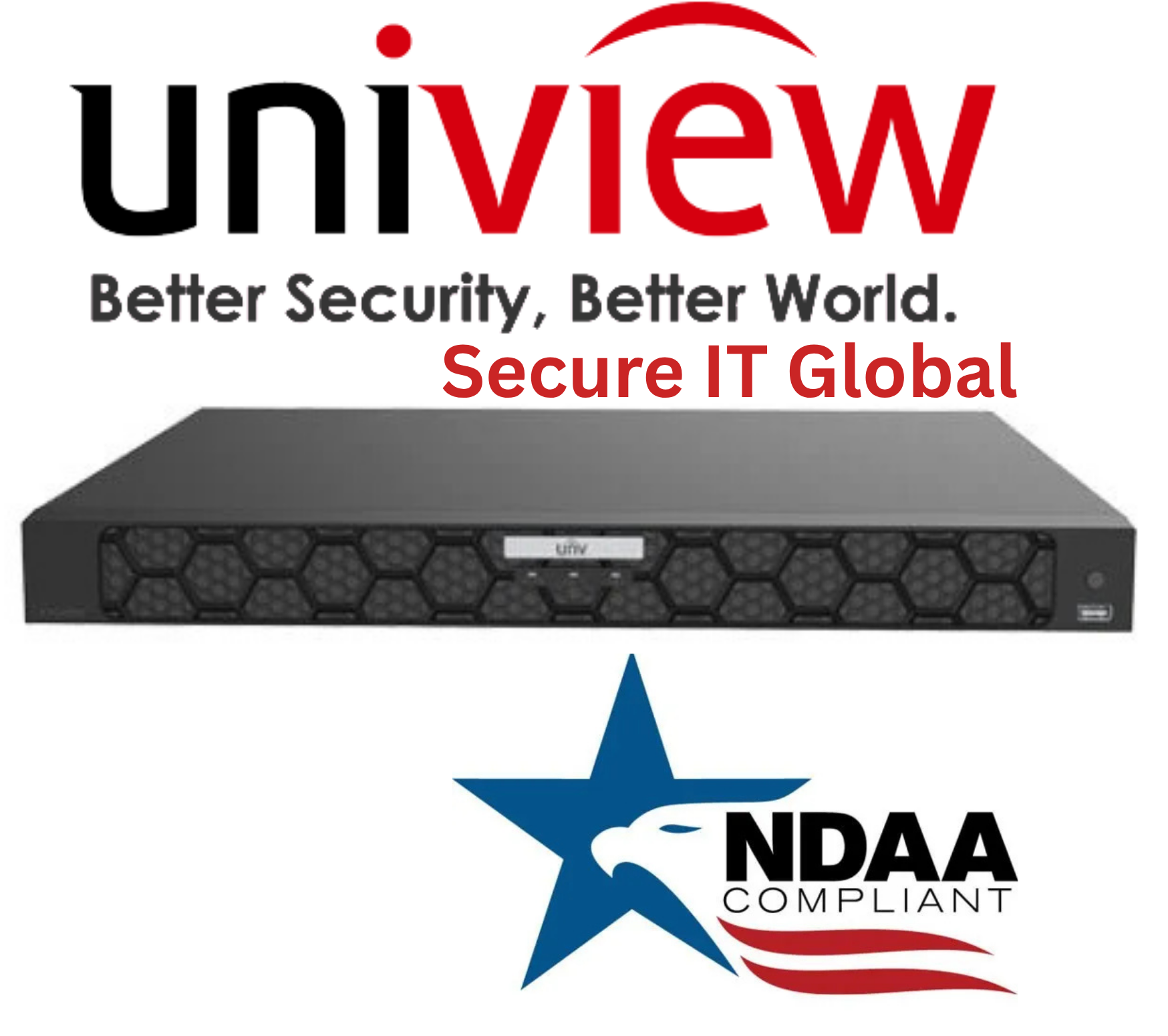

UNV 32-Ch 16MP 4 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR

Regular price $1,378.30
Sale price $1,378.30 Regular price $0.00
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    NVR504-32B-P16
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
UNV 32-Ch 16MP 4 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR

UNV 32-Ch 16MP 4 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR

Regular price $1,378.30
Sale price $1,378.30 Regular price $0.00
Unit price
Product description
Shipping & Return
User Manual

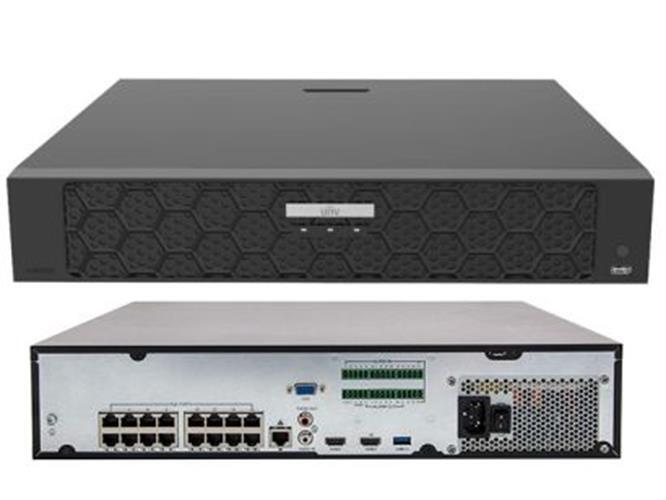

UNV 32-Ch 16MP 4 SATA HDDs Audio PoE NDAA Uniview Network Security Surveillance Recorder NVR

Features:

 Support Ultra 265/H.265/H.264 video formats

 16/32-channel input

 Plug & Play with 16 independent PoE network interfaces

 Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

 Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution

 VGA and HDMI independent output

 Up to 16 Megapixels resolution recording

 4 SATA HDD, up to 10TB for each HDD

 ANR technology to enhance the storage reliability when the network is disconnected

 Support cloud upgrade

Specification:

Video/Audio Input
IP Video Input
32-ch
Audio Input 1-ch, RCA


Network
Incoming bandwidth 320Mbps
Outgoing bandwidth 160Mbps
Remote Users 128
Protocols TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,RTSP,802.1x,IPV6

Video/Audio Output
Recording Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Two-way Audio 1-ch, RCA(Using the audio input and output)
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch


Snapshot
FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution

Hard Disk
SATA 4 SATA interfaces
Capacity Up to 8TB for each disk


General Alarm
General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low,

External Interface
Network Interface 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front: 1 x USB2.0, Rear panel: 1 x USB3.0, 1 x USB2.0
RS232 NA
RS485 1
Alarm In 16-ch
Alarm Out 4-ch


General
Power Supply 12V DC/5A
Power Consumption: ≤ 20W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 440mm × 344mm × 48mm (17.3" × 13.5" × 1.9")
Weight (without HDD) ≤ 3.15Kg (6.94lb)

Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
