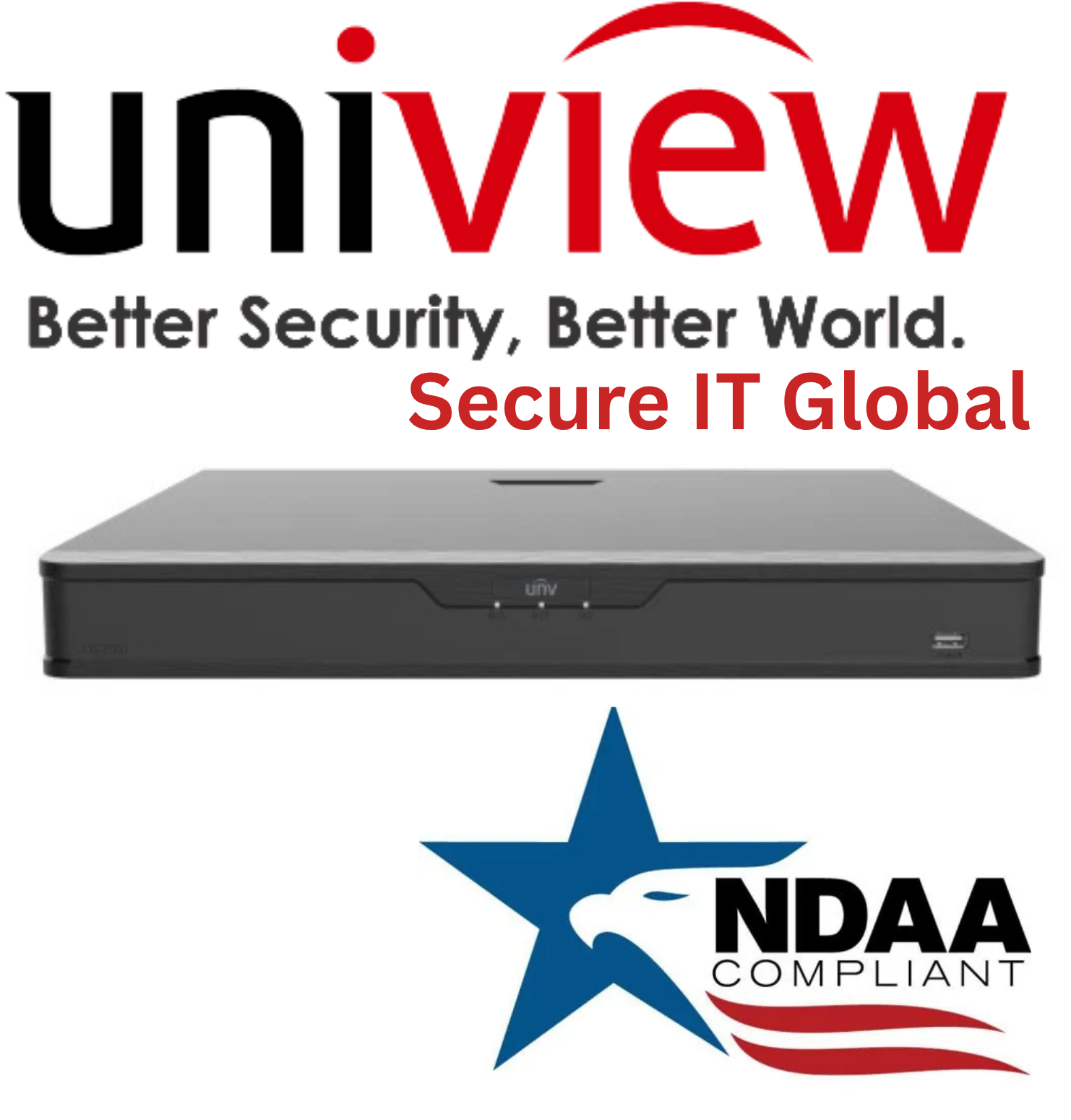

UNV 4K 32-Ch Audio TVI/AHD/CVI/CVBS Hybrid Uniview IP Network Security Recorder
UNV 4K 32-Ch Audio TVI/AHD/CVI/CVBS Hybrid Uniview IP Network Security Recorder
UNV 32-Ch Hybrid XVR Supporting 32 TVI/AHD/CVI/CVBS Inputs & 4 Additional IP Inputs Uniview Security Accessory
The Uniview 32-Ch with Support audio over coaxial cable.
Features:
Type: XVR
Compression: H.265/H.264
Channel: 32
Color: Black
Working Environment: -10°C~+ 55°C (+14°F~+131°F)
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
Support audio over coaxial cable
Up to 4K resolution for recording
Description:
The Uniview 32-channel 4K XVR Security Recorder that is making waves in the security industry. XVR stands for "extreme's Video Recorder." It's a hybrid video recorder that combines the functions of a Digital Video Recorder (DVR) and a Network Video Recorder (NVR). It can handle high resolution cameras ensuring crystal-clear video quality. This comes load with features that are design to elevate your security game to new heights. You have the freedom to choose the cameras which most meet your specific needs due to the ability to work with both analog and IP cameras. This is a cost-effective option due to the infrastructure and storage costs that can be lower thanks to its compression technology.
Specification:
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Analog Video Input | 32-ch, BNC |
| Max IP Video Input | 36-ch |
| Supported Analog Camera Types | Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input |
| BNC Audio Input | 32-ch, channel audio |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| BNC Video Output | 1-ch |
| RCA Audio Output | 1-ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/25/36 |
| Encoding/Decoding | |
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1 |
| Recording Frame Rate | Main stream: 8MP Lite@8fps Sub stream: D1@8fps Main stream: 5MP Lite@12fps Sub stream: D1@12fps Main stream: 4MP Lite@15fps Sub stream: D1@15fps Main stream: 1080P@15fps Sub stream: D1@15fps Main stream: 720P@30fps Sub stream: D1@30fps |
| Audio Sample Rate | 8KHz,16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding Capability | Analog: 16 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30 IP: 16 x 720P@30, 8 x 1080P@30, 4 x 4MP@30, 2 x 8MP@30 |
| Num of Concurrent Playback in Local | 16-ch |
| Coaxial Cable | |
| Audio over Coaxial Cable(Form) | 32-ch, One-way Audio(only for Uniview CVI protocol cameras) |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA(Using the audio input and output) |
| Analog Snapshot | |
| FTP/Schedule/Event Snapshot | Schedule/FTP/Event snapshot:32-ch snapshot, up to 704*576 resolution |
| Network | |
| Incoming Bandwidth | 80Mbps (Up to 144Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 160Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP;P2P;UPnP;DHCP;HTTP;HTTPS;DNS;DDNS;SMTP;NTP |
| Browser(Plugin) | Windows:IE(IE10/11),Firefox (version 52.0 and above),Chrome(version 45 and above),Edge(version 79 and above) |
| Smart | |
| Analog Smart by XVR | Ultra Motion Detection(UMD) |
| IP Smart by IPC | Face Detection;Defocus Detection;Scene Change Detection;Object Removed;Object Left Behind;Auto Tracking |
| VCA Search | Face Search;Behavior Search |
| Smart Functions by XVR | 16-ch(UMD) |
| Alarm | |
| General Alarm | Motion |
| Alert Alarm | IP Conflict; Network Disconnected; Disk offline; Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
| Hard Disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB | Rear panel: 1 x USB3.0;Front panel: 1 x USB2.0 |
| RS485 | 1 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| Power Supply | DC 12V/5A |
| Working Environment | |
| Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working Humidity | ≤ 90% RH(non-condensing) |
| Power Consumption (without HDD) | ≤ 38W |
| Dimensions | |
| Weight (without HDD) | ≤2.6 Kg ( 5.72lb ) |
| Dimensions | 380mm ×326mm× 53mm (15.0" × 12.8"×2.1") |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
