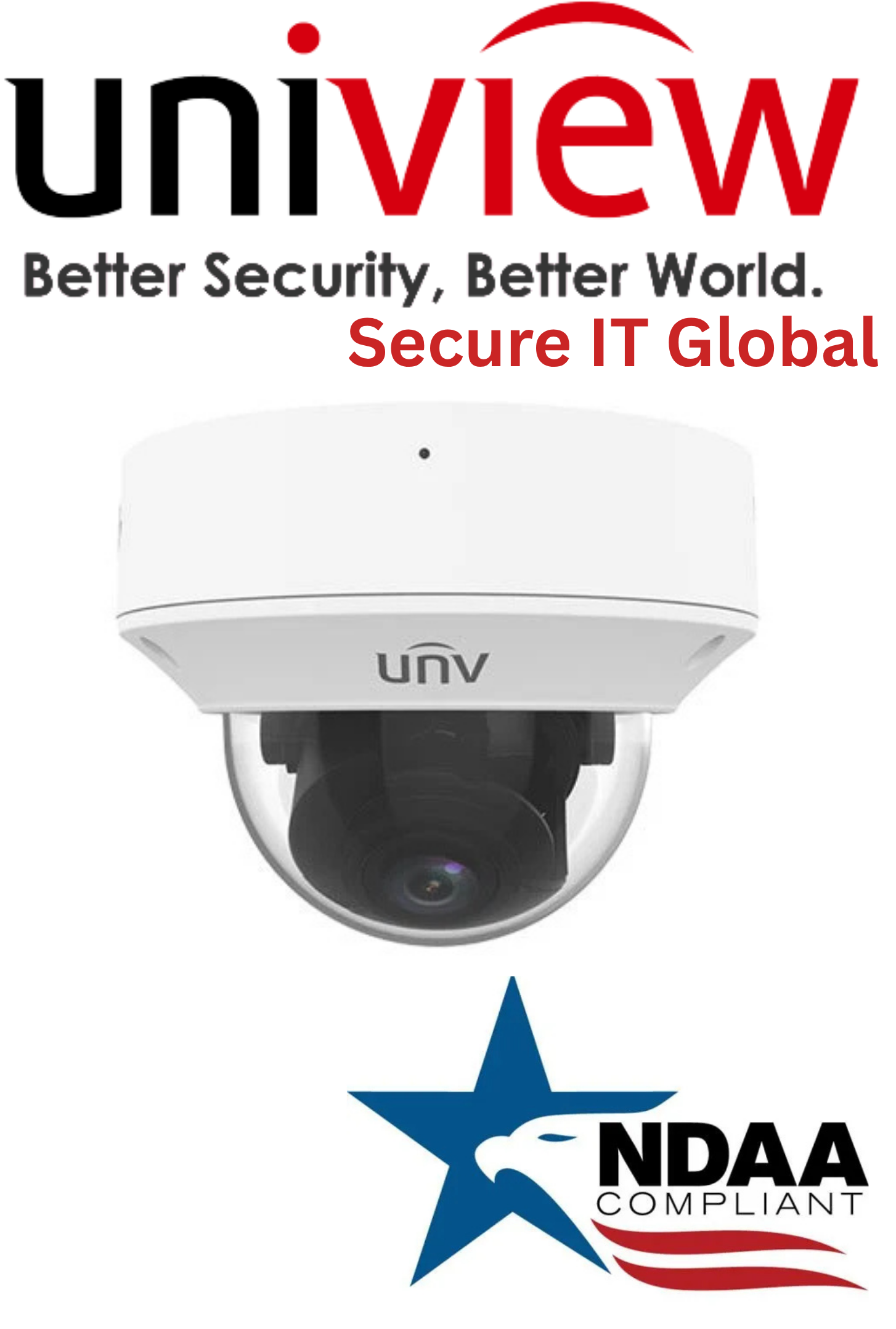

UNV 4MP HD IP67 NDAA Audio IP Network Uniview Security Surveillance Dome Camera

Regular price $608.30
Sale price $608.30 Regular price $0.00
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    IPC3234SB-ADZK-I0
UNV 4MP HD IP67 NDAA Audio IP Network Uniview Security Surveillance Dome Camera

UNV 4MP HD IP67 NDAA Audio IP Network Uniview Security Surveillance Dome Camera

Regular price $608.30
Sale price $608.30 Regular price $0.00
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

UNV  4MP IP67 IK10 IR LightHunter NDAA-Compliant Weatherproof Vandal Dome Uniview IP Security Camera with a 2.7 - 13.5mm Motorized Varifocal Lens

Uniview  LightHunter in low illumination environment security camera.

Key Features:

Camera Style: Dome
Resolution: 4MP
Compression: Ultra 265, H.265, H.264, MJPEG
Lens Type : Motorized (Automatic Zoom) Lens
Lens Size : 2.7 ~ 13.5mm Lens
Protection Code : IP67,IK10
Color : White
Environmental : Outdoor
Uniview IPC3234SB-ADZK-I0 LightHunter

Specification:


Camera
Sensor 1/3", 4.0megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.002 lux (F1.2, AGC ON) 0 lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 355° Tilt: 0° ~ 80° Rotate:0° ~ 355°
WDR 120dB
S/N >56dB
Lens
Lens 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
Iris Fixed
Field of View (H) 98.26°~ 31.35°
Field of View (V) 54.76°~ 18.55°
Field of View (D) 127.74°~36.99°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.7 60.8 24.3 12.2 6.1
Illuminator
IR Range Up to 40m (131ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP Sub Stream: 720P Third Stream: D1
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask  4 areas
ROI Up to 8 areas
Video Stream Triple streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, alarm input, alarm output, access policy, ARP Protection, RTSP authentication,
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8KHZ
Storage

Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, etc.
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs,  WSSE and digest authentication for ONVIF
Client EZStation EZView
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
RS485 N/A
Built-in Mic Support
Built-in Speaker N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC CE-EMC FCC
Safety CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL
Environment CE-RoHS
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.0W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ148 x 111.3mm (Ø5.8” x 4.4”)
Weight 0.92kg (2.03lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F)
Surge Protection 6KV
Reset Button Support
