UNV 4MP IP67 NDAA Audio IP Network Uniview Surveillance Security Turret Camera

Regular price $258.30
Sale price $258.30 Regular price $0.00
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    IPC3614SR3-ADF28KM-G
UNV 4MP IP67 NDAA Audio IP Network Uniview Surveillance Security Turret Camera

UNV 4MP IP67 NDAA Audio IP Network Uniview Surveillance Security Turret Camera

Regular price $258.30
Sale price $258.30 Regular price $0.00
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

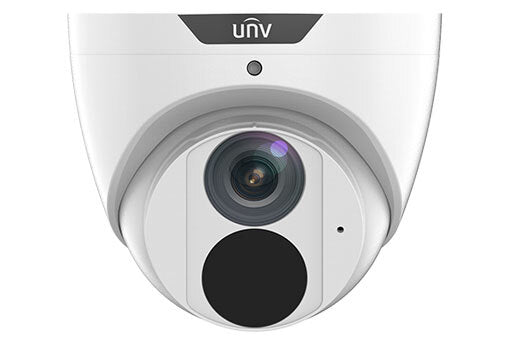

UNV 4MP IP67 PoE HD IR Outdoor Lighthunter Eyeball IP Uniview Security Camera 2.8mm Fixed Lens with Night Vision

The Uniview  Lighthunter technology ensures high image quality in low illumination environment.

Features:

Compression : Ultra 265, H.265, H.264, MJPEG
Megapixel: 4MP
Camera Style: Eyeball
Lens Type :Fixed Lens
Lens Size : 2.8mm
Protection Code : IP67
Dimensions (Ø x H): Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
Weight:0.43kg (0.95lb)
Environmental : outdoor
Audio Support : Built-in Mic

Specification:




Camera

Sensor

1/3", 4.0 megapixel, progressive scan, CMOS

Lens

2.8mm






DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

63.0

25.2

12.6

6.3






Angle Of View (H)

101.1°

83.7°

Angle Of View (V)

55.3°

44.9°

Angle Of View (O)

111.1°

89.2°

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 80°

Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s



Minimum Illumination

Support LightHunter: Colour: 0.003Lux ( F1.6, AGC ON) 0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>56dB

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile

Baseline profile, Main profile, High profile





Frame Rate

Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate

128 Kbps~16 Mbps

9:16 Corridor Mode

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Supported

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N/A

HLC

Supported

BLC

Supported



Behavior Detection

Cross line, intrusion(based on human body detection)

motion detection, tampering alarm, audio detection

General Function

Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Network



Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API



Client

EZStation EZView EZLive



Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Audio

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR,NAS(NFS)

Interface

Network

10/100M Base-TX Ethernet

Built-in Mic

Supported

Certifications



Certifications



UL: UL60950-1 FCC: FCC Part 15

General



Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 6.0W

Dimensions (Ø x H)

Φ110.5 x 94.1mm (Φ4.4” x 3.7”)

Net Weight

0.43kg (0.95lb)

Material

Metal

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

2KV

Ingress Protection

IP67
