UNV 4x4MP NDAA Audio IP Camera+4-Ch 4K NVR+1TB Uniview Network Security kit

Regular price $902.30
Sale price $902.30 Regular price $0.00
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    EK-S31P4T44T1
UNV 4x4MP NDAA Audio IP Camera+4-Ch 4K NVR+1TB Uniview Network Security kit

UNV 4x4MP NDAA Audio IP Camera+4-Ch 4K NVR+1TB Uniview Network Security kit

Regular price $902.30
Sale price $902.30 Regular price $0.00
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

Uniview 4 x 4MP Turret IP Camera + 4-Ch 4K NVR + 1TB HDD Complete Video Uniview Security Surveillance Kit

The Uniview  Surveillance Kit  is a complete security system.

Features:

Type: Turret Cameras+ NVR
Resolution: 4MP
Compression: Ultra 265, H.265, H.264, MJPEG
Lens Type: Fixed Lens
Lens Size: 2.8mm
Channels: 4
Hard Drive Capacity: 8TB
Protection Code: IP67, IK10

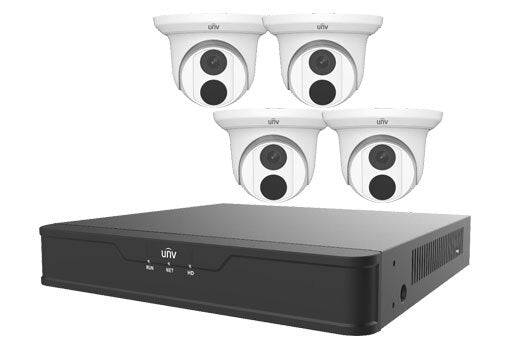

Included Kit:

4 x 4MP turret camera with a 2.8mm fixed lens
1 x 4-Channel 4K NVR
1 x pre-installed 1TB hard drive
4 x 60' pre-made Ethernet cables
1 x 6' pre-made Ethernet cable
1 x 6' HDMI cable

Description:

The  4/4-channel 4MP Complete Video Security Surveillance Kit comes with everything you need . With 4 Turret IP cameras and 4-channel NVR, you have room for 2 additional cameras to add to your system over time. It also Support Ultra 265/H.265/H.264 Video formats And Camera Protection Code is IP67 with M12 Lens Mount.
Video/Audio Input
IP Video Input 4-ch
Network
Incoming Bandwidth 64Mbps
Outgoing Bandwidth 48Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Video/Audio Output
HDMI/VGA Output HDMI:
4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 4-ch
Livieview display 1/4
Corridor Mode Screen 3/4
Snapshot
FTP/Schedule/Event Snapshot 1-ch snapshot, up to D1 resolution
Decoding
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30
Hard Disk
SATA 1 SATA interface
Capacity Up to 8TB for each disk
(The maximum HDD capacity varies with environment temperature)
Smart
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
VCA Search Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Ultra Motion Detection(UMD)
Smart Intrusion Prevention (SIP), UMD by Camera Total 4-ch
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel:2 x USB2.0
RS232 NA
RS485 NA
Alarm In NA
Alarm Out NA
PoE
Interface 4 RJ-45 10M/100Mself-adaptive Ethernet Interface
Max Power Max 30W for single port
Max 54W in total
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC
Power Consumption: ≤9 W (without HDD)
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8")
Weight ( without HDD ) ≤1.1kg (2.43lb)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC Part15 Subpart B, ANSI C63.4


Camera
Sensor 1/3", 4.0 megapixel, progressive scan, CMOS
Min. Illumination Colour: 0.01Lux (F2.0, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360° , Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
S/N >56dB
WDR DWDR
Lens
Lens Type 2.8mm @2.0, Fixed-focal
Lens Mount M12
Angle of View (H) 97.0°
Angle of View (V) 52.2°
Angle of View (O) 107.5°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
Illuminator
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream:D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~6144 kbps
U-code Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping N/A
HLC Supported
BLC Supported
Defog Digital Defog
Events
Behavior Detection Cross line, intrusion(based on human body detection)
Motion detection, tampering alarm
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Storage
Edge Storage Micro SD, up to 128GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+
Interface
Network 1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMC FCC: FCC Part 15
Safety CE: EN 60950-1
UL: UL60950-1
IEC 60950-1
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.0W
Power Interface Ø 5.5mm coaxial power plug
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button N/A
Ingress Protection Ingression protection: IP67
