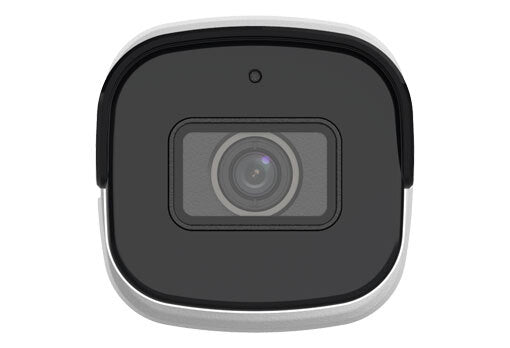

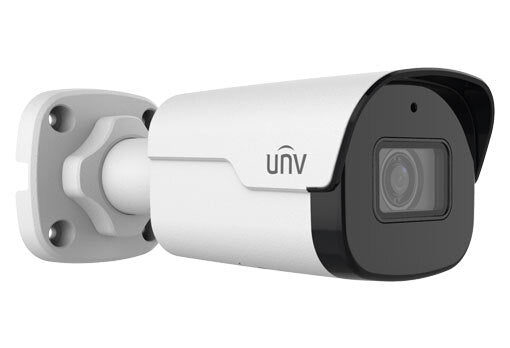

UNV 5MP IP67 NDAA Audio IP Network Uniview Bullet Security Surveillance Camera

Regular price $293.30
Sale price $293.30 Regular price $0.00
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    IPC2125SB-ADF28KM-I0
UNV 5MP IP67 NDAA Audio IP Network Uniview Bullet Security Surveillance Camera

UNV 5MP IP67 NDAA Audio IP Network Uniview Bullet Security Surveillance Camera

Regular price $293.30
Sale price $293.30 Regular price $0.00
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

 UNV 5MP HD IR LightHunter Bullet IP Uniview Security Camera with a 2.8mm Fixed Lens

The Uniview  LightHunter technology ensures ultra-high image quality in low illumination environment.

Key Features:

Compression : Ultra 265, H.265, H.264, MJPEG
Megapixel: 5MP
Camera Style: Bullet
Lens Type :Fixed Lens
Lens Size : 2.8mm
Protection Code : IP67
Dimensions (L × W × H): 156 × 63× 63mm (6.1” × 2.5” × 2.5”)
Weight: 0.425kg (0.93lb)
Environmental : outdoor
Audio Support : Built-in Mic

Specification:

Camera
Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.002 lux (F1.6, AGC ON)
0 lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
WDR 120dB
S/N >56dB
Lens
Lens 2.8mm@F1.6
Iris Fixed
Field of View (H) 96.1°
Field of View (V) 55.3°
Field of View (D) 111.1°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3


Illuminator
IR Range Up to 40m (131 ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream:5MP
Sub Stream: 720P
Third Stream: D1
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Triple streams
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Ultra motion detection, tampering alarm, audio detection
General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, etc.
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 2 user levels: administrator and common user
Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O N/A
Alarm I/O N/A
RS485 N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.0W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (L × W × H) 156 × 63× 63mm (6.1” × 2.5” × 2.5”)
Weight 0.425kg (0.93lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 4KV
Reset Button Support
