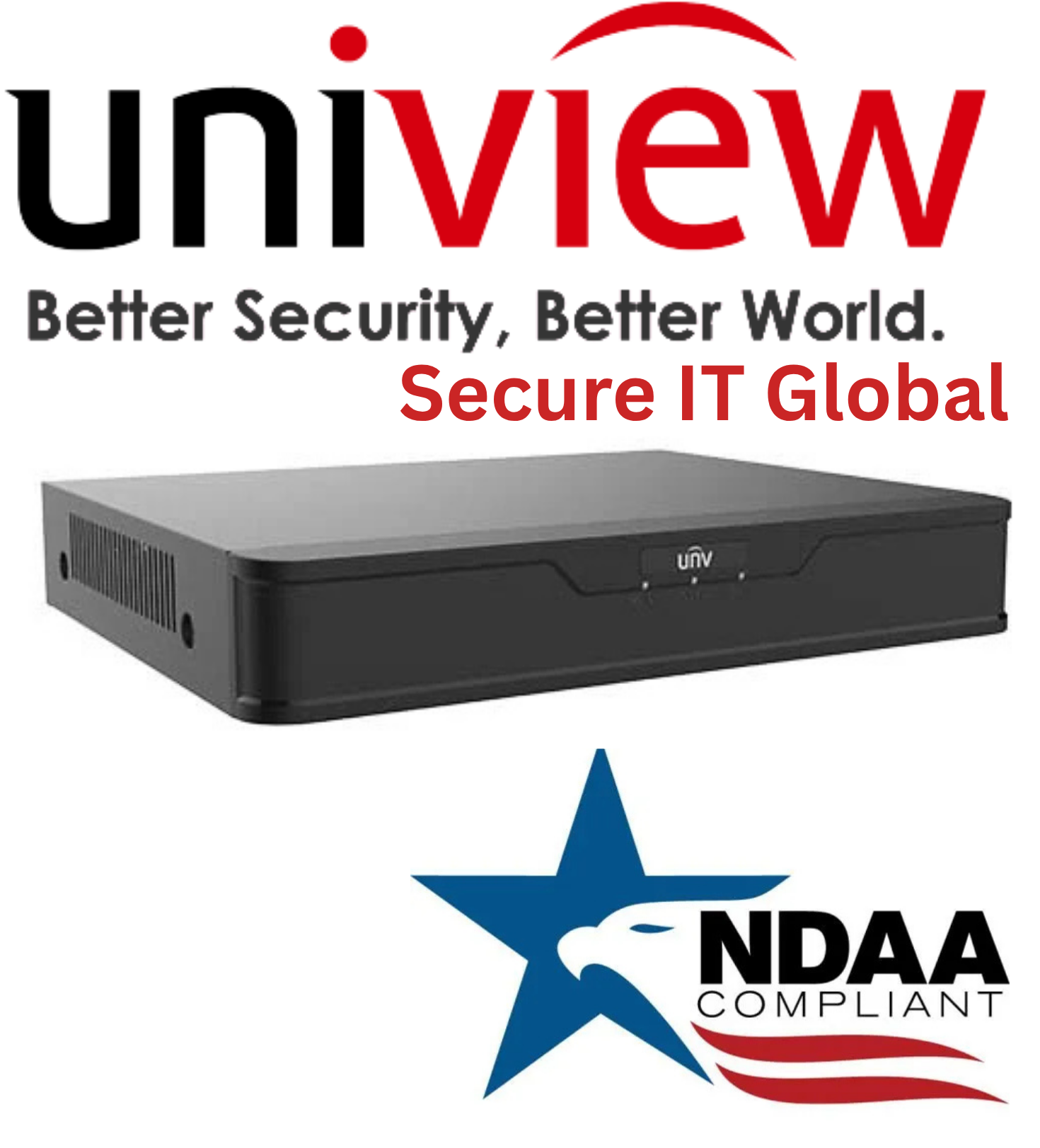

UNV 8-Ch 4K BNC Audio NDAA 4 Additional 1 SATA IP Uniview Security Recorder DVR
UNV 8-Ch 4K BNC Audio NDAA 4 Additional 1 SATA IP Uniview Security Recorder DVR
UNV 8-Ch with 4 Additional IP Inputs and 1 SATA Hard Drive Bay Digital Uniview Security Video Recorder
Uniview 8-Ch with Support audio over coaxial cable.
Features:
Support H.265/H.264 video formats
Audio support over coaxial cable
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
4/8-channel BNC input
Support 1-ch CVBS output, 1-ch VGA output
HDMI and VGA simultaneous output
Mainstream cameras of ONVIF and RTSP protocols
Specification:
| Video/Audio Input | ||||||
| Analog Video Input | 8-ch, BNC | |||||
| IP Video Input | 4-ch(only IP up to 12ch), each channel up to 8MP | |||||
| Audio Input | 1-ch, RCA | |||||
| Audio Compression | G.711U | |||||
| Video/Audio Output | ||||||
| CVBS Output | 1-ch, BNC | |||||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz. | |||||
| HDMI Output | 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz. | |||||
| Audio Output | 1-ch, RCA | |||||
| Synchronous Playback | 4 | 8 | ||||
| Live view display | HDMI/VGA: 1/4/6/8/9 | HDMI/VGA: 1/4/6/8/9/16 | ||||
| Two-way Audio | 1-ch, RCA | |||||
Network
| Network | ||||||
| Incoming Bandwidth | 40Mbps (Up to 56Mbps after all analog channel conversion) | |||||
| Outgoing Bandwidth | 64Mbps | |||||
| Remote Users | 128 | |||||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |||||
Encoding
| Encoding | ||||||
| Recording Resolution | 8MP Lite/5MP/5MP Lite/4MP Lite /1080P/720P/CIF | |||||
| Audio Sample Rate | 8KHz,16 bit per channel | |||||
| Audio Bit Rate | 64Kbps per channel | |||||
Hard Disk
| Hard Disk | ||||||
| SATA | 1 SATA interface | |||||
| Capacity | Up to 8TB for each HDD | |||||
Alarm
| General Alarm | ||||||
| General Alarm | Motion detection | |||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, | |||||
Interface

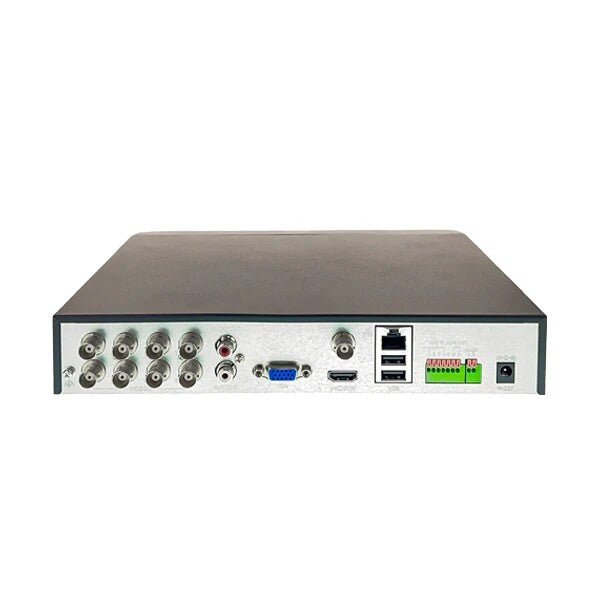

| External Interface | ||||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||||
| USB Interface | Rear panel: 2 x USB2.0 | |||||
| RS485 | 1 | |||||
| Alarm In | 4-ch | |||||
| Alarm Out | 1-ch | |||||
| General | ||||||
| Power Supply | 12V DC Power Consumption: ≤ 10 W( without HDD ) |
|||||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ) | |||||
| Dimensions(W×D×H) | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") | |||||
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |||||
