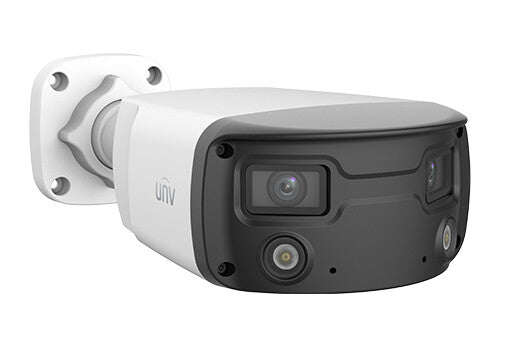

UNV 8MP HD NDAA 2-Way Audio IP Uniview Fixed Bullet IP Network Security Camera

Regular price $678.30
Sale price $678.30 Regular price $0.00
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    IPC2K28SE-ADF40KMC-WL-I0
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
UNV 8MP HD NDAA 2-Way Audio IP Uniview Fixed Bullet IP Network Security Camera

UNV 8MP HD NDAA 2-Way Audio IP Uniview Fixed Bullet IP Network Security Camera

Regular price $678.30
Sale price $678.30 Regular price $0.00
Unit price
Product description
Shipping & Return
User Manual

 UNV 8MP PoE Colorhunter NDAA Weatherproof 24/7 Bullet Uniview IP Network Security Camera with 2 x 4.0mm Fixed Lenses and 2-Way Audio

Features:
High quality image with 8MP, 1/2.7"CMOS sensor
8MP (5120*1440)@20fps
The double lens splicing technology is adopted to realize the horizontal viewing angle of 180°±10°
Colorhunter technology ensures 24-hour full-color images
Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc.
Intelligent People Flow Counting and Crowd Density Monitoring
Alarm:1 in/1 out
Audio: 1 in/1 out
Built-in speaker and dual mics
Support 256 GB micro SD card
12V DC/PoE power supply

Specification:
Camera
Sensor 1/2.7″, 8.0 megapixel, progressive scan, CMOS
Minimum Illumination Colour: 0.0005 lux (F1.0, AGC ON)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
WDR 130dB
S/N >52dB
Lens
Lens 2 * 4.0mm@F1.0
Iris Fixed
Field of View (H) 180°±10°
Field of View (V) 47.41°
Field of View (D) 180.13°±10°
DORI
DORI Distance Lens (mm) Detect(m) Observe(m) Recognize(m) Identify(m)
4.0 90m(259.3ft) 36m(118.1ft) 18m(59.1ft) 9m(29.5fft)
Illuminator
LED Distance Up to 30m (98ft)
LED On/Off Control Auto/Manual
Video
Video Compression Ultra265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 8MP (5120*1440), Max 20fps
Sub Stream: 2560*720, Max 20fps
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Double streams
Auto Scene Match (ASM) Support(Only WDR)
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart Illumination Support
Flip N/A
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart intrusion prevention Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical Analysis People counting, support people flow counting and crowd density monitoring
Events
Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function Watermark, IP address filtering, Alarm input, Alarm output, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression G.711
Audio Bitrate 64 Kbps
Two-way audio Support
Suppression Support
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IPv6,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host Up to 32 users. 3 user levels: administrator and common user and operator
Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
RS485 N/A
Built-in Mic Built-in two mics
Built-in Speaker Support
WIFI N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certifications
EMC CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE-LVD (EN 62368-1)
CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection IP67 (IEC 60529)
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 13w
Power Interface Ø 5.5mm coaxial power plug
Dimensions (L × W × H) 273 × 130 × 76mm (10.7” × 5.1” × 3.0”)
Weight 0.96kg (2.12lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
surge protection 4KV
Reset Button Support
