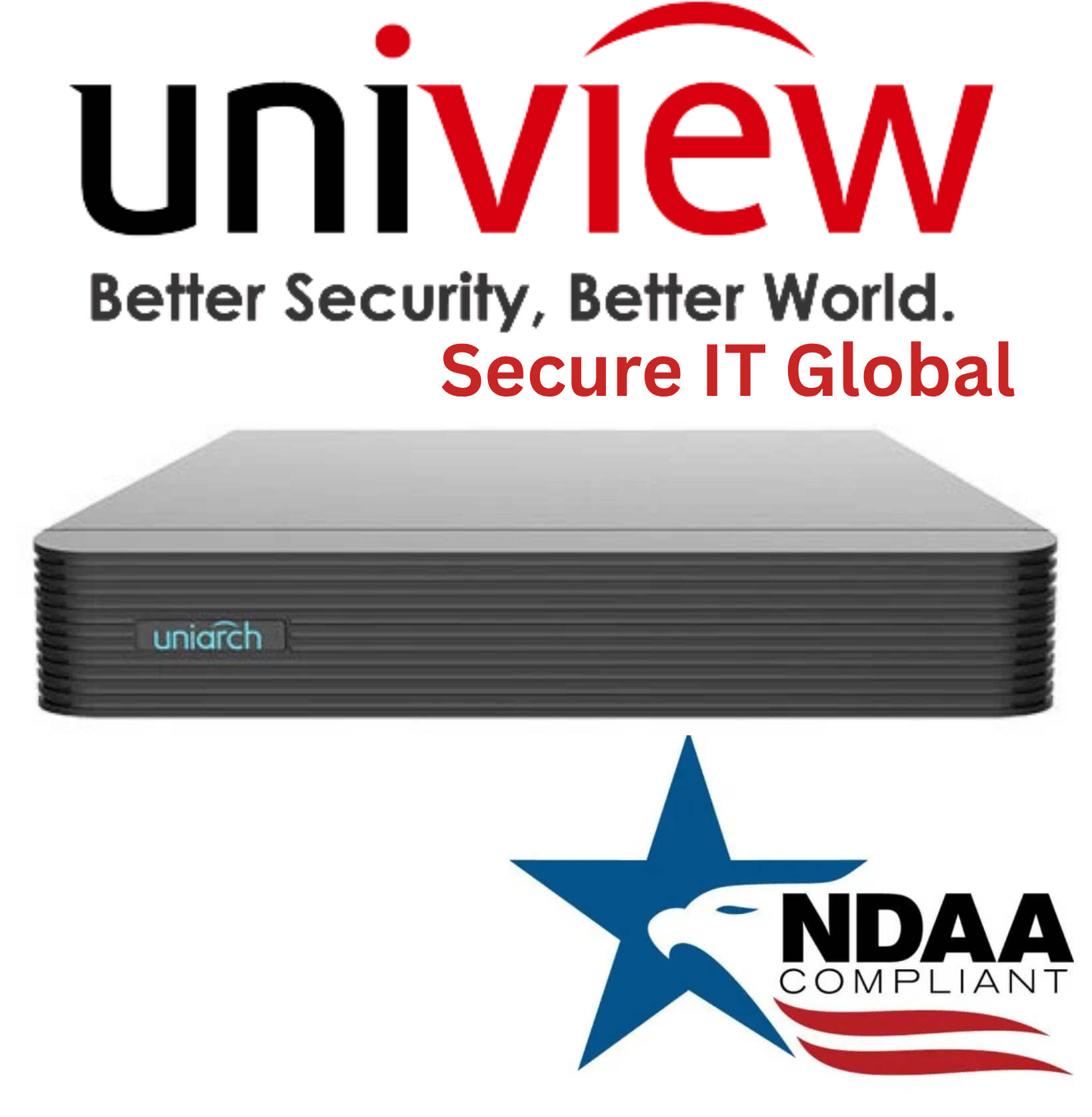

UNV 8MP HD NDAA-Compliant 8-Ch PoE IP Network Uniview Security NVR Uniarch
UNV 8MP HD NDAA-Compliant 8-Ch PoE IP Network Uniview Security NVR Uniarch
UNV 8-Ch 8MP HD NDAA-Compliant 8-Ch PoE IP Uniview Security NVR
Uniview 8-Ch NVR 8MP resolution recording.
Features:
Type: NVR
Compression:H.265
Channel:8
Pre-Installed Storage: No HDD
Video output:1-ch HDMI, 1-ch VGA
Max.Recording Resolution:8MP
Hard drive Ports:1 SATA interfaces
Max.Storage Capacity:6TB
Color:Black
Power Supply: 52V DC
Working Environment:-10°C ~ + 55°C (+14°F ~ +131°F)
Dimensions (W×D×H):255mm ×215mm× 42mm
Weight (without HDD):≤1.2kg (2.65 lb)
Power Consumption
Plug & Play with 4/8 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
HDMI and VGA simultaneous output
Support cloud upgrade
Description:
The cutting-edge Network Video Recorder (NVR) system Uniview 8MP offers excellent surveillance solutions. With an amazing 8-megapixel resolution the Uniview 8MP offers crystal-clear images and videos.
Specification:
| Video/Audio Input | |||||||
| IP Video Input | 8-ch | ||||||
| Network | |||||||
| Incoming Bandwidth | 50Mbps | ||||||
| Outgoing Bandwidth | 40Mbps | ||||||
| Remote Users | 128 | ||||||
| Protocols | P2P, UPnP, DHCP | ||||||
| Video/Audio Output | |||||||
| HDMI/VGA Output | HDMI: 3840x2160/30Hz , 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
||||||
| Audio Output | 1-ch, RCA | ||||||
| Recording Resolution | 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF | ||||||
| Synchronous Playback | 8-ch | ||||||
| Corridor Mode Screen | 3/4/5/7/9 | ||||||
| Decoding | |||||||
| Decoding format | Ultra 265/H.265/H.264 | ||||||
| Liveview/Playback | 8MP/5MP/4MP/3MP/1080P/960P/720P/960H/D1/2CIF/CIF | ||||||
| Capability | 1 x 8MP@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 | ||||||
| Hard Disk | |||||||
| SATA | 1 SATA interface | ||||||
| Capacity | up to 6TB for each disk | ||||||

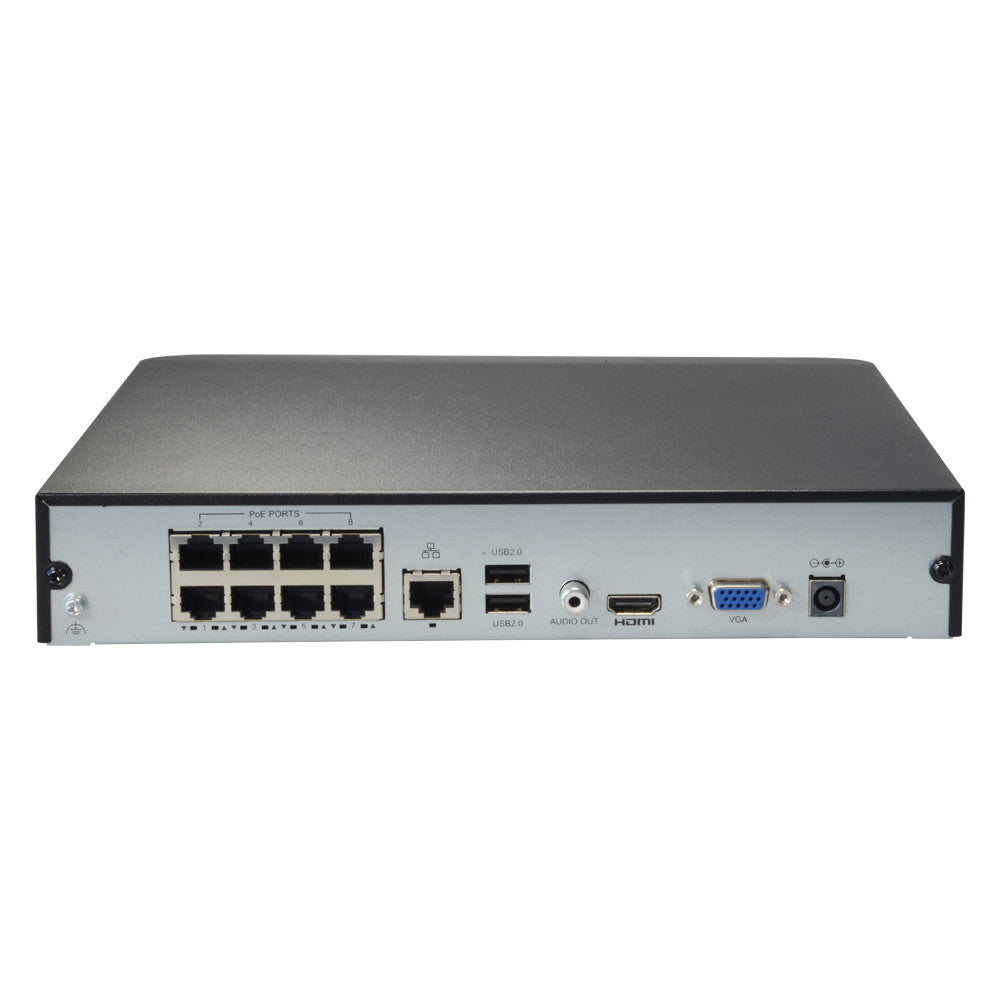

| External Interface | |||||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||||
| USB Interface | Rear panel: 2 x USB2.0 | ||||||
| PoE | |||||||
| Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface | ||||||
| Max Power | Max 30W for single port Max 75W in total |
||||||
| Supported Standard | IEEE 802.3at, IEEE 802.3af | ||||||
| General | |||||||
| Power Supply | 52V DC Power Consumption: ≤9 W (without HDD) |
||||||
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | ||||||
| Dimensions (W×D×H) | 260mm × 243mm × 46mm (10.2" × 9.6" × 1.8") | ||||||
| Weight (without HDD) | ≤1.2kg (2.65 lb) | ||||||
| Model | IPC-T1E4-AF28K | ||||||
| Sensor | 1/2.7", 4.0 megapixel, progressive scan, CMOS | ||||||
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
| Adjustment angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° | ||||||
| S/N | >56dB | ||||||
| WDR | 120dB | ||||||
| Lens | |||||||
| Lens Type | 2.8mm @1.6, Fixed-focal | ||||||
| Lens Mount | M12 | ||||||
| Angle of View (H) | 112.9° | ||||||
| Angle of View (V) | 59.1° | ||||||
| Angle of View (O) | 121.2° | ||||||
| DORI | |||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |||
| Illuminator | |||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| U-code | Supported | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Image | |||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| Smart IR | Support | ||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||
| Dewarping | N/A | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| Defog | Digital Defog | ||||||
| Events | |||||||
| Basic Detection | Intrusion detection (based on human) | ||||||
| motion detection, tampering alarm, audio detection | |||||||
| General Function | Watermark, IP address filtering, tampering alarm, access policy, ARP protection, RTSP authentication, user authentication | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 256GB | ||||||
| Network Storage | ANR, NAS(NFS) | ||||||
| Network | |||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS , SSL/TLS, | ||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||
| Client | Uniarch Client Uniarch APP |
||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||||
| Interface | |||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||
| Built-in Mic | Supported | ||||||
| General | |||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||
| Power consumption: Max 6.0W | |||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||
| Dimensions (L × W × H) | Φ111 x 95mm (Φ4.4” x 3.7”) | ||||||
| Weight | 0.35kg (0.77lb) | ||||||
| Material | Metal | ||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
| Surge Protection | 4KV | ||||||
| Reset Button | N/A | ||||||
| Ingress Protection | Ingression protection: IP67 | ||||||
