UNV 8Port Switch with 2Gigabit UplinkPort Uniview Surveillance SecurityAccessory

UNV 8Port Switch with 2Gigabit UplinkPort Uniview Surveillance SecurityAccessory

Regular price $229.00
Sale price $229.00 Regular price $0.00
Unit price
Product description
Shipping & Return
User Manual

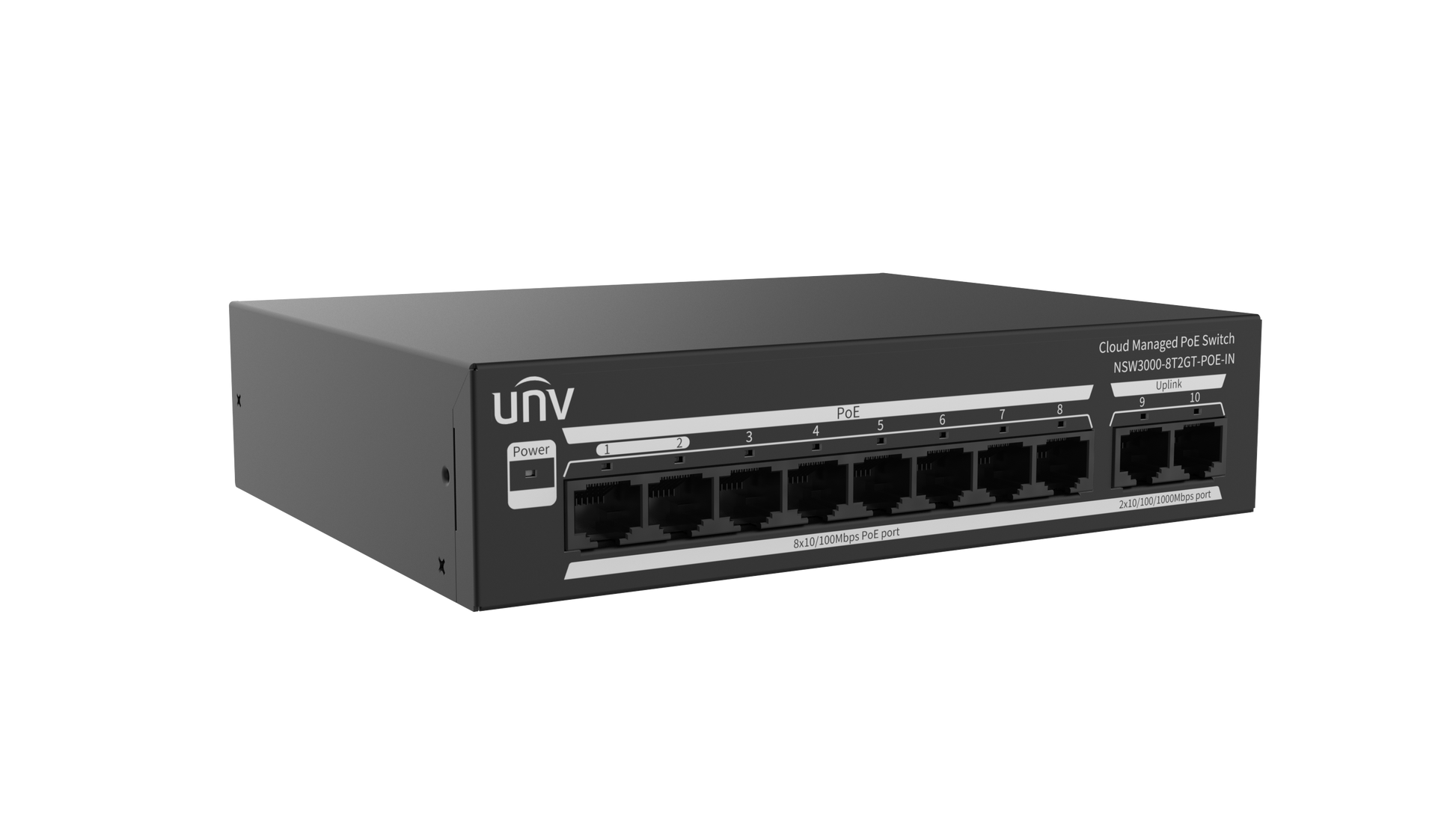

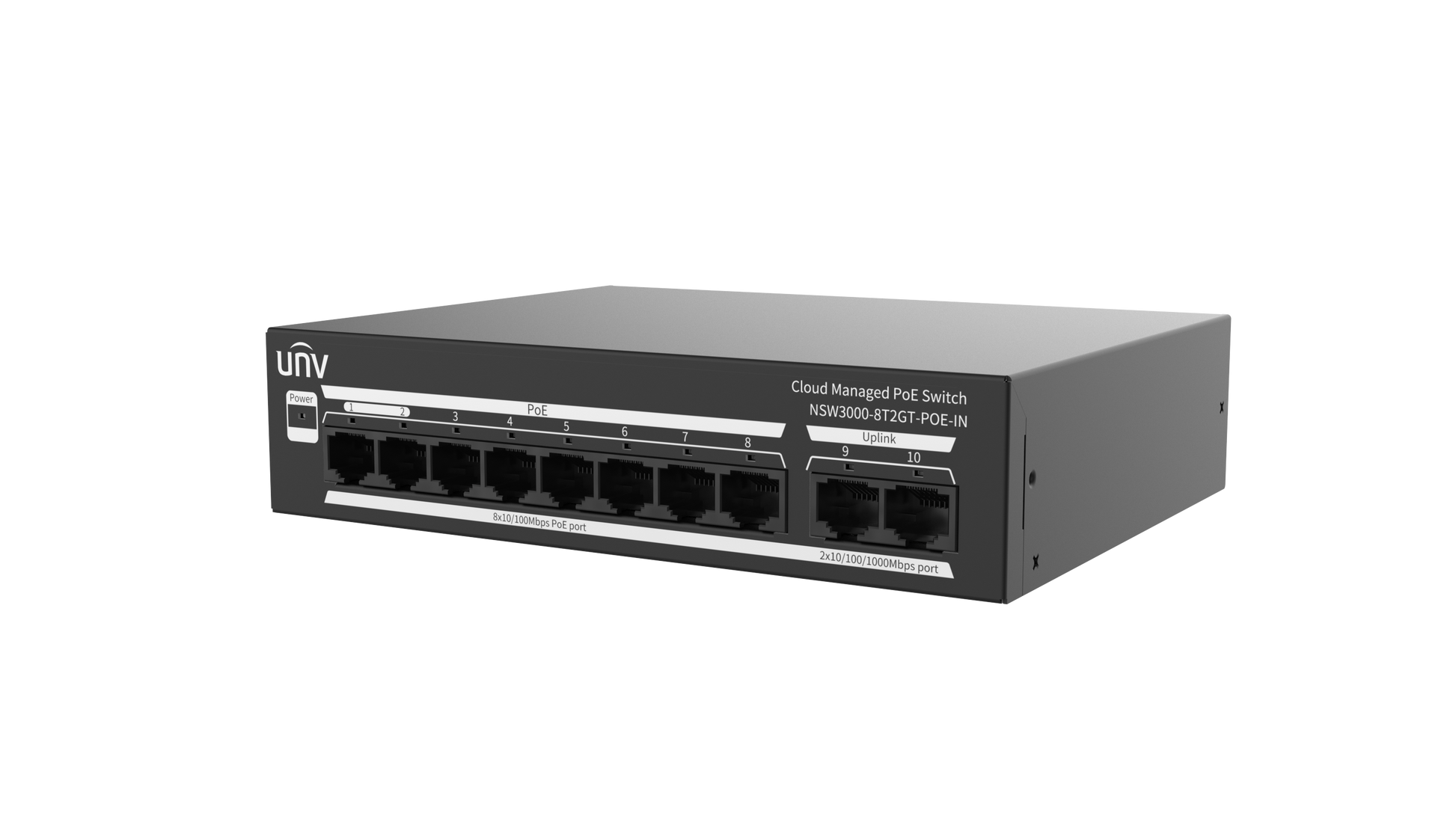

UNV 8 Port Cloud Managed POE Switch with 2 Gigabit Uplink Ports Uniview Surveillance Security Accessory

Key features

  • 8× 10/100 Mbps PoE Ports

  • 2× 10/100/1000 Mbps Uplink Ports

  • 96W Total PoE Power Budget

  • IEEE 802.3af/at Standard Support

  • Fanless for Silent Operation

  • 6kV Lightning Protection

  • Plug-and-Play Design



Specifications





Hardware  Specification



Ports Type

8 x 10/100Mbps POE port (RJ45) ,

2 x Gigabit port (RJ45)

Standards

IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at

Switching capacity

5.6 Gbps

Forwarding performance

4.17Mpps

Packet Buffer

2 M bit

MAC

4K

Weight

0.67KG

Dimensions (W×D×H)

169mm*132mm*40mm

Max.Power

130W





Max.PoE Power

Maximum total power: 120W

Maximum PoE power for single port: 30W Mode A, 1/2+, 3/6-

Mode B, 4/5+, 7/8-

Prior Ports

1 to 2

Cooling Fans

0

Operating humidity

10%90% (non-condensing)

Storage Humidity

5% to 90% RH, noncondensing

Software Specification







Ethernet

Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports

Supports port auto-negotiation rate Supports port priority flow control. Supports port flow statistics

Supports a link aggregation group (consist of two uplink ports)

VLAN

Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094



MAC

Support (up to 4K).

Supports clearing the dynamic MAC address



POE

Allows to view PoE status and power.

Allows to enable/disable PoE power supply.

Loop Detection

Loop Detection



QoS

Supports port rate limitation.

Supports broadcast storm control.



Security

Supports port isolation (only for the downlink ports).

Supports locking login IP address, up to 64 addresses can be locked










Maintenance

Supports N:1 port mirroring.

Supports unified software configuration, management, and search.

Supports discovering the connected video devices and generating a network topology on the software.

Supports device upgrade, factory settings restoration, configuration import, configuration

export, logs export, and device restart on the software.







System

Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.

Allows to edit and manage the IP address and device name.

Supports single-user management, user authentication, and password modification. Allows to view other switches information on the same network, up to 32 switches. Allows to view the connected video devices information, up to 64 devices .
