UNV IP67 NDAA 4MP IR Uniview IP Security Surveillance Camera 2.8mm Lens Uniarch

Regular price $107.10
Sale price $107.10 Regular price $0.00
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    IPC-B124-APF28
UNV IP67 NDAA 4MP IR Uniview IP Security Surveillance Camera 2.8mm Lens Uniarch

UNV IP67 NDAA 4MP IR Uniview IP Security Surveillance Camera 2.8mm Lens Uniarch

Regular price $107.10
Sale price $107.10 Regular price $0.00
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

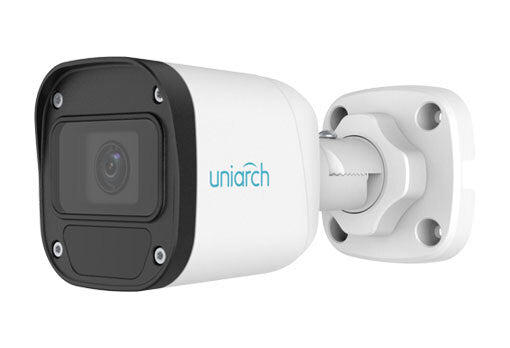

 UNV 1440p NDAA 4MP Weatherproof Mini Bullet Uniview IP Security Camera with a 2.8mm Fixed Lens

  This Mini Bullet IP Security Camera with a 2.8mm Fixed Lens. Day/night functionality -  Smart IR, up to 30m (98ft) IR distance, Optical glass window with higher light transmittance,

IR anti-reflection window to increase the infrared transmittance, 2D/3D DNR (Digital Noise Reduction).

key Features:

  • Compression : Ultra 265, H.265, H.264,MJPEG
  • Camera Style: Bullet
  • Megapixel: 4MP
  • Lens Type :Fixed Lens
  • Lens Size : 2.8mm
  • Protection Code : IP67
  • Color : White
  • Dimensions (Ø x H):142.1 × 62.4 × 65.2mm (5.6” × 2.5” × 2.6”)
  • Weight: 0.19kg (0.42lb)
  • Audio Support :Built-in Mic




Camera

Sensor

1/2.7", progressive scan, CMOS

Lens

2.8mm@F2.1





DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

56.0

22.4

11.2

5.6

Angle of View (H)

112.7°

86.5°

Angle of View (V)

60.1°

44.1°

Angle of View (O)

146.5°

106.4°

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s



Minimum Illumination

Colour: 0.02Lux (F2.1, AGC ON)

0Lux with IR on

Digital noise reduction

2D/3D DNR

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

IR Range

Up to 30m (98ft) IR range

Defog

Digital Defog

WDR

DWDR

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile



Frame Rate

Main Stream: 4MP (2560*1440), Max 20fps; 1080P (1920*1080), Max 20fps; Sub Stream: 720P (1280*720), Max 20fps

HLC

Supported

BLC

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 2 areas

Motion Detection

Up to 4 areas

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP

Compatible Integration

ONVIF (Profile S, Profile T), API

Interface

Network

10/100M Base-TX Ethernet

General



Power

DC 12V±25%, PoE

Power consumption: Max 4.5W

Dimensions (L × W × H)

142.1 × 62.4 × 65.2mm (5.6” × 2.5” × 2.6”)

Weight

0.19kg (0.42lb)

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
