UNV IP67 NDAA Audio 4x4MP IP Dome Camera+4K 4-Ch Uniview NVR Security system
UNV IP67 NDAA Audio 4x4MP IP Dome Camera+4K 4-Ch Uniview NVR Security system

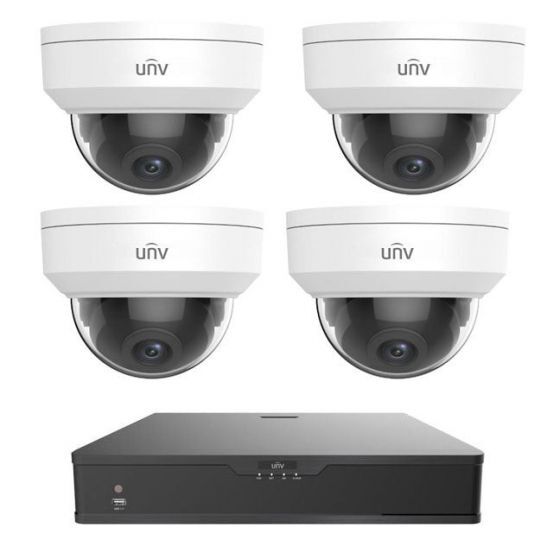

UNV IP67 IK10 IR 4 x 4MP Vandal Dome IP Camera + 4K NVR + 1TB HDD Complete Video Uniview Security Surveillance Kit with Night Vision
The Uniview Kit is a total solution of surveillance system.
Kit Contents:
(4) 4MP IP Camera - Turret Housing - Model: EC-T4F28M
(1) 4-Channel NVR with 4-Port PoE - Model: NVR301-04S3-P4
(1) Western Digital Purple Security-Rated 1TB Hard Drive
(4) 60 Feet Ethernet Cables
(5) 6 Foot Ethernet Cable
(6) 6 Foot HDMI Video Cable
(7) Power Supply
Key Features:
4MP max resolution (2560*1440), up to 20fps
Smart IR rated for up to 30M (98ft)
Ultra H.265 Compression
4 Channel NVR with built-in PoE for Plug and Play setup
Security rated hard drive designed for the demanding 24/7 use of CCTV
IP67 waterproof rated cameras for outdoor use
Description:
-
In an age where security is paramount having a robust surveillance system is not just a luxury but a necessity. Todays World characterized by technological advancements and increased connectivity, security breaches and unauthorized access have become prevalent issues. Whether it's your home, office, or any other property having a robust security system in place is essential to deter potential threats and provide peace of mind. With these cameras, you can see clearly at night. It can capture footage in low-light or total darkness ensuring 24/7 surveillance. 24/7 surveillance and high-quality imaging you can have peace of mind knowing your property is protected. You can access live footage and recorded videos remotely via your smartphone or computer allowing you to keep an eye on your property from anywhere in the world. The cameras' strong frame provides lifetime and needs no maintenance. The Uniview IP67 IK10 IR 4 x 4MP Vandal Dome IP Camera + 4K NVR + 1TB HDD Complete Video Security Surveillance Kit is a top-tier solution for your security needs. It provides comprehensive protection for your property. Don't compromise on security invest in the Uniview surveillance kit today.
| Video/Audio Input | |||||
| IP Video Input | 4-ch | ||||
| Network | |||||
| Incoming Bandwidth | 64Mbps | ||||
| Outgoing Bandwidth | 48Mbps | ||||
| Remote Users | 128 | ||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP | ||||
| Video/Audio Output | |||||
| HDMI/VGA Output | HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
||||
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Audio Output | 1-ch, RCA | ||||
| Audio Compression | G.711A, G.711U | ||||
| Synchronous Playback | 4-ch | ||||
| Livieview display | 1/4 | ||||
| Corridor Mode Screen | 3/4 | ||||
| Snapshot | |||||
| FTP/Schedule/Event Snapshot | 1-ch snapshot, up to D1 resolution | ||||
| Decoding | |||||
| Decoding format | Ultra 265/H.265/H.264 | ||||
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Capability | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 | ||||
| Hard Disk | |||||
| SATA | 1 SATA interface | ||||
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
||||
| Smart | |||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD) | ||||
| VCA Search | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Ultra Motion Detection(UMD) | ||||
| Smart Intrusion Prevention (SIP), UMD by Camera | Total 4-ch | ||||
| General Alarm | |||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input | ||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||
| External Interface | |||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | ||||
| USB Interface | Rear panel:2 x USB2.0 | ||||
| RS232 | NA | ||||
| RS485 | NA | ||||
| Alarm In | NA | ||||
| Alarm Out | NA | ||||
| PoE | |||||
| Interface | 4 RJ-45 10M/100Mself-adaptive Ethernet Interface | ||||
| Max Power | Max 30W for single port Max 54W in total |
||||
| Supported Standard | IEEE 802.3at, IEEE 802.3af | ||||
| General | |||||
| Power Supply | 48V DC Power Consumption: ≤9 W (without HDD) |
||||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||||
| Dimensions(W×D×H) | 260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8") | ||||
| Weight ( without HDD ) | ≤1.1kg (2.43lb) | ||||
| Certification | |||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||||
| FCC | Part15 Subpart B, ANSI C63.4 | ||||
| Camera | |||||
| Sensor | 1/3", progressive scan, 4.0 megapixel, CMOS | ||||
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment angle | Pan 8° to 360° , Tilt: 0° to 68°, Rotate: 10° to 360° | ||||
| S/N | >56dB | ||||
| WDR | DWDR | ||||
| Lens | |||||
| Lens Type | 2.8mm @2.0, Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Angle of View (H) | 97.0° | ||||
| Angle of View (V) | 52.2° | ||||
| Angle of View (O) | 107.5° | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.3 | |
| Illuminator | |||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~6144 kbps | ||||
| U-code | Supported | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Image Setting | Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Supported | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Behavior Detection | Cross line, intrusion(based on human body detection) | ||||
| Motion detection, tampering alarm | |||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZView EZLive |
||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ | |||||
| Interface | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Certification | |||||
| EMC | FCC: FCC Part 15 | ||||
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 4.0W | |||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||
| Material | Metal | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Reset Button | N/A | ||||
| Ingress Protection | Ingression protection: IP67 Vandal resistant: IK10 |
||||
