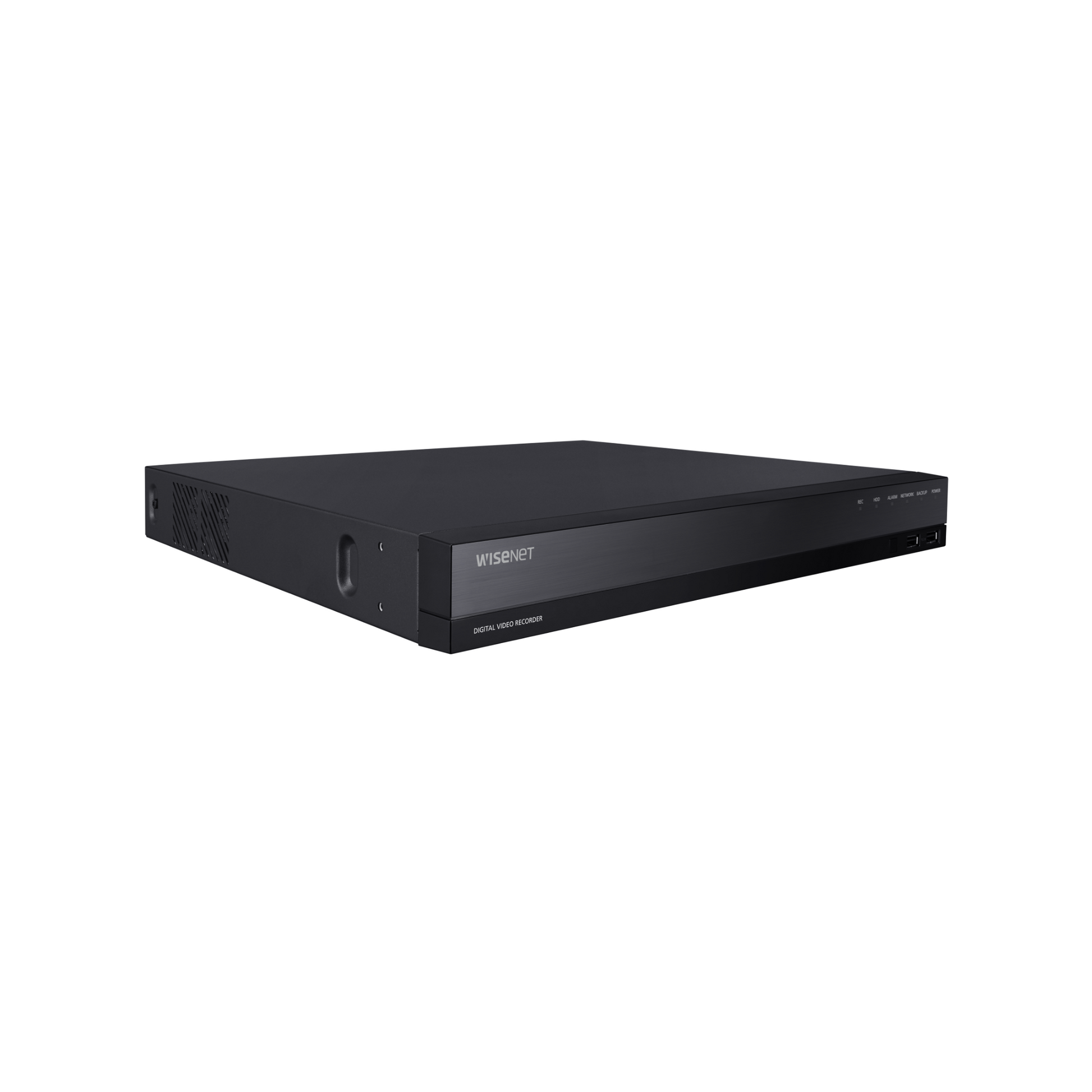

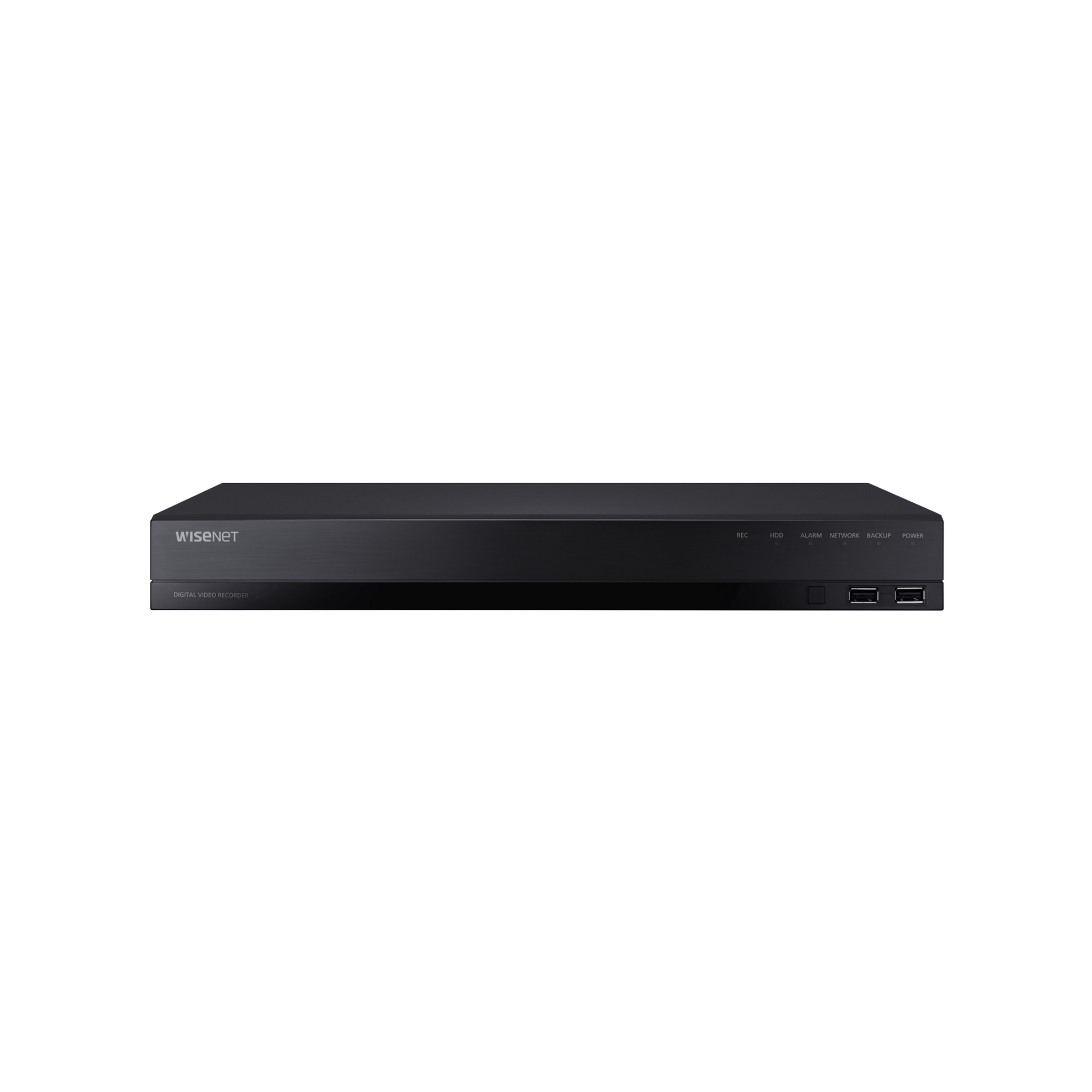

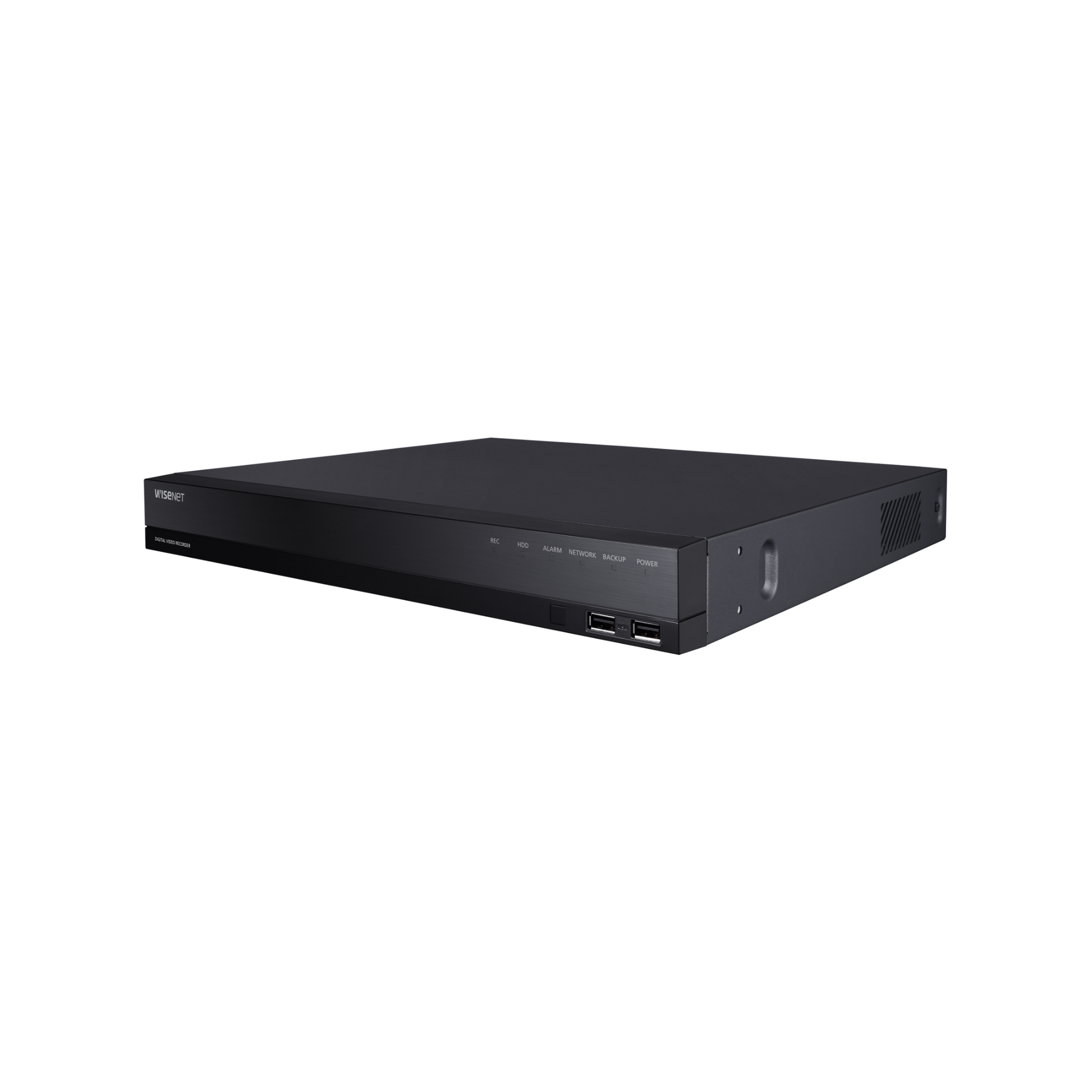

Hanwha Techwin HRX-820-6TB 8CH 8MP IP Pentabrid DVR Security Recorder 6TB HDD
Hanwha Techwin HRX-820-6TB 8CH 8MP IP Pentabrid DVR Security Recorder 6TB HDD
- 8 Channel 8MP AHD DVR
- AHD, TVI, CVI (Maximum 8MP), analog camera, & IP input
- 10 channel total recording capability (Network / Network + analog)
- 4K HDMI / VGA / spot video output
- 4 Channel audio input / 1 Channel audio output
- 8 alarm input / 4 relay output
- Up to 2 internal HDDs (Maximum 6TB teach)
- Coaxial cable (Pelco-C, ACP)
- Smartphone support with QR code
Product Spec
Display Analog camera Inputs 8CH(1Vp-p 75ohm, BNC) Signal Type AHD(8MP, 5MP, 4MP, 1080p, 720p)
HDTVI(8MP, 5MP, 4MP, 1080p, 720p)
HDCVI(5MP, 4MP, 1080p, 720p)
CVBS(NTSC/PAL)Network camera Inputs Max. 10CH Resolution 8MP ~ CIF Protocols SUNAPI(Wisenet), ONVIF Live Local Display 1x HDMI, 1x VGA (Dual monitor)
HDMI: 3840 x 2160, 1920x1080, 1280x720 (1920x1080, Clone mode)
VGA: 1920x1080, 1280x720Resolution [Ananlg Camera(NTSC/PAL)]
- 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH
[Network Camera]
- Typ. 2MP(240fps)Performance Record Compression H.265, H.264, MJPEG Record Rate(Analog) Analog Camera(NTSC/PAL)
(Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH
(Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH
* The maximum recording frame rate depends on the frame rate of the input camera.Recording Bandwidth Max. 40Mbps (Analog Camera only) ~ 28Mbps (Network Camera only) Resolution 8MP ~ CIF Mode Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track Event Trigger Alarm Input
Analog Camera : Video Loss, Motion Detection,Tampering
Network Camera : Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera eventEvent Action E-mail, PTZ preset, Alarm out, Buzzer, Monitor out Search & Play Playback Bandwidth Max. 32Mbps (10CH simultaneously) User Max. 4 Users (Local 1, Remote 3) Simultaneous playback 10CH(Local Monitor)
4Ch (CMS, Wisenet Mobile), 1Ch(Web)Fisheye Dewarping WEB / CMS Storage Supported HDD Up to 6TB HDD Slot SATA 2ea(Max 12TB) Backup File backup BU, EXE(Include Player), AVI(Webviewer only) Function Max. 10 CH play, Date-time/title display Functions PTZ Control Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller Smart phone Support Model iOS, Android Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI) Control Live(8ch) : Multi-Profile Support
Playback(4Ch Multi Playback, Max 2MP)

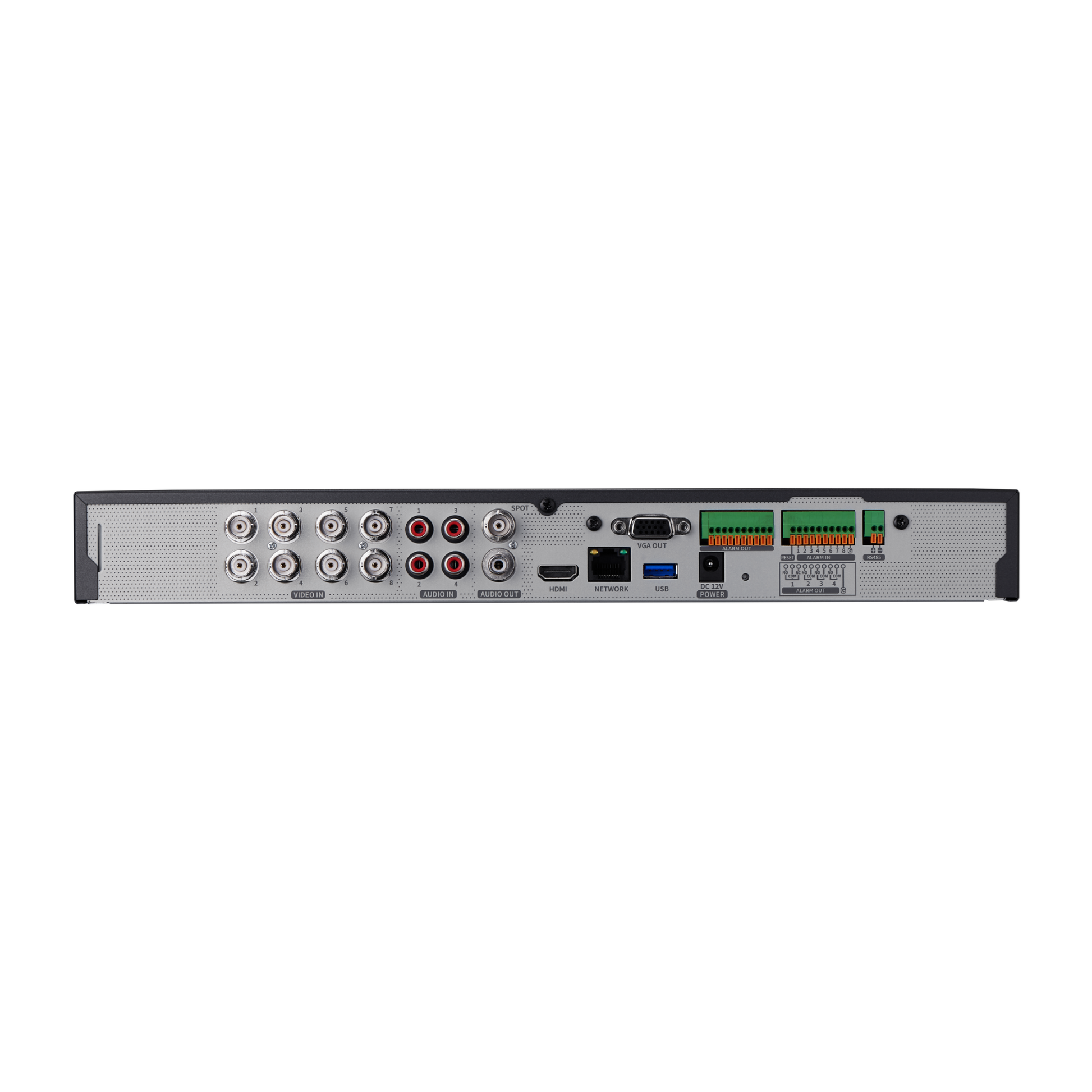

Event pushMax. Remote Users Search(3), Live Unicast(10) Redundancy ARB Support Easy configuration Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) Coaxial Control CVBS(Pelco-C)/AHD/CVI/TVI Interface HDMI 1EA VGA 1EA BNC 8CH In / 1CH Out(Spot Output) Audio Out(1EA, RCA, Line) Ethernet RJ-45(10/100/1000BASE-T) Alarm In 8EA, Out 4EA
- Relay Out1(NO/NC/COM)
- Relay Out2~4(NO/COM)USB 3EA(Front USB2.0 2a , Rear USB 3.0 1ea) Serial(Protocols) RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ Power inlet 1EA DC Input Jack System System Control Mouse, IR Remocon, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai Environmental Operating Temperature 0°C to +40°C(+32℉ to +104℉) Operating Humidity 20% ~ 85% RH Certification UL, CE, FCC, KC Electrical Power Input DC12V Power Consumption Max. 32W (6T HDD 2ea) Mechanical Color / Material Black / Metal Dimension (WxHxD) 370.0x 44.0 x 320mm(14.57” x 1.73” x 12.6”) Weight Approx. 2.5Kg (5.6 lb, 4TB HDD 1ea) Network Protocol TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) DDNS Wisenet DDNS Transmission speed Analog Camera(NTSC/PAL)
(Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH, 720p 30/25fps/CH, SD 30/25fps/CH
(Sub Stream) 720p or higher : 640x360 full fps/CH, SD sugnal : upto SD full fps/CH
* The maximum recording frame rate depends on the frame rate of the input camera.Transmission Bandwidth Max. 20Mbps Audio Input/Output 4 Line in / 1 Line out Compression G.711 (N/W Cam G.711, 726) Audio Communication 2-Way Max Remote Users Search(3), Live Unicast(10), Multicast(20) Security IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup)
Device Certificate(Hanwha Techwin Root CA)Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS-
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
