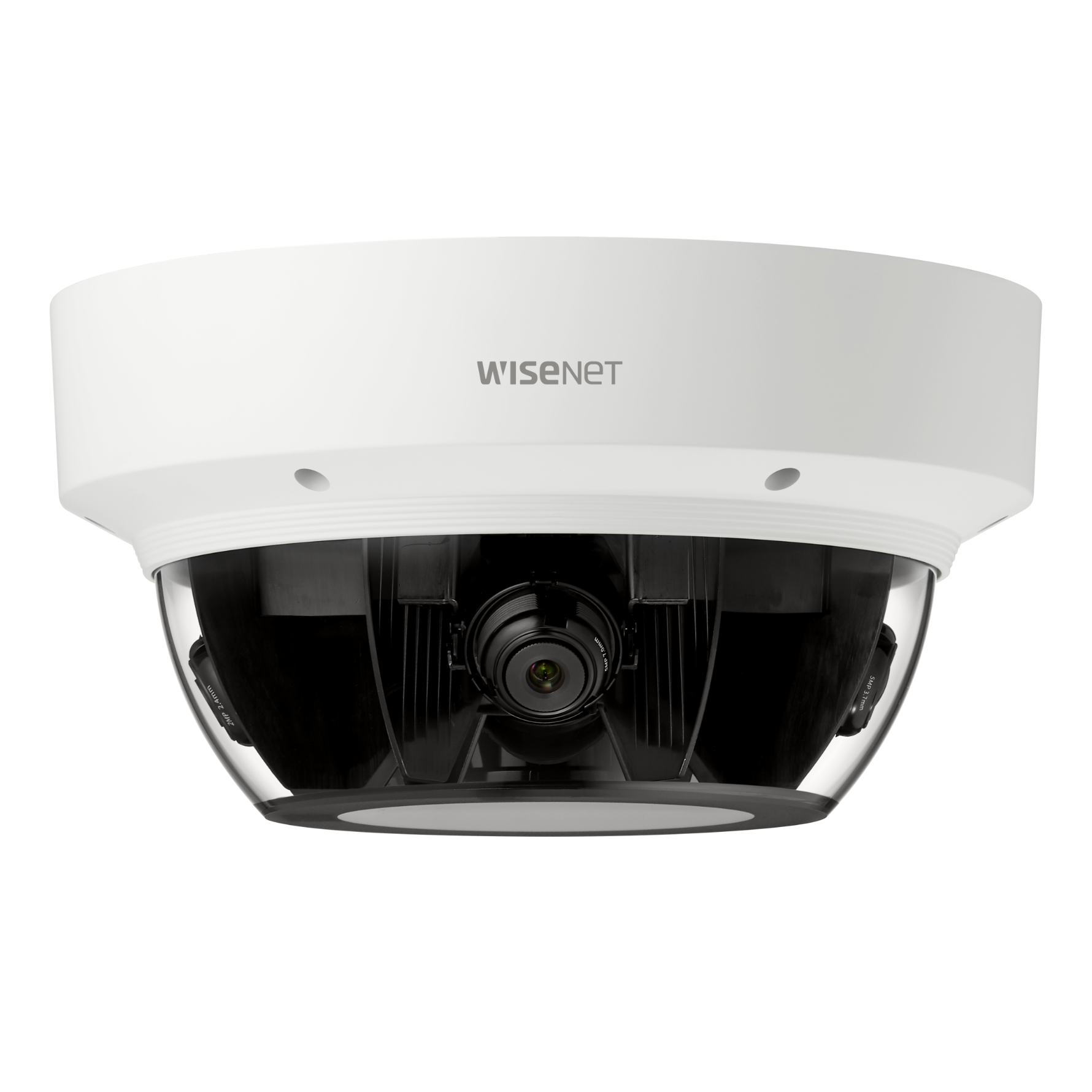

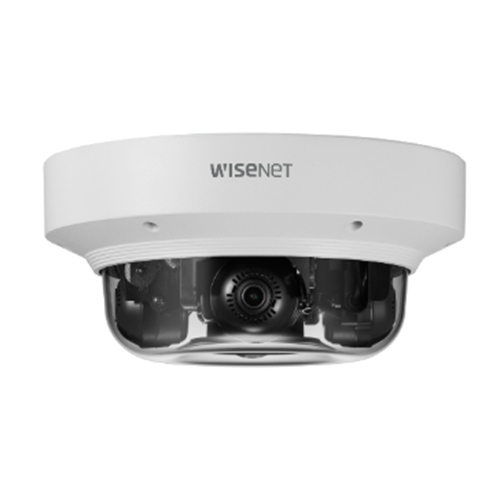

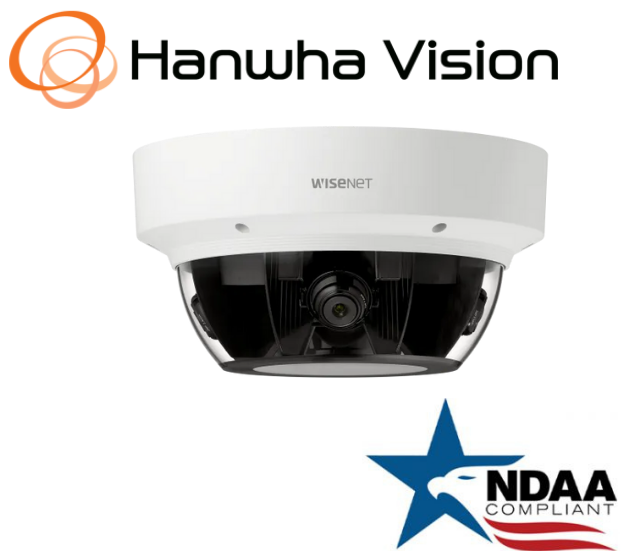

Hanwha Techwin PNM-9002VQ 2MP/5MP 4CH Multi-directional SecurityCamera FixedLens
Hanwha Techwin PNM-9002VQ 2MP/5MP 4CH Multi-directional SecurityCamera FixedLens
Hanwha Techwin PNM-9002VQ Network vandal outdoor Multi-sensor
Multi-directional Security Camera
-
-
PNM-9002VQ
2MP/5MP x 4CH Multi-directional Camera
-
Key Features• Exchangeable 4ea x 2MP / 5MP lens modules
• 8MP to 20MP resolution (depend on the combination of lens modules)
• Max. 60fps@2MP (H.265 / H.264)
• WDR 150dB (2MP), 120dB (5MP)
• 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module)
• 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
• H.265, H.264, MJPEG codec, Multi streaming support
• Video analytics, WiseStream Ⅱ
• IP66, IK10
• PoE+ -
Product Specification
-
Video Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Video Out CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation Lens Optional Lens SLA-2M2400Q(2MP 2.4mm)
SLA-2M2800Q(2MP 2.8mm)
SLA-2M3600Q(2MP 3.6mm)
SLA-2M6000Q(2MP 6.0mm)
SLA-5M3700Q(5MP 3.7mm)
SLA-5M4600Q(5MP 4.6mm)
SLA-5M7000Q(5MP 7.0mm)Operational Camera Title Displayed up to 85 characters Day & Night Auto(Electrical) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 150dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Directional detection, Face detection, Fog detection, Motion detection,
Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual lineAlarm Triggers Analytics, Network disconnect Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC recording at event triggersNetwork Ethernet Metal shielded RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Smart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP,
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDPSecurity HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/T
SUNAPI(HTTP API)General Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, GreekEdge Storage Micro SD/SDHC/SDXC 4slot 256GB(Each CH) Memory 3GB RAM, 768MB Flash Environmental & Electrical Operating Temperature / Humidity -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP66, IK10 Input Voltage PoE+(IEEE802.3at, Class4) Power Consumption Max 25.5W Mechanical Color / Material White / Aluminum RAL Code RAL9003 Product Dimensions / Weight Ø253mmx130mm, 3000g
-
