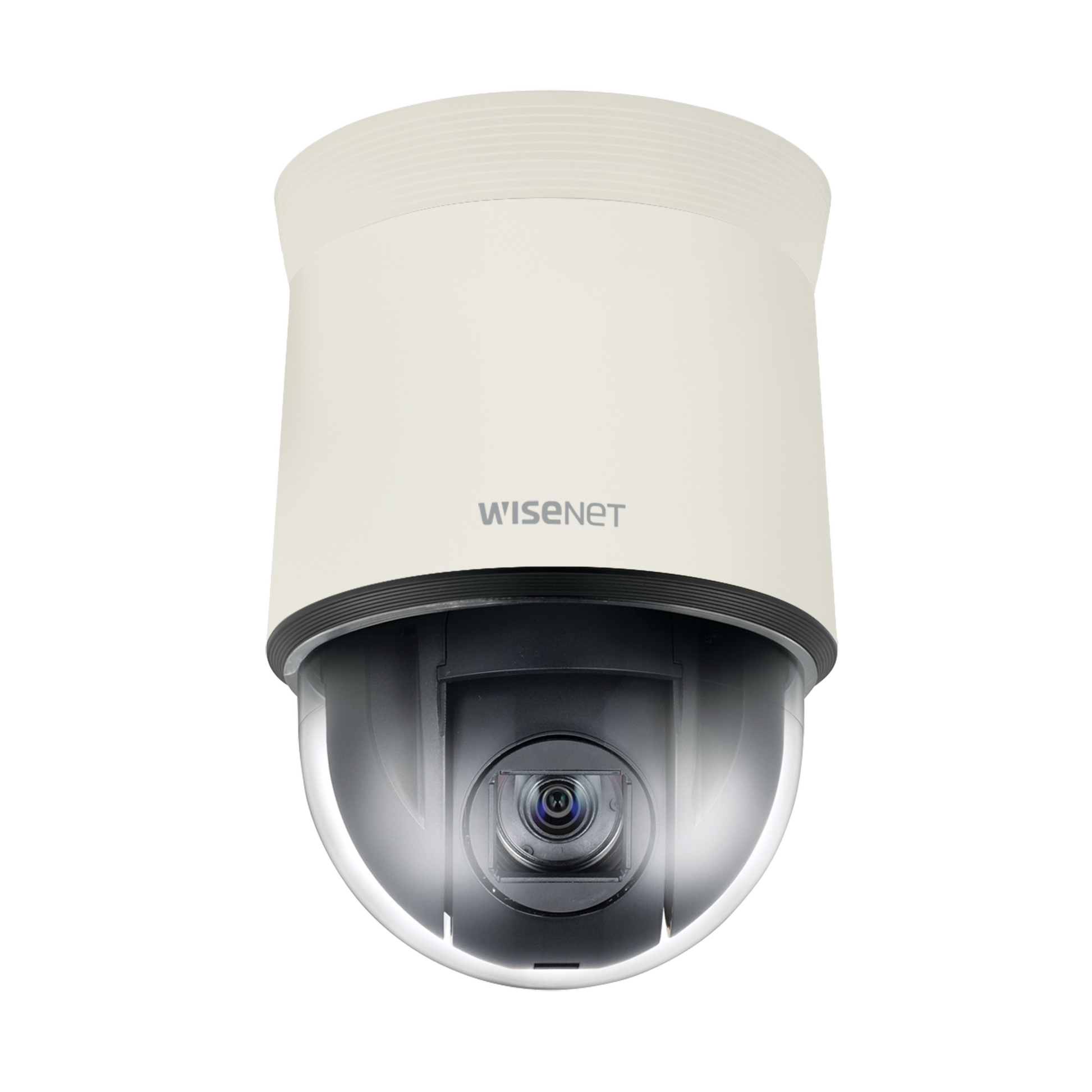

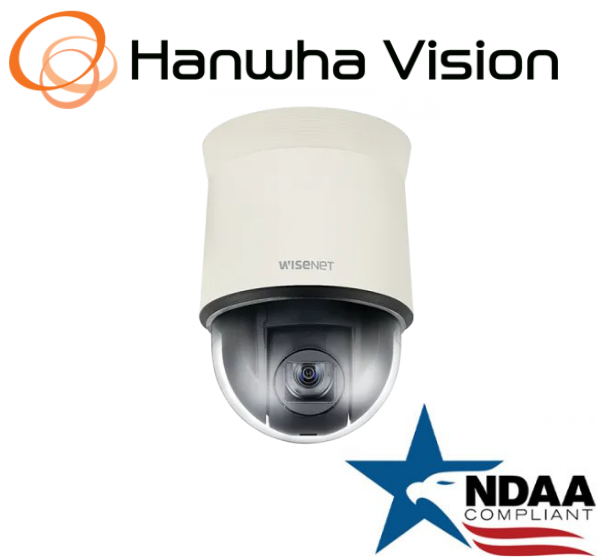

Hanwha Techwin QNP-6230 2MP PoE+ PTZ IP Security Camera23x (4.44-102.1mmLens)
Hanwha Techwin QNP-6230 2MP PoE+ PTZ IP Security Camera23x (4.44-102.1mmLens)
Hanwha Techwin QNP-6230 2MP PoE+ Network PTZ IP Security Camera
QNP-6230
2MP 23x PTZ
- 2MP (1920 x 1080) resolution
- H.265, H.264, MJPEG codec support
- Multiple streaming, WiseStream II support
- Day & Night (ICR), WDR (120dB)
- DIS with Built-in Gyro sensor
- Tampering, Motion detection
- Memory slot (Max. 256GB)
- IP66
Product Specification
-
Video Imaging Device 1/2.8" 2MP CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
B/W: 0.005 Lux(F1.6, 1/30sec)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation Lens Focal Length (Zoom Ratio) 4.44~102.2mm(23x) zoom Max. Aperture Ratio F1.6(Wide)~F3.6(Tele) Angular Field of View H: 61.8°(Wide)~3.08°(Tele) / V: 36.2°(Wide)~1.73°(Tele) Min. Object Distance Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft) Focus Control Oneshot AF Lens Type DC auto iris Pan / Tilt / Rotate Pan Range 360° Endless Pan Speed Preset: 500°/sec, Manual: 0.024°/sec~200°/sec Tilt Range 210°(-15°~195°) Tilt Speed Preset: 500°/sec, Manual: 0.024°/sec~200°/sec Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule Preset Accuracy ±0.2° Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support(built-in gyro sensor) Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 24ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror Analytics Motion detection, Tampering Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) Alarm I/O Input 4ea / Output 2ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ PresetAudio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms Network Ethernet RJ-45 (10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(10 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 1slot 256GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -10°C~+55°C(-14°F~+131°F) / Less than 90% RH Storage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / Less than 90% RH Input Voltage PoE+(IEEE802.3at, Class4), 24VAC Power Consumption 24VAC: Max 20W Mechanical Color / Material Ivory / Plastic Product Dimensions / Weight Ø152x218mm(5.98x8.58"), 1.7Kg(3.75 lb) -
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
