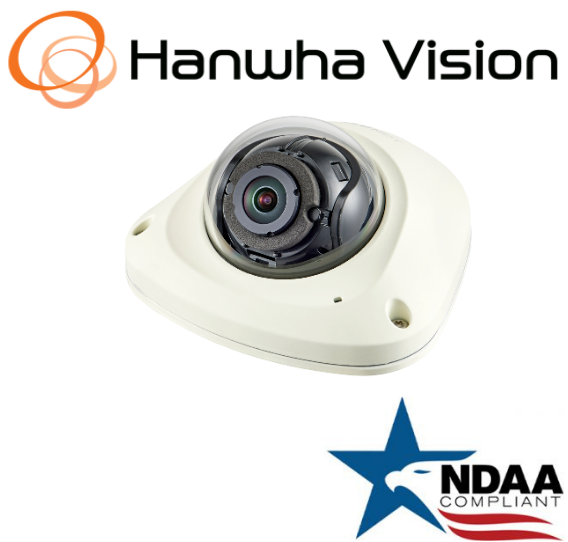

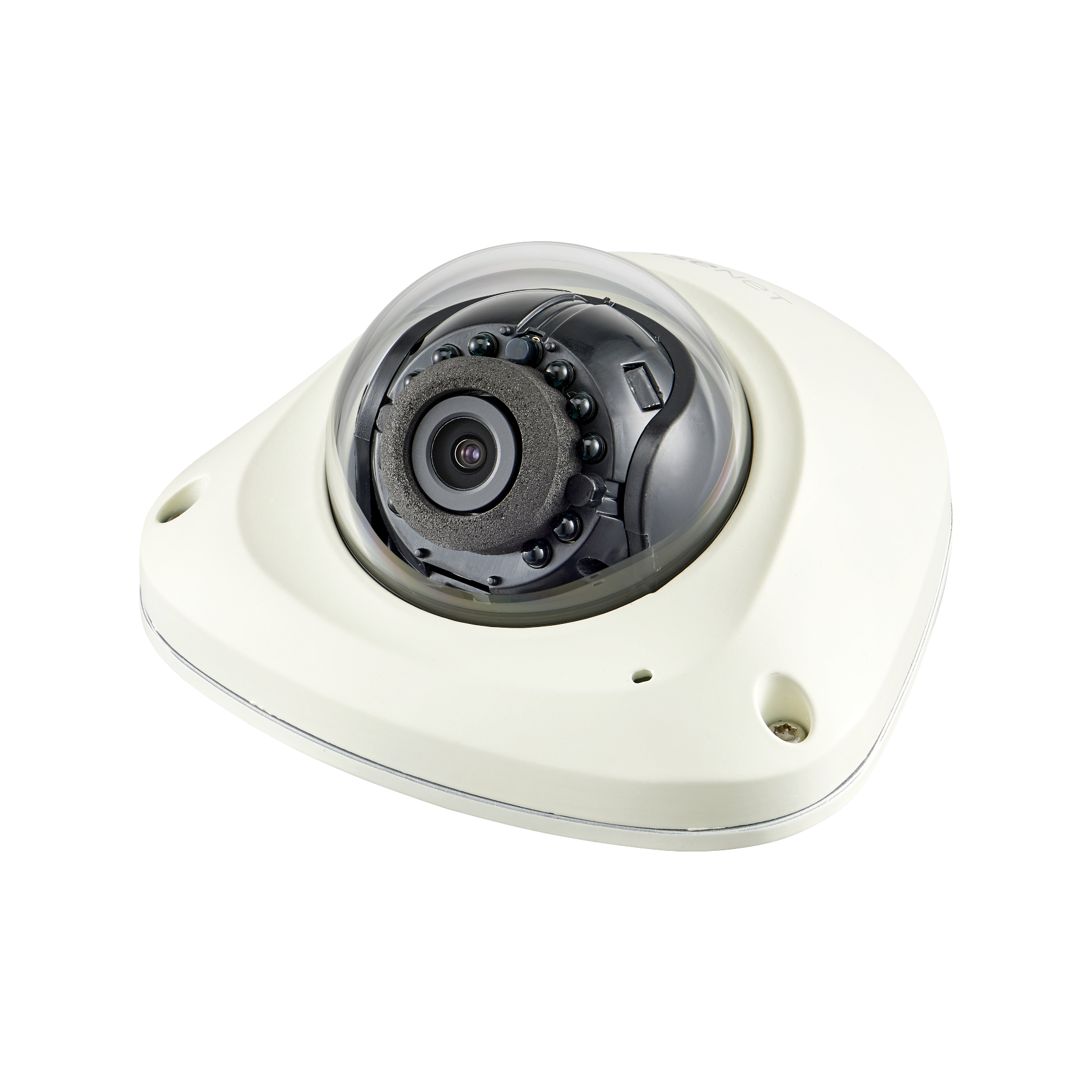

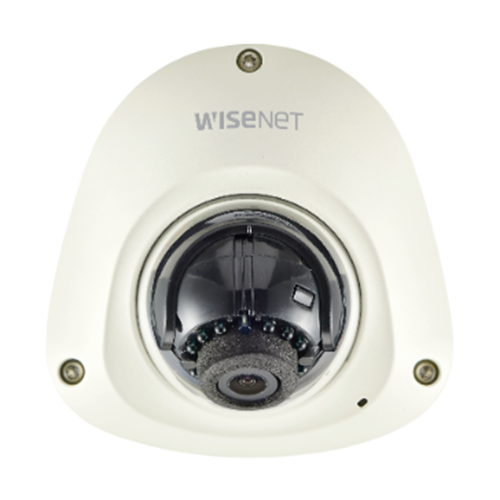

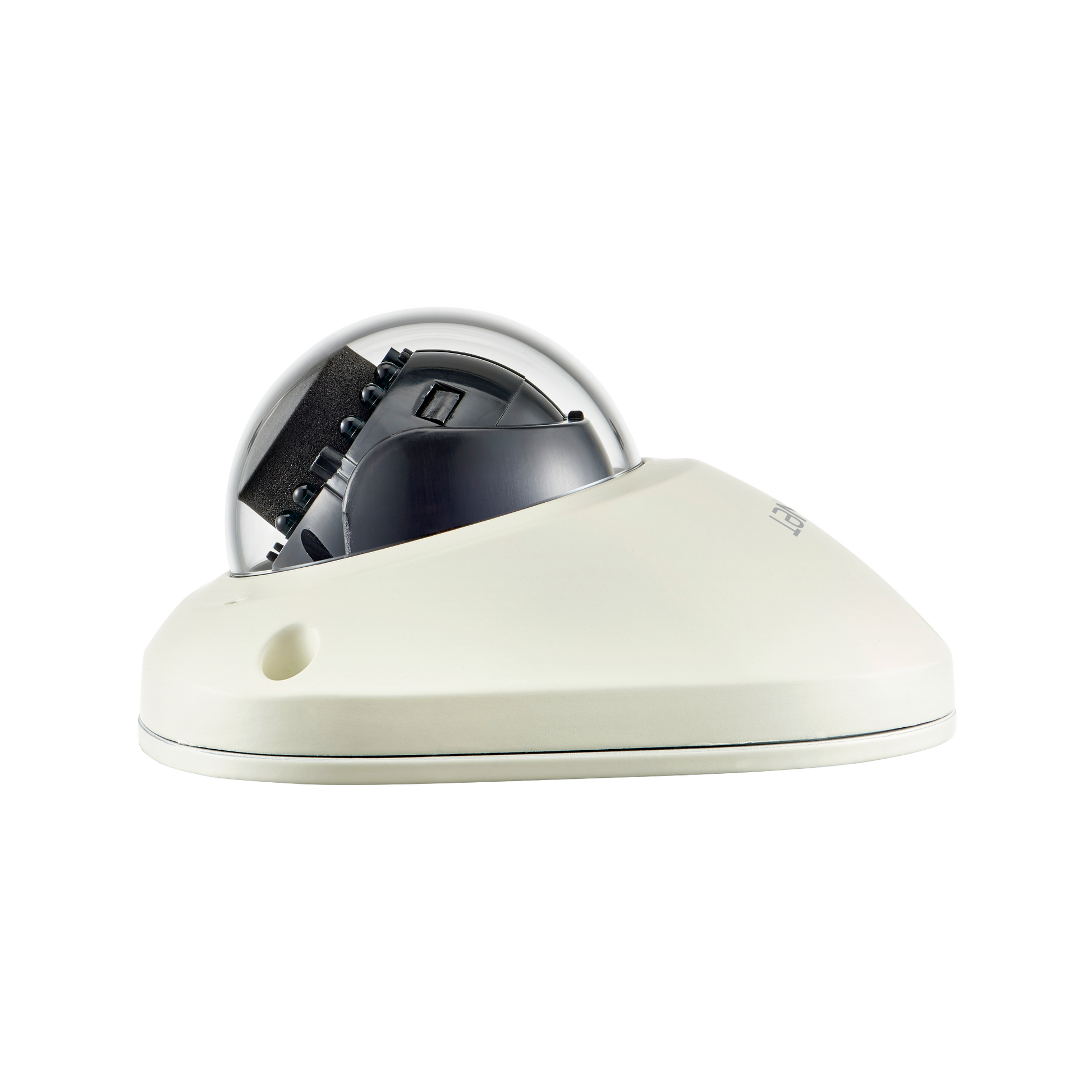

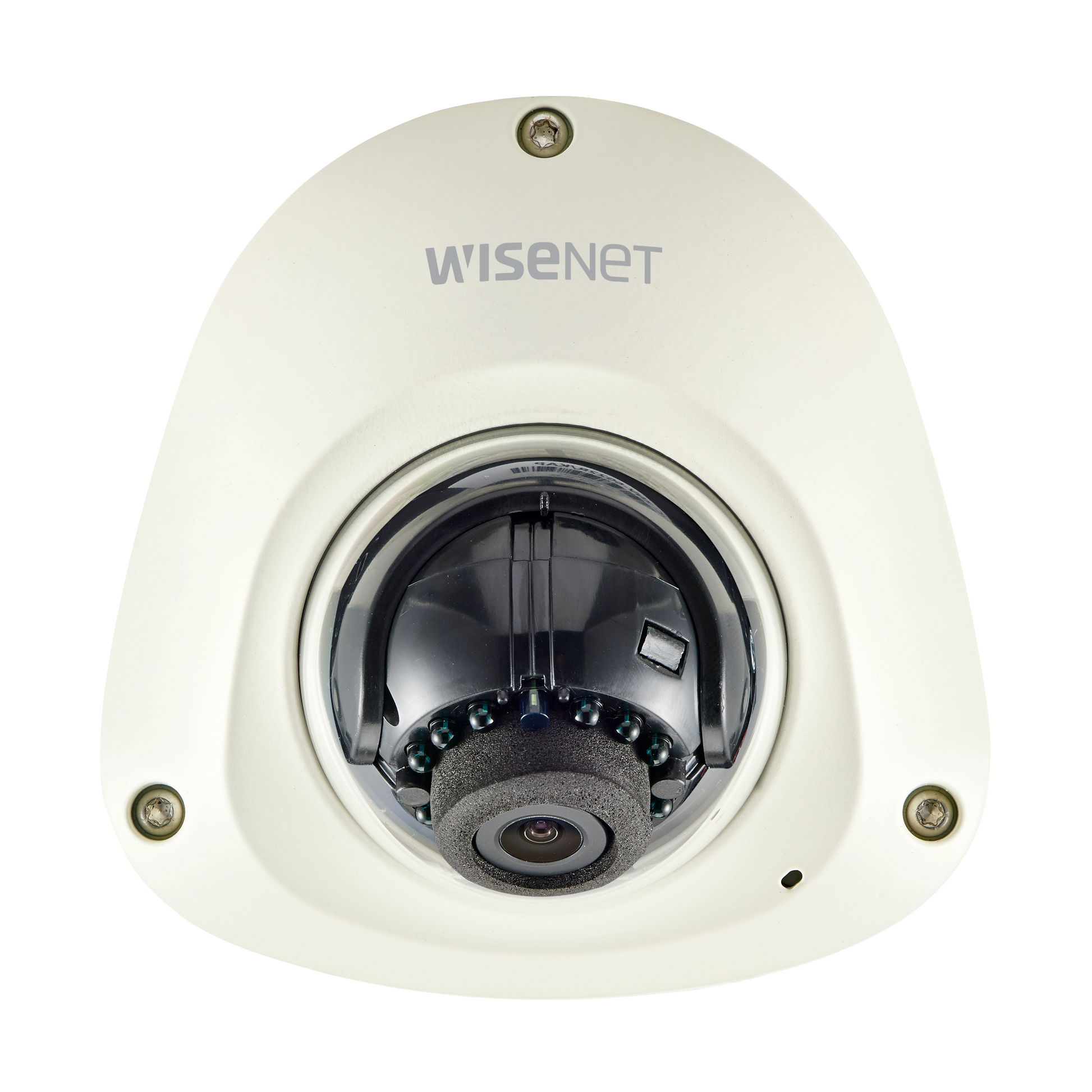

Hanwha Techwin QNV-6023R 2MP IR Flat vandal Dome Security Camera 3.6mm FixedLens
Hanwha Techwin QNV-6023R 2MP IR Flat vandal Dome Security Camera 3.6mm FixedLens
Hanwha Techwin QNV-6023R 2MP PoE IR Flat vandal Dome Security Camera
QNV-6023R
2MP Mobile IR Flat Camera
• Max. 30fps@2MP (H.265 / H.264)
• 0.03Lux@F2.0 (Color), 0Lux (B/W : IR LED On)
• Built-in 3.6mm fixed lens
• H.265, H.264, MJPEG codec supported
• Multiple streaming
• Day & Night (ICR), WDR (120dB)
• SD/SDHC/SDXC memory slot (Max. 256GB)
• IR viewable length 15m, IP66, IK10, NEMA4X
• Hallway view, PoE, LDC support
Product Specification
Video Imaging Device 1/2.8" CMOS Resolution 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)Min. Illumination Color: 0.03Lux(F2.0, 1/30sec)
BW: 0Lux(IR LED on)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation Lens Focal Length (Zoom Ratio) 3.6mm fixed focal Max. Aperture Ratio F2.0 Angular Field of View H: 94.8° / V: 49.3° / D: 114.3° Min. Object Distance 0.5m(1.64ft) Focus Control Fixed Pan / Tilt / Rotate Pan / Tilt / Rotate Range ±5° / 0°~67° / ±90° Operational Camera Title Displayed up to 15 characters Day & Night Auto(ICR) Backlight Compensation BLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNR Motion Detection 4ea, polygonal zones Privacy Masking 6ea, rectangular zones Gain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line Alarm Triggers Analytics, Network disconnect Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggersAudio In Line-in IR Viewable Length 15m(49.21ft) Network Ethernet Metal shielded RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40KbpsSmart Codec WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(6 users) / Multicast
Multiple streaming (Up to 3 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch Edge Storage Micro SD/SDHC/SDXC 1slot 128GB Memory 512MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH Certification IP66, IK10, NEMA4X
EN55011:2009+A1:2010, EN50581:2012,EN50121-3-2:2015, EN61000-4-2:2009,
EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014
EN61000-4-6:2009, EN50155:2017
EN45545-2, NFPA130, BSS7239, E-markInput Voltage PoE(IEEE802.3af, Class3) Power Consumption PoE: Max 6.70W, typical 5.00W Mechanical Color / Material Ivory / Aluminum Product Dimensions / Weight 98.9x52.0x100.0mm(3.89x2.05x3.94"), 295g(0.65 lb) DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) 35.3m(115.84ft) Observe (63PPM/ 19PPF) 14.1m(46.33ft) Recognize (125PPM/ 38PPF) 7.1m(23.17ft) Identify (250PPM/ 76PPF) 3.5m(11.58ft) - • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
