Hanwha Techwin QRN-820S-2TB 8CH 8MP 4K POE NVR IP Security Recorder 2TB HDD

Regular price $1,120.00
Sale price $1,120.00 Regular price
Unit price
  • Vendor:
  • Availability:
    Out of stock
  • SKU:
    QRN-820S-2TB
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Hanwha Techwin QRN-820S-2TB 8CH 8MP 4K POE  NVR IP Security  Recorder 2TB HDD

Hanwha Techwin QRN-820S-2TB 8CH 8MP 4K POE NVR IP Security Recorder 2TB HDD

Regular price $1,120.00
Sale price $1,120.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

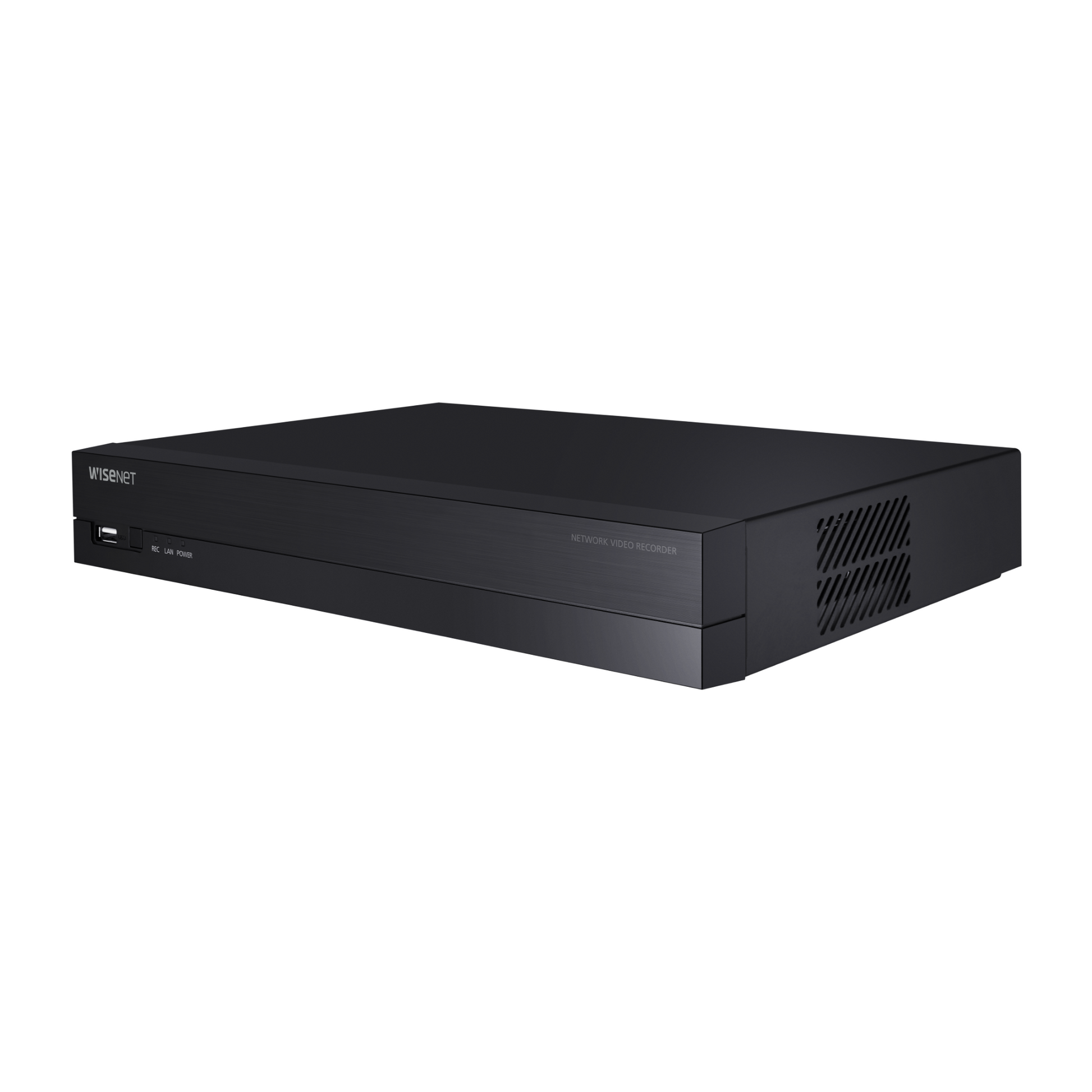

Hanwha Techwin QRN-820S-2TB HDD 8CH 8MP POE  NVR IP Security Recorder

QRN-820S-2TB

8CH 8MP NVR with PoE switch

• Up to 8CH 8MP resolution
• H.265, H.264, MJPEG codec
• WiseStream support
• 80Mbps network camera recording
• Plug & play by 8 PoE port
• Max. 1 HDD(Up to 6TB)
• HDMI output
• P2P service(QR code)
Product Specification

  • Display
    Network camera
    Inputs Max. 8CH
    Resolution 8MP ~ CIF
    Protocols Wisenet, ONVIF
    Decoding
    Local Display HDMI: 3840 x 2160, 1920x1080, 1280x720
    Resolution 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps)
    Performance
    Record
    Compression H.265, H.264, MJPEG
    Recording Bandwidth Max. 80Mbps
    Resolution 8MP ~ CIF
    Mode Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording
    Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
    Event Action e-Mail, PTZ Preset, Buzzer, Monitor Out
    Search & Play
    Playback Bandwidth Max. 32Mbps(8CH simultaneously)
    User Max. 4 Users (Local 1, Remote 3)
    Simultaneous playback Max. 8CH(Local Monitor, Network)
    Fisheye Dewarping WEB / CMS / Mobile
    Storage
    Supported HDD Up to 6TB
    HDD Slot SATA 1ea(Max. 6TB)
    Backup
    File backup BU/Exe(GUI), JPG/AVI(Network)
    Function Multi channel(Upto 8CH) Play, Date-Time/Title display
    Network
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
    DDNS Wisenet DDNS
    Audio
    Input/Output 8CH(network)
    Compression G.711, G.726, AAC(16/48KHz)
    Audio Communication 2-Way
    Max Remote Users Search(3), Live Unicast(10), Multicast(20)
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Device Certificate(Hanwha Techwin Root CA)
    Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
    Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
    Functions
    Camera Setup
    Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Wisestream, Dynamic GOV/FPS, VA Setup
    Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
    PTZ
    Control Via GUI, Webviewer
    Smart phone
    Support Model iOS, Android
    Protocol Support RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI)
    Control Live(Multi-Profile Support), Playback
    Max. Remote Users Search(3), Live Unicast(10)
    Redundancy
    ARB Support
    Easy configuration P2P(QR code)

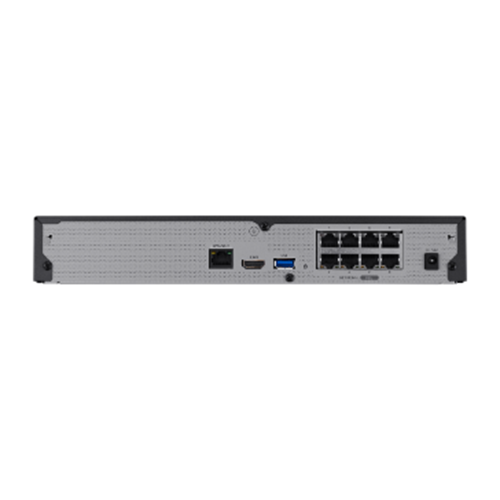

    Interface
    HDMI 1EA
    Ethernet RJ-45(10/100/1000BASE-T) x 1
    RJ-45(PoE+) x 8
    USB 2EA(Front 1, Rear 1)
    System
    System Control Mouse, IR remocon, Web
    Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
    Environmental
    Operating Temperature 0°C to +40°C(32℉ to 104℉)
    Operating Humidity 20% ~ 85% RH
    Electrical
    Power Input 54VDC / 1.67A
    Power Consumption Max. 76.2W(1HDD, PoE on)
    Max. 8.1W(1HDD, PoE off)
    PoE Budget Max. 65W
    Mechanical
    Color / Material Black / Metal
    Dimension (WxHxD) W300.0 x H47.1 x D208.4 mm (11.8" x 1.85" x 8.2") (1U)
    Weight 1.01Kg (2.23lb)
  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
