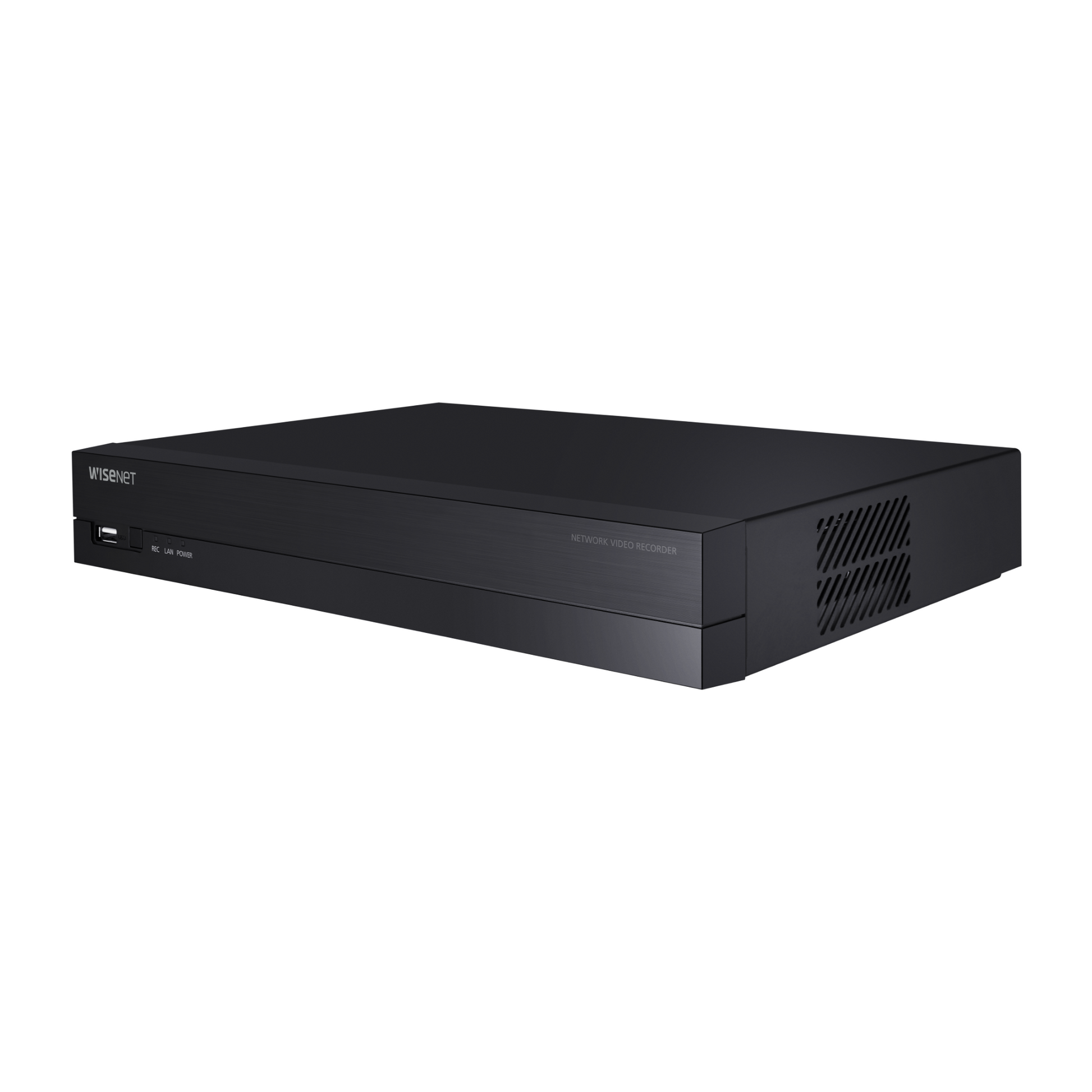

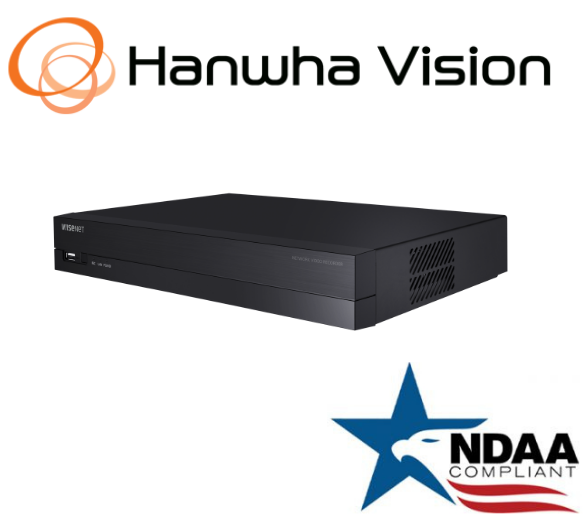

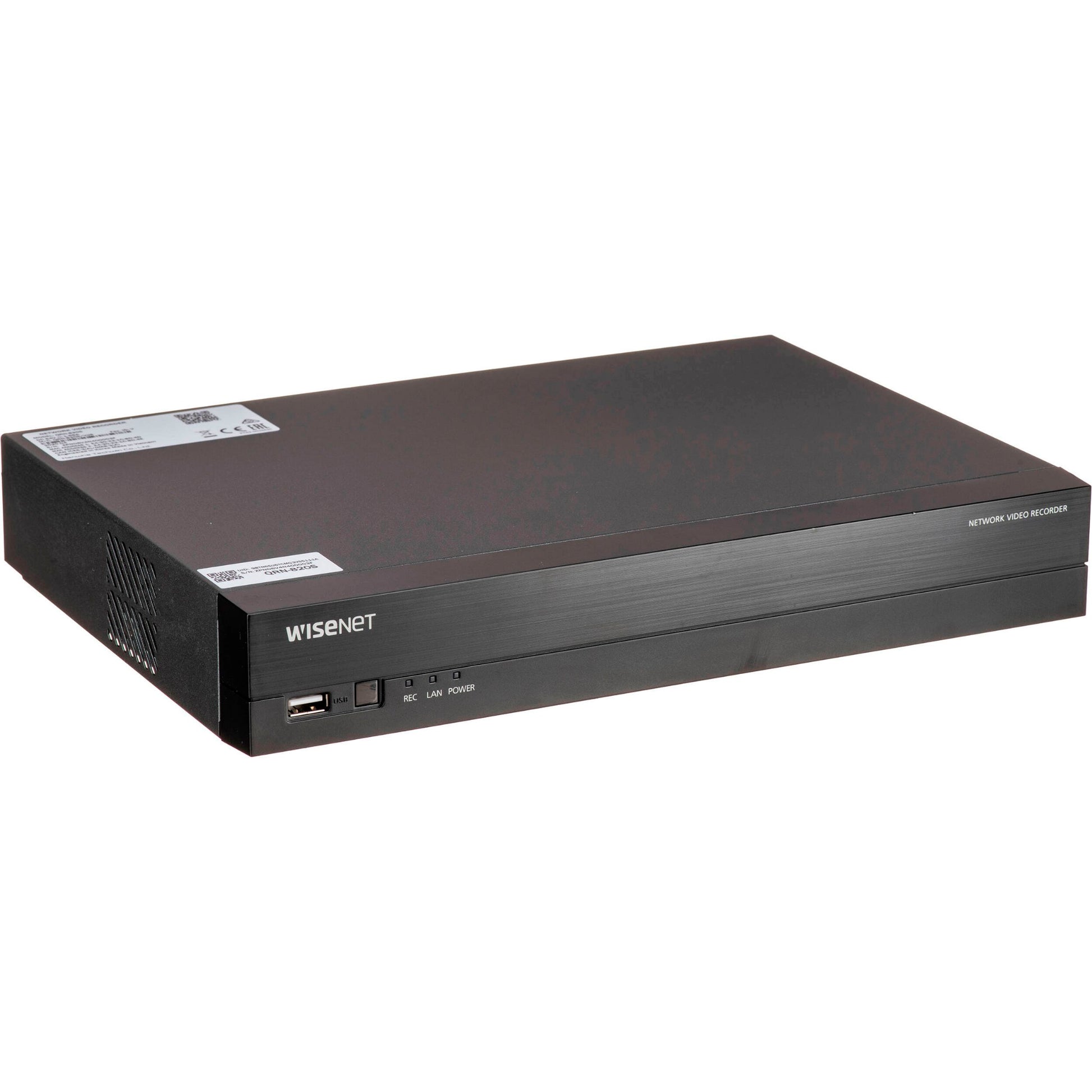

Hanwha Vision QRN-820S-6TB 8CH 8MP 4K POE IP Security NVR 6TB HDD
Hanwha Vision QRN-820S-6TB 8CH 8MP 4K POE IP Security NVR 6TB HDD
Hanwha Vision QRN-820S-6TB 8CH 8MP 4K POE IP Security NVR 6TB HDD
QRN-820S-6TB
8CH 8MP NVR with PoE switch
• H.265, H.264, MJPEG codec
• WiseStream support
• 80Mbps network camera recording
• Plug & play by 8 PoE port
• Max. 1 HDD(Up to 6TB)
• HDMI output
• P2P service(QR code)
-
-
Display Network camera Inputs Max. 8CH Resolution 8MP ~ CIF Protocols Wisenet, ONVIF Decoding Local Display HDMI: 3840 x 2160, 1920x1080, 1280x720 Resolution 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps) Performance Record Compression H.265, H.264, MJPEG Recording Bandwidth Max. 80Mbps Resolution 8MP ~ CIF Mode Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) Event Action e-Mail, PTZ Preset, Buzzer, Monitor Out Search & Play Playback Bandwidth Max. 32Mbps(8CH simultaneously) User Max. 4 Users (Local 1, Remote 3) Simultaneous playback Max. 8CH(Local Monitor, Network) Fisheye Dewarping WEB / CMS / Mobile Storage Supported HDD Up to 6TB HDD Slot SATA 1ea(Max. 6TB) Backup File backup BU/Exe(GUI), JPG/AVI(Network) Function Multi channel(Upto 8CH) Play, Date-Time/Title display Network Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) DDNS Wisenet DDNS Audio Input/Output 8CH(network) Compression G.711, G.726, AAC(16/48KHz) Audio Communication 2-Way Max Remote Users Search(3), Live Unicast(10), Multicast(20) Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMSFunctions Camera Setup Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Wisestream, Dynamic GOV/FPS, VA Setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera WebpagePTZ Control Via GUI, Webviewer Smart phone Support Model iOS, Android Protocol Support RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI) Control Live(Multi-Profile Support), Playback Max. Remote Users Search(3), Live Unicast(10) Redundancy ARB Support Easy configuration P2P(QR code) Interface HDMI 1EA Ethernet RJ-45(10/100/1000BASE-T) x 1
RJ-45(PoE+) x 8USB 2EA(Front 1, Rear 1) System System Control Mouse, IR remocon, Web Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese Environmental Operating Temperature 0°C to +40°C(32℉ to 104℉) Operating Humidity 20% ~ 85% RH Electrical Power Input 54VDC / 1.67A Power Consumption Max. 76.2W(1HDD, PoE on)
Max. 8.1W(1HDD, PoE off)PoE Budget Max. 65W Mechanical Color / Material Black / Metal Dimension (WxHxD) W300.0 x H47.1 x D208.4 mm (11.8" x 1.85" x 8.2") (1U) Weight 1.01Kg (2.23lb) - • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
-
