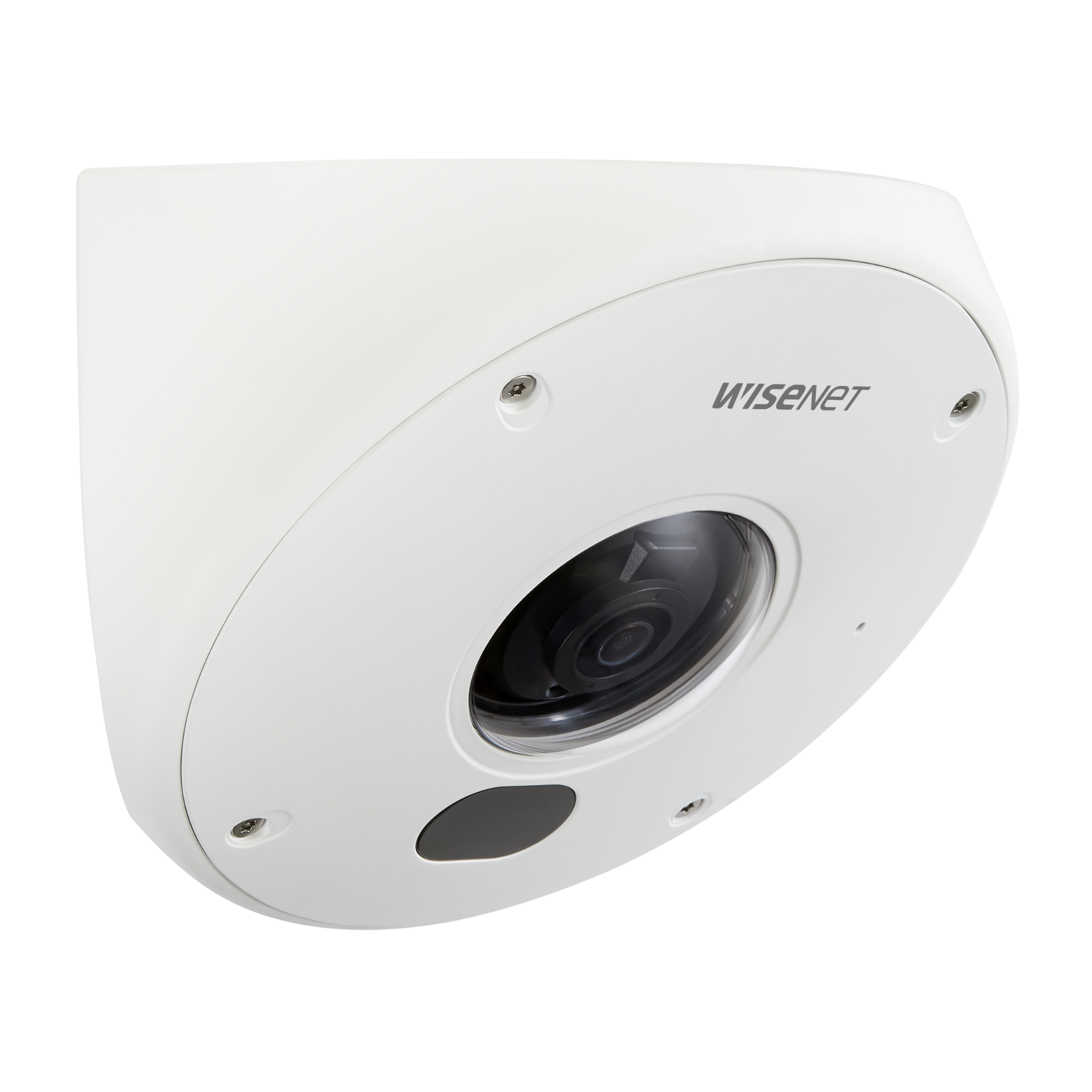

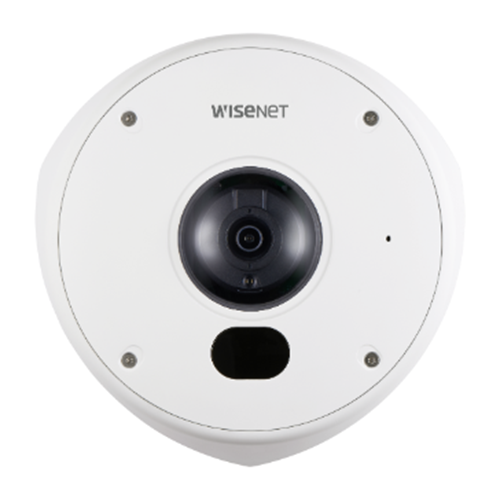

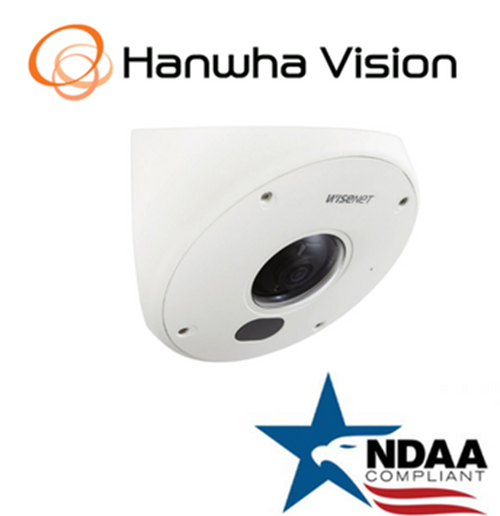

Hanwha Techwin TNV-7010RC 3MP IP Corner Mount Security Camera 2.8mm fixed lens
Hanwha Techwin TNV-7010RC 3MP IP Corner Mount Security Camera 2.8mm fixed lens
Hanwha Techwin TNV-7010RC 3MP IP Corner Mount Security Camera 2.8mm fixed lens
TNV-7010RC
3M H.265 NW Corner Mount Camera
• Max. 30fps @ all resolutions (H.265/H.264/MJPEG)
• 0.3 lux @ F2.0 (Color), 0 lux @ F2.0 (B/W)
• Built-in 2.8mm fixed lens
• H.265, H.264, MJPEG codec support, Multiple streaming
• Day & Night, WDR (120dB)
• Video & audio analytics, Shock detection
• microSD/SDHC/SDXC memory slot (Max. 256GB)
• Hallway view, WiseStream II support
• PoE, DC 12V, IK10+
Product Spec
Video
Imaging Device
1/2.8" 3.2M CMOS
Resolution
2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768,
800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate
H.265/H.264/MJPEG: Max. 30fps at all resolutions
Min. Illumination
Color: 0.3 lux (F2.0, 1/30sec)
B/W: 0 lux (F2.0, 1/30sec)
Video Out
CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
Lens
Focal Length (Zoom Ratio)
2.8mm fixed focal
Max. Aperture Ratio
F2.0
Angular Field of View
H: 102° / V: 75° / D: 129°
Min. Object Distance
0.4m(1.31ft)
Focus Control
Manual
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range
0° / ±15° / 0°
Operational
Camera Title
Displayed up to 85 characters
Day & Night
Auto(ICR)
Backlight Compensation
BLC, HLC, WDR
Wide Dynamic Range
120dB
Digital Noise Reduction
SSNRⅤ
Digital Image Stabilization
Support
Defog
Support
Motion Detection
8ea, 8point polygonal zones
Privacy Masking
32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control
Low / Middle / High
White Balance
ATW / AWC / Manual / Indoor / Outdoor
LDC
Support
Electronic Shutter Speed
2 ~ 1/12,000sec
Video Rotation
Flip, Mirror, Hallway view(90°/270°)
Analytics
Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line,
Enter/Exit, Appear/Disappear, Audio detection, Face detection, Motion detection,
Digital auto tracking, Sound classification, Shock detection
Alarm I/O
Input 1ea / Output 1ea
Alarm Triggers
Analytics, Network disconnect, Alarm input, Motion detection
Alarm Events
File upload via FTP & E-Mail, Notification via E-Mail, Local storage (SD/SDHC/SDXC) or
NAS recording at event triggers, External output, DPTZ preset
Audio In
Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out
Line out, Max.output level: 1Vrms
IR Viewable Length
10m(32.8ft)
Network
Ethernet
RJ-45(10/100BASE-T)
Video Compression
H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression
G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 8/16/32/48KHz
Smart Codec
Manual(5ea area), WiseStreamⅡ
Bitrate Control
H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming
Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface
ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platform
General
Web Viewer
Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Edge Storage
Micro SD/SDHC/SDXC 1slot 256GB
Environmental & Electrical
Operating Temperature / Humidity
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity
-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification
IP66, IP5K9K, IK10
Input Voltage
PoE(IEEE802.3af, Class3), 12VDC
Power Consumption
12VDC: Max. 11W
PoE: Max. 12
Mechanical
Color / Material
White / Aluminum
RAL Code
RAL9003
Product Dimensions / Weight
236(W) x 236(H) x 126.5(V)mm(9.29" x 9.29" x 4.98"), 2200g(4.85 lb)
-
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
