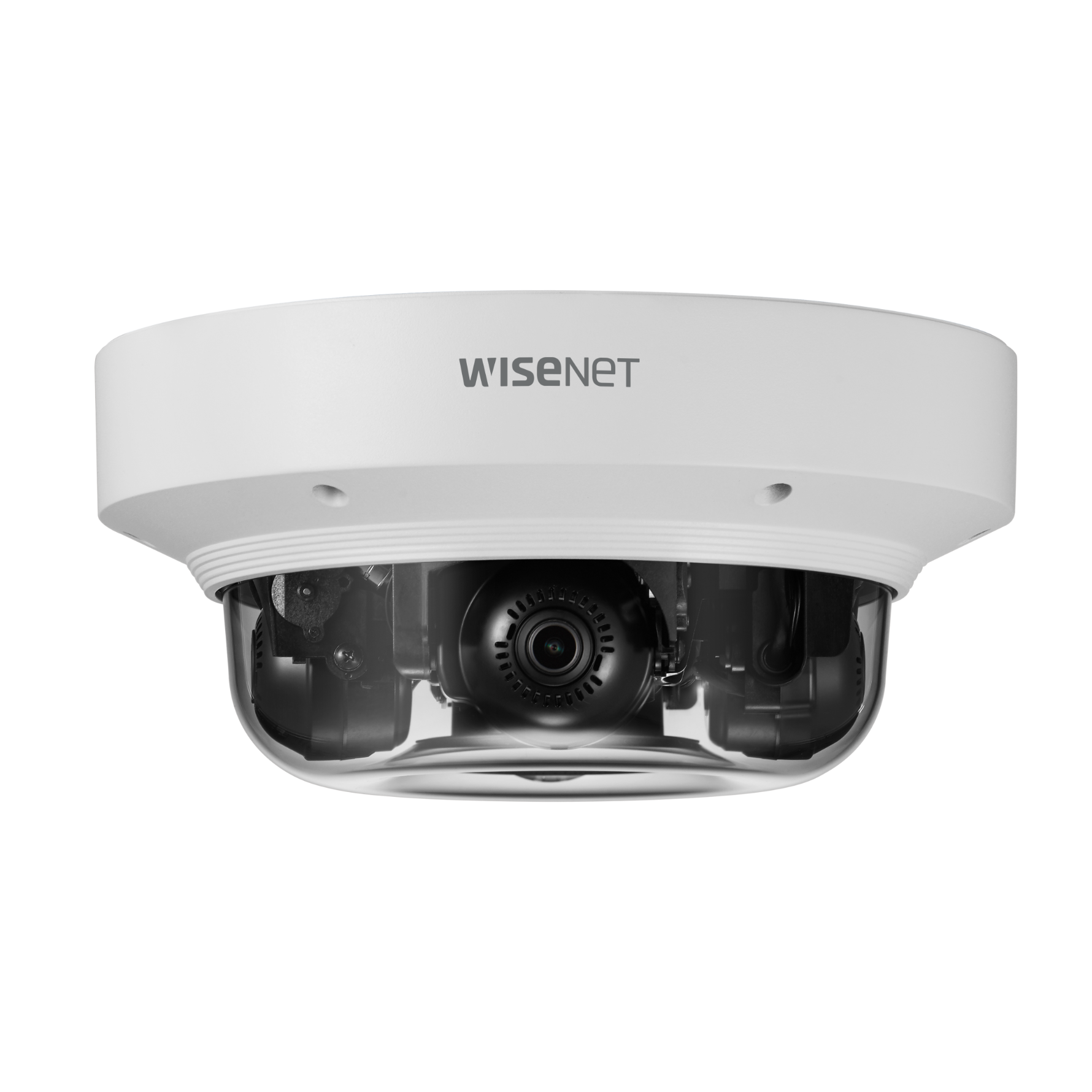

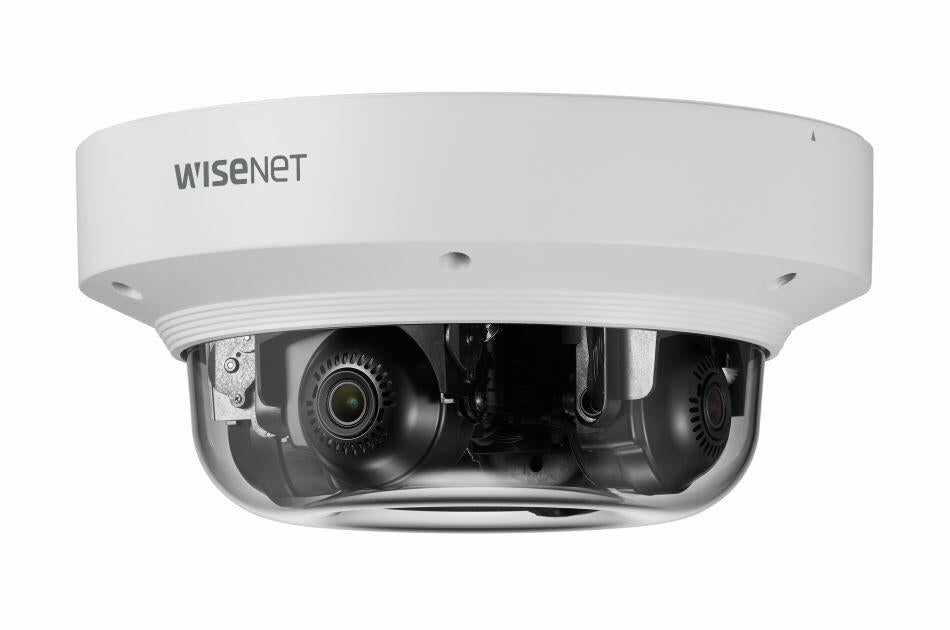

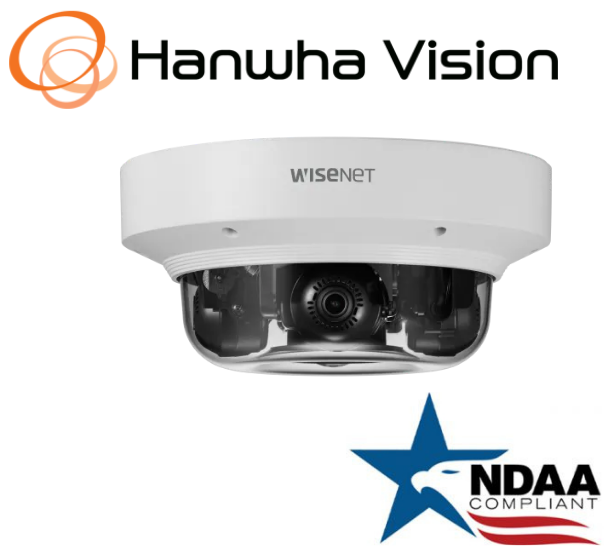

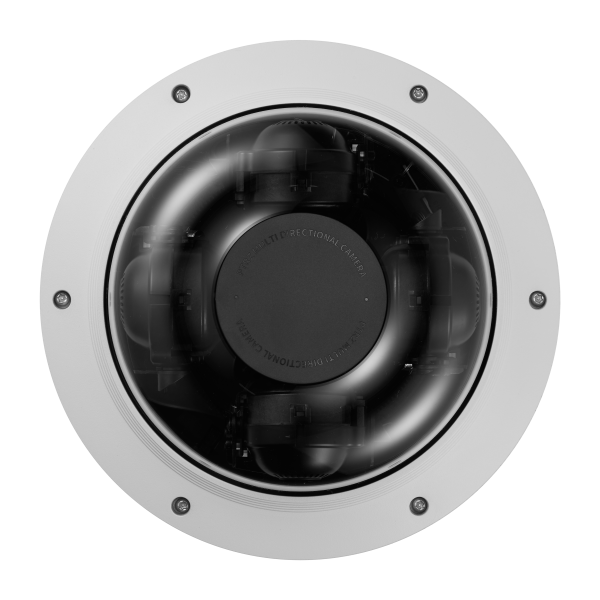

Hanwha Techwin WiseNet PNM-9084QZ 8MP PTRZ IP Security Dome Camera 3-6mm Lens
Hanwha Techwin WiseNet PNM-9084QZ 8MP PTRZ IP Security Dome Camera 3-6mm Lens
-
Product Spec
Video Imaging Device 1/2.8" CMOS x 4CH Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.04lux(F2.2, 1/30sec)
BW: 0.004lux(F2.2, 1/30sec)Lens Focal Length (Zoom Ratio) 3~6mm(2x) motorized varifocal Max. Aperture Ratio F2.2(Wide)-F3.1(Tele) Angular Field of View H: 107°(Wide)~56.3°(Tele) / V: 57°(Wide)~31.5°(Tele) / D: 126°(Wide)~64.3°(Tele) Min. Object Distance 0.5m(1.64ft) Focus Control Simple focus Lens Type DC auto iris Pan / Tilt / Rotate Pan / Tilt / Rotate Range Remote adjustment (Max. 200cycles)
0~360° / 0~73° / 0~90°Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 120dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey, Green, Red, Blue, Black, White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC at event triggers
Alarm output
HandoverAudio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms Network Ethernet Metal shielded RJ-45(10/100/1000BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)Application Programming Interface ONVIF Profile S/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek Edge Storage Micro SD/SDHC/SDXC 4slot 256GB(each CH) Memory 5GB RAM, 1280MB Flash Environmental & Electrical Operating Temperature / Humidity -40°C~+55°C(-40°F~+131°F) / Less than 90% RH
*Start up should be above at -35°CStorage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH Certification IP66, IK10, NEMA4X Input Voltage HPoE Power Consumption Max. 33W, Typical 20W Mechanical Color / Material White / Aluminum RAL Code RAL9003 Product Dimensions / Weight Ø251x116.5mm / 3Kg DORI (EN62676-4 standard) Detect (25PPM/ 8PPF) Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft) Observe (63PPM/ 19PPF) Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft) Recognize (125PPM/ 38PPF) Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft) Identify (250PPM/ 76PPF) Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft) -
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
Hanwha Techwin WiseNet P Series PNM-9084QZ 8MP Outdoor PTRZ Four-Sensor Network IP Security Dome Camera
PNM-9084QZ
8MP H.265 PTRZ Multi-directional Camera
• PTRZ support
• Max. 60fps@2M(H.265, H.264), Max. 30fps@2M(MJPEG)
• 3.0~6.0mm(2x) motorized varifocal lens
• H.265, H.264, MJPEG codec, Multi streaming
• Video analytics, WiseStream Ⅱ
• IP66, IK10, NEMA4X
