Hanwha Techwin WiseNet XRN-2010A 32CH 12MP Security NVR Recorder -4TB HDD

Regular price $3,539.00
Sale price $3,539.00 Regular price
Unit price
  • Vendor:
  • Availability:
    Out of stock
  • SKU:
    XRN-2010A-4TB
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Hanwha Techwin WiseNet XRN-2010A 32CH 12MP Security NVR Recorder -4TB HDD

Hanwha Techwin WiseNet XRN-2010A 32CH 12MP Security NVR Recorder -4TB HDD

Regular price $3,539.00
Sale price $3,539.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

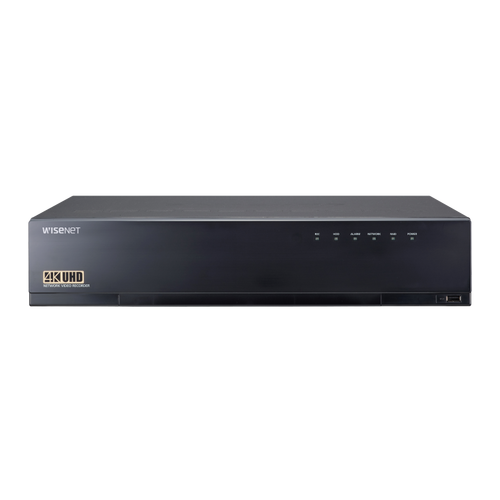

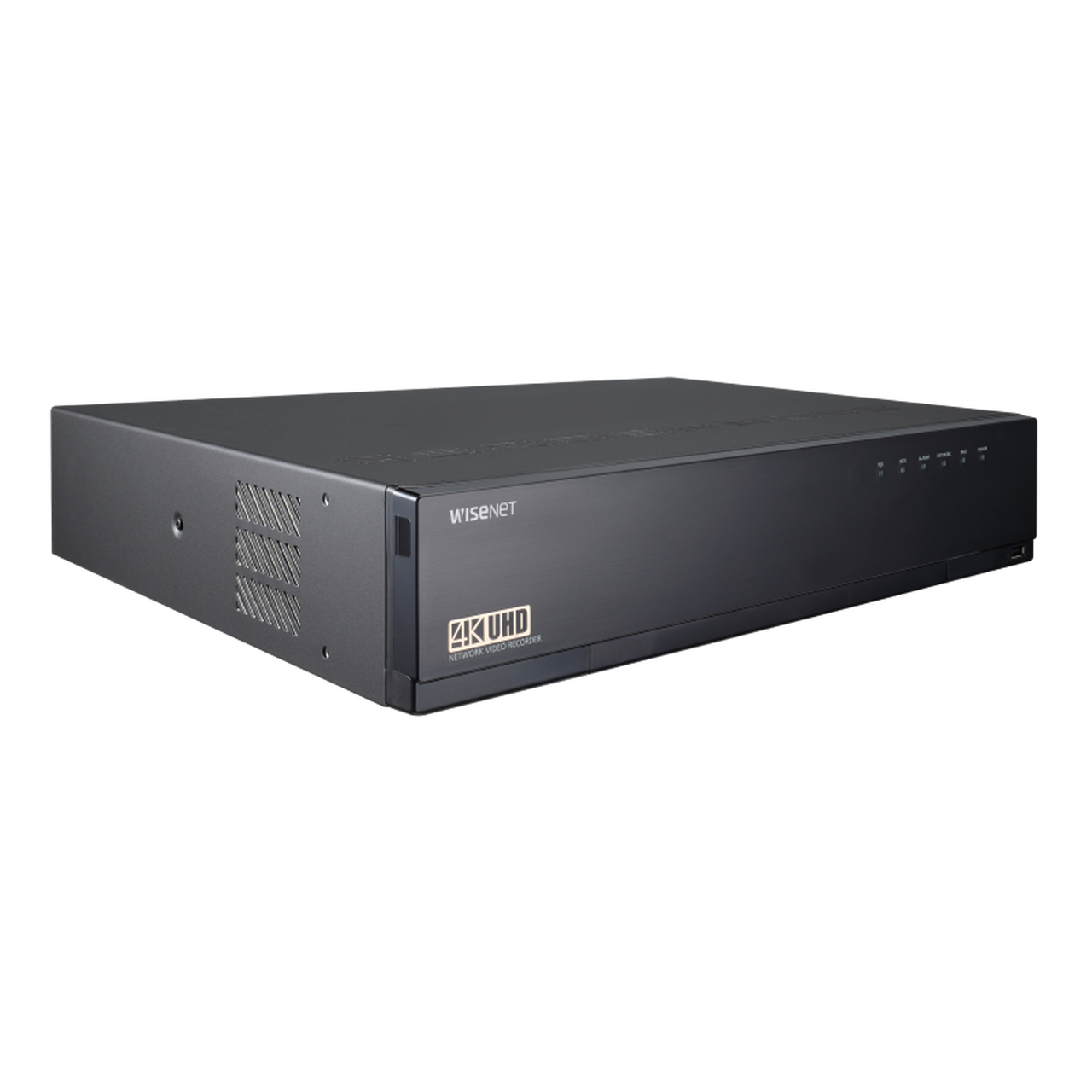

 Hanwha Techwin WiseNet XRN-2010A 32CH 12M H.265 NVR - 4TB HDD

XRN-2010A-4TB

32CH 12M H.265 NVR

• Up to 32CH, Max. 12MP Camera supported
• 256Mbps network camera recording
• 4K video out on HDMI monitor support
• Dual monitor video out support
• H.265, H.264, MJPEG compression support
• WiseStream support
• Max. 8 internal HDDs (48TB), e-SATAT / iSCSI storage support
• ARB & Failover (N+1) support
• P2P service (QR code connect) support
  • Product Spec

    • Display
      Network camera
      Inputs Max. 32CH
      Resolution 12MP ~ CIF
      Protocols Wisenet, ONVIF
      Decoding
      Local Display [Dual Display]
      HDMI: 3840 x 2160, 1920x1080, 1280x720
      VGA: 1920x1080, 1280x720
      Multi Screen Display [Local Monitor] 1 / 2V / 3V / 4 / 9 / 16 Sequence
      [Web] 1 / 4 / 9 / 16 / 4 / Sequence
      Resolution 12M(30fps), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1560fps)
      Performance
      Operating System
      Embedded Linux
      Record
      Compression H.265, H.264, MJPEG
      Recording Bandwidth Max. 256Mbps
      Resolution 12MP ~ CIF
      Mode Normal, Schedule(Continuous/Event), Event (Pre/Post)
      Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
      Event Action e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
      Search & Play
      Playback Bandwidth Max. 32Mbps(16CH simultaneously)
      User Max. 4 Users (Local 1, Remote 3)
      Simultaneous playback Max. 16CH(Local Monitor, Network)
      Fisheye Dewarping WEB / CMS
      Mode Date & Time(Calendar), Event Log list, Text Search, Smart Search
      Resolution 12MP ~ CIF
      Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
      Storage
      Supported HDD Up to 6TB
      HDD Slot SATA 8ea(Max. 48TB)
      External iSCSI storage(Max. 384TB)
      Backup
      File backup BU/Exe(GUI), JPG/AVI(Network)
      Function Multi channel(Upto 4CH) Play, Date-Time/Title display
      Network
      Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
      DDNS Wisenet DDNS
      Audio
      Input/Output 32 CH(network)
      Compression G.711, G.726, AAC(16/48KHz)
      Audio Communication 2-Way
      Max Remote Users Search(3), Live Unicast(10), Multicast(20)
      Security IP address filtering, User access Log, 802.1x, Encryption
      Web viewer
      Supported OS Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11
      Supported browser MS IE, Google Chrome, Mac Safari, Firefox
      Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
      Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
      Functions
      Camera Setup
      Register Auto, Manual
      Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
      Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
      PTZ
      Control Via GUI, Webviewer, SPC-2000
      Preset 255 Presets
      Smart phone
      Support Model iOS, Android
      Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
      Control Live(Multi-Profile Support), Playback
      Max. Remote Users Search(3), Live Unicast(10)
      Redundancy
      Failover N+1
      ARB Support
      Easy configuration P2P(QR code)
      Interface
      Front
      Indicator OK
      HDMI 1EA
      VGA 1EA
      e-SATA 1EA
      Audio Out(1EA, RCA, Line)
      Ethernet RJ-45(10/100/1000BASE-T) x 2
      Alarm In 8EA, Out 4EA
      USB 2EA(Front 1, Rear 1)
      Serial(Protocols) RS-232C
      Power inlet AC 1EA
      System
      Log
      Log List Max. 20,000 (System Log, Event Log each)
      System Control Mouse, IR remocon, Web, Controller (SPC-2000)
      Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
      Environmental
      Operating Temperature 0°C to +40°C(32℉ to 104℉)
      Operating Humidity 20% ~ 85% RH
      Electrical
      Power Input 100~240VAC±10%
      Power Consumption Max. 99W(6TB 8EA)
      Mechanical
      Color / Material Black / Metal
      Dimension (WxHxD) 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15") (2U)
      Weight 5.38Kg
