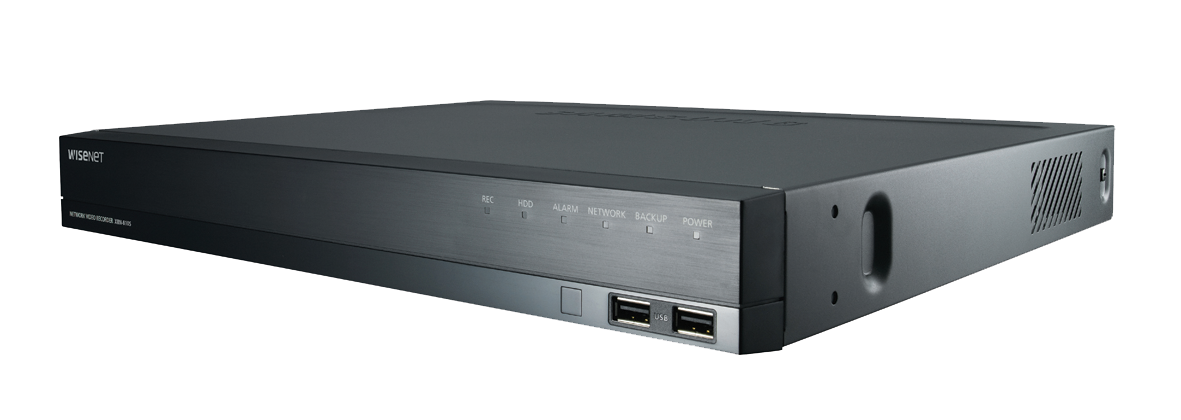

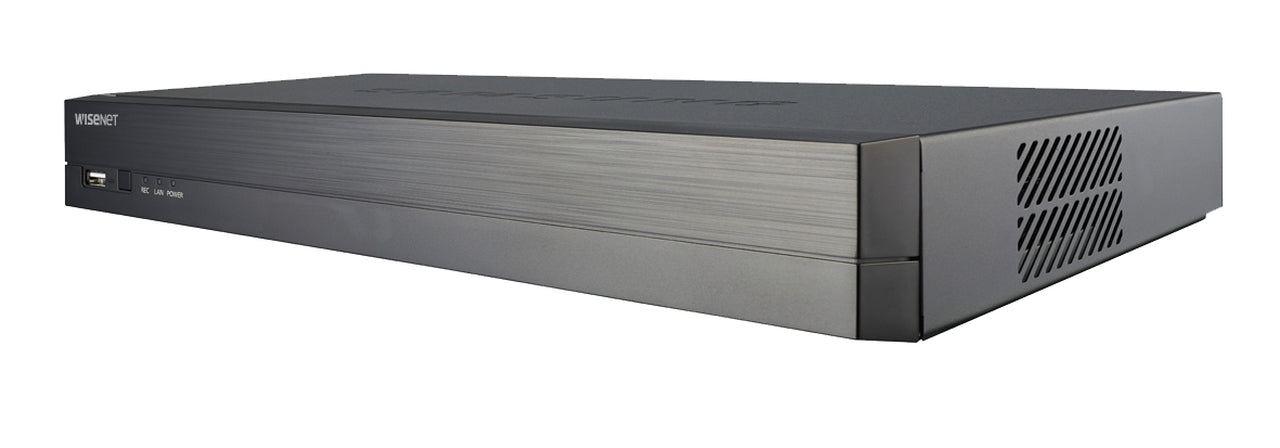

Hanwha Techwin WiseNet XRN-810S-6TB 8CH 8MP PoE+Security NVR Recorder 6TB HDD

Hanwha Techwin WiseNet XRN-810S-6TB 8CH 8MP PoE+Security NVR Recorder 6TB HDD

Regular price $2,045.00
Sale price $2,045.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

 Hanwha Techwin WiseNet X Series XRN-810S 8Channel 8MP PoE+  security NVR 6TB HDD

XRN-810S-6TB

8CH 8M H.265 NVR with PoE Switch

• Up to 8CH, 8megapixel camera supported
• H.265, H.264, MJPEG codec support,
• WiseStream support
• 100Mbps network camera recording
• Plug & play by 8 PoE/PoE+ ports
• Max. 2HDDs supported
• HDMI / VGA local monitor
• ARB supported
• P2P service(QR code connect) support

Product Spec

  • Display
    Network camera
    Inputs Max. 8CH
    Resolution 8MP ~ CIF
    Protocols Wisenet, ONVIF
    Decoding
    Local Display [Clone Display]
    HDMI: 3840 x 2160, 1920x1080, 1280x720
    VGA: 1920x1080, 1280x720
    Resolution 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps)
    Performance
    Record
    Compression H.265, H.264, MJPEG
    Recording Bandwidth Max. 100Mbps
    Resolution 8MP ~ CIF
    Mode Normal, Schedule(Continuous/Event), Event (Pre/Post)
    Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
    Event Action e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
    Search & Play
    Playback Bandwidth Max. 32Mbps(8CH simultaneously)
    User Max. 4 Users (Local 1, Remote 3)
    Simultaneous playback Max. 8CH(Local Monitor, Network)
    Fisheye Dewarping WEB / CMS
    Storage
    Supported HDD Up to 6TB
    HDD Slot SATA 2ea(Max. 12TB)
    Backup
    File backup BU/Exe(GUI), JPG/AVI(Network)
    Function Multi channel(Upto 8CH) Play, Date-Time/Title display
    Network
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
    DDNS Wisenet DDNS
    Transmission Bandwidth Max. 128Mbps
    Audio
    Input/Output 8 CH(network)
    Compression G.711, G.726, AAC(16/48KHz)
    Audio Communication 2-Way
    Max Remote Users Search(3), Live Unicast(10), Multicast(20)
    Security IP address filtering, User access Log, 802.1x, Encryption
    Web viewer
    Supported OS Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11
    Supported browser Plug-in free web viewer
    - Supported Browser: Google Chrome 47, MS Edge 20
    Plug-in Webviewer
    - Supported MS Explore 11, Apple Safari 9 * Mac OS X only
    Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
    Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
    Functions
    Camera Setup
    Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
    Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
    PTZ
    Control Via GUI, Webviewer, SPC-2000
    Smart phone
    Support Model iOS, Android
    Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
    Control Live(Multi-Profile Support), Playback
    Max. Remote Users Search(3), Live Unicast(10)
    Redundancy
    ARB Support
    Easy configuration P2P(QR code)
    Interface
    HDMI 1EA
    VGA 1EA
    e-SATA 1EA
    Audio Out(1EA, RCA, Line)
    Ethernet RJ-45(10/100/1000BASE-T) x 1
    RJ-45(PoE+) x 8
    Alarm In 4EA, Out 3EA
    USB 3EA(Front 2, Rear 1)
    Power inlet AC 1EA
    System
    System Control Mouse, IR remocon, Web, Controller (SPC-2000)
    Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
    Environmental
    Operating Temperature 0°C to +40°C(32℉ to 104℉)
    Operating Humidity 20% ~ 85% RH
    Electrical
    Power Input 100~240VAC±10%
    Power Consumption MAX. 19W (64BTU, 2TB HDD x 1ea)
    PoE Budget Max. 100W
    Mechanical
    Color / Material Black / Metal
    Dimension (WxHxD) W370 x H44 x D320mm (14.57”X1.73”X12.6”) (1U)
    Weight 3.356kg
  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
