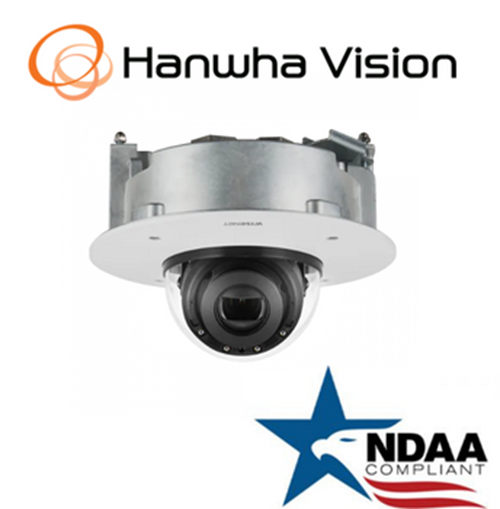

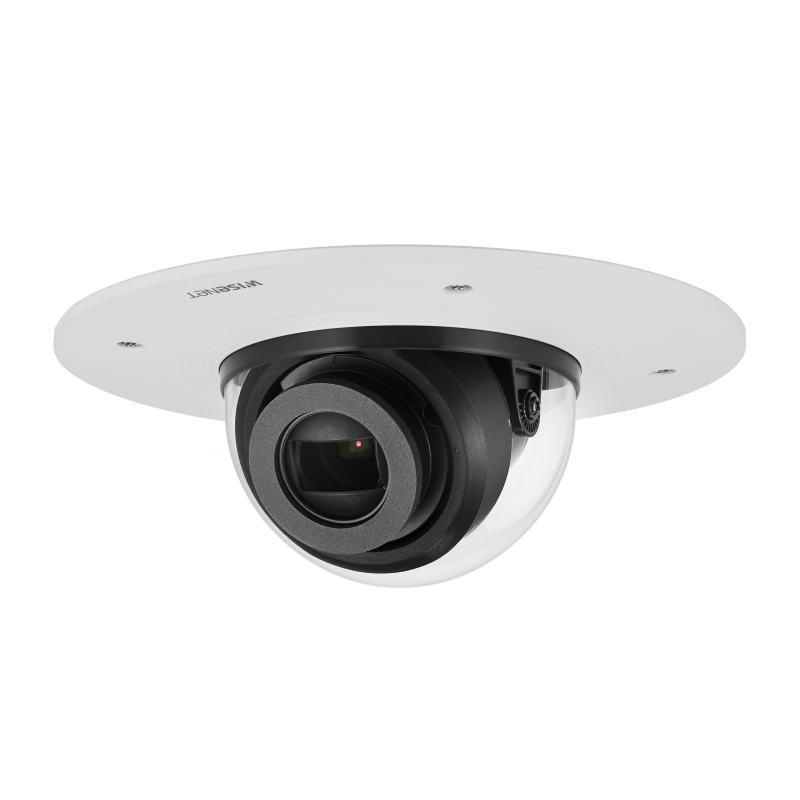

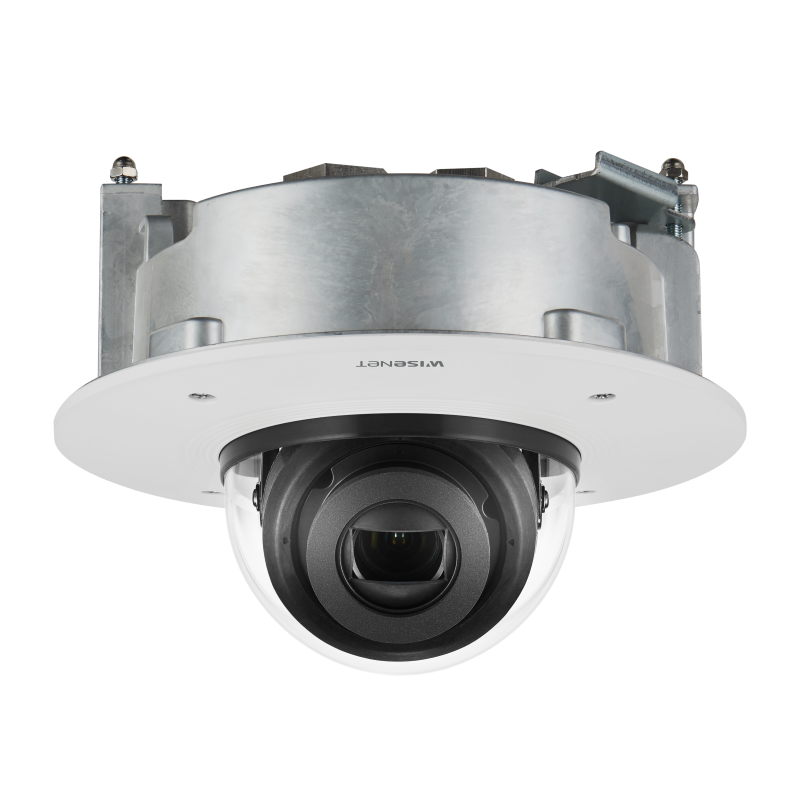

Hanwha Techwin XND-6081F 2MP IP Flush Mount Security Dome Camera 2.8-12mm Lens
Hanwha Techwin XND-6081F 2MP IP Flush Mount Security Dome Camera 2.8-12mm Lens
Hanwha Techwin XND-6081F 2MP IP Flush Mount Security Dome Camera 2.8-12mm Lens
XND-6081F
2M H.265 Dome Camera
• 0.015Lux@F1.4 (Color), 0.0015Lux@F1.4 (B/W)
• Day & Night (ICR), WDR (150dB)
• Modular structure, Hallway View, WiseStreamII Support
• Video & audio analytics, Audio playback
• DIS and shock detection with built-in gyro sensor
• IP52, Plenum rate(UL2820), PoE, 12VDC
Product Specification
Video Imaging Device 1/2.8" 2MP CMOS Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)Min. Illumination Color: 0.015Lux(F1.4, 1/30sec)
BW: 0.0015Lux(F1.4, 1/30sec)Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installationLens Focal Length (Zoom Ratio) 2.8~12mm(4.3x) motorized varifocal Max. Aperture Ratio F1.4(Wide)~F3.6(Tele) Angular Field of View H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele) Min. Object Distance 0.5m(1.64ft) Focus Control Simple focus Lens Type DC auto iris, P iris Pan / Tilt / Rotate Pan / Tilt / Rotate Range 0°~360° / -45°~85° / 0°~355° Operational Camera Title Displayed up to 85 characters Day & Night Auto(ICR) Backlight Compensation BLC, HLC, WDR, SSDR Wide Dynamic Range 150dB Digital Noise Reduction SSNRⅤ Digital Image Stabilization Support(built-in gyro sensor) Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- MosaicGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor LDC Support Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Video Rotation Flip, Mirror, Hallway view(90°/270°) Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection Business Intelligence People counting, Queue management, Heatmap Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover
Audio playbackAudio In Selectable (mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: approx. 2K OhmAudio Out Line out, Max. output level: 1Vrms Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHzSmart Codec Manual(5ea area), WiseStreamⅡ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platformGeneral Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)Edge Storage Micro SD/SDHC/SDXC 2slot 512GB Memory 1024MB RAM, 256MB Flash Environmental & Electrical Operating Temperature / Humidity -25°C ~ +60°C (-13°F ~ +140°F) / Less than 90% RH Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH Certification IP52, IK10 Input Voltage PoE(IEEE802.3af, Class3), 12VDC Power Consumption PoE: Max 7.0W, typical 4.20W
12VDC: Max 5.4W, typical 3.10WMechanical Color / Material White / Aluminum(Plenum) RAL Code RAL9003 Product Dimensions / Weight Ø205x155mm(8.07x6.10"), 1.80kg(3.97 lb) - • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
