Hanwha Techwin XNP-6040H 2MP PoE PTZ Outdoor NW IP Security Camera 2.8-12mm Lens

Regular price $1,200.00
Sale price $1,200.00 Regular price
Unit price

REQUEST A QUOTE >

Compare Ask a question

Ask a Question

* Required fields

 Size guide Share
Hanwha Techwin XNP-6040H 2MP PoE PTZ Outdoor NW IP Security Camera 2.8-12mm Lens

Hanwha Techwin XNP-6040H 2MP PoE PTZ Outdoor NW IP Security Camera 2.8-12mm Lens

Regular price $1,200.00
Sale price $1,200.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

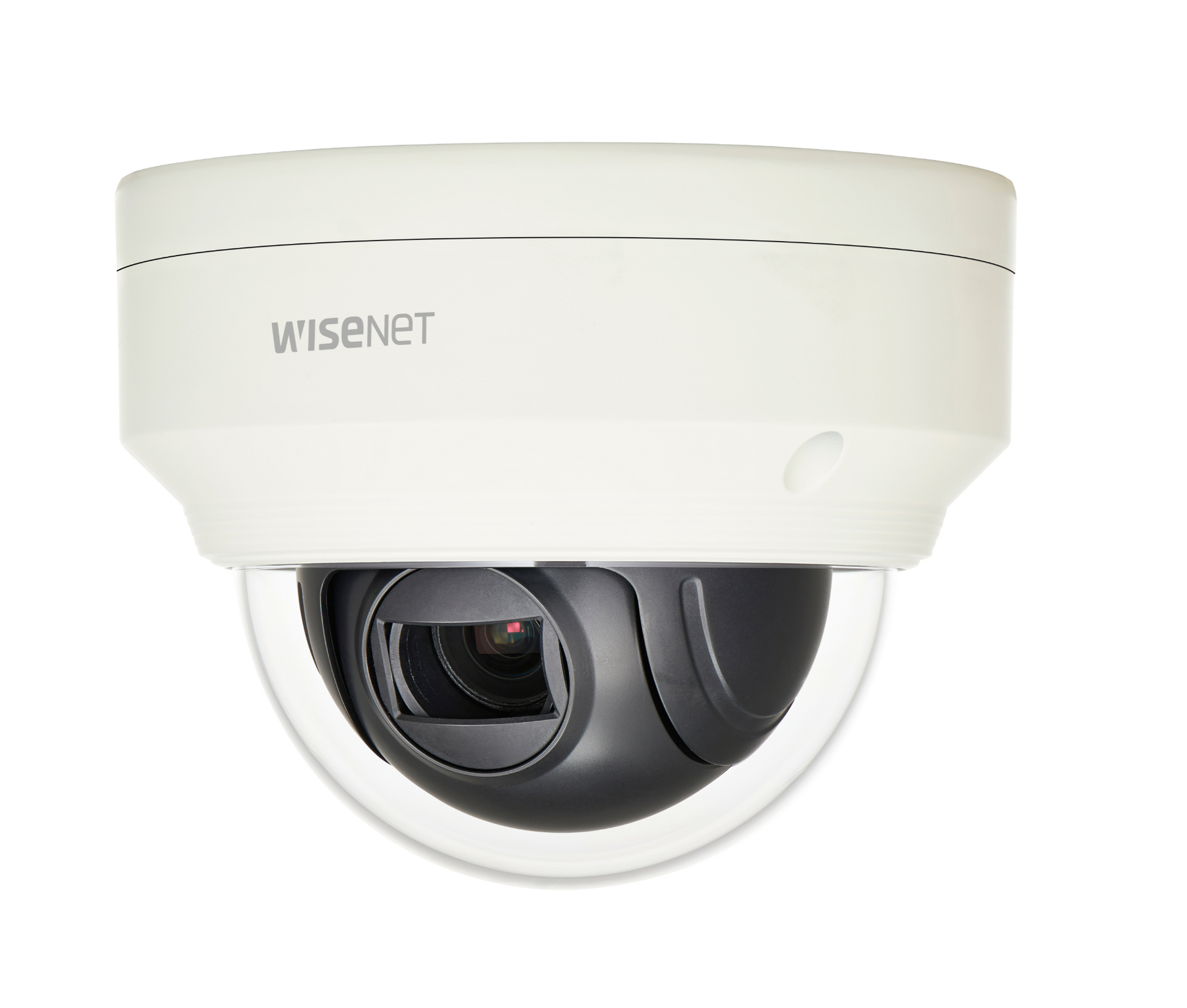

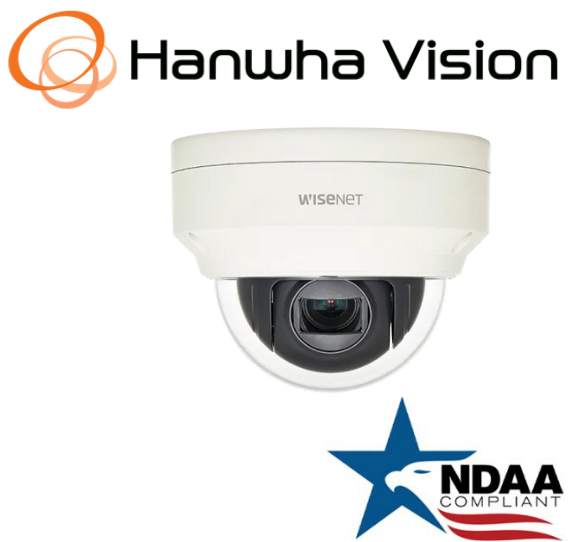

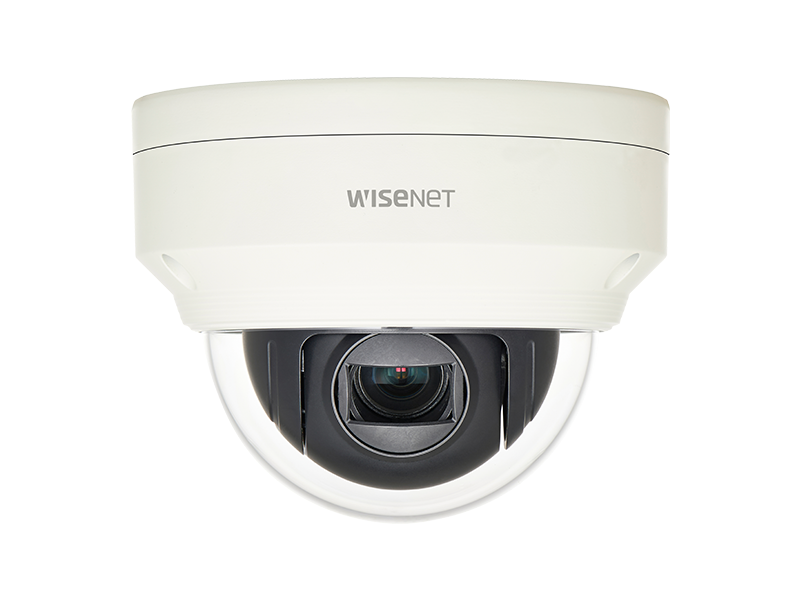

Hanwha Techwin XNP-6040H 2MP PoE PTZ Outdoor Network IP Security Camera

XNP-6040H

2M H.265 4.3x PTZ Camera

• Max. 2Megapixel (1920 x 1080) resolution
• 2.8 ~ 12mm (4.3x), 24x digital zoom
• H.265, H.264, MJPEG codec
• WiseStreamII/IP66, IK10 Support, Multiple streaming
• Day & Night (ICR), WDR (150dB)
• Digital image stabilization with Built-in Gyro sensor
• Motion/Direction/Fog/Audio detection
• SD/SDHC/SDXC memory slot (Max. 512GB), PoE / 12V DC

Product Specification

  • Video
    Imaging Device 1/2.8" CMOS
    Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
    Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
    MJPEG: Max. 30fps/25fps(60Hz/50Hz)
    Min. Illumination Color: 0.015Lux(F1.4, 1/30sec)
    BW: 0.0015Lux(F1.4, 1/30sec)
    Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
    USB: Micro USB type B, 1280x720 for installation
    Lens
    Focal Length (Zoom Ratio) 2.8~12mm(4.3x) zoom
    Max. Aperture Ratio F1.4
    Angular Field of View H: 119.5°(Wide)~27.9°(Tele) / V: 62.8°(Wide)~15.7°(Tele) / D: 142.1°(Wide)~32.0°(Tele)
    Min. Object Distance Wide: 1.5m(4.92ft), Tele: 2m(6.56ft)
    Focus Control Oneshot AF
    Lens Type DC auto iris
    Pan / Tilt / Rotate
    Pan Range 0° ~ 350°
    Pan Speed 0.1°/sec ~60°/sec
    Tilt Range 0° ~90°
    Tilt Speed 0.1°/sec ~60°/sec
    Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
    Preset Accuracy ±0.5°
    Operational
    Camera Title Displayed up to 85 characters
    Day & Night Auto(ICR)
    Backlight Compensation BLC, HLC, WDR, SSDR
    Wide Dynamic Range 150dB
    Digital Noise Reduction SSNRⅤ
    Digital Image Stabilization Support(built-in gyro sensor)
    Defog Support
    Motion Detection 8ea, 8point polygonal zones
    Privacy Masking 32ea, rectangular Support
    - Color: Grey/Green/Red/Blue/Black/White
    - Mosaic
    Gain Control Low / Middle / High
    White Balance ATW / AWC / Manual / Indoor / Outdoor
    Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
    Video Rotation Flip, Mirror
    Analytics Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
    Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
    Alarm I/O Input 1ea / Output 1ea
    Alarm Triggers Analytics, Network disconnect, Alarm input
    Alarm Events File upload via FTP and e-mail
    Notification via e-mail
    SD/SDHC/SDXC or NAS recording at event triggers
    Alarm output
    PTZ Preset
    Audio In Selectable(mic in/line in)
    Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
    Audio Out Line out, Max.output level: 1Vrms
    Auto Tracking Support
    Network
    Ethernet RJ-45(10/100BASE-T), SFP(Optional)
    Video Compression H.265/H.264,MJPEG
    Audio Compression G.711 u-law /G.726 Selectable
    G.726(ADPCM) 8KHz, G.711 8KHz
    G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
    AAC-LC: 48Kbps at 16KHz
    Smart Codec Manual(5ea area), WiseStreamⅡ
    Bitrate Control H.264/H.265: CBR or VBR
    MJPEG: VBR
    Streaming Unicast(20 users) / Multicast (128 user)
    Multiple streaming(Up to 10 profiles)
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP
    Security HTTPS(SSL) Login Authentication
    Digest Login Authentication
    IP Address Filtering
    User access log
    802.1X Authentication(EAP-TLS, EAP-LEAP)
    Application Programming Interface ONVIF Profile S/G/T
    SUNAPI(HTTP API)
    Wisenet open platform
    General
    Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
    Edge Storage Micro SD/SDHC/SDXC 2slot 512GB
    Memory 1024MB RAM, 256MB Flash
    Environmental & Electrical
    Operating Temperature / Humidity -30°C~+55°C (-22°F~+131°F) / Less than 90% RH
    Storage Temperature / Humidity -30°C~+60°C (-22°F~+140°F) / Less than 90% RH
    Certification IP66, IK10
    Input Voltage DC12V, PoE(IEEE802.3af, Class3)
    Power Consumption DC12V: Max. 8.6W
    PoE : Max. 9.6W
    Mechanical
    Color / Material Ivory / Aluminum
    Product Dimensions / Weight Ø136x106mm(5.35x4.17"), 780g(1.72 lb)
    DORI (EN62676-4 standard)
    Detect (25PPM/ 8PPF) Wide: 22.4m(73.47ft) / Tele: 154.6m(507.18ft)
    Observe (63PPM/ 19PPF) Wide: 9.0m(29.39ft) / Tele: 61.8m(202.87ft)
    Recognize (125PPM/ 38PPF) Wide: 4.5m(14.69ft) / Tele: 30.9m(101.44ft)
    Identify (250PPM/ 76PPF) Wide: 2.2m(7.35ft) / Tele: 15.5m(50.72ft)
  • • Design and specifications are subject to change without notice.
    • Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
