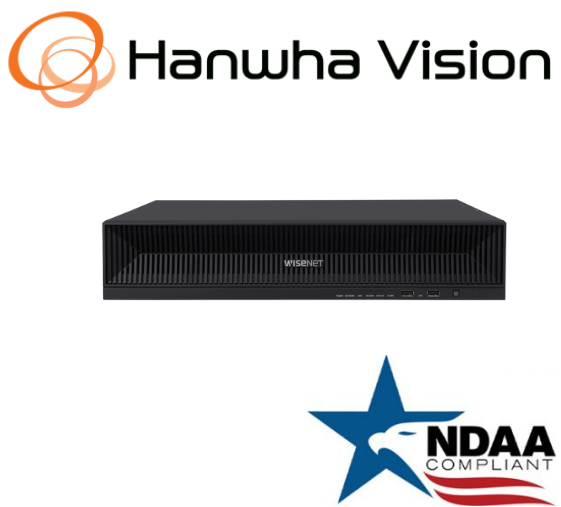

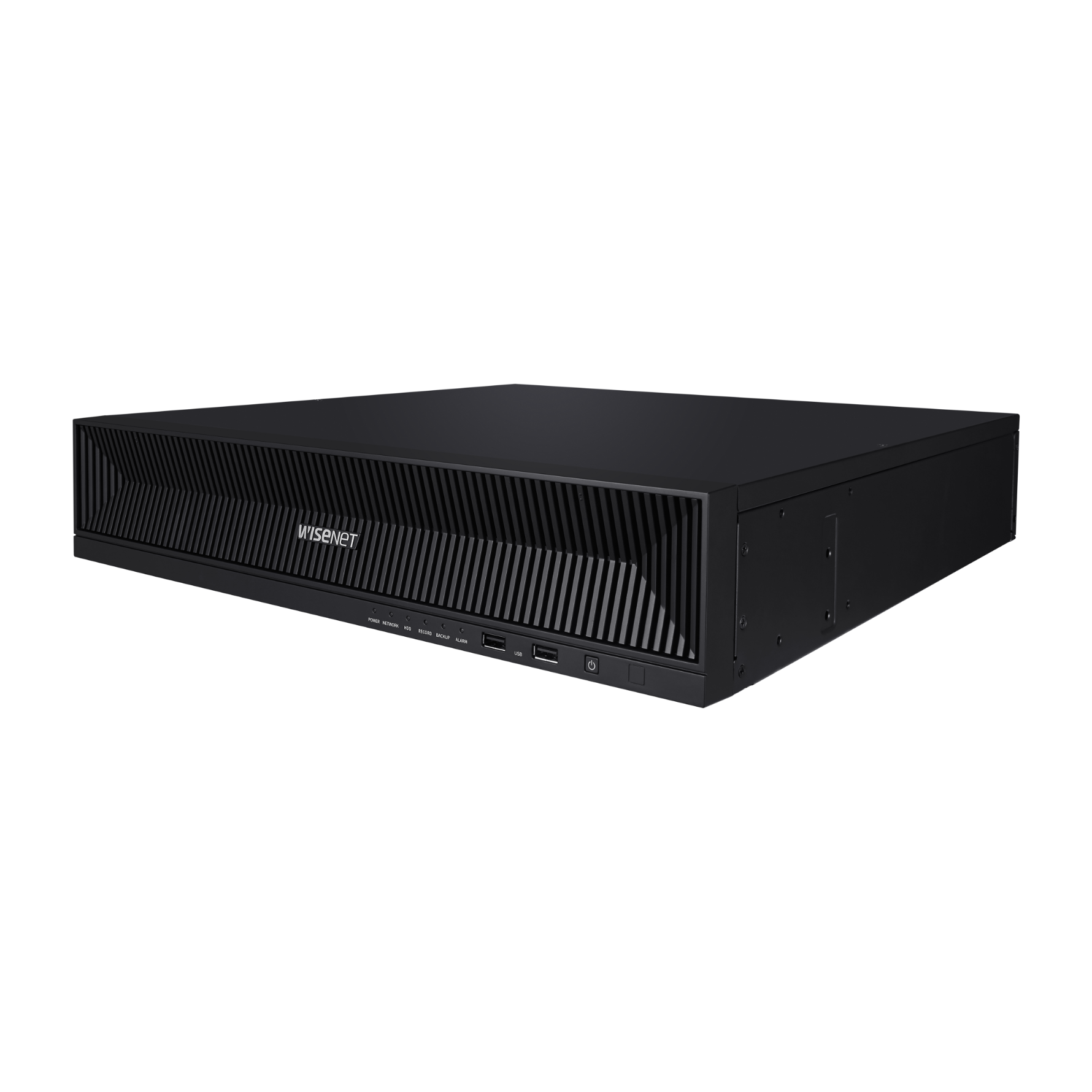

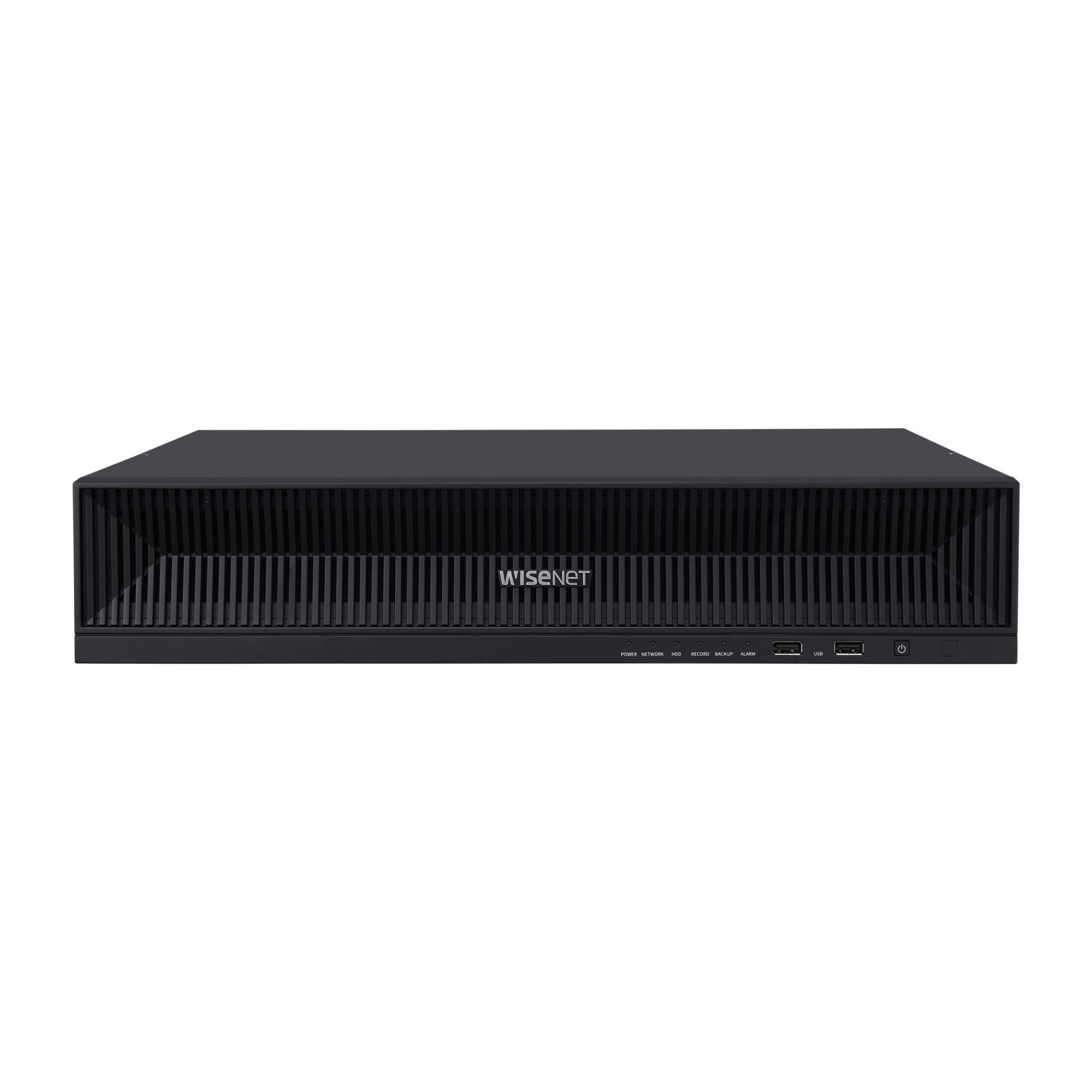

Hanwha Techwin XRN-1620SB1-16TB HDD 16CH 32MP PoE+ NVR IP Security Recorder
Hanwha Techwin XRN-1620SB1-16TB HDD 16CH 32MP PoE+ NVR IP Security Recorder
Hanwha Techwin XRN-1620SB1-16TB 16CH 32MP NVR IP Security Recorder PoE+ 16TB HDD
XRN-1620SB1-16TB
16CH NVR
• Max. 140Mbps network camera recording
• HDMI out
• User friendly UI / UX
• AI search support when working with Wisenet AI camera
• Dynamic Event support
- New event function of cameras is available without software update
• H.265, H.264, MJPEG codec supported

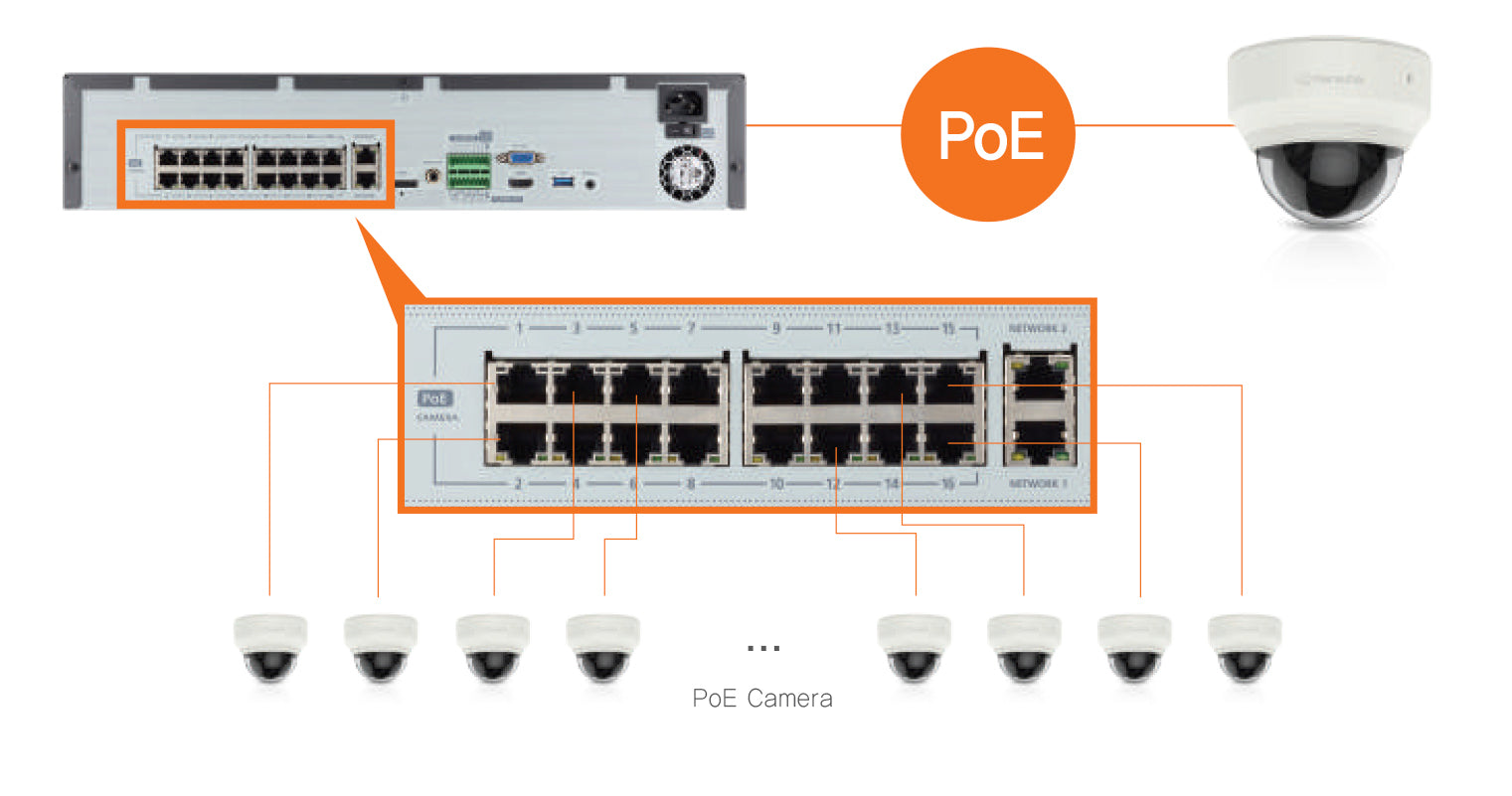

• Plug & play by 16 PoE ports
• Bookmark management (Up to 100 set)
• SATA 4ea (Up to 24TB)
Product Spec
Display Network camera Inputs Max. 16CH Resolution 32MP ~ CIF Protocols SUNAPI, ONVIF Decoding Local Display FHD : HDMI & VGA Dual monitor
UHD : HDMI Single monitorMulti Screen Display [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ Sequence
[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9Resolution [Local Monitior]
FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps)
UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps)
FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps)
Clone/Single mode : MAX 15fps when displaying more than 10CH
Expand mode : Up to 9 divisions, Max 15fps when displaying more than 8CHPerformance Operating System Embedded Linux Record Compression H.265, H.264, MJPEG Recording Bandwidth Max. 140Mbps Resolution 32MP ~ CIF Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out Search & Play Playback Bandwidth Max. 32Mbps User Max. 4 Users (Local 1, Remote 3) Simultaneous playback Max. 64CH(Local 16CH, Remote 16CH per user) Fisheye Dewarping CMS Mode Date & Time(Calendar), Event list, Text Search, Smart Search Resolution CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP) Playback Control Fast/Slow Forward / Backward, Move one step Up / Down Storage Supported HDD Up to 6TB HDD Slot SATA 4ea(Max. 24TB) Backup File backup BU/Exe(GUI), JPG/AVI(Network) Function Multi channel(Up to 16CH) Play, Date-Time/Title display Network Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) DDNS Hanwha DDNS Transmission Bandwidth Max. 140Mbps Audio GUI 16 CH(network) Web G.711, G.726, AAC(16/48KHz) Audio Communication 2-Way Max Remote Users Search(3), Live Unicast(10), Multicast(20) Security IP address filtering, User access Log, 802.1x, Encryption
Device certificate(Hanwha Techwin Root CA), Signed firmwareWeb viewer Supported OS Windows 10, macOS 10.13 Supported browser Google Chrome, Microsoft Edge, Mac Safari, Firefox Viewer Software WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMSFunctions Camera Setup Register Auto, Manual Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon)
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera WebpagePTZ Control Via GUI, Webviewer, SPC-2000 Preset 300 Presets Smart phone Support Model iOS, Android Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI) Control Live 16CH(Multi-Profile Support), Playback 4CH Max. Remote Users Search(3), Live Unicast(10) Redundancy Failover N+1 ARB Support Easy configuration P2P(QR code) Interface Front Indicator HDD, Alarm, Power, Record, Backup, Network Storage OK HDMI 1EA 3840x2160 30Hz VGA 1EA 1920x1080 60Hz Audio Out 1EA Ethernet PoE RJ-45 16EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps) Alarm In 4EA, Out 2EA USB 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0) Power inlet AC 1EA System Log Log List Max. 100,000 (System Log, Event Log each) System Control Mouse, Web, Controller (SPC-2000) Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese Environmental Operating Temperature 0°C to +40°C(32℉ to 104℉) Operating Humidity 20% ~ 85% RH Electrical Power Input 100 ~ 240 VAC ±10%; 50/60 Hz Power Consumption Max. 310W PoE Budget 200W Mechanical Color / Material Black Dimension (WxHxD) 440 x 89.8 x 428.4 mm Weight 5.76Kg Intelligent Analysis AI Search Object Attribute Compatible for Wisenet AI Camera -
• Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin, formerly known as Samsung Techwin.
