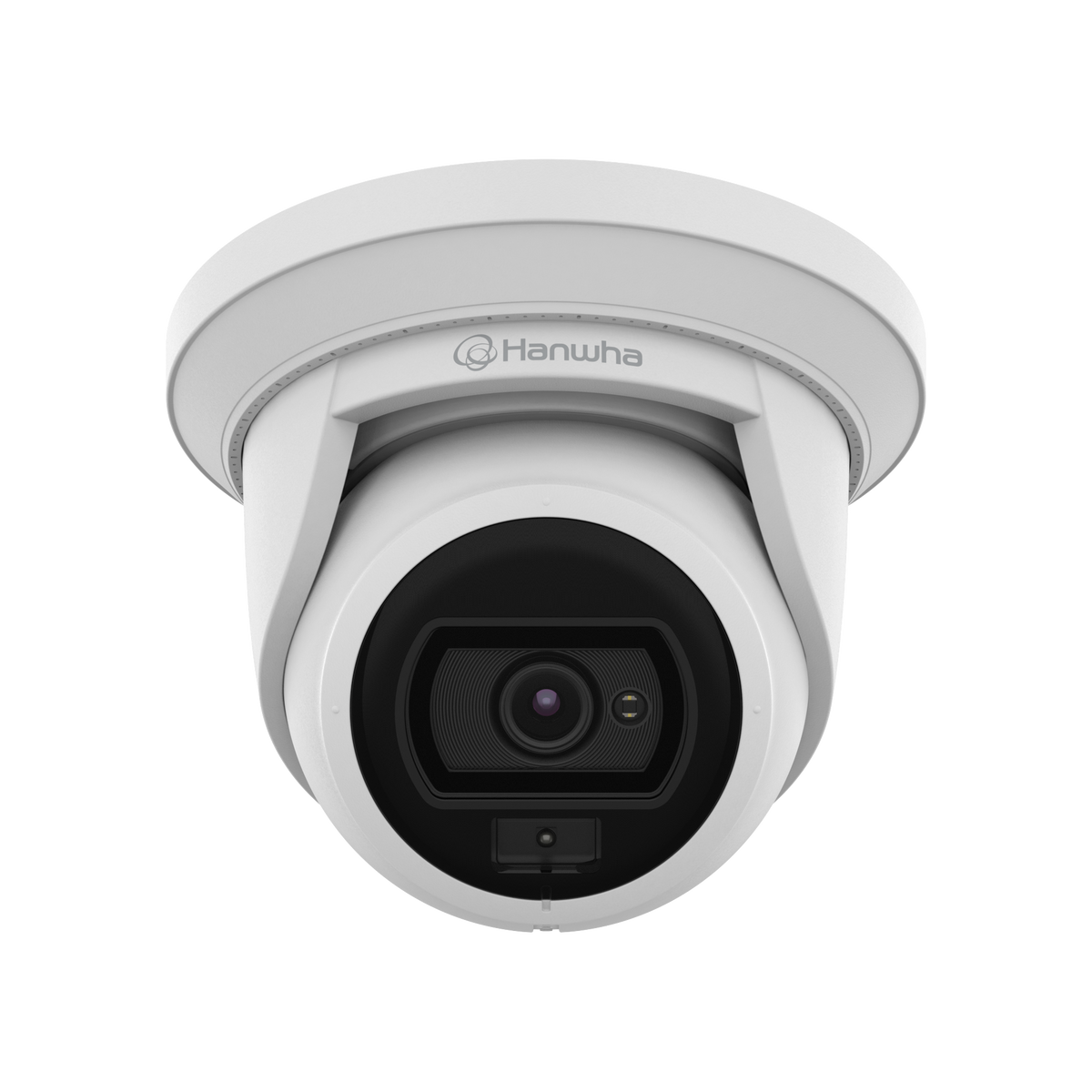

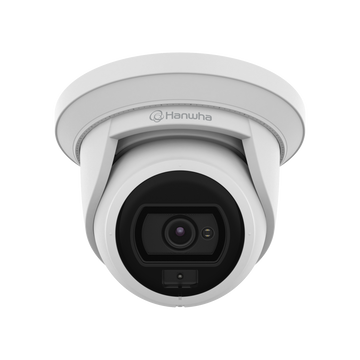

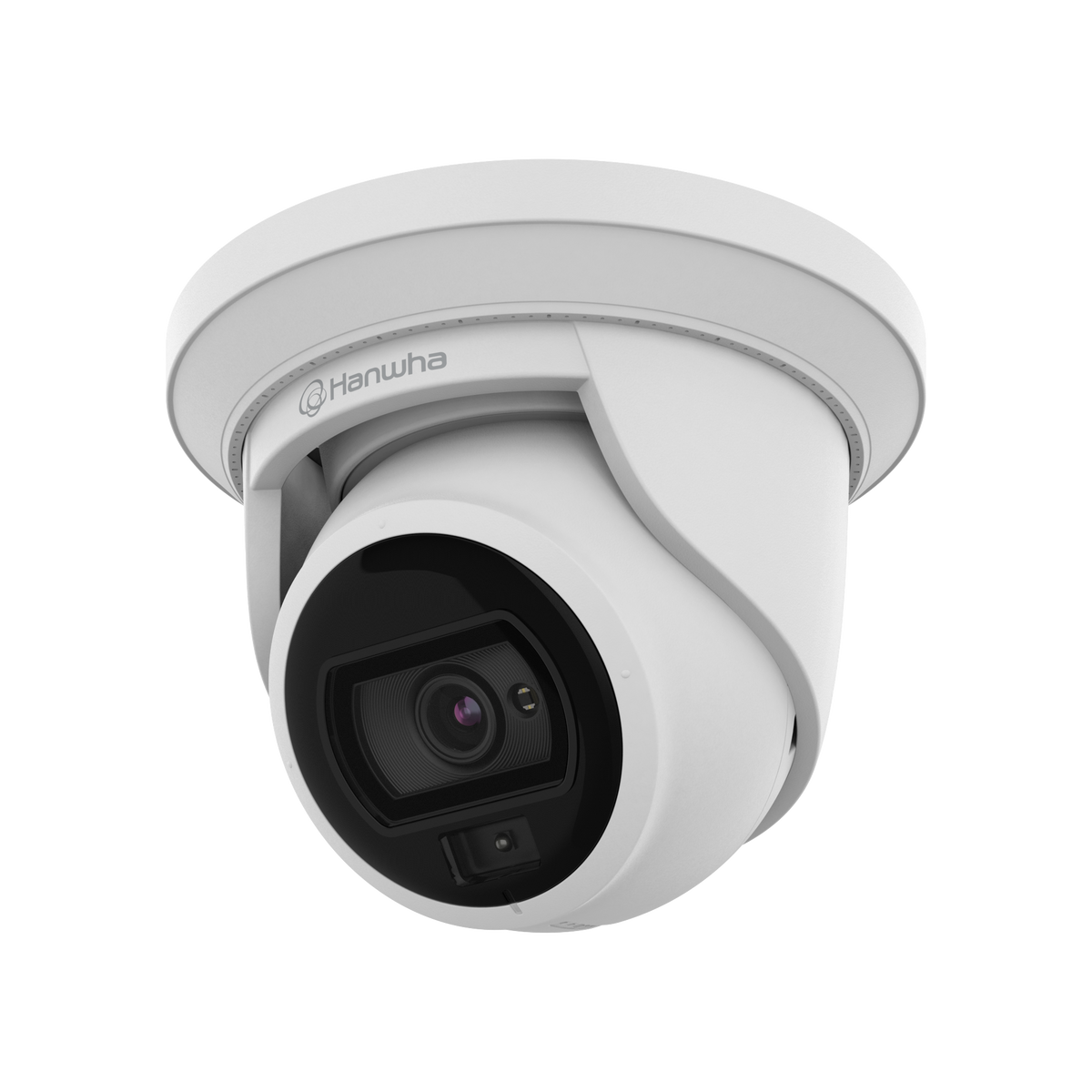

Hanwha Vision ANE-L7012L Wisenet A Series 4MP White Light IP Turret Camera

Regular price $310.00
Sale price $310.00 Regular price $0.00
Unit price
Hanwha Vision ANE-L7012L Wisenet A Series 4MP White Light IP Turret Camera

Hanwha Vision ANE-L7012L Wisenet A Series 4MP White Light IP Turret Camera

Regular price $310.00
Sale price $310.00 Regular price $0.00
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

Hanwha Vision ANE-L7012L Wisenet A Series 4MP White Light IP Turret Camera

Key features

  • 4 megapixels (2560 x 1440) resolution
  • Built-in 3mm fixed lens FoV H: 98.3° / V: 54.2°
  • 30fps@ all resolutions (H.265/H.264)
  • H.265/H.264, MJPEG triple codec
  • Color only, WDR (120dB)
  • virtual area (intrusion/enter/exit), virtual line (crossing/direction), motion detection, tampering
  • Micro SD/SDHC memory slot (Max. 32GB)
  • PoE powered
  • Hallway view, WiseStream II support
  • IP66, IK10 support

video

Imaging device Size 1-2.8"
type CMOS
resolution 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. frame rate H.265/H.264 30 fps/25 fps (60 Hz/50 Hz)
MJPEG 15 fps (at 4 MP Max. 2 fps)
Minimum illumination (lux) Color (1/30 second, 30 IRE) 0.05

lens

Focal length (mm) 3
Maximum aperture ratio (F-number) Far 1.2
Angle of view Horizontal 97°
Vertical 53°
Diagonal 113°
Minimum object distance 1.1m (3.6ft)
Focus control Firmly

Pan / Tilt / Rotate

Swivel / tilt / rotation range Sway 0°~350°
Tend 0°~75°
Turn 0°~360°

Operational

Day & Night (Electric) car
Backlight compensation BLC, WDR, SSDR
Wide dynamic range (dB) 120
Digital noise reduction SSNR
Motion detection Crowd 4EA
form 8-point polygon zones
Privacy masking Crowd 6ea
form Rectangular zones
Reinforcement Low, Medium, High
White balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic lock mode Minimum, Maximum, Anti-flicker
Speed ​​range 1/5–1/12,000 second
Video shoot Rotate, mirror, corridor view (90°/270°)
Alarm trigger Analysis, disconnect network connection
Alarm events when an alarm trigger occurs File upload (image): Email/FTP, Notification: Email, Recording: SD/SDHC/SDXC or NAS recording upon event triggers, Transfer: PTZ preset, light alarm
Light type Warm color
Light visible length Warm light 20m (65.61ft)

Analyses

Analysis events Normal Defocus detection, motion detection, manipulation, virtual area (entry/entry/exit), virtual line (intersection, direction)

Network

Ethernet RJ-45 (10/100 BASE-T)
Video compression H.265/H.264: Main/High, MJPEG
Intelligent codec Manual, WiseStream II
Bitrate control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming Unicast Up to 6 users
Multicast Support
Multi-streaming Up to 3 profiles
protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, PPPoE, PIM SM
Application Programming Interface ONVIF S, G, T
Other SUNAPI (HTTP API)
Direct cloud connection Optional (requires gateway)

Security

Operating system / firmware protection Encrypted firmware
User authentication Digest authentication, preventing brute-force attacks
Network authentication IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure communication HTTPS, WSS (WebSocket Secure), SRTP
Access control IP-based access control
Data protection Encryption credentials, encrypted compression for exporting live recording files
Audit Access/System/Event Log Management
Device ID Device certificate (Hanwha Vision Root CA)
Secure storage Encrypt SD card partition (AES-256)

Generally

memory R.A.M. 512 MB
Flash 256 MB
Edge Storage Micro SD/SDHC/SDXC Max. 128 GB x 1 slot

Environment & Electrics

Operating conditions temperature -30°C~+55°C(-22°F~+131°F)
humidity 0–95% relative humidity (non-condensing)
Other The commissioning should take place at temperatures above -20 °C.
Storage conditions temperature -30°C~+55°C(-22°F~+131°F)
humidity 0–95% relative humidity (non-condensing)
Input voltage PoE (IEEE802.3af, Class 3)
electricity consumption PoE Max. 7.6W, typical 4.2W

Mechanically

Color White
material Aluminum, plastic
RAL code RAL9003
Product dimensions ø125.0x87.4mm(ø4.92x3.44")
Product weight 620g (1.37lb)
Compatible gear box Singles, Doubles, 4" Octagon
