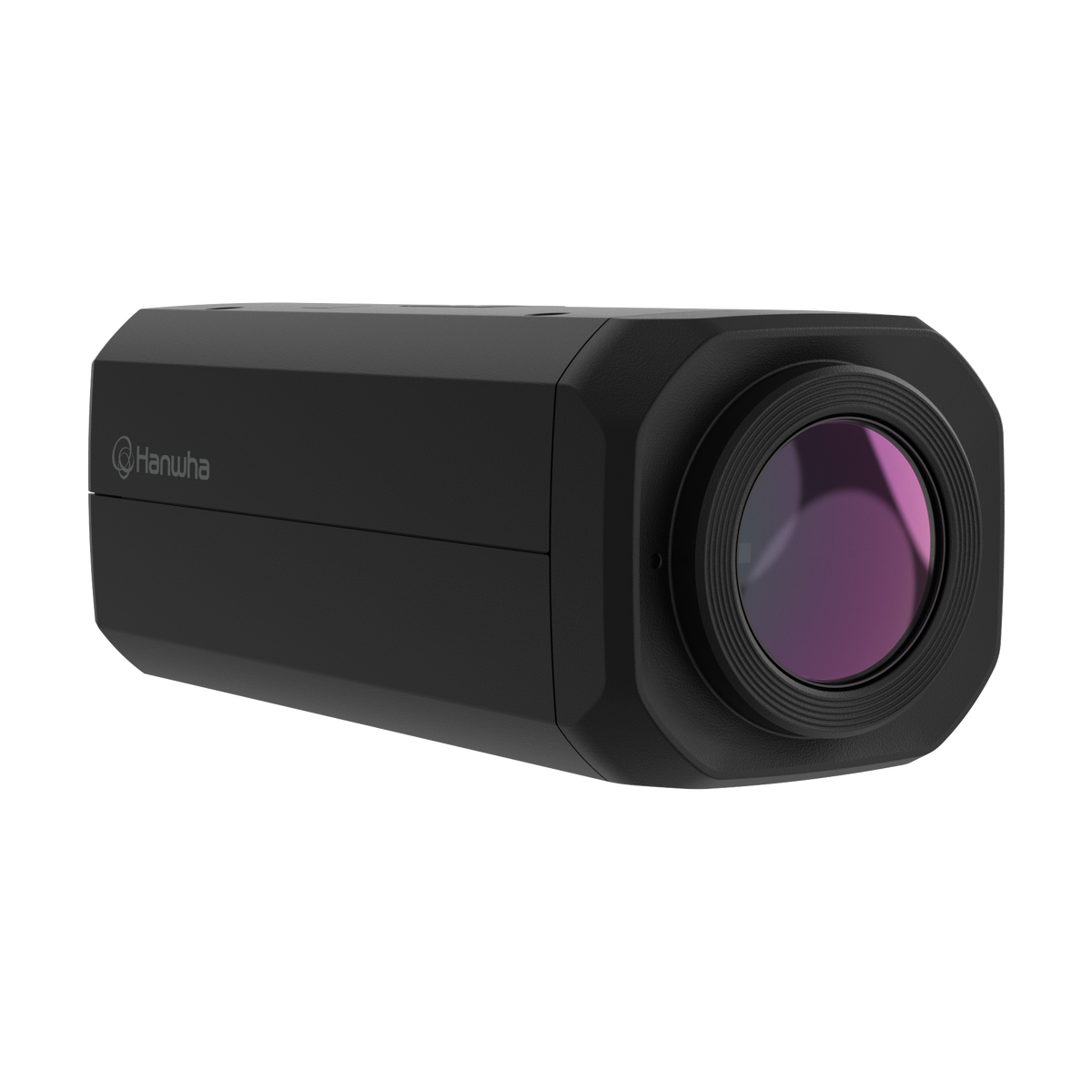

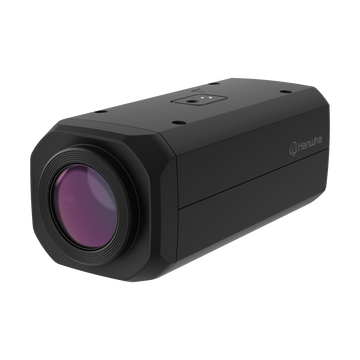

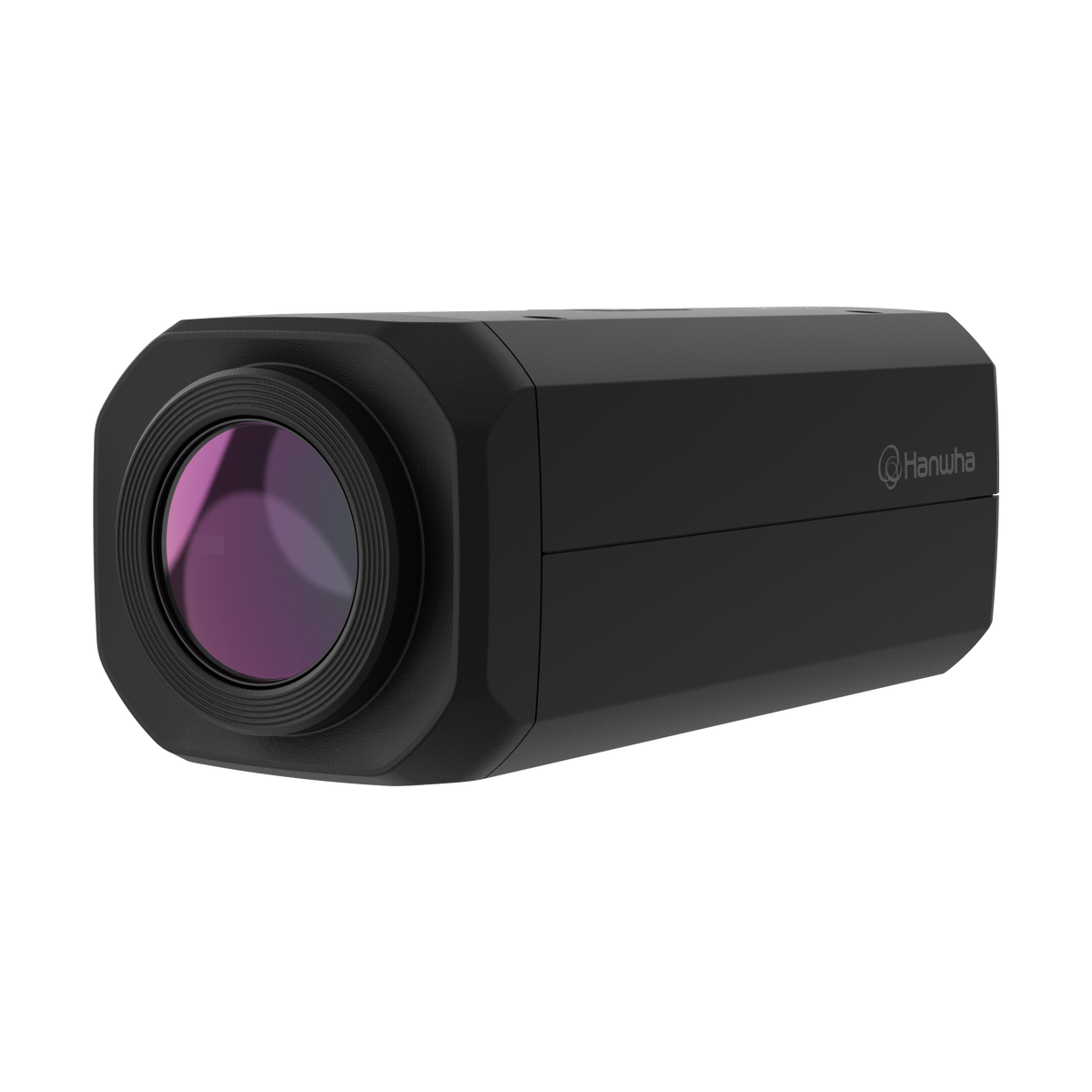

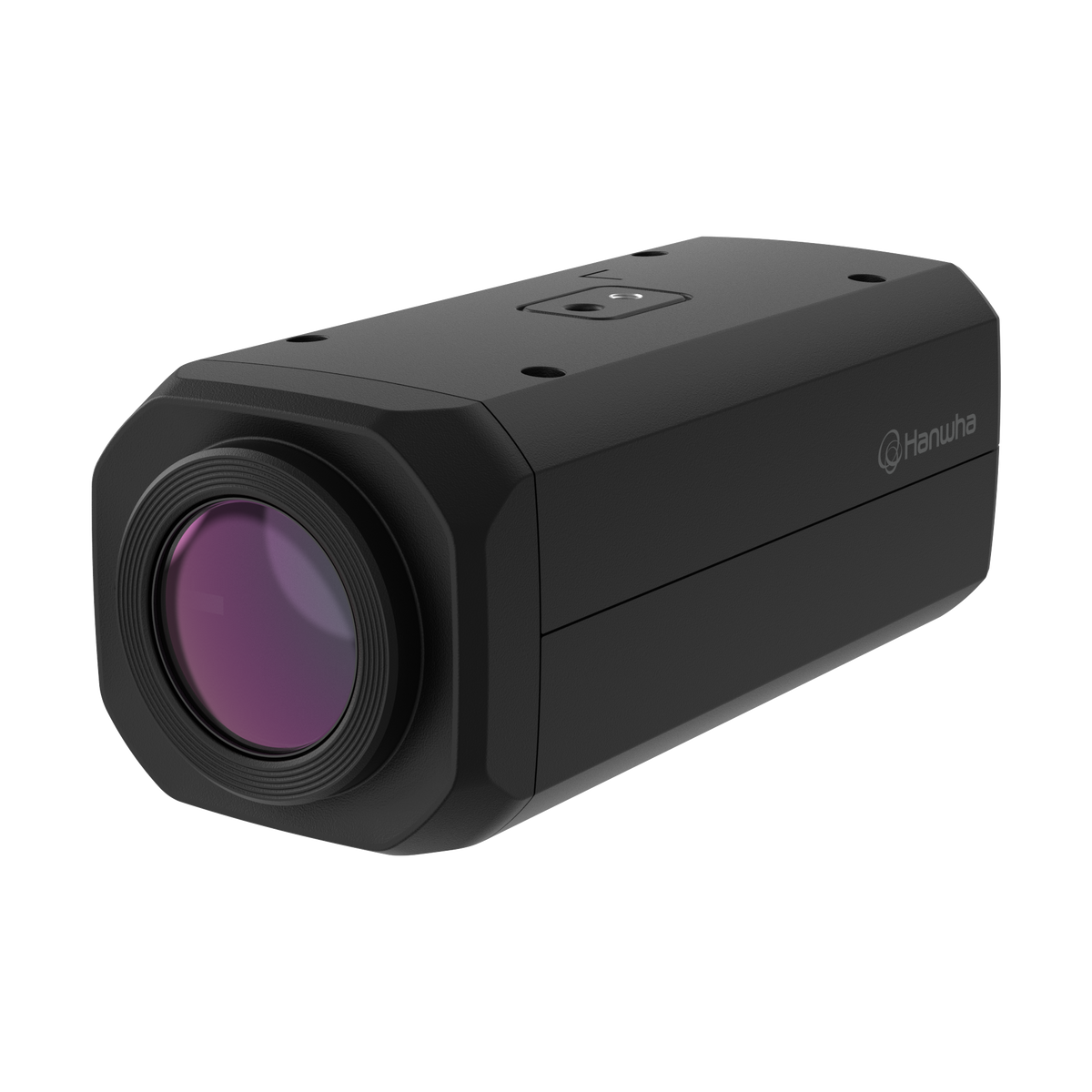

Hanwha Vision PNB-A9092 8MP AI IP Box Camera

Regular price $1,900.00
Sale price $1,900.00 Regular price
Unit price
Hanwha Vision PNB-A9092 8MP AI IP Box Camera

Hanwha Vision PNB-A9092 8MP AI IP Box Camera

Regular price $1,900.00
Sale price $1,900.00 Regular price
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

Hanwha Vision PNB-A9092 8MP AI IP Box Camera

Key Features

  • Dynamic Privacy Masking
  • Similarity Search with BLAZE and Hanwha Vision Plug-in for Genetec/milestone

Video

Imaging Device Size 1/1.2"
Type CMOS
Resolution 3840x2160, 3328x1872, 3072x1728, 2688x1512, 2592x1944, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Max. Framerate H.265/H.264 30fps/25fps(60Hz/50Hz)
MJPEG 30fps(@8MP Max. 5fps)
Min. Illumination (Lux) Color(1/30sec, 30IRE) 0.015
BW(1/30sec, 30IRE) 0.0015
Video Out USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle.

Lens

Focal Length (mm) 15~50
Zoom Ratio Optical 3.33
Max Aperture Ratio (F number) Wide 1.67
Tele 3.5
Angular Field of View Horizontal 42.7°~12.6°
Vertical 24.1°~7.2°
Diagonal 49°~14.3°
Min. Object Distance 2.5m(8.2ft)
Focus Control Simple focus
Lens Type Adaptive P iris

Operational

Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection Quantity 8ea
Shape 8point Polygonal zones
Privacy Masking Quantity 32ea
Shape 8point Polygonal zones
Color / Option Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Dynamic Privacy Masking: Color / Option Gray, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Gain Control Off, Max gain, Manual
White Balance ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDC Support(Fill/stretch mode)
Electronic Shutter Mode Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range 2~1/30,000sec
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Serial Interface RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm Interface In/Out 2 configurable I/O ports
Others 12VDC output
Alarm Triggers Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription, Day/Night, Storage disruption
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio In Selectable(mic in/line in), Built-in mic
Audio Out Line out

Analytics

Classified Object Type Person, Face, Vehicle, License plate
Attributes Person Upper/Lower clothes color, Gender, Bag
Vehicle Type(car, bus, truck, motorcycle, bicycle), Color
Face Age, Gender, Face mask, Glasses
Similarity Search Support
Thumbnail BestShot
Analytics Events Based on AI Engine Object detection, Virtual line(Crossing/Direction), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear)
Normal Defocus detection, Tampering, Audio detection, Shock detection, Virtual area(Appear/Disappear)
Business Intelligence Based on AI Engine People counting, Queue management, Heatmap, Vehicle counting, Crowd counting

Network

Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711(PCM): 8kHz(64kbps), G.726(ADPCM): 8kHz(16/24/32/40kbps), AAC-LC: 16kHz(48kbps), OPUS: 16kHz(64kbps)
Smart Codec WiseStream(Based on AI engine)
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming Unicast Up to 20 users
Multicast Support
Multiple Streaming Up to 5 profiles, 3 virtual channel support
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, Syslog
Application Programming Interface ONVIF S, G, T, M
Others SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection Support

Security

OS / Firmware Protect Encrypted firmware, Secure boot, Signed firmware
User authentication Digest authentication, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control, MAC-based access control, Auto logout
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage SDcard partition encrypt(AES-256), Secure element
Supply Chain Security SBOM
Security Certificate Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645)

General

SoC Type Wisenet 9
Dual NPU Support
Memory RAM 4GB
Flash 8GB eMMC
Edge Storage Micro SD/SDHC/SDXC Max. 1TB x 2slot(Total 2TB)
Edge Storage(OnCloud) Micro SD/SDHC/SDXC Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.

Mechanical

Color Black
Material Aluminum
RAL Code RAL9005
Product Dimensions 82(W)x76(H)x190(D)mm(3.23x2.99x7.48")
Product Weight 1020g(2.25lb)
