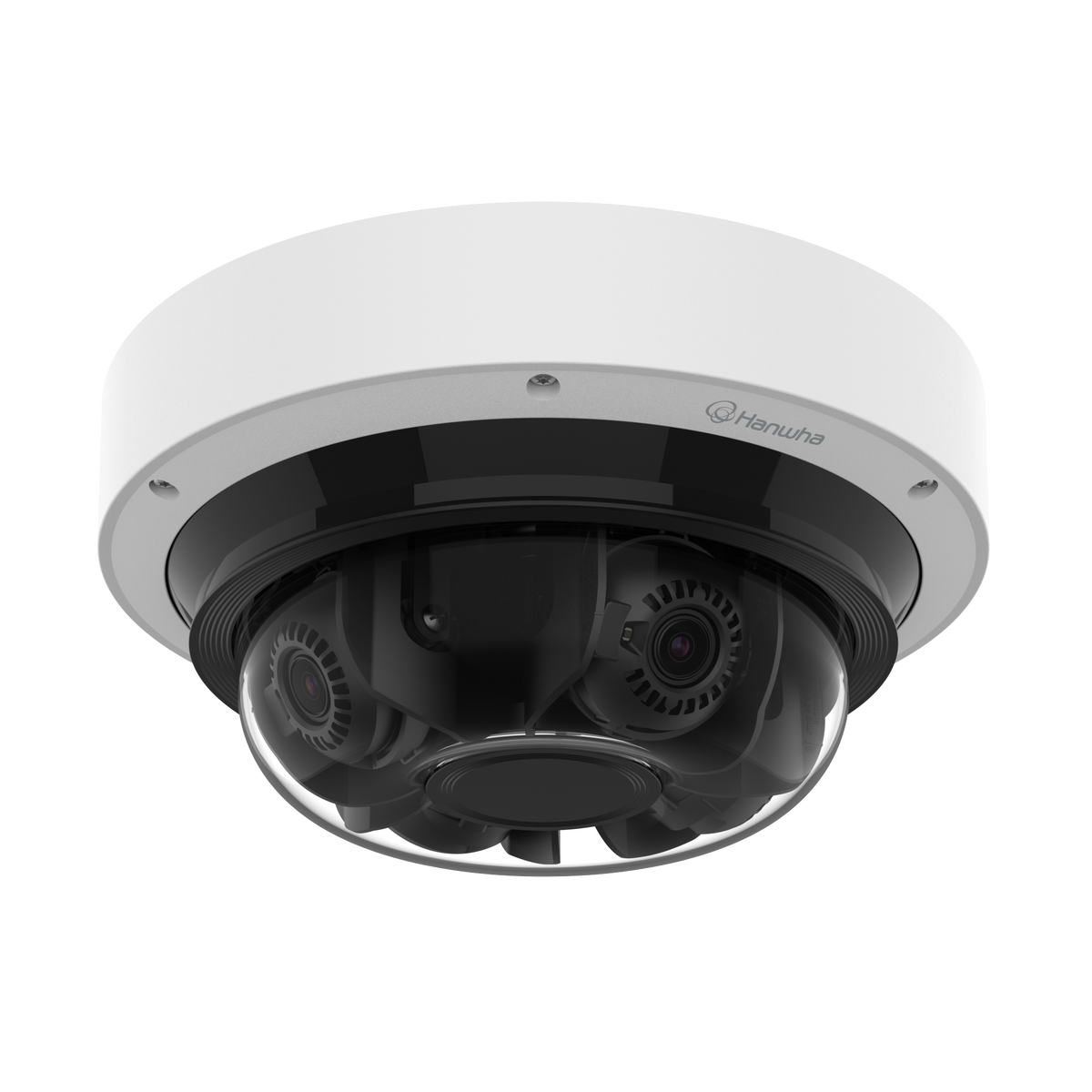

Hanwha Vision PNM-C16083RVQ Wisenet P series 16MP Vandal Outdoor Multi-Directional 3.3~5.7mm IP security Camera

Key features:

360° Analytics events based on AI engine: Classified object (Person/Face/Vehicle/License plate)
• 360° Attributes search (Vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
• AI based loitering detection and line crossing detection
• AI based WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ
• Compact size & semi-modular design
• Next level cybersecurity (TPM 2.0 with FIPS 140-2 level2)
• Reinforced durability (IP66, IK10, NEMA4X)

Specifications

Video

Imaging Device Size 1/2.8"
Type CMOS
Resolution 2592x1520, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264 30fps/25fps(60Hz/50Hz)
MJPEG 30fps(@4MP Max. 5fps)
Min. Illumination (Lux) Color(1/30sec, 30IRE) 0.075
BW(1/30sec, 30IRE) 0.0075
Video Out USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.

Lens

Focal Length (mm) 3.3~5.7
Zoom Ratio Optical 1.7x
Max Aperture Ratio (F number) Wide 1.5
Tele 1.9
Angular Field of View Horizontal 100°~53°
Vertical 54°~30°
Diagonal 125°~61°
Min. Object Distance 1.3m(4.27ft)
Focus Control Simple focus
Lens Type Fixed iris

Operational

Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Motion Detection Quantity 8ea
Shape 8point Polygonal zones
Privacy Masking Quantity 6ea
Shape Rectangular zones
Color / Option Gray, Black, White
Gain Control Low, Middle, High
White Balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic Shutter Mode Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
Speed Range 2~1/12,000sec
Video Rotation Flip, Mirror, Hallway view(90°/270°) - Each channel separately
Alarm Interface In/Out 2 configurable I/O ports
Others Support extra alarm I/O via optional I/O box
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
Audio In Selectable(mic in/line in)
Audio Out Line out
Light Type IR LED
Light Viewable Length IR PoE+: WiseIR 15m(49.21ft), PoE++: WiseIR 20m(65.62ft)
IR Wavelength 850nm

Network

Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec Manual, WiseStreamⅢ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR, MJPEG: VBR
Streaming Unicast Up to 10 users
Multicast Support
Multiple Streaming Up to 3 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF S, G, T, M
Others SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection Support

Mechanical

Color White
Material Aluminum
RAL Code RAL9003
Product Dimensions ø250x114.2mm(9.84x4.50")
Product Weight 2,730g(6.02lb)
Compatible Conduit Hole 19.1mm(3/4")(M25)
Compatible Gang Box Single, Double, 4" Octagon, Square
